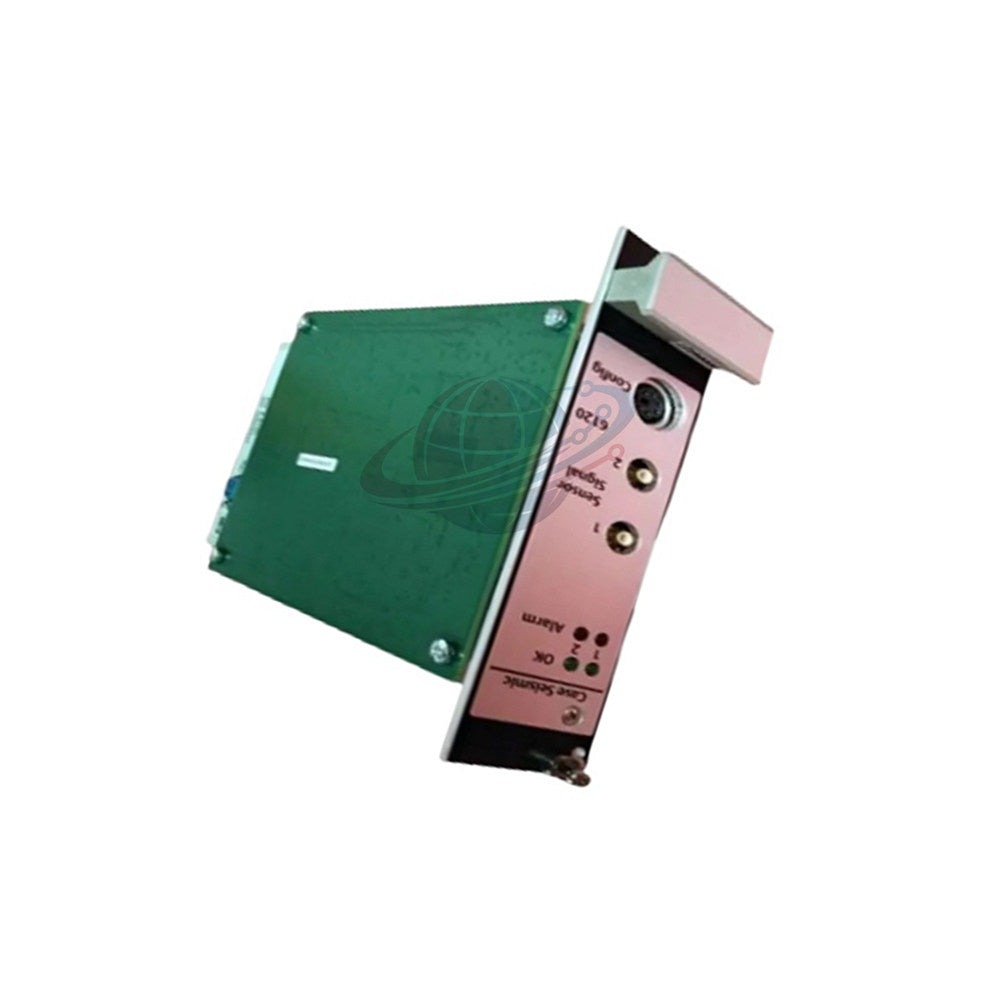

A6120 CSI 6500 Emerson Vibration Monitor Case Seismic Module

Engineered Overview – A6120 Case Seismic Vibration Monitor

The A6120 is a precision vibration monitoring module designed for critical rotating machinery protection.

It operates within the CSI 6500 Machinery Health Monitor ecosystem for integrated diagnostics.

• Focuses on case vibration measurement using velocity-based sensing
• Supports electro-dynamic seismic transducers with differential inputs
• Delivers high reliability in harsh industrial and power generation environments
• Optimized for turbines, compressors, and high-value rotating assets

Signal Architecture & Measurement Logic

• Two independent channels ensure redundant monitoring capability
• Measures case vibration velocity in mm/s or in/sec
• Captures vibration influenced by rotor, structure, and external sources
• Supports RMS, peak, and peak-to-peak evaluation methods
• Advanced harmonic analysis including ½x and 1–10x components
• Phase angle tracking enhances fault identification accuracy

Input & Sensor Compatibility

• Designed for electro-dynamic velocity sensors
• Compatible with Emerson sensors: 9266, 9267, 9268
• Backward compatible with legacy seismic transducers
• Supports modern piezoelectric sensors with integrated conversion
• Galvanically isolated inputs improve noise immunity

Output & Interface Capabilities

• Analog outputs: 0/4–20 mA proportional signals
• Voltage outputs: 0–10 VDC for real-time monitoring
• Buffered outputs for raw signal access and analysis
• Front panel RS-232 interface for configuration
• Modbus TCP/IP enables system-level data integration

Protection Strategy & Alarm System

• Configurable alert and danger thresholds per channel
• Adjustable delay timers for alarm filtering
• Selectable normally open or closed relay logic
• Alarm hysteresis improves stability during fluctuating signals
• Self-diagnostic OK status monitors system integrity continuously
• Remote trip bypass and limit multiplication supported

Mechanical & System Integration

• Compact 3U single-slot module reduces cabinet footprint
• Hot-swappable design minimizes system downtime
• Fits standard 19-inch rack systems
• Supports up to 14 modules per rack configuration
• Robust PCB design compliant with DIN standards

Environmental & Reliability Profile

• Operating temperature range: 0°C to 65°C
• Storage temperature range: -30°C to 85°C
• Humidity tolerance: 5% to 95%, non-condensing
• Shock and vibration compliant with IEC standards
• EMC compliance ensures stable operation in industrial environments

Application Scope & Diagnostic Capability

• Steam and gas turbines condition monitoring
• Compressors and pump vibration protection
• Hydropower turbomachinery diagnostics
• Nuclear power plant case vibration monitoring
• Detects imbalance, resonance, structural looseness, and coupling issues
• Supports predictive maintenance and early fault detection

Global PLC Spare HUB's Insight

The A6120 provides a robust bridge between legacy seismic sensors and modern condition monitoring systems.

Its dual-channel design and flexible output architecture make it ideal for high-integrity protection loops.

Best suited for integration with DCS platforms like DeltaV and Ovation systems.

Logistics & Warranty

• Standard delivery via FedEx, UPS, or DHL
• Dispatch within 24–48 hours after order confirmation
• Carefully packaged for industrial transport conditions
• 12-month warranty ensures operational confidence

FAQ – Practical Engineering Insights

• How does this module differ from shaft vibration monitoring?
• It measures casing vibration, not shaft displacement, capturing structural behavior.
• What is the advantage of dual-channel monitoring?
• It enables redundancy and simultaneous multi-point vibration evaluation.
• How to select the correct frequency range?
• Match frequency bands to machine type and expected fault signatures.
• Can this module detect early-stage mechanical faults?
• Yes, harmonic analysis helps identify imbalance and misalignment early.
• What should be considered during system integration?
• Ensure compatibility with control system protocols and sensor types.
