3500/15-01-01-00 Bently Nevada AC Power Supply | Rack Module

Product Overview

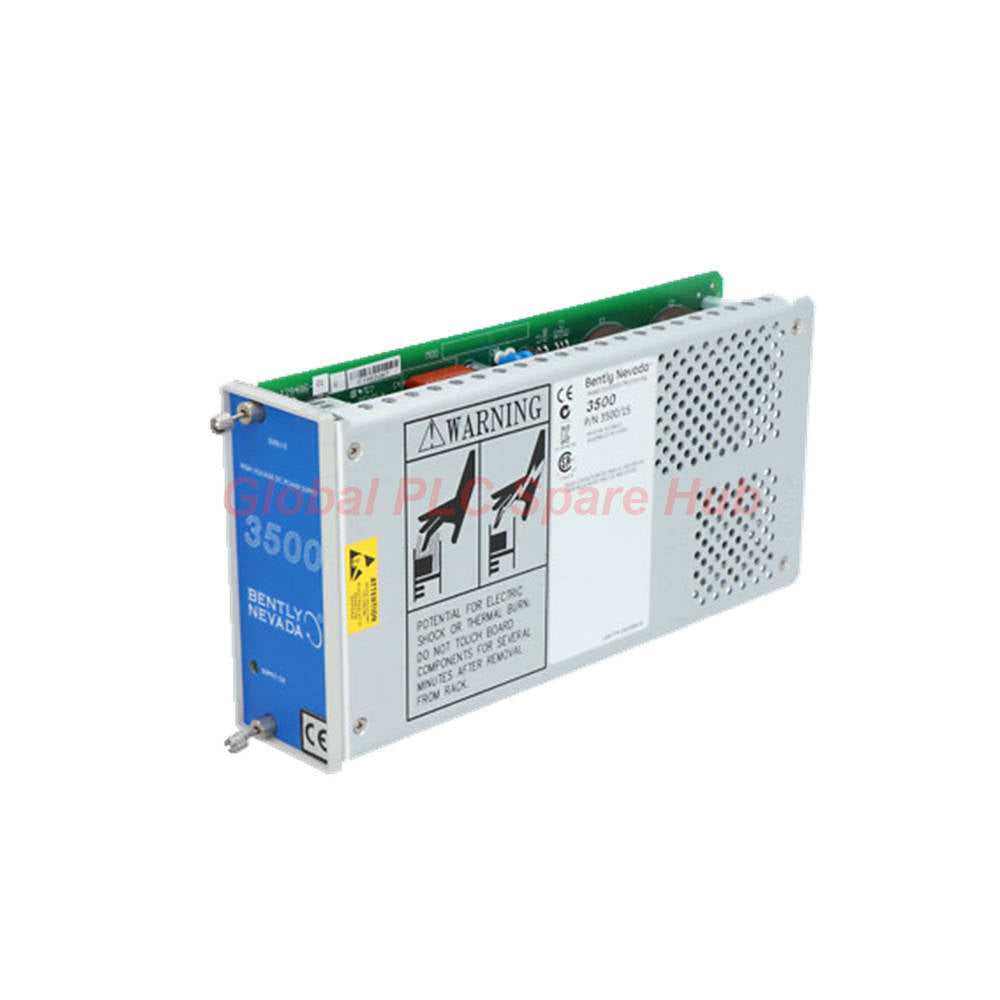

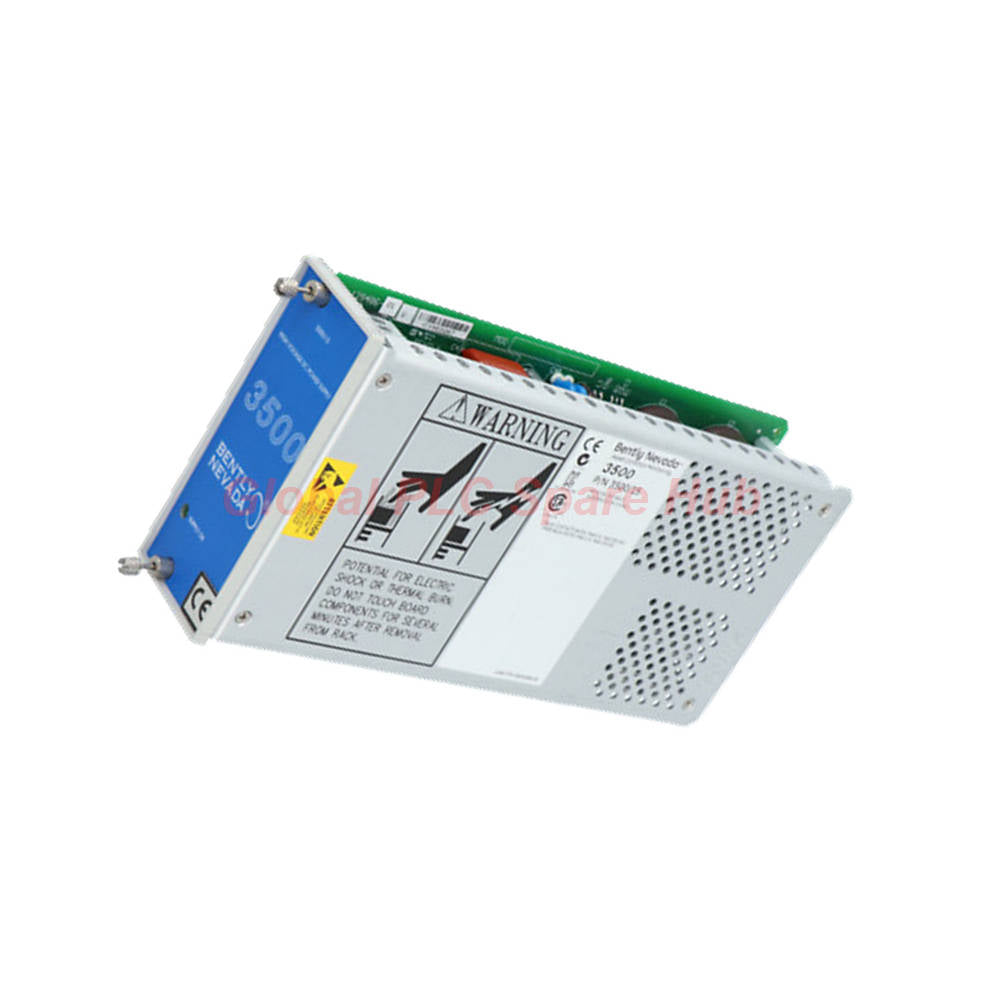

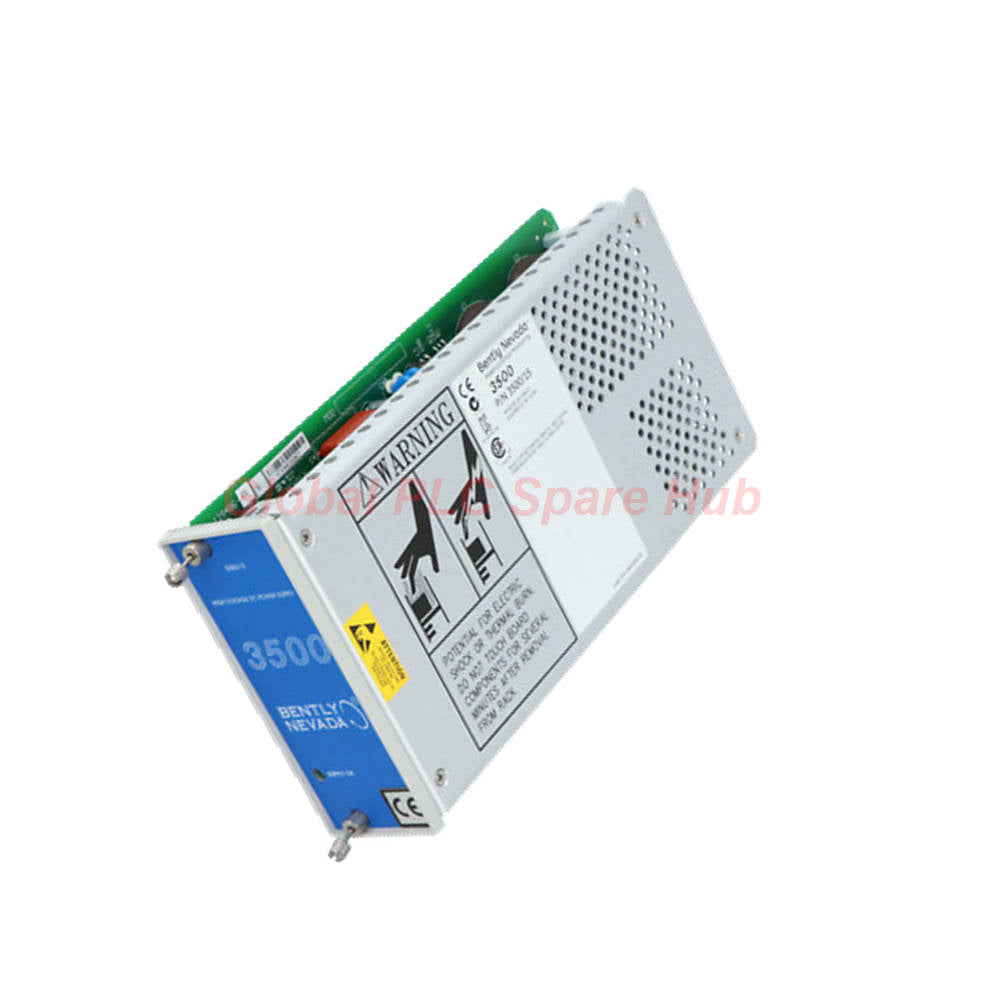

Global PLC Spare HUB's Insight: The Bently Nevada 3500/15-01-01-00 is an essential half-height AC power supply module engineered specifically for the mission-critical 3500 Series Machinery Protection System. Fabricated in the U.S.A., this unit accepts low voltage AC power inputs ranging from 85 to 132 Vac rms and converts them cleanly into stable internal dc operating voltages required by rack-mounted monitors and interface cards. Designed for high-reliability industrial infrastructure, it supports redundant dual-supply architectures to guarantee uninterrupted continuous plant protection.

Configuration Breakdown & Part Number Matrix

Advanced Technical Specifications

• Physical Dimensions: 25.15 cm depth x 5.08 cm width x 12.07 cm height (half-height rack slot footprint).
• Module Net Weight: 1.39 kg (robust industrial metal enclosure).
• Input Voltage Range: 85 to 132 Vac rms for the low voltage AC configuration.
• Input Frequency Span: 47 to 63 Hz nominal line frequency compatibility.
• Operating Temperature Threshold: -30°C to +65°C (-22°F to +150°F).
• Storage Thermal Envelope: -40°C to +85°C (-40°F to +185°F).
• Environmental Humidity: Up to 95% relative humidity, non-condensing.
• Compliance Standards: EN 61000-6-2 EMC immunity, EN 61000-6-4 EMC emissions, and EN 61010-1 electrical safety.

Target Equipment & Industrial Applications

• Installed exclusively in designated left-side power slots of standard 3500 Series instrument racks.
• Deploys across power generation turbine controls, critical petrochemical compressors, and large heavy industrial pump skids.
• Powers complex multi-rack machinery monitoring frameworks tracking vibration, temperature, and dynamic shaft parameters.

Machinery Diagnostic Capabilities & Redundancy Features

• Provides continuous, noise-isolated power conversion to prevent transient line spikes from corrupting critical vibration monitoring channels.
• Supports redundant dual-module configurations where the lower rack slot acts as primary power and the upper slot functions as seamless backup.
• Enables hot-swappable module replacement without disrupting active rack data collection or tripping machinery protection relays, provided a second supply remains energized.

Fulfillment, Warranty & Shipping Terms

• Warranty Protection: Comprehensive 12-month replacement or repair warranty covering all internal electronic components.
• Dispatch Timeline: Expedited order handling with guaranteed dispatch within 24 to 48 hours.
• Global Shipping Partners: Secure, tracked international freight delivered via FedEx, UPS, and DHL.

Comparative Model Analysis & Selection Guidance

Comparison Model Reference: Compatible with universal AC and high/low voltage DC modules within the 3500/15 ecosystem.

Engineering Recommendation: When upgrading or configuring a rack, ensure compatibility between power supply modules and corresponding Power Input Modules (PIM). Legacy components do not mix with universal or newer DC supply revisions. Select the 3500/15-01-01-00 when your facility local distribution transformer supplies standard low voltage AC lines (85 to 132 Vac rms) and strict non-redundant or primary-backup slot allocation is required.

Frequently Asked Questions

What happens to rack operation if the primary 3500/15-01-01-00 power supply fails unexpectedly?
If a second power supply is installed in the upper rack slot, it assumes full load instantaneously without any disruption to rack monitoring functions or relay protection logic.

Can technicians hot-swap this power supply module while the machinery monitor rack is fully energized?
Yes, removing or inserting either power supply module is fully safe and non-disruptive to rack operation as long as a secondary backup supply is actively running in the enclosure.

Why must the 3500/15 modules be installed strictly on the left side of the rack?
The backplane power bus and internal pin allocation on the left side of the 3500 enclosure are hardwired specifically to route high-amperage line voltages safely away from sensitive signal processing monitor cards.

How does line frequency variation affect the low voltage AC supply performance?
The unit is engineered to operate stably across input frequencies from 47 to 63 Hz, absorbing standard industrial grid fluctuations without dropping output DC rail voltage.

What specific guidelines apply when mixing AC and DC power supplies in the same rack?
The 3500 rack accepts any combination of AC and DC supplies across its primary and backup slots; however, technicians must verify that each module matches its dedicated rear Power Input Module (PIM) specification.
