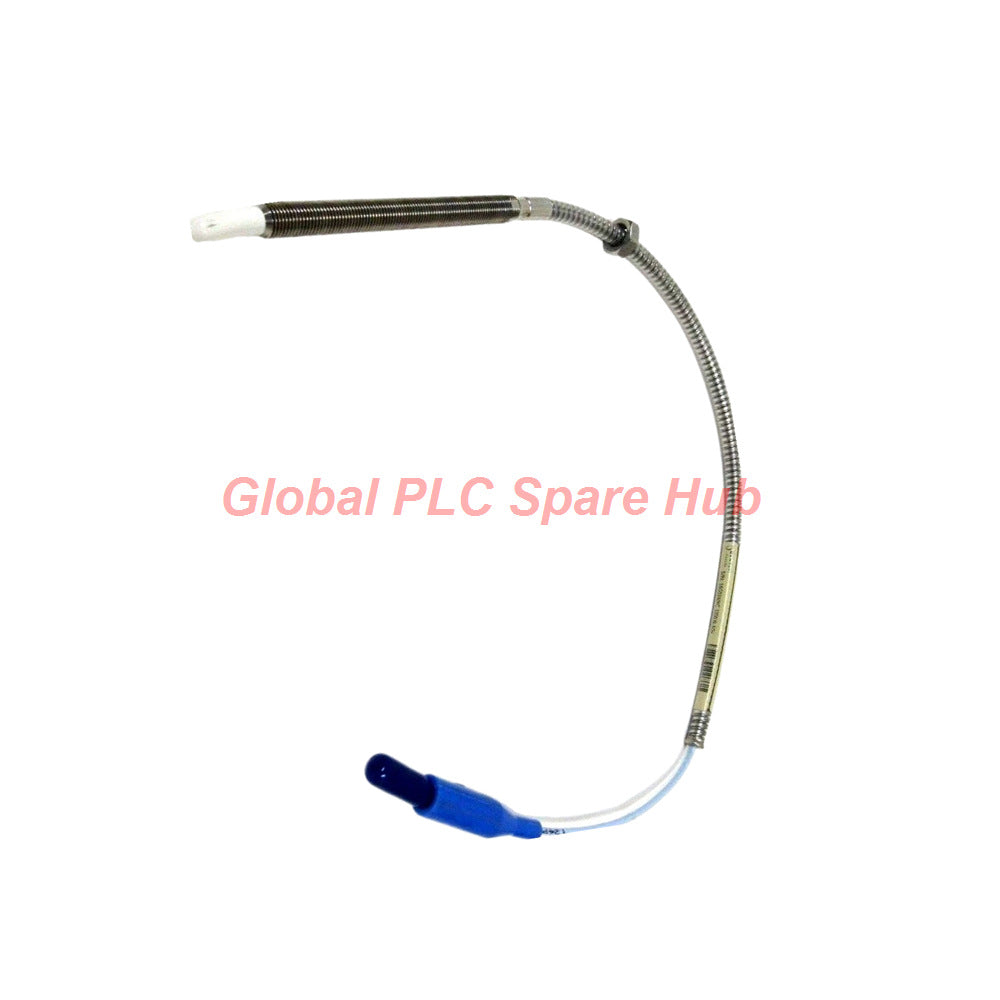

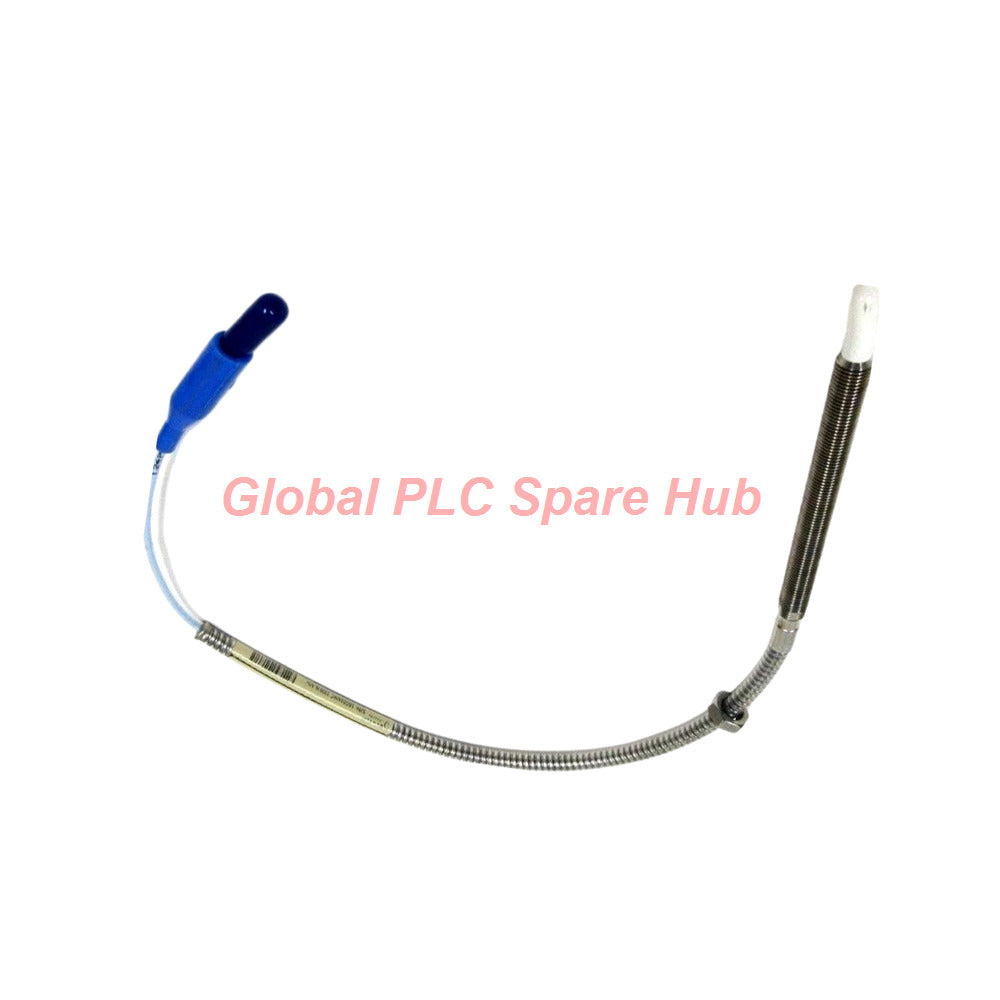

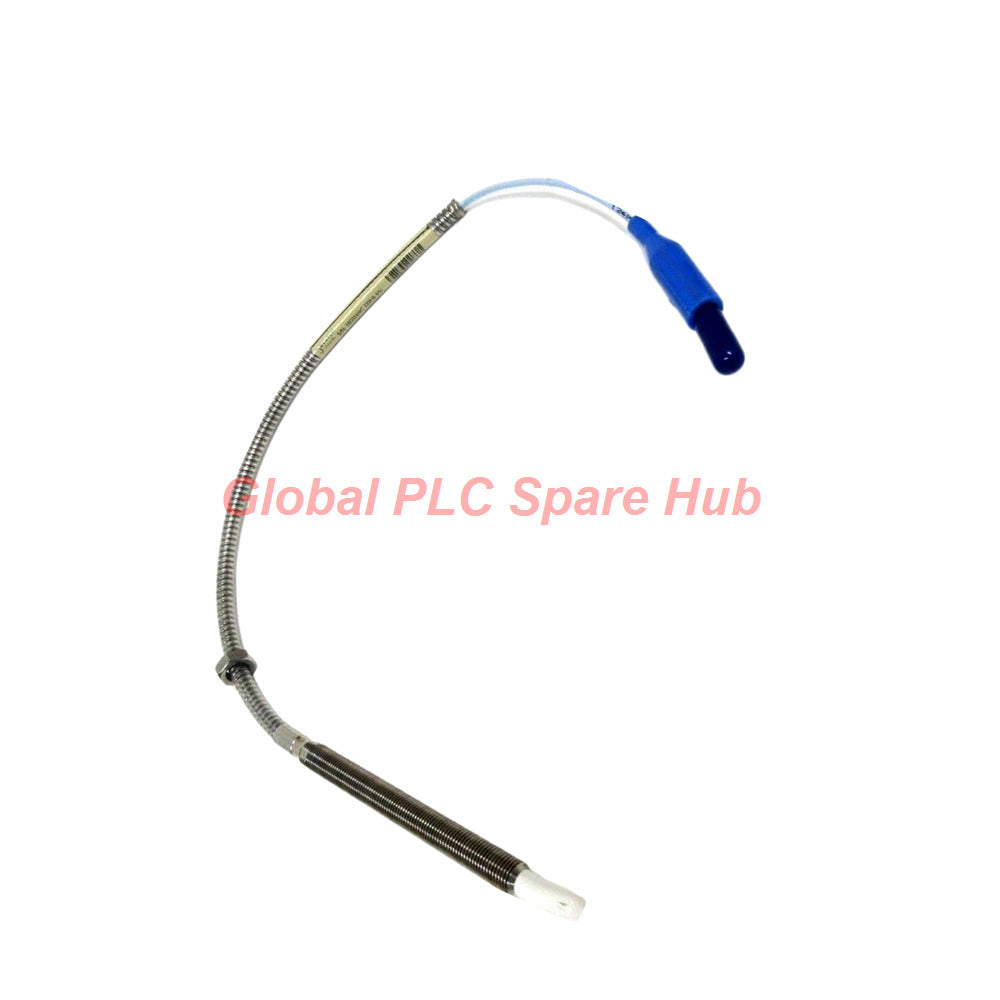

330909-00-20-70-01-05 BN 3/8-24 Armored Eddy Current Transducer

Engineering Architecture and Configuration Breakdown

The 330909-00-20-70-01-05 transducer represents an advanced Bently Nevada 3300 NSv proximity probe featuring integrated stainless steel armor for heavy industrial routing. Engineered for small target measurements and low-speed machinery vibration analysis, the exact part number configuration is detailed below:

Technical Parameters and Mechanical Specifications

Physical Mounting and Installation Guidelines

• Thread the armored 3/8-24 UNF probe case into machine ports, keeping thread engagement strictly under the 0.563-inch maximum limit.
• Apply the recommended installation torque of 11.3 N•m (100 in•lb) for standard mounting or 7.5 N•m (66 in•lb) across the first three threads to prevent housing distortion.
• Leverage the flexible stainless steel armor to protect the 7.0-meter coaxial cable when routing through heavy maintenance traffic zones.
• Verify that installation ambient temperatures remain above -34°C (-30°F) to prevent low-temperature hardening of the Viton O-ring pressure seal.

Diagnostic Capabilities and Signal Monitoring

• Continuous verification of probe DC resistance (5.9 ohms) via linked 3300 NSv monitors enables instant identification of open or short circuits.
• High-frequency eddy current tracking captures subtle radial vibration and axial position changes on restricted-target shafts.
• ClickLoc connector and protective cap prevent moisture ingress and mechanical loosening under heavy machinery vibration.

Target Equipment and Application Scenarios

• High-speed centrifugal compressors and specialized multi-stage pumps operating in harsh industrial environments.
• Compressor trains and auxiliary gearboxes requiring long cable runs routed through heavy-duty protective conduit pathways.
• Turbine machinery where standard unarmored coaxial cables risk mechanical abrasion from nearby structural members.

Global PLC Spare HUB's Insight and Field Experience

Plant reliability engineers frequently select the 330909-00-20-70-01-05 when machinery vibration probes must span long cable distances through cluttered, abrasive industrial cable trays. Field experience demonstrates that while the stainless steel armor provides exceptional mechanical defense, installers must avoid sharp radius bends near the probe case backshell to prevent crushing the internal 75-ohm coaxial core. Additionally, verifying the 5.9-ohm DC loop resistance during commissioning ensures that the extended 7.0-meter cable span has not suffered signal attenuation due to improper connector torque.

Model Selection Comparison and Technical Recommendation

When assessing alternative configurations within the same product family, comparing this unit against the 330909-05-30-05-02-00 3300 NSv Proximity Probe highlights vital mechanical differences. While the model described here features a 2.0-inch case, a long 7.0-meter armored cable, and multiple approvals (Option 05), the alternative model utilizes a longer unthreaded section (Option 05), an extended 3.0-inch case length (Option 30), a shorter 0.5-meter cable, and standard commercial-grade agency ratings. Engineers should choose this 7.0-meter armored variant when the proximitor cabinet is located far from the machine penetration point, whereas the 0.5-meter option suits close-coupled junction box installations.

Frequently Asked Questions

Q: What specific mechanical advantage does the integral stainless steel armor provide over standard unarmored probe cables?
A: The stainless steel armor shields the 75-ohm FEP insulated coaxial cable from physical cutting, metal shavings, and heavy mechanical abrasion in congested industrial cabinets.

Q: Why does the manufacturer specify a reduced maximum torque rating when tightening only the first three threads of the probe case?
A: Tightening across only the leading threads concentrates mechanical stress on a smaller surface area, requiring a lower torque limit of 22.6 N•m to avoid stripping the mounting hole.

Q: What corrective steps are required if the proximitor diagnostic LED indicates an open-circuit fault on a newly installed probe?
A: Disconnect the ClickLoc connector, check for pin contamination, and measure loop resistance to confirm it matches the nominal 5.9-ohm rating for a 7-meter cable.

Q: Can the 330909-00-20-70-01-05 probe be utilized in high-pressure oil lubrication cavities without auxiliary sealing?
A: Yes, the integrated Viton O-ring seals differential pressure between the probe tip and case boundary, provided installation torque and temperature limits are respected.

Q: What selection guide rules govern the decision to deploy a 7.0-meter total length probe assembly?
A: Select the 7.0-meter length option when machinery safety guidelines require mounting the 3300 NSv proximitor outside hazardous or high-vibration local enclosures.

Logistics and Warranty Terms

• Backed by a reliable 12-month warranty covering manufacturing defects and electrical calibration precision.
• Expedited global delivery managed through premier shipping carriers including FedEx, UPS, and DHL.
• Guaranteed order processing and dispatch within 24-48 hours of verification.
