KM55-010 Yokogawa 1.0M Connector Cable KM55-010 Interface Cord

Manufacturer: Yokogawa
Product No.: KM55-010
Condition： In stock
Product Type: Cable
Product Origin: SG
Payment: T/T, Western Union
Weight: 100g
Shipping port: Xiamen
Warranty: 12 months

Quantity

Selected quantity: 1

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guaranteed Safe Checkout

Cable Interconnection & Engineering Overview

The KM55-010 pre-wired interface cable provides dependable signal transmission between control modules and terminal blocks. Manufactured by Yokogawa, this KM55-010 cable features an exact 1.0-meter length and precision pin mapping that matches module connector standards directly without signal transposition errors.

Technical & Environmental Specifications

Brand	Yokogawa
Model / Catalog Number	KM55-010
Product Series	FA-M3 & Compatible Control System Accessories
Accessory Type	Connector Terminal Block Interconnection Cable

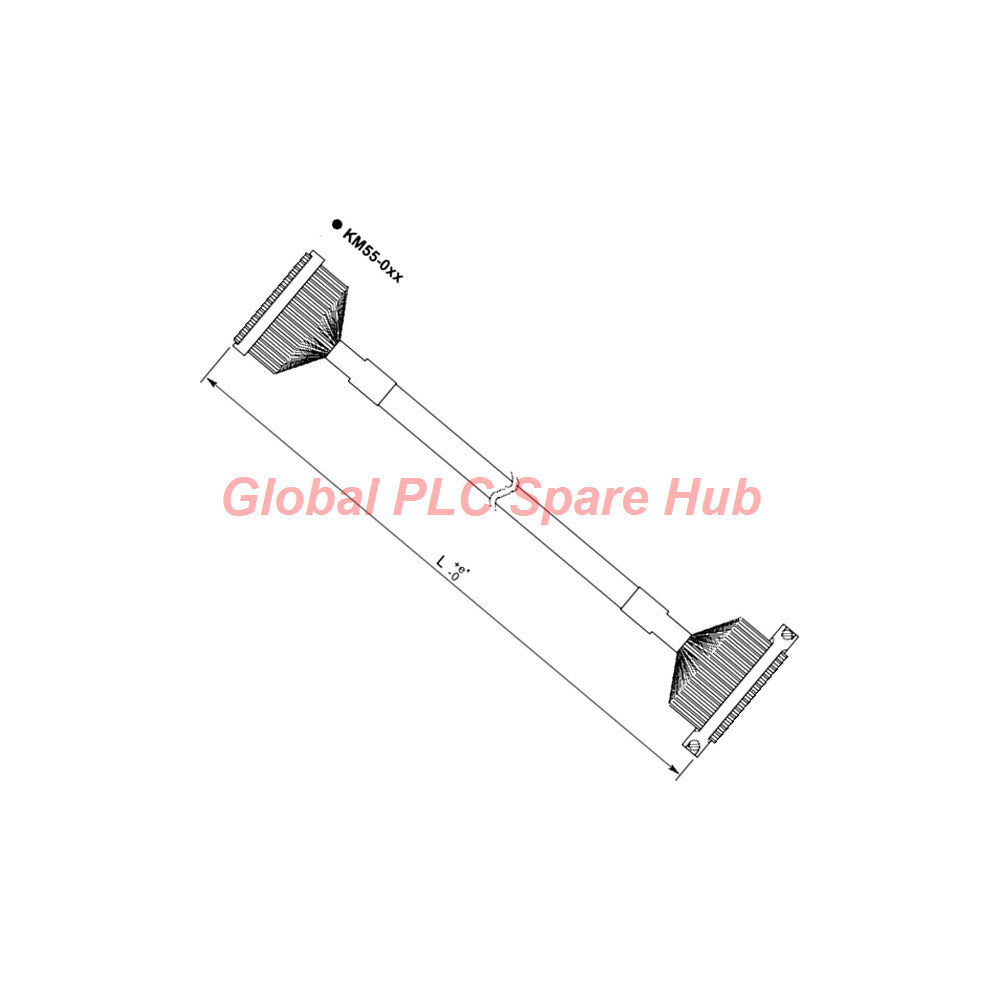

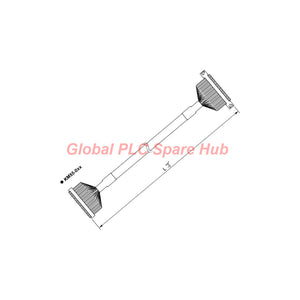

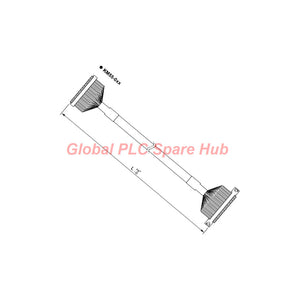

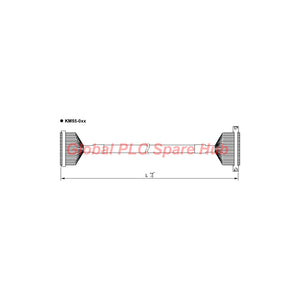

Standard Cable Length (L)	1.0 Meter (1,000 mm)
Pin Assignment Mapping	Direct 1-to-1 Match with Module & Terminal Connectors
Operating Temperature	0°C to 55°C (Storage: -20°C to 75°C)
Operating Humidity	10% to 90% RH (Non-condensing)
Environmental Tolerance	Free of corrosive gases, flammable vapors, and heavy dust

System Integration & Compatibility Guidelines

Module Interfacing: Designed to bridge high-density I/O cards with separate terminal block conversion units.
Selection Rule: Because terminal blocks ship unbundled, this dedicated cable must be chosen based on required cabinet routing length.
Pinout Integrity: Factory-molded ends guarantee zero wiring transposition errors across multi-conductor signal paths.

Built-in Diagnostic & Signal Protection Features

Strain Relief Housing: Molded connector boots protect internal solder joints against mechanical pulling and vibration fatigue.
Shielded Continuity: Continuous outer insulation guards low-level logic lines against adjacent high-voltage electromagnetic interference.
Visual Inspection: Clear outer jacketing allows technicians to inspect internal conductor bundles during routine panel audits.

Global PLC Spare HUB Insight & Field Experience

Our industrial automation engineers frequently deploy the KM55-010 harness in compact marshalling cabinets where tight spacing prohibits bulky hand-wired terminal setups. During a recent pharmaceutical mixing panel upgrade, utilizing this 1.0-meter pre-terminated cord reduced installation labor time by 70% and eliminated intermittent hand-crimping errors.

Field Engineering Tip: Always measure your exact physical cable tray distance before selecting the 1.0-meter variant; never pull tight against connector boots, and leave a small service loop to absorb cabinet vibration.

Typical Application Scenarios & Target Machinery

Control panel internal wiring linking high-density I/O cards to DIN-rail terminal blocks.
Modular water treatment skids requiring rapid plug-and-play signal harness replacement.
Automated test bench fixtures interfacing controller racks to external junction interfaces.

Selection & Engineering Buyer's Guide

Verify that your physical distance between the module and terminal block matches the 1.0 m specification.
Confirm your connector gender and pin count match both the I/O module port and the target terminal block unit.
Stock spare pre-terminated cables to minimize mean-time-to-repair (MTTR) during emergency control system overhauls.

Logistics, Fulfillment & Warranty Protection

Warranty Terms: Fully backed by a comprehensive 12-Month Quality Guarantee.
Fulfillment Speed: Fast dispatch processing within 24 to 48 hours.
Global Couriers: Secure international shipping via FedEx, UPS, and DHL.
Package Inventory: 1 x Yokogawa KM55-010 1.0m Cable, Protective End Caps, QC Compliance Tag.

Frequently Asked Questions (FAQ)

Q: Does the KM55-010 cable come included automatically when purchasing a Yokogawa terminal block?

A: No, connector terminal blocks and connecting cables are sold separately, so you must select the correct cable length manually.

Q: Can I cut and splice this cable to extend its length if 1.0 meter is too short?

A: Field splicing is strongly discouraged because it disrupts impedance matching and risks introducing high-resistance connection faults; select a longer pre-fabricated length instead.

Q: How do I verify that the pin mapping matches my specific I/O module?

A: The cable's internal wiring is engineered with a direct pin-to-pin assignment that aligns identically with standard Yokogawa module connector layouts.

Q: What maintenance checks should I perform on the cable connectors over time?

A: Inspect the connector latching screws and locking clips annually to ensure vibration has not loosened the terminal interface.

Q: Is this cable rated for continuous flexing inside moving robotic cable tracks?

A: No, this cable is designed for stationary internal cabinet routing and should not be subjected to continuous flexing motion.
