Product Overview

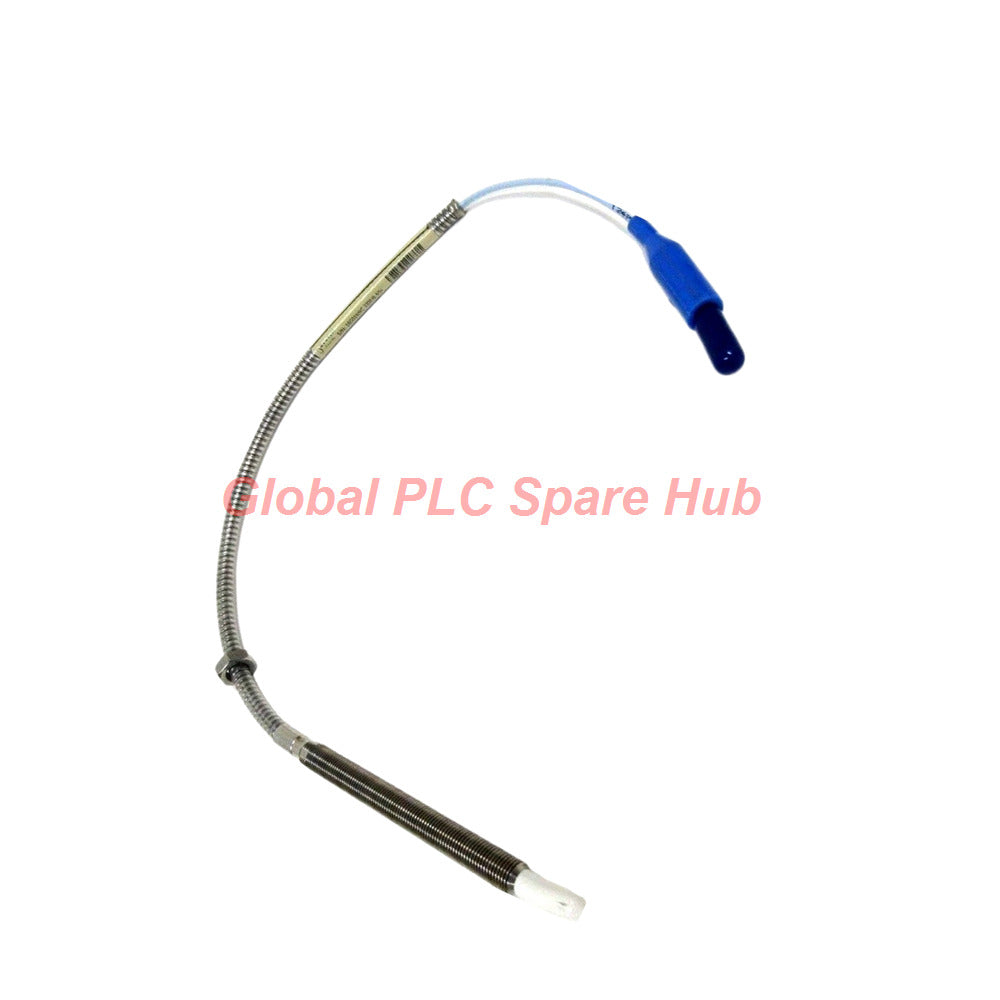

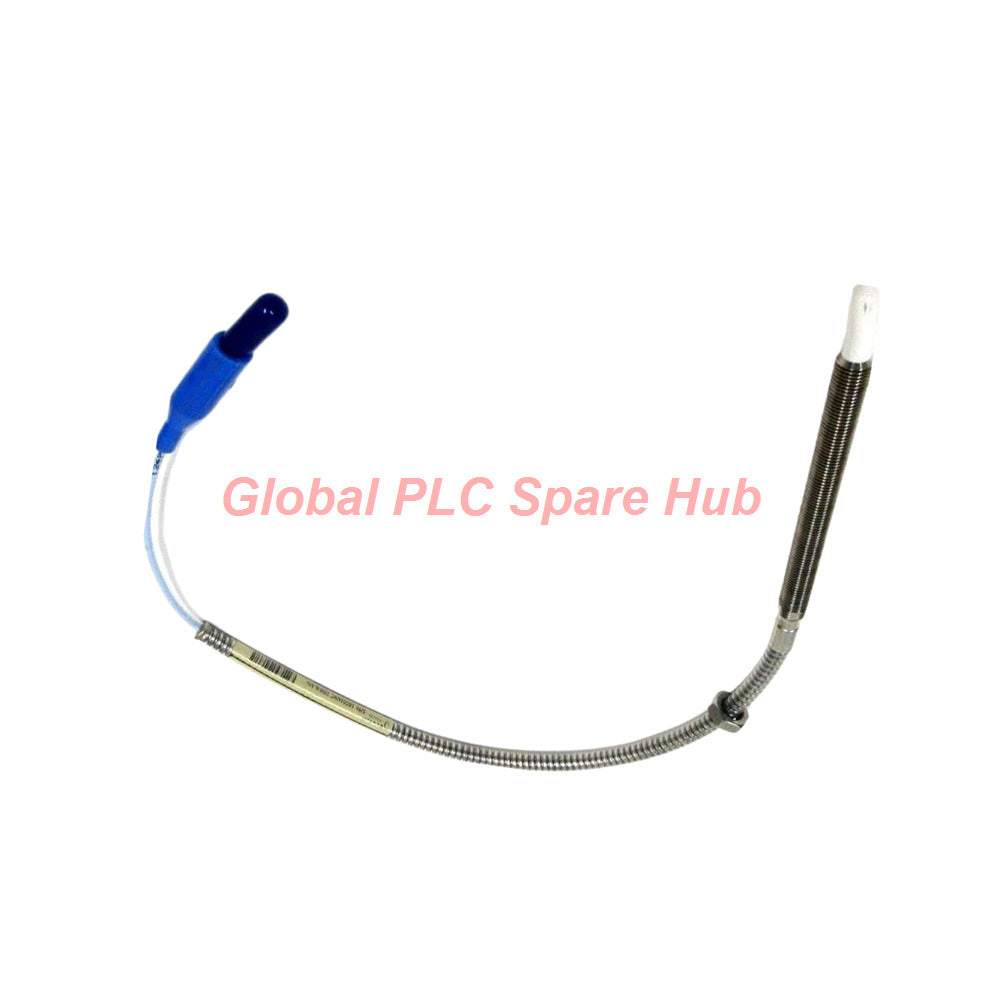

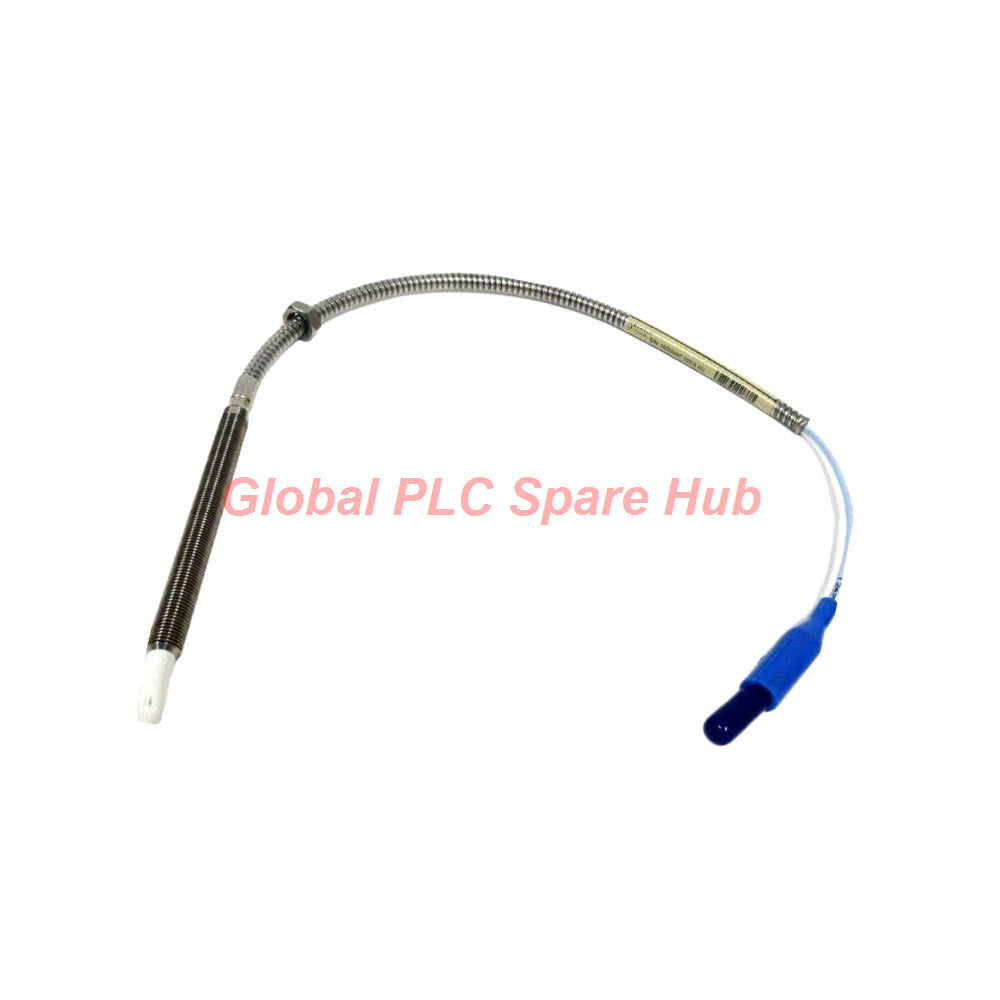

The Bently Nevada 330909-05-30-05-02-00 belongs to the advanced 3300 NSv series. Engineers deploy this proximity probe for precision vibration and position measurements in industrial machinery. The 330909 model features a robust 3/8-24 UNF thread with integrated armor for superior mechanical protection. It accurately captures dynamic signals in confined spaces and harsh environments.

Technical Specifications

Installation Guide

• Thread the 330909 probe into the mounting hole carefully.
• Apply recommended torque of 11.3 N•m (100 in•lb) for standard 3/8-24 cases.
• Limit first three threads torque to 7.5 N•m (66 in•lb) to prevent thread distortion.
• Ensure maximum thread engagement does not exceed 0.563 in.
• Route the fluoroethylene propylene (FEP) insulated cable away from high-voltage lines.

Commissioning and Maintenance

• Verify DC resistance matches 4.0 ± 0.5 ohms prior to system startup.
• Inspect the ClickLoc connector for secure mechanical locking.
• Avoid exposing the probe tip to temperatures below -34°C (-30°F) during operation to protect the Viton O-ring pressure seal.
• Perform routine calibration checks using standard vibration simulators.

Compatibility and Diagnostics

• Fully compatible with Bently Nevada 3300 NSv monitoring systems and proximitor sensors.
• Provides high-resolution gap voltage measurements for shaft radial vibration and axial position.
• Enables early fault detection of radial preload issues and rotor dynamic anomalies.

Certification and Warranty

• Manufactured in the U.S.A. to strict quality standards.
• Backed by a comprehensive 12-month warranty.
• Complies with industrial durability requirements.

Shipping and Logistics

• Fast order processing within 24-48 hours.
• Global shipping supported via FedEx, UPS, and DHL.

Package Contents

• One Bently Nevada 330909-05-30-05-02-00 Proximity Probe
• Integrated Armor and ClickLoc Connector Cable
• Factory Specification Sheet

Buying Guide and Selection Tips

• Verify your mounting thread size matches the 3/8-24 UNF specification before ordering.
• Confirm total probe length requirements match your machinery casing depth.
• Select armored variants when cables face severe mechanical abrasion risks.

Frequently Asked Questions

Question: What causes premature pressure seal failure in the 330909 probe?

Answer: Exposing the probe to temperatures below -34°C (-30°F) for sustained periods degrades the Viton O-ring seal.

Question: How do field engineers verify probe health during commissioning?

Answer: Technicians measure DC resistance from the center conductor to the outer conductor, expecting a baseline of 4.0 ± 0.5 ohms.

Question: Can the 3300 NSv system operate in high-temperature environments?

Answer: Yes, the probe withstands continuous operating temperatures up to +177°C (+351°F).

Global PLC Spare HUB's Insight

Field engineers frequently encounter high vibration readings caused by loose mounting threads on proximity probes. Global PLC Spare HUB recommends strictly adhering to the 11.3 N•m torque specification during installation. Maintaining proper mechanical preload prevents false vibration spikes and extends sensor lifespan in critical turbomachinery applications.
