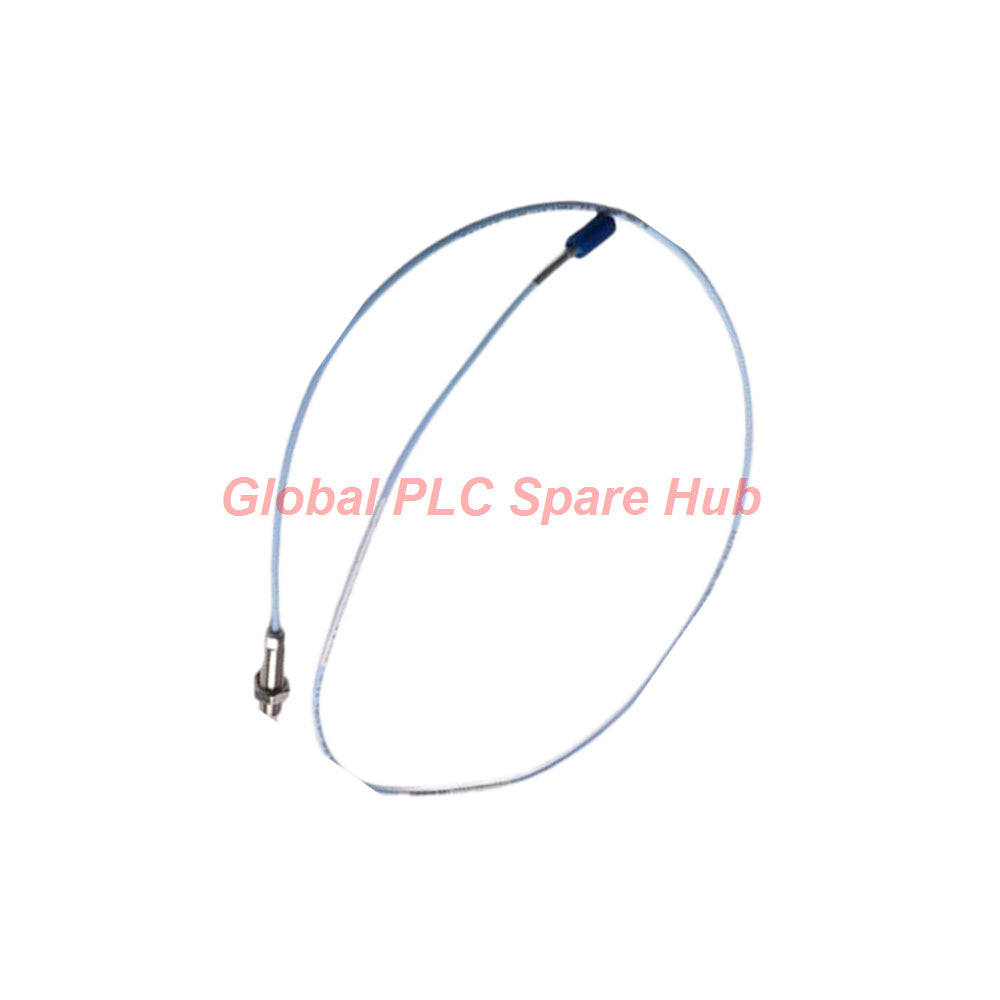

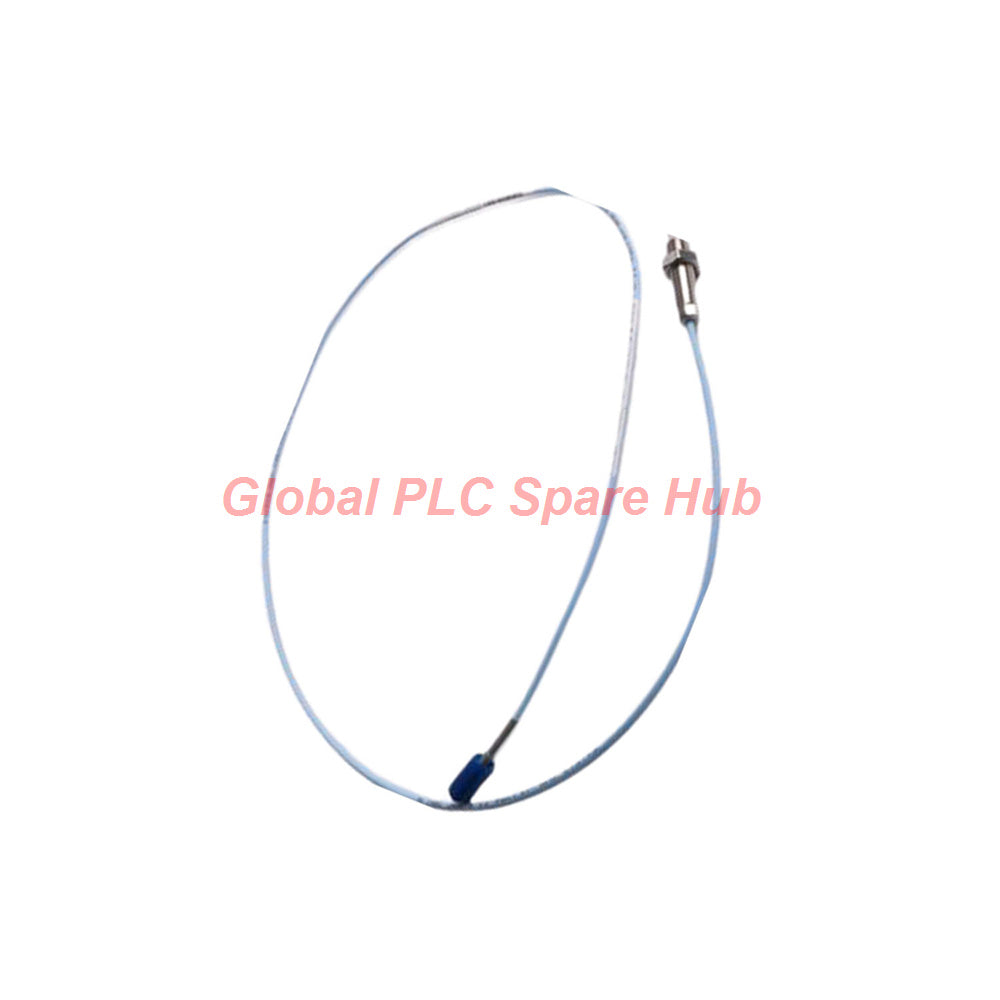

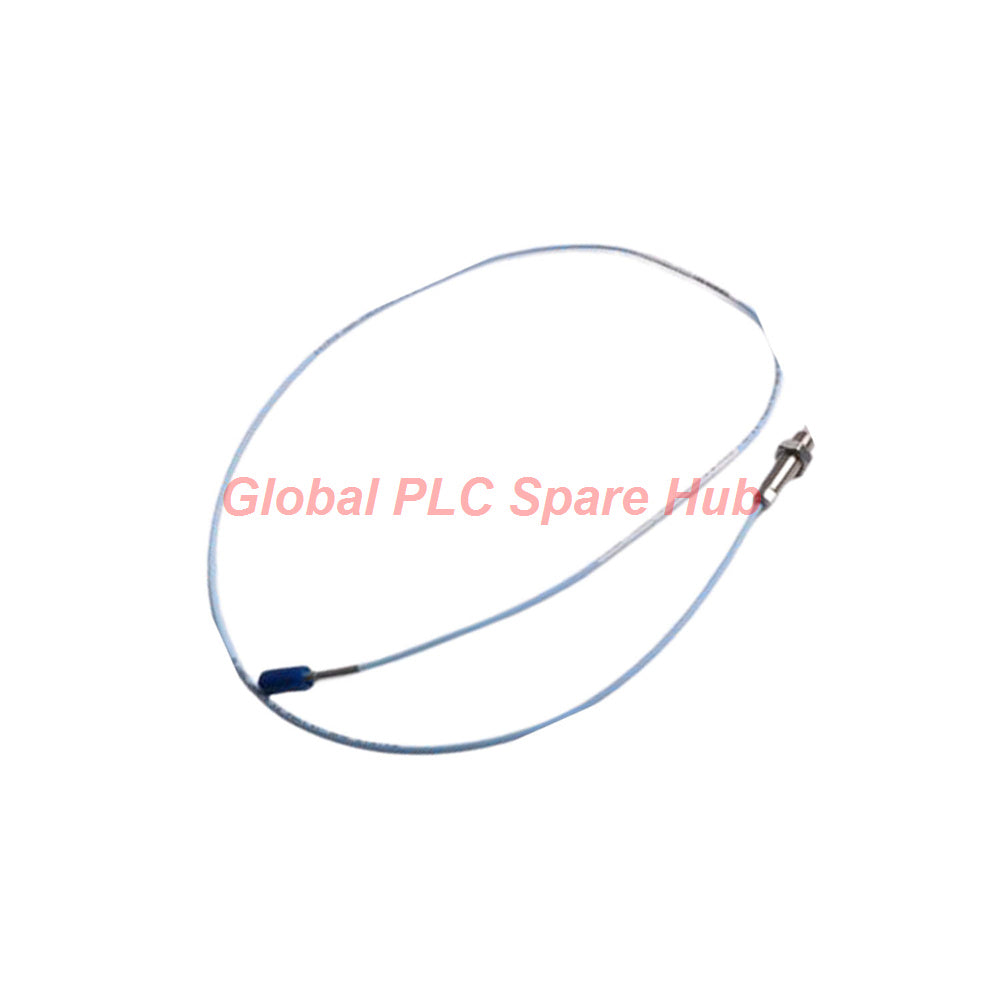

330908-12-31-05-02-05 Bently Nevada Proximity Probe

Product Overview

The 330908-12-31-05-02-05 is a precision-engineered 3300 NSv Proximity Probe manufactured by Bently Nevada. Specifically designed for machinery with small physical targets, low-speed operation, or constrained mounting spaces where standard proximity probes experience measurement degradation, this transducer system provides highly accurate radial vibration and axial position measurements.

Global PLC Spare HUB's Insight

Drawing from extensive field troubleshooting on high-speed centrifugal compressors and specialized steam turbines, instrument engineers frequently encounter scenarios where standard 3300 XL probes lack sufficient linear range on small shaft diameters or non-standard keyways. The 330908-12-31-05-02-05 utilizes a specialized scaled factor and smaller tip geometry to resolve this constraint. A critical field lesson learned is the handling of the Viton O-ring seal: never expose probe installation to sustained ambient temperatures below -34°C prior to pressure sealing, as thermal contraction can compromise the differential pressure seal between the probe tip and case, leading to premature pneumatic failure.

Configuration Breakdown

Technical Specifications

• Brand: Bently Nevada
• Series: 3300 NSv
• Model: 330908-12-31-05-02-05
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI304 stainless steel (SST)
• Probe dc Resistance: 4.0 ± 0.5 ohms (Center conductor to outer conductor, RPROBE)
• Cable Specifications: 75 Ω coaxial, fluoroethylene propylene (FEP) insulated
• Thread Specification: 3/8-24 UNF with a maximum thread engagement length of 0.563 in
• Torque Limits: Maximum 33.9 N•m (300 in•lb); Recommended 11.3 N•m (100 in•lb) for 3/8-24 cases
• Operating & Storage Temperature: -52°C to +177°C (-62°F to +351°F)
• Probe Pressure Rating: Designed to seal differential pressure via Viton O-ring (not factory pressure tested)
• Probe Weight: Approximately 14 to 150 g (0.5 to 5.3 oz)

Suitable Equipment & Application Scenarios

• Low-speed machinery vibration monitoring (e.g., slow-roll turbine startups and shut-downs)
• Centrifugal compressors and specialized pumps with constrained radial clearances
• Small shaft diameter vibration and axial thrust position measurement
• Laboratory test rigs requiring high-linearity miniature displacement tracking

Diagnostic Capabilities

• Detects sub-synchronous vibration components and rotor dynamic anomalies in tight clearance machinery
• Provides stable gap voltage validation to verify probe positioning and target integrity
• Compatible with standard monitoring systems for open/short circuit fault diagnostics on coaxial cables

Model Comparison & Technical Recommendation

When selecting proximity measurement hardware, comparing part configurations ensures alignment with physical machinery geometry. For instance, evaluate the target variant 330908-22-31-10-01-05 against 330908-12-31-05-02-05. While both share the 3300 NSv platform, model 330908-22-31-10-01-05 features a longer unthreaded section (2.2 in vs 1.2 in) and a 1.0-meter cable with a connector option 01. Engineering recommendation: choose 330908-12-31-05-02-05 if your bracket positioning requires a shorter 1.2-inch unthreaded insertion depth and a 0.5-meter cable run connecting directly to an extension cable near the bearing housing.

Logistics & Warranty Terms

• Shipping Carriers: FedEx, UPS, DHL for reliable global express delivery
• Dispatch Time: Guaranteed shipment within 24 to 48 hours of order confirmation
• Warranty: Comprehensive 12-month industrial replacement warranty

Frequently Asked Questions (FAQ)

Q: Why is the 330908-12-31-05-02-05 chosen over standard 3300 XL probes?
A: It is specifically engineered for small target sizes or low shaft surface speeds where standard proximity probes experience loss of linear measuring range.

Q: What precautions are necessary during mechanical installation of the probe case?
A: Strictly adhere to the recommended installation torque of 11.3 N•m (100 in•lb) using a 3/8-24 wrench to prevent thread stripping or housing distortion.

Q: Can the FEP insulated cable be exposed to harsh synthetic lubricating oils?
A: Yes, the fluoroethylene propylene (FEP) jacket provides excellent chemical resistance against standard industrial hydrocarbon lubricants and synthetic compressor oils.

Q: How do I verify proper electrical connection during commissioning?
A: Measure the dc resistance across the center conductor to the outer conductor, which should precisely read 4.0 ± 0.5 ohms, and check that gap voltage matches expected mechanical cold gap settings.

Q: What selection factors determine whether I need a 0.5-meter versus a 1.0-meter total probe length?
A: Select based on the distance from your mounting bracket to the junction box or proximity monitor enclosure where the extension cable connects, ensuring no excessive cable slack requires coiling near high-voltage sources.
