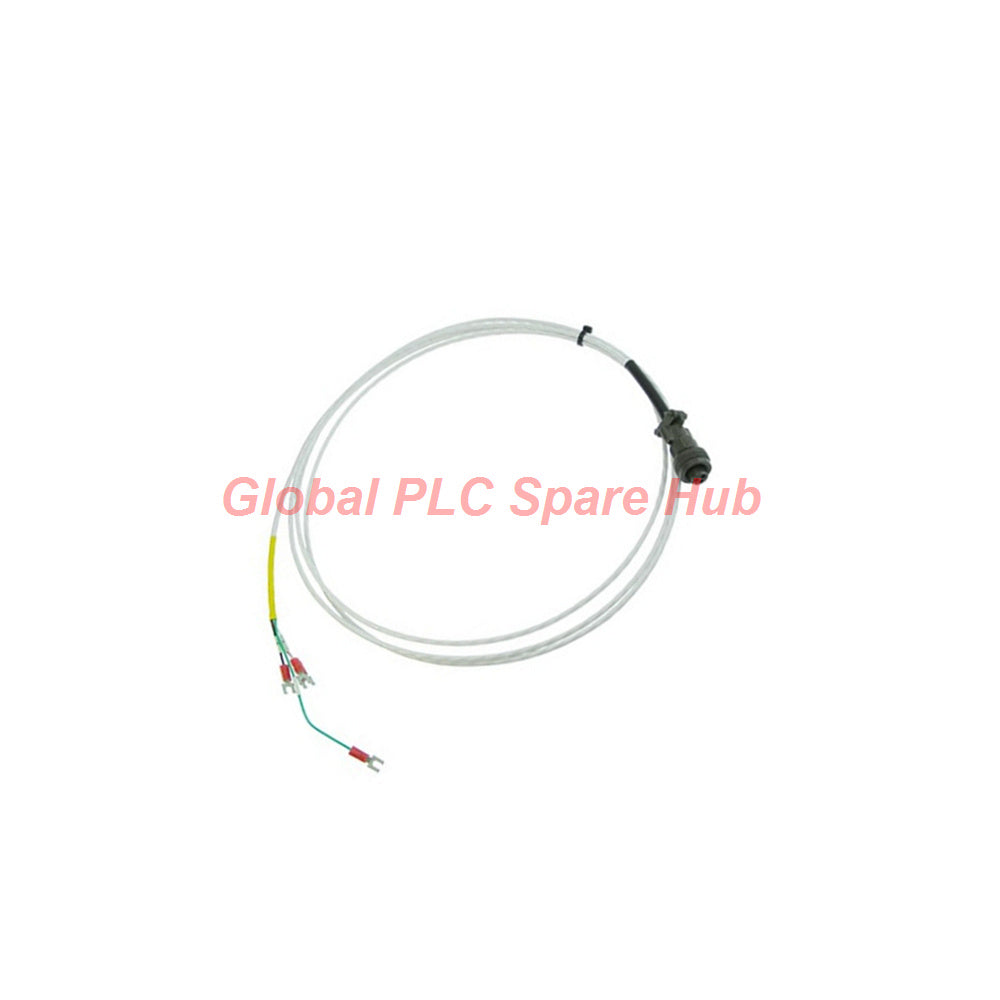

84508-30 Bently Nevada 30ft Sensor Cable

Engineering Overview & Thermal Architecture

The Bently Nevada 84508-30 is a heavy-duty, high-temperature sensor signal cable engineered to maintain signal integrity in extreme industrial environments. Built with a robust 2-wire shielded 22 AWG (0.5 mm²) construction, this assembly effectively eliminates electromagnetic interference (EMI) and radio frequency interference (RFI) across long transmission runs. Equipped with factory-crimped terminal lugs at both ends, it provides a secure, low-resistance connection between vibration sensors, proximity probes, and monitoring racks.

Core Technical Parameters & Length Configuration

Signal Diagnostics & Shielding Architecture

Maintaining pristine vibration telemetry requires rigorous shielding and fault-conscious installation practices:

• Continuous Shield Grounding: The 22 AWG braided shield drains high-frequency electrical noise away from sensitive dynamic signals, preventing false trip alerts on monitoring monitors.
• Terminal Integrity Checks: Factory-lugged ends eliminate field-crimping errors, ensuring stable millivolt-per-mil signal transfer without contact resistance drop.
• Insulation Resilience: High-temperature jacketing prevents thermal embrittlement when routed near hot turbine casings or compressor discharge lines.

Target Equipment & Application Scenarios

• Turbomachinery Monitoring: Connects proximity probes and seismic transducers directly to 3500 or 3300 rack monitors.
• Extreme Thermal Zones: Deployed around steam turbines, gas expanders, and boiler feed pumps where ambient heat destroys standard cabling.
• Industrial Compressors: Extends signal paths across large centrifugal and reciprocating compressor skids safely.
• Power Generation Skids: Used in nuclear, hydro, and fossil fuel plants for critical vibration and shaft displacement feedback loops.

Logistics, Shipping & Warranty Terms

• Fulfillment & Dispatch: Rapid global dispatch within 24 to 48 hours of order confirmation.
• Global Logistics: Secure, trackable international transit handled by trusted partners including FedEx, UPS, and DHL.
• Quality Assurance: Fully backed by a comprehensive 12-month factory warranty covering material and manufacturing integrity.

Global PLC Spare HUB's Insight

• Field Engineering Tip: Never route the **84508-30** cable in the same cable tray as high-voltage motor power lines to prevent induced noise from distorting low-level dynamic vibration waveforms.
• Preventative Practice: Ensure the cable shield drain wire is grounded at only one end (typically the monitor rack side) to avoid creating ground loops that degrade signal accuracy.

Frequently Asked Questions

• Q: What specific length does the -30 suffix represent in the 84508 part number family?
  A: The "-30" suffix designates a standard factory-assembled cable length of exactly 30 feet (9 meters).
• Q: Can the overall length of this shielded cable be cut or spliced in the field?
  A: Field splicing is strongly discouraged because altering the calibrated length or unshielding conductors can introduce impedance mismatches and electrical noise into vibration readings.
• Q: What are the absolute minimum and maximum length limits for this cable series?
  A: The product line supports a minimum length of 1.0 foot (0.3 meters) and a maximum length of 99 feet (30 meters).
• Q: What factors should guide my purchasing selection when replacing machinery protection cabling?
  A: Verify your exact distance requirements between probe and monitor, confirm temperature ratings for your specific skid, and source new-in-box units backed by a 12-month warranty.
• Q: Why is a 2-wire shielded 22 AWG design critical for high-temperature vibration monitoring?
  A: The 22 AWG copper conductors handle low-voltage analog signals efficiently, while the outer shield protects against harsh industrial electromagnetic interference.
