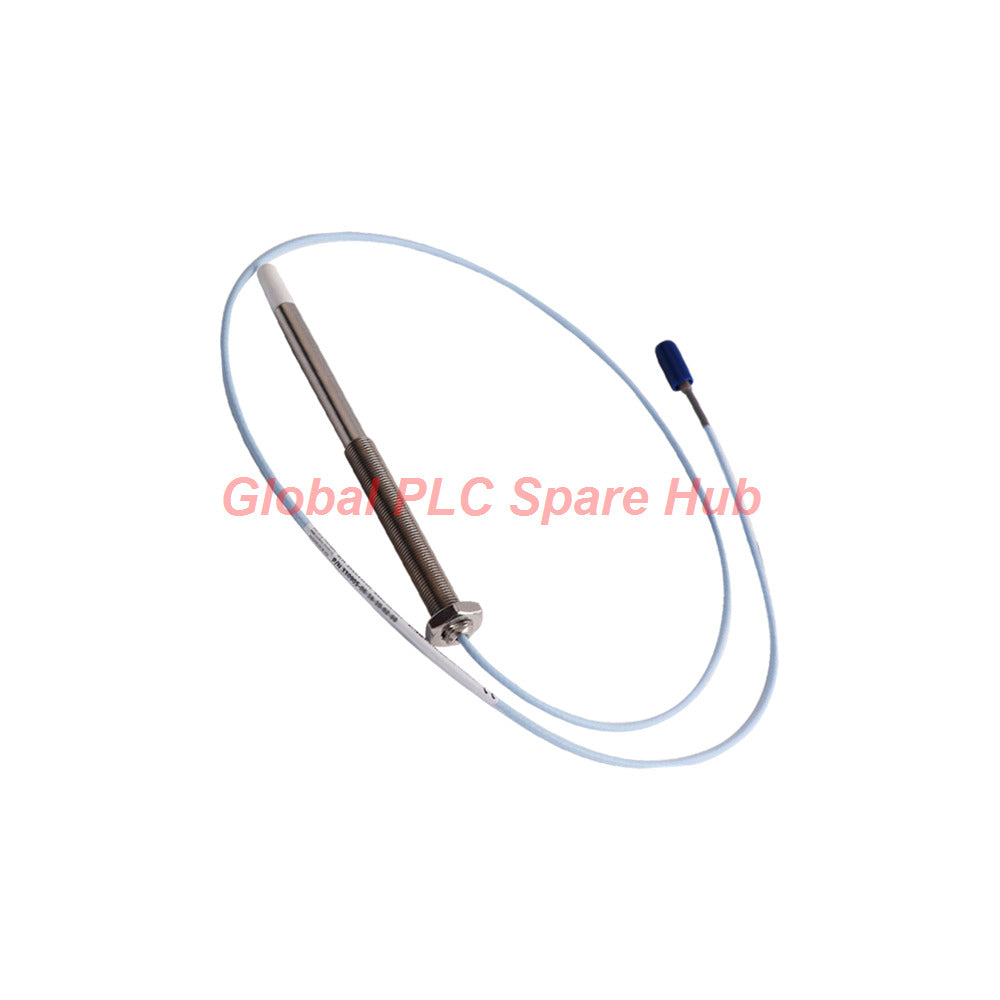

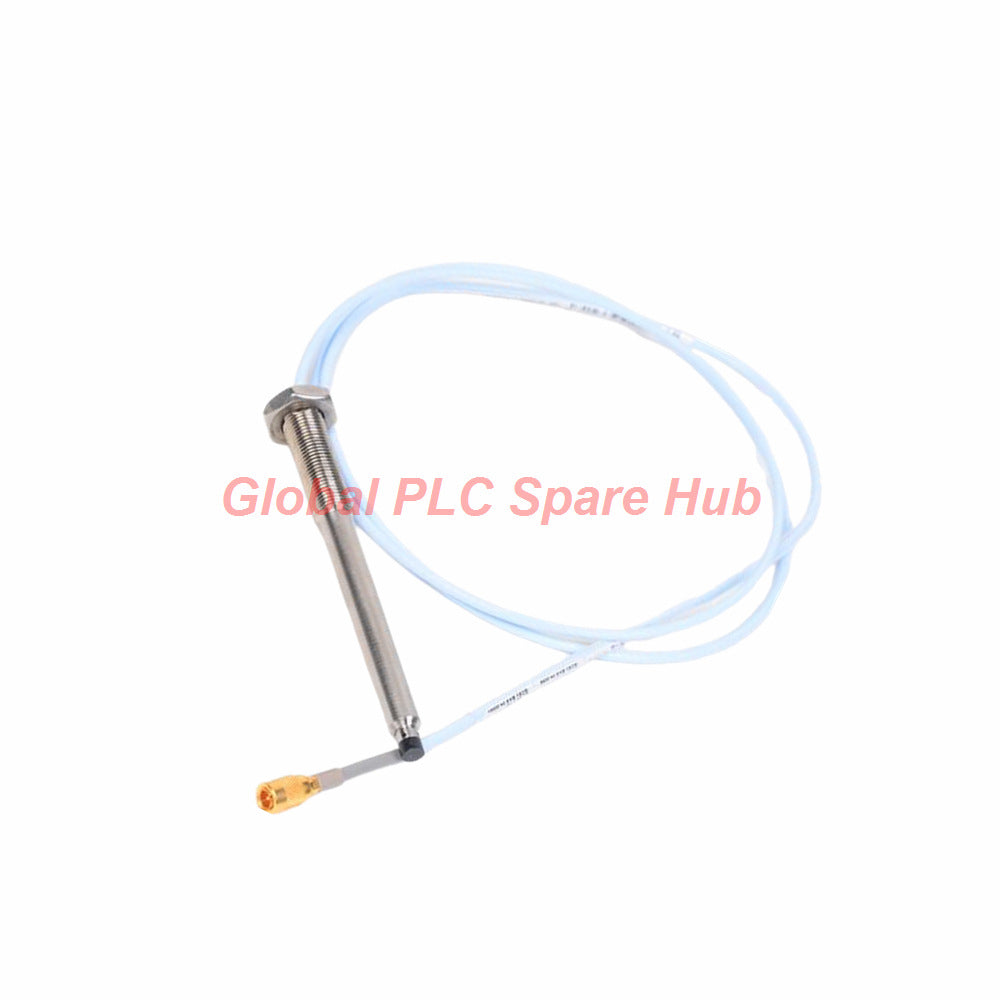

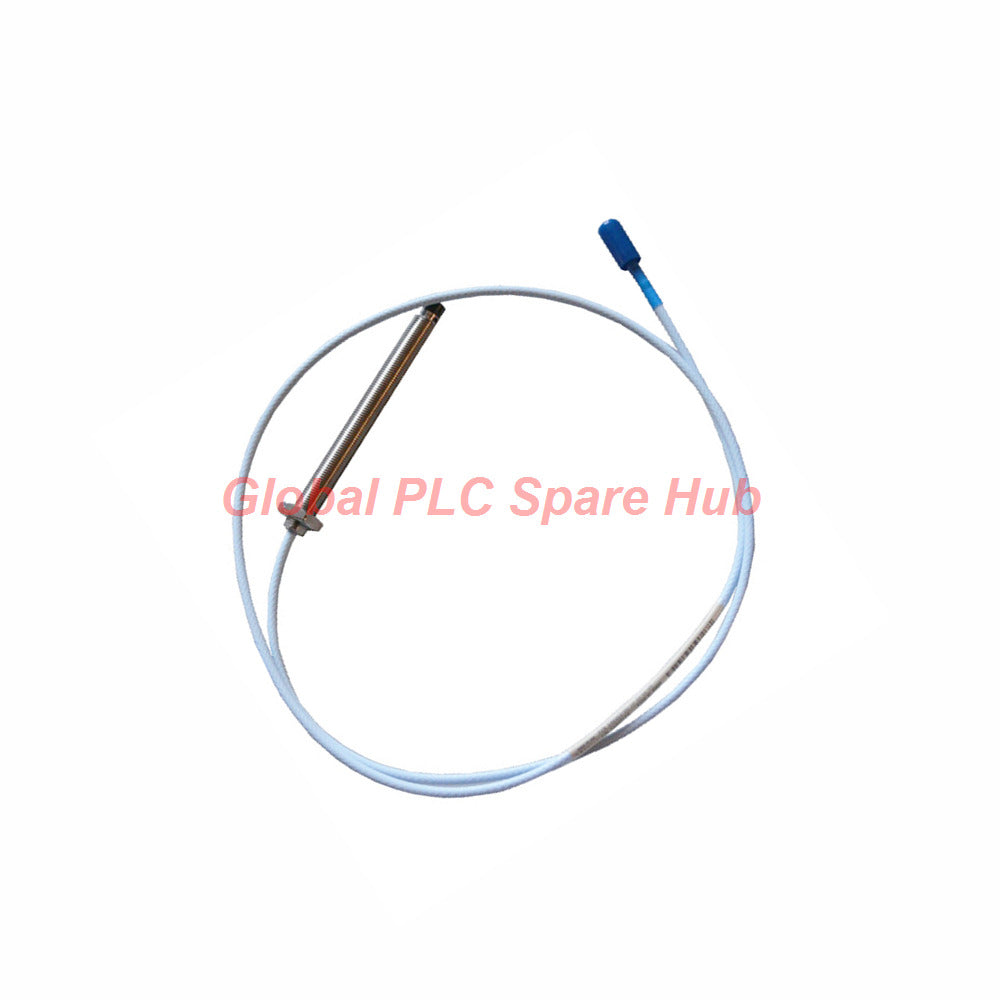

330907-05-30-70-02-05 Bently Nevada Reverse Mount Probe Sensor

Product Overview

Global PLC Spare HUB Review

Plant operators deploy the 330907-05-30-70-02-05 Bently Nevada 3300 NSv series reverse mount probe inside challenging process compressors where side-view constraints and chemical durability dictate hardware selection. This specialized M10X1 threaded transducer manages low-clearance measurement points with superior side-view accuracy. Gold-plated brass ClickLoc connectors lock securely to eliminate loosening from severe machine vibration, while TipLoc molding binds the PPS tip firmly to the AISI 304 stainless steel housing.

Configuration Breakdown Tree

• Base Model: 330907 (3300 NSv Reverse Mount Probe)
  • Thread & Mounting Suffix (-05-30): M10X1 thread profile configured for reverse mount architecture
  • Total Cable Length (-70): 7.0 meters (23.0 feet) overall system span
  • Connector Style (-02): Miniature coaxial ClickLoc connector with standard cable construction
  • Agency Approvals (-05): Multiple hazardous area approvals included

Core Technical Parameters

Selection Comparison & Engineering Guidance

When engineering long-cable measurement loops or replacing alternative terminal configurations, verify connector compatibility to preserve loop impedance. For applications requiring regional variant connectors on the same 7-meter reverse-mount platform, inspect the alternative option below:

• 330907-05-30-70-12-CN

Engineering Advice: Long 7.0-meter cable runs introduce added electrical capacitance. Ensure field wiring relies on 3-conductor shielded triad cables and remains within the 305-meter maximum distance threshold to prevent high-frequency signal rolloff.

Target Equipment and Diagnostic Capabilities

• Primary Equipment: Chemical process compressors, high-pressure centrifugal blowers, and specialized multi-stage industrial pumps.
• Diagnostic Insights: Identifies close-clearance radial shaft vibration, thrust bearing wear, rotor eccentricity, and structural misalignment in restricted housing geometries.

Installation Guidelines & Maintenance Best Practices

• Apply a maximum recommended torque of 7.5 N·m (66 in·lb) when securing reverse mount probe threads.
• Maintain a standard 1.0 mm (40 mils) physical gap setting from the target surface for linear operation.
• Protect sensors from ambient temperatures dropping below -34°C during startup to safeguard the Viton O-ring seal.
• Inspect ClickLoc brass locking collars for complete mechanical engagement before system power-up.

Logistics, Fulfillment, and Warranty Terms

• Dispatch Window: 24 to 48 Hours shipping
• Carriers: FedEx, UPS, and DHL express global transit
• Condition: New & Original in Factory Packing
• Warranty: 12-month warranty coverage

Professional Frequently Asked Questions

Question:
Why is a reverse mount configuration selected over standard through-case mounting?

Answer:
Reverse mount designs position the probe body internally facing outward, which suits specialized compressor casings where external mounting ports are physically unavailable or restricted.

Question:
How does the 7-meter cable length affect dc resistance measurements during routine bench testing?

Answer:
Extended cable runs increase loop resistance; expect core resistance values to measure within the specific 5.9 ± 0.9 ohms range from center to outer conductor.

Question:
What operational risk occurs if the probe experiences cold soak temperatures below -34°C?

Answer:
Sustained sub-zero exposure hardens the internal Viton O-ring sealing element, potentially causing differential pressure leakage across the probe tip boundary.

Question:
Can standard 2-conductor cable be substituted for field wiring on this NSv loop?

Answer:
No, Bently Nevada explicitly recommends 3-conductor shielded triad cable to eliminate electromagnetic interference and ground loops over long signal runs.

Question:
How do NSv side-view characteristics compare against legacy 190-series probes?

Answer:
NSv probes provide superior side-view rejection, minimizing false vibration readings when gapped near collar shoulders or stepped shaft geometries.
