330907-05-30-10-12-00 Bently Nevada 3300 NSv Reverse Mount Probe

Engineering Overview: 3300 NSv Proximity Transducer

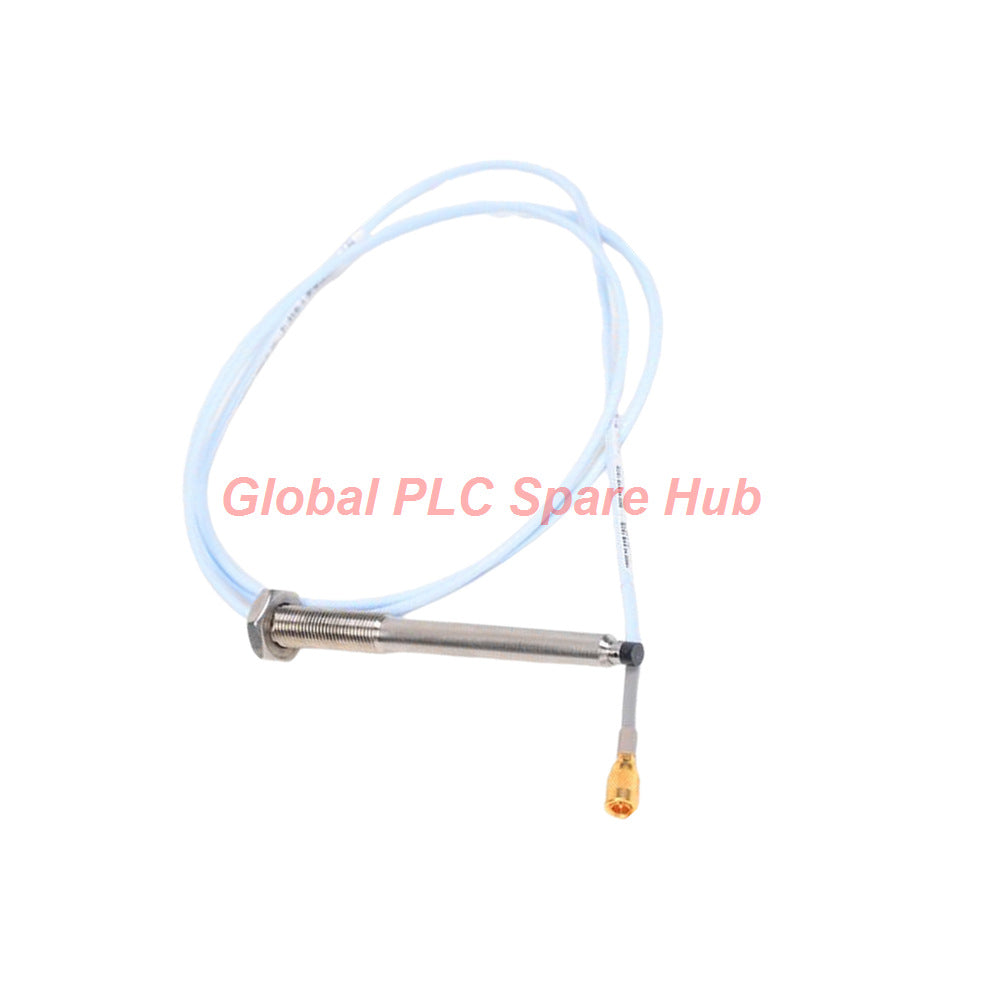

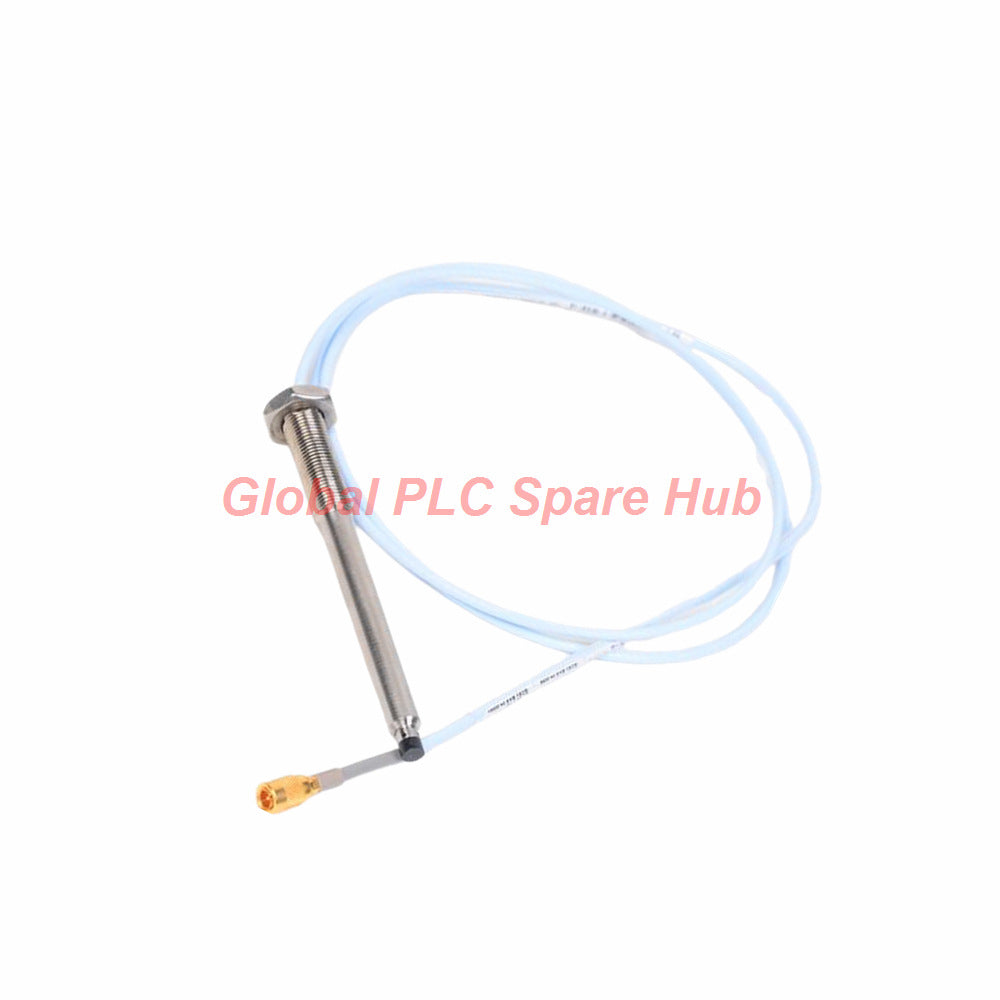

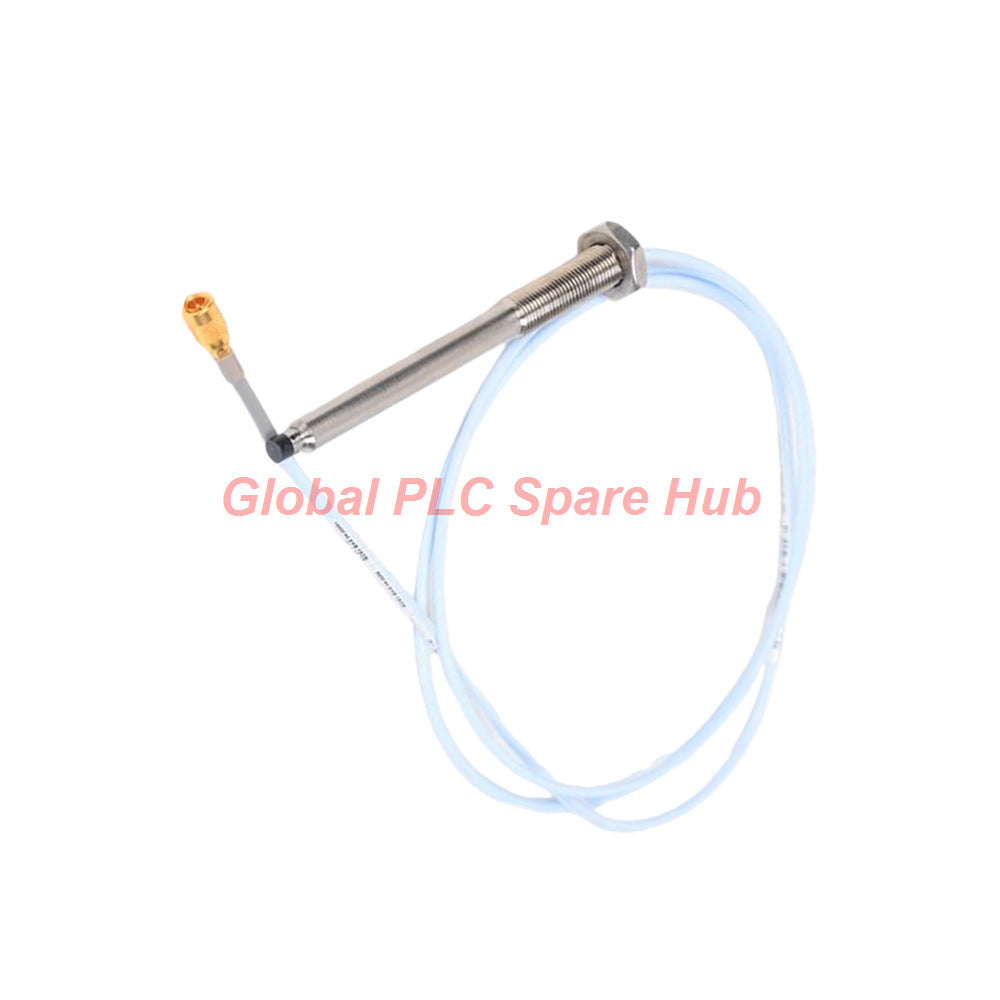

The 330907-05-30-10-12-00 is a precision-engineered 3300 NSv Reverse Mount Probe by Bently Nevada. Designed for demanding rotating machinery, this transducer system offers superior chemical resistance and advanced side-view characteristics compared to legacy 3000-series models. Utilizing patented TipLoc molding and ClickLoc gold-plated connectors, this probe ensures high structural integrity and vibration-proof connectivity in critical compressor and turbine environments.

Configuration Breakdown

• Base Model: 330907 (3300 NSv Reverse Mount Probe)
  • Thread Configuration (-05): M10 x 1 Metric Threads
  • Total Length (-30): 1.0 Meter (39 inches)
  • Connector Option (-10): Miniature Coaxial ClickLoc Connector
  • Cable Type (-12): FluidLoc Cable
  • Agency Approval (-00): Not Required

Technical Specifications

• Linear Range: 1.5 mm (60 mils)
• Recommended Gap: 1.0 mm (40 mils)
• Operating Temp: -52°C to +177°C
• Probe Case Material: AISI 304 Stainless Steel
• Probe Tip Material: Polyphenylene Sulfide (PPS)
• DC Resistance: 4.2 ± 0.5 Ohms
• Pressure Seal: Viton O-ring

Global PLC Spare HUB's Insight

The 330907-05-30-10-12-00 is the gold standard for compressor applications involving process gases that degrade standard elastomer seals. At Global PLC Spare HUB, we prioritize this specific NSv configuration for customers managing high-frequency vibration data. Its reduced physical footprint and optimized side-view capabilities allow for closer proximity to target surfaces, significantly improving signal resolution in tight machine clearances.

Application Scenarios & Diagnostics

• Primary Applications: High-pressure process compressors, centrifugal pumps, and steam/gas turbines.
• Diagnostic Strength: Superior gap-accuracy and high-frequency roll-off characteristics provide precise shaft-position monitoring.
• Installation Safety: ClickLoc locking mechanism prevents loosening due to machine-induced vibration, common in long-term industrial deployments.

Logistics & Quality Commitment

• Global Dispatch: Express shipping via FedEx, UPS, and DHL.
• Fulfillment: Guaranteed 24-48 hour processing.
• Warranty: Every probe is backed by our comprehensive 12-month performance warranty.

Professional Frequently Asked Questions

What is the maximum torque permitted for installing this M10 probe?
The recommended torque is 7.5 N•m (66 in•lb), with a maximum structural rating of 22.6 N•m (200 in•lb) for the probe body.

Can I use this probe in environments colder than -34°C?
While the operating range extends to -52°C, sustained exposure below -34°C may jeopardize the integrity of the pressure seal; ensure thermal insulation if required.

What field wiring is recommended to minimize signal loss?
We recommend a three-conductor shielded triad cable, with a maximum total length of 305 meters (1,000 feet) between the sensor and monitor.

Why is the ClickLoc connector design superior to standard bayonet types?
The ClickLoc design features gold-plated brass contacts that lock into position, preventing the mechanical loosening frequently caused by high-amplitude machinery vibration.

Selection Guide: How do I ensure compatibility with my existing Proximitor?
Verify that your existing system is calibrated for the 3300 NSv series (4.2 Ohm loop resistance); older 3300 XL or 3000 series drivers may require recalibration to handle the NSv output curve.
