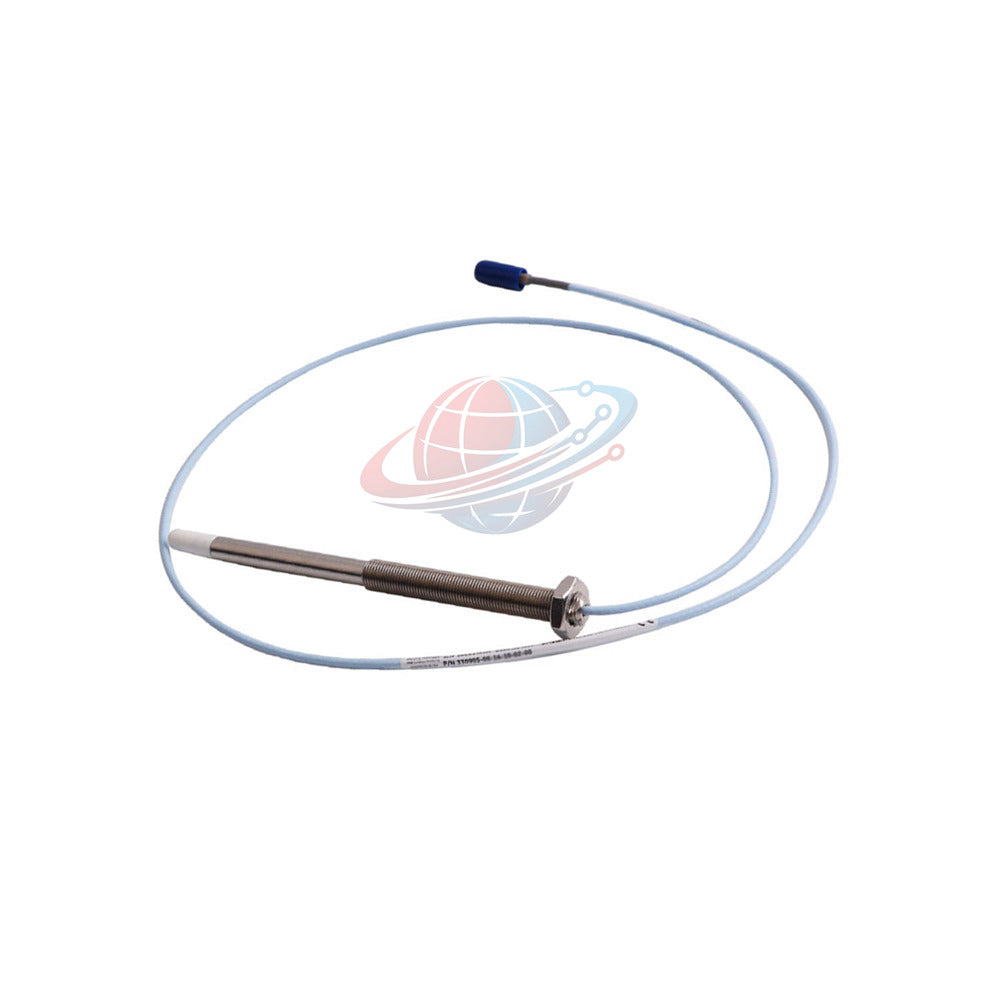

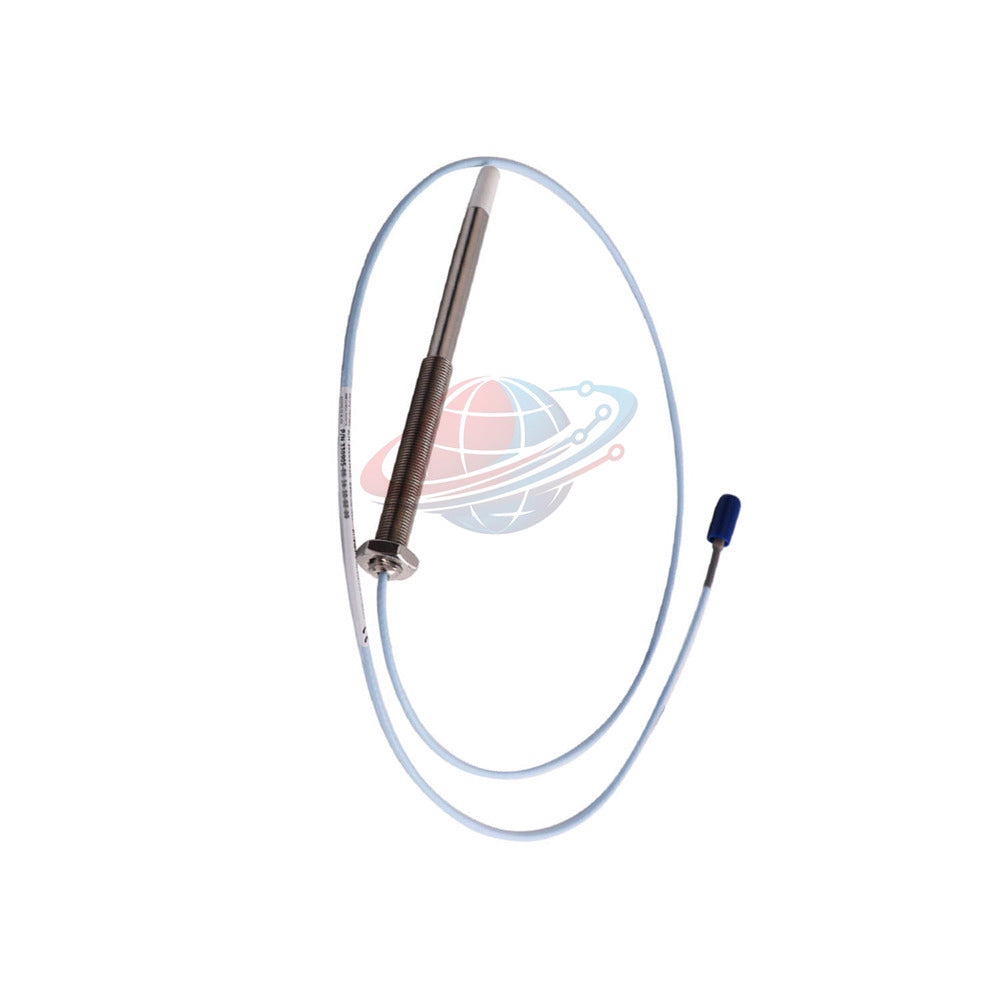

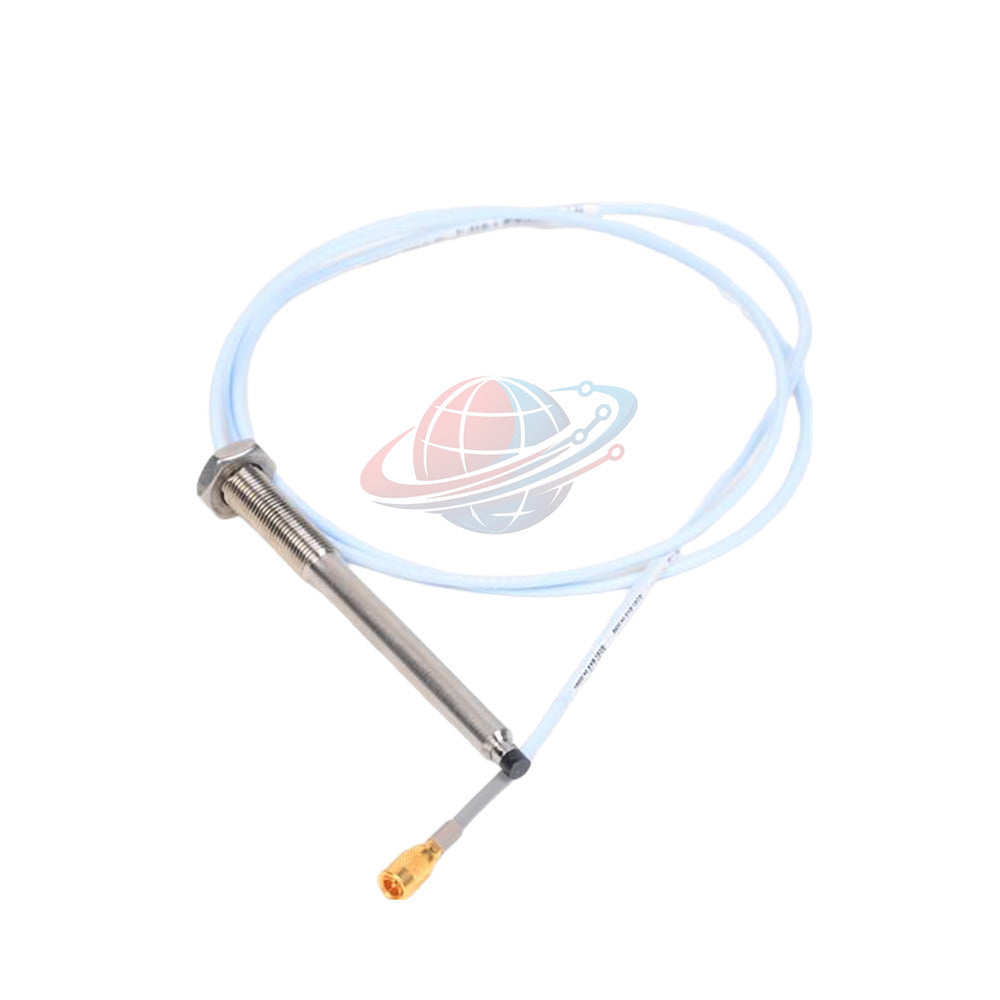

330905-05-05-05-02-05 Bently Nevada 3300 NSv Proximity Probe Sensor

Executive Engineering Overview

The 330905-05-05-05-02-05 is a specialized 3300 NSv Proximity Probe manufactured by Bently Nevada, engineered specifically for high-precision vibration and axial position monitoring in tight side-view or specialized process compressor environments. Offering superior chemical resistance compared to legacy RAM probes, this sensor delivers an incremental scale factor of 7.87 V/mm (200 mV/mil) across a 1.5 mm (60 mils) linear range, ensuring reliable machinery health tracking under extreme thermal and mechanical stresses.

Part Number 330905-05-05-05-02-05 Configuration Breakdown

Comprehensive Technical Specification Matrix

Engineering Architecture & Physical Characteristics

• Advanced Metallurgy and Sealing
  • Features a robust AISI 304 stainless steel case combined with an PPS probe tip for heightened chemical resistance against aggressive compressor process gases.
  • Incorporates an internal Viton O-ring designed to seal differential pressures between the probe tip and mounting case.
• Cabling and Connector Design
  • Utilizes a 75-ohm coaxial FEP-insulated probe cable terminated with a secure miniature coaxial ClickLoc connector.
  • Requires three-conductor shielded triad field wiring up to 305 meters (1,000 feet) to connect with the Proximitor sensor and monitor.

Global PLC Spare HUB Insight

Global PLC Spare HUB's Insight: When installing the 330905-05-05-05-02-05 in high-vibration compressor trains, field engineers must strictly adhere to the recommended probe case torque limit of 7.5 N·m (66 in·lb) using the first three M10x1 threads. Over-torquing can distort the internal PPS tip seal, leading to premature gas leakage or mechanical decoupling under thermal cycling.

Diagnostics, Troubleshooting, and Signal Integrity

• Electrical Continuity Checks
  • Verify that the probe center-to-outer conductor DC resistance reads precisely 4.0 ± 0.5 ohms during pre-commissioning checks.
• Signal Rolloff Monitoring
  • Inspect high-frequency signal attenuation using standard oscilloscope or rack diagnostic software when field wiring approaches the 305-meter maximum limit.

Comparative Selection Analysis: Part Number Options

• 330905-05-05-05-02-05 (Current Model): Features a 0.5-meter total cable length and 50mm unthreaded case length, ideal for tight enclosure mounts requiring short probe leads to a bulkhead-mounted Proximitor.
• 330905-00-02-10-02-05: Features a 0.0 mm unthreaded length option, 20 mm case length, and a longer 1.0-meter cable length, making it better suited for applications requiring extended probe placement past thermal insulation barriers or thicker machine casing mounts.

Logistics, Warranty, and Fulfillment

• Express International Freight
  • Rapid worldwide dispatch fulfilled via FedEx, UPS, and DHL within 24-48 hours from order clearance.
• Factory Warranty Protection
  • Covered by a comprehensive 12-month factory warranty ensuring uncompromised operational performance.
• Packaging Standards
  • Factory sealed in original industrial packaging complete with anti-static protection and compliance certificates.

Target Applications and Supported Equipment

• Centrifugal and reciprocating process gas compressors.
• Steam and industrial gas turbine vibration monitoring loops.
• Small-diameter shaft axial position and radial vibration telemetry systems.

Professional Frequently Asked Questions

• What specific diagnostic action should be taken if the DC resistance of the 330905-05-05-05-02-05 reads outside the 4.0 ohm range?

  A resistance reading significantly higher or lower indicates a crushed coaxial cable, water ingress at the ClickLoc connector, or an internal shorted coil, requiring immediate probe replacement.

• Why does the 330905-05-05-05-02-05 utilize a 1.0 mm (40 mils) recommended gap setting?

  This specific gapping centers the probe precisely within its 1.5 mm linear range, ensuring linear voltage output response for both positive and negative shaft vibration excursions.

• Can the 0.5-meter integral cable of this model be field-spliced to reach a more distant junction box?

  No, field splicing coaxial probe cables alters characteristic impedance and capacitance, distorting the Incremental Scale Factor; always use an approved extension cable of matching length.

• What installation practice prevents thread galling on the M10x1 stainless steel probe case?

  Apply an approved, non-reactive anti-seize compound sparingly to the first few threads while ensuring torque values do not exceed the 22.6 N·m maximum structural limit.

• How does selecting the 330905-05-05-05-02-05 affect spare parts management in multi-train plants?

  Standardizing on this exact configuration reduces inventory complexity for machines with shallow probe penetrations while guaranteeing drop-in electrical interchangeability with older 3300 RAM setups.
