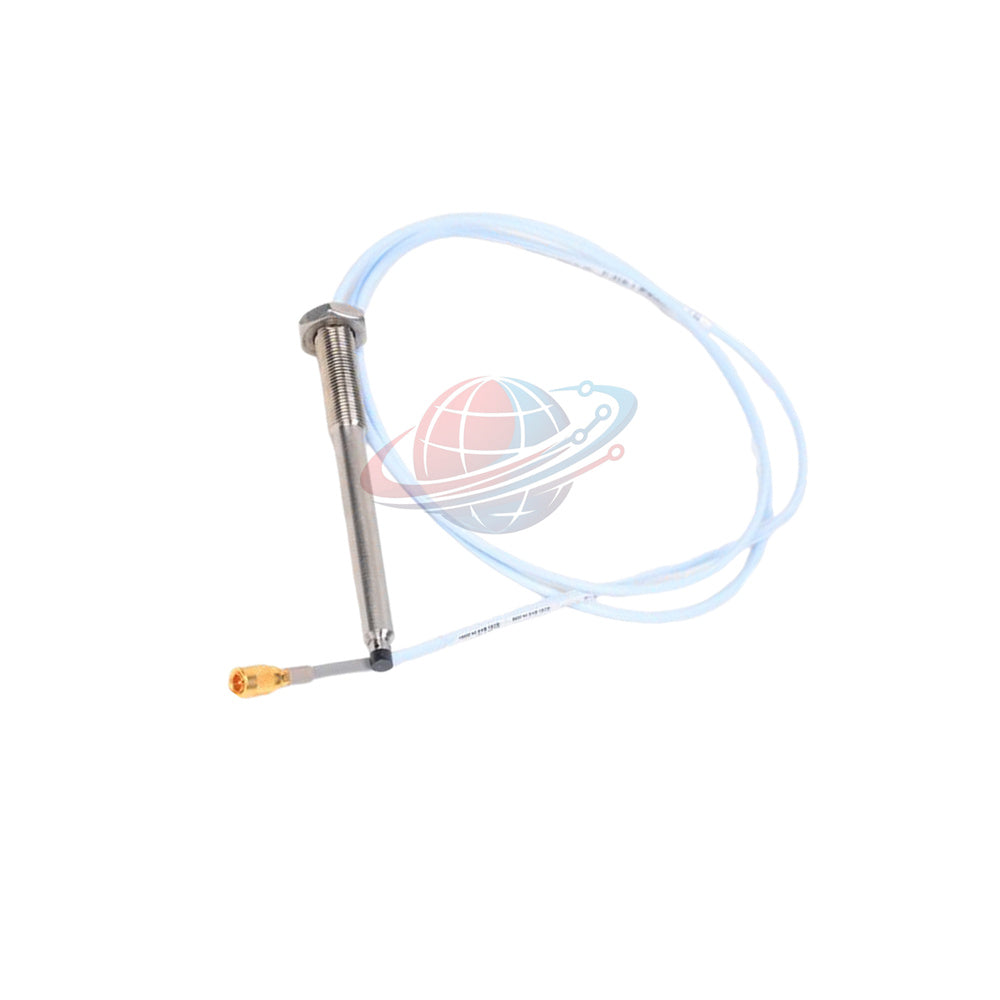

330905-00-13-10-02-CN Bently Nevada Eddy Current Sensor 3300 NSv

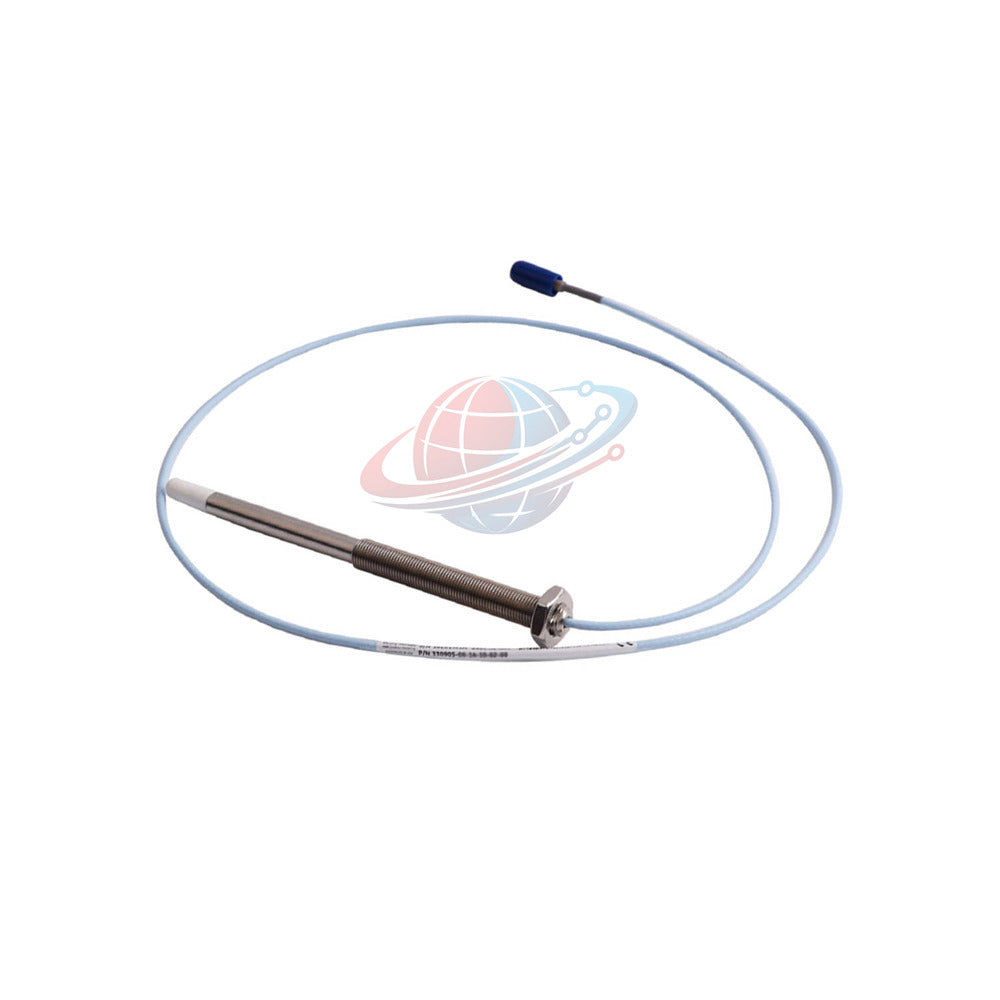

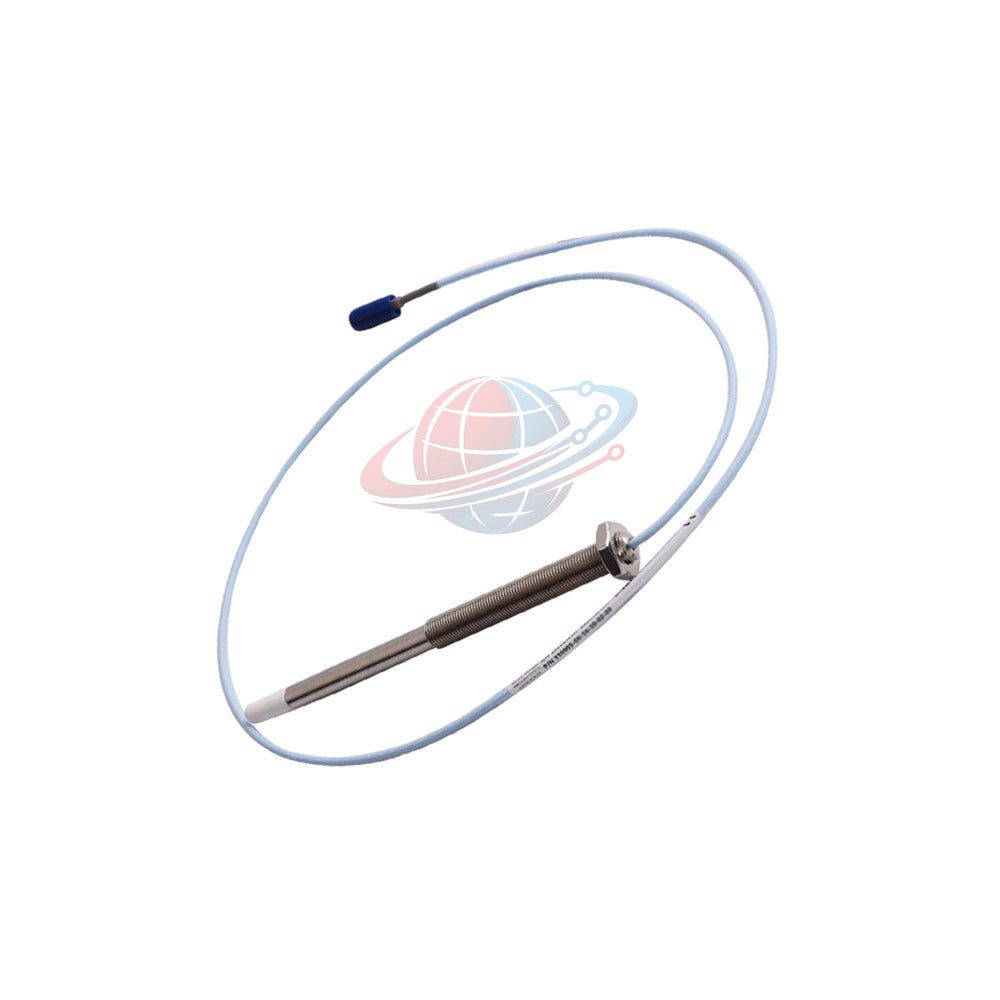

Bently Nevada 330905-00-13-10-02-CN 3300 NSv Proximity Probe Overview

The Bently Nevada 330905-00-13-10-02-CN belongs to the high-precision 3300 NSv Series eddy current proximity transducer family. Bently Nevada engineered this compact sensor for tight space constraints where side-view clearance or small shaft diameters restrict standard probes. The 330905-00-13-10-02-CN delivers accurate shaft vibration and axial position measurement on high-speed industrial machinery.

Part Number Configuration Breakdown

330905-00-13-10-02-CN Model Structure
├── 330905 : 3300 NSv Probe, M10X1 Thread, Without Armor
├── -00-   : Unthreaded Length Option (00 mm / 0.0 in)
├── -13-   : Overall Case Length Option (130 mm / 5.1 in)
├── -10-   : Total Cable Length Option (1.0 Meter / 39 in)
├── -02-   : Miniature Coaxial ClickLoc Connector, Standard FEP Cable
└── -CN    : Country Specific Agency Approval

Comprehensive Technical Specifications

Engineering Characteristics & Advantages

• Superior Side-View Tolerances: Operates effectively near flat metal walls where standard probes experience side-view interference.
• Enhanced Chemical Resistance: PPS probe tip construction withstands corrosive atmospheres found in process compressors.
• Compact M10 Threaded Body: 130 mm overall case length with 0 mm unthreaded portion allows deep mechanical mounting.
• ClickLoc Connector Architecture: Miniature coaxial connection prevents loosening during high machinery vibration.
• Backward Compatibility: Mechanically and electrically interchangeable with legacy Bently Nevada 3300 RAM systems.

Suitable Machinery & Field Applications

• Centrifugal Process Compressors: Monitors radial vibration on high-speed shaft journals exposed to corrosive gas media.
• Small Shaft Turbomachinery: Measures axial displacement on shaft diameters under 13 mm without scale factor degradation.
• Industrial Gearboxes: Installs into tight bearing housings where side-wall proximity corrupts standard eddy current fields.
• High-Speed Pumps & Blowers: Provides continuous fluid-film bearing condition monitoring for predictive maintenance programs.

Model Cross-Selection Comparison & Technical Guidance

Engineering Selection Advice:

• Select the 330905-00-13-10-02-CN when your mounting sleeve requires a shorter 130 mm case length and your Proximitor sensor is mounted within a 1.0-meter reach without flexible metal conduit needs.
• Choose the 330905-00-25-05-01-00 variant if your installation demands a longer 250 mm case depth and stainless steel armor cable protection against mechanical crushing in harsh field environments.

Installation & Physical Mounting Protocols

• Check mounting threads to ensure clean M10x1 alignment before threading the probe into the bearing housing.
• Thread the probe case into position using a maximum initial torque of 7.5 N·m (66 in·lb) to avoid casing deformation.
• Adjust physical probe tip gap using a feeler gauge or DC voltage reading until reaching the recommended 1.0 mm (40 mils) offset (-9 Vdc to -10 Vdc baseline).
• Route FEP probe cables maintaining a minimum bend radius of 25.4 mm (1.0 in) to prevent coaxial signal attenuation.
• Hand-tighten the ClickLoc coaxial connector to complete connection without using pliers or open-end wrenches.

Diagnostic Capabilities & Onsite Troubleshooting

• DC Voltage Gap Verification: Measure DC voltage across raw signal terminals; readings outside -1 Vdc to -13 Vdc indicate incorrect physical gap or damaged tip.
• Winding Resistance Check: Verify probe resistance between center and outer conductors matches 4.2 ± 0.5 Ω at ambient temperature.
• Scale Factor Auditing: Verify 7.87 V/mm output change when moving the target in 0.25 mm increments during static bench calibration.
• Insulation Fault Diagnostics: Check insulation resistance from probe conductors to outer stainless steel casing; readings must exceed 10 MΩ.

Global PLC Spare HUB's Insight

During field machinery overhauls, the Bently Nevada 330905-00-13-10-02-CN excels in tight compressor bearing pockets. On a recent petrochemical plant turnaround, field engineers encountered side-wall interference when installing standard 8mm probes near a narrow bearing face. Upgrading to the 330905-00-13-10-02-CN eliminated side-view corruption due to its focused eddy current field, providing clean vibration signals without requiring expensive bearing housing machining.

Packaging, Express Fulfillment & Warranty Terms

• Condition: Brand New & Original in Sealed Factory Packing.
• Order Fulfillment: Prompt processing and warehouse dispatch within 24 to 48 hours.
• Global Express Shipping: Fast door-to-door transit via FedEx, UPS, and DHL.
• Warranty Terms: Backed by a full 12-Month Factory Warranty.

Frequently Asked Questions

What is the primary difference between standard 3300 XL probes and 3300 NSv probes?

The 330905-00-13-10-02-CN NSv probe features a smaller tip geometry designed for tight mounting spaces and targets with small shaft diameters.

How do I troubleshoot a flatlined 0 Vdc signal output from the Proximitor sensor?

Inspect the coaxial cable continuity for open circuits and verify probe resistance reads approximately 4.2 Ω across conductors.

Can I mix a 1.0-meter probe with a 9.0-meter extension cable on a 5-meter Proximitor?

No, the total electrical length of the probe plus extension cable must match the calibrated system length (5.0 m or 7.0 m) of the Proximitor.

What torque should I apply when connecting the miniature ClickLoc coaxial connector?

ClickLoc connectors are designed for finger-tight installation; do not use hand tools to prevent damaging the miniature gold contacts.

Does this probe require special target materials to maintain accurate calibration?

Standard calibration is performed on AISI 4140 steel; using alternative target alloys requires custom ISF recalibration or scale factor correction factors.
