330877-040-36-05 Proximity Transducer Cable | Bently Nevada 3300 XL

330877-040-36-05 Bently Nevada 3300 XL 50 mm Extension Cable Architecture

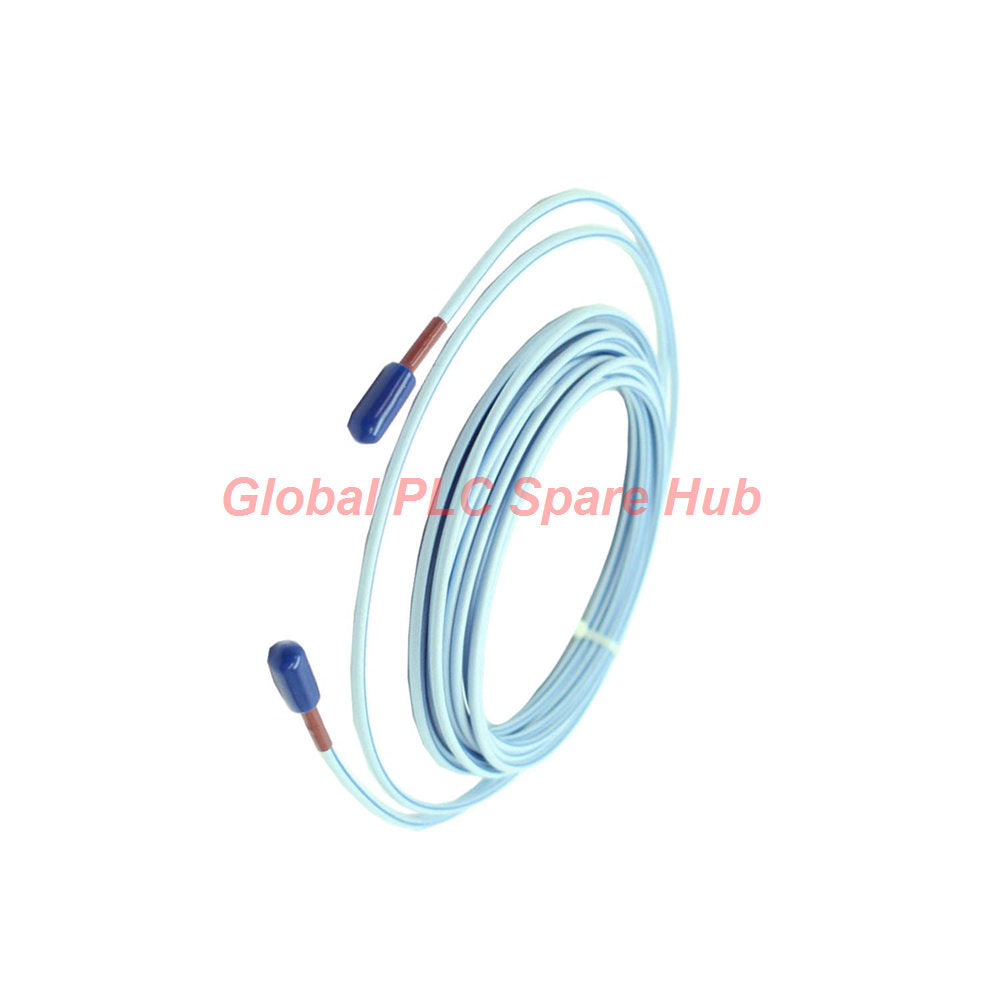

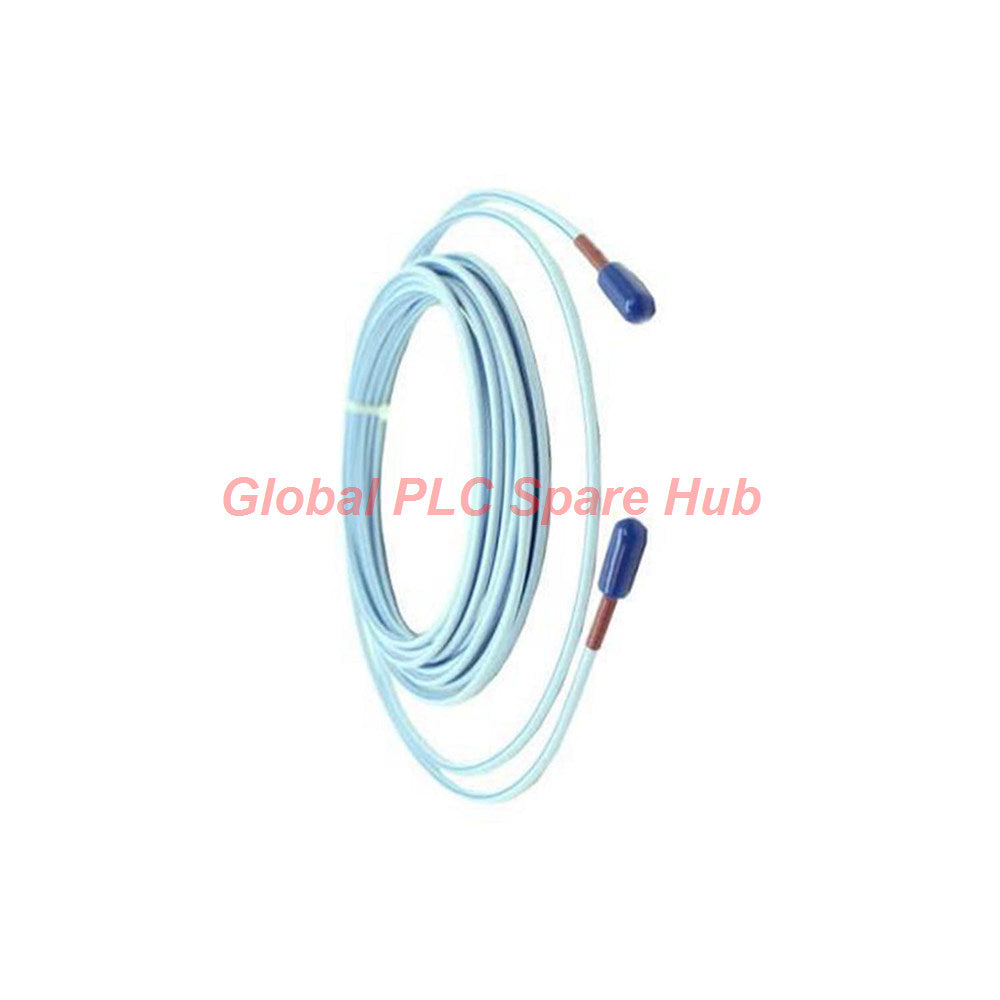

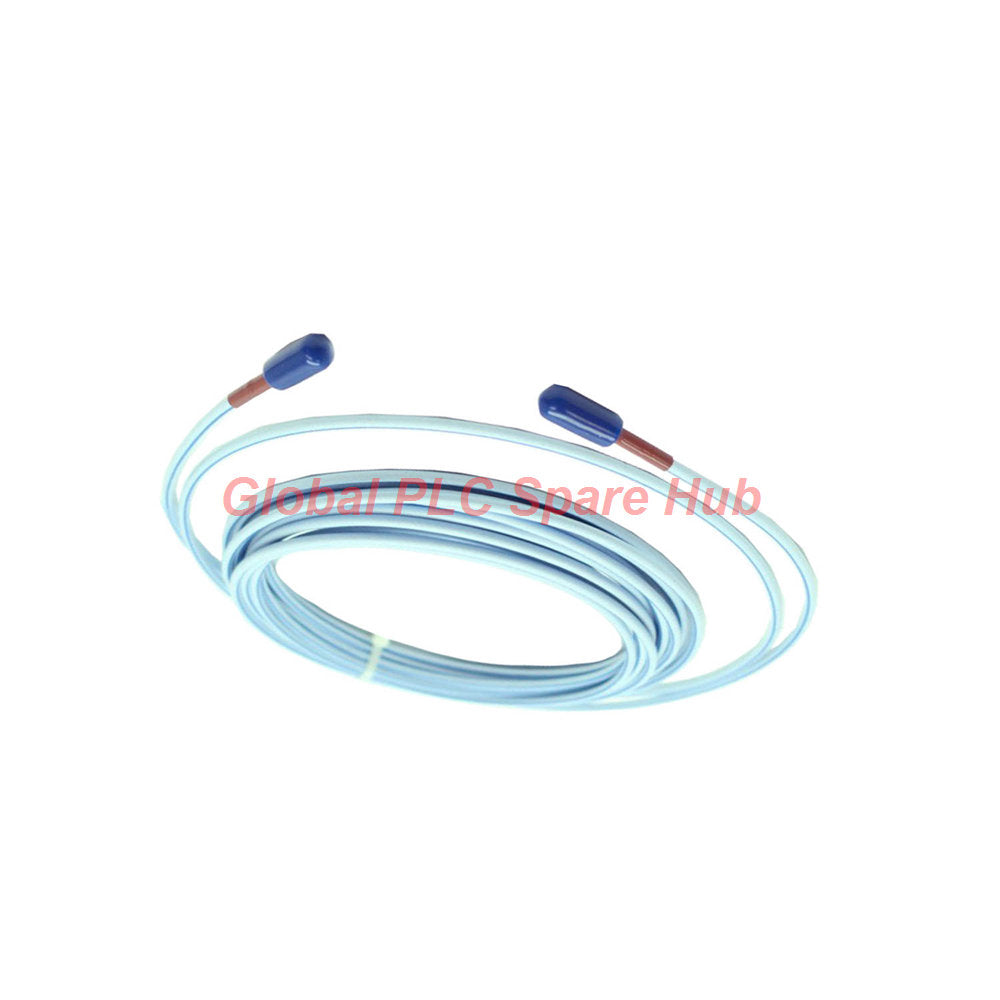

The 330877-040-36-05 is a high-performance extension cable designed for the Bently Nevada 3300 XL 50 mm proximity transducer system. Transducer performance relies on precise system length balancing. The combined length of the probe and extension cable must match the total electrical length requirement of the designated Proximitor Sensor.

This unit features 75 ohm triaxial cable insulated with perfluoroalkoxyethylene (PFA). The FluidLoc technology prevents fluid migration through the internal cable core. This ensures signal integrity in harsh environments exposed to oil or synthetic coolants.

330877 Configuration Breakdown

The part number syntax 330877-AAA-BB-CC defines specific physical and regulatory options:

• AAA (Cable Length Option)
  • 0 4 0 — 4.0 meters (13.1 feet) length
• BB (Armor and Cable Option)
  • 3 6 — FluidLoc cable without armor
• CC (Agency Approval Option)
  • 0 5 — Multiple Approvals (Country-specific / International certification)

Technical Specifications Matrix

Target Equipment & Industrial Applications

The 330877-040-36-05 extension cable operates on heavy industrial machinery where large target surface displacement monitoring is required:

• Large Steam Turbine Generators: Shaft axial position and differential expansion tracking on main turbine rotors.
• Hydroelectric Turbine Shafts: High-displacement radial vibration and thrust bearing monitoring under high moisture conditions.
• Heavy Industrial Gearboxes: Non-contact vibration measurement where oil pressure forces liquid along cable conduit runs.
• Process Compressors: Thrust position measurement inside housings containing aggressive chemical mist.

Diagnostic Capabilities & System Troubleshooting

The 3300 XL 50 mm system uses high-frequency eddy-current impedance shifts to track target movement. The cable forms a critical component of the tuned LC oscillator circuit.

Degraded center conductor resistance beyond 1.25 ohms indicates internal conductor strain or connector oxidation. FluidLoc internal barriers prevent oil ingress from bypassing conduit seals. This eliminates baseline DC voltage drift caused by dielectric capacitance changes.

Selection Comparison & Engineering Advice

When selecting between different 330877 cable configurations, match the physical installation environment to the correct cable option:

Technical Advice: Do not add external mechanical armor manually to unarmored cables in high-vibration zones. If mechanical abrasion risks exist, select armored models like the 330877-040-37-00 to prevent outer sheath tearing.

Global PLC Spare HUB's Insight

Field technicians often overlook total electrical system matching on the 3300 XL 50 mm system. Combining a 1.0-meter probe with a 4.0-meter cable creates a 5.0-meter system length. Using this cable with a system tuned for 9.0 meters creates severe linearity error across the entire displacement measurement range.

During a retrofit at a steel rolling facility, maintenance crews reported unstable gap voltages on a thrust monitoring loop. Inspection revealed oil wick-through on a non-FluidLoc cable from another line. Installing the 330877-040-36-05 cable stopped oil migration into the junction box immediately and restored linear output stability.

Commercial Terms & Fast Logistics

• Factory Warranty: 12 Months full replacement coverage for verified defects.
• Shipping Schedule: Orders dispatch within 24 to 48 hours from stock.
• Global Delivery Partners: Express air shipping via FedEx, UPS, and DHL.
• Package Contents: 1x Factory-sealed Bently Nevada 330877-040-36-05 extension cable.

Frequently Asked Questions

Q1: What is the primary purpose of the FluidLoc feature on the 330877-040-36-05 cable?

A1: FluidLoc construction seals the internal spaces between cable conductors. This prevents lubricating oil or process liquids from wicking through the inside of the cable into electrical junction boxes.

Q2: Can I trim or extend the length of this 4.0-meter cable in the field?

A2: No. Cutting or splicing proximity transducer cables changes the total electrical impedance. This destroys calibration and causes inaccurate displacement readings from the Proximitor Sensor.

Q3: How do I test if my 330877-040-36-05 cable is electrically sound before installation?

A3: Measure DC resistance with a digital multimeter. Center-to-coaxial resistance must read 1.0 ± 0.25 ohms, and coaxial-to-coaxial outer resistance must read 0.3 ± 0.1 ohms for a 4.0-meter cable.

Q4: What happens if I connect a 50 mm probe system cable to a standard 8 mm 3300 XL sensor?

A4: The system will fail to oscillate or will output severely distorted non-linear voltage readings. 50 mm proximity components feature distinct electrical inductance parameters compared to 5 mm or 8 mm systems.

Q5: What selection step is critical when replacing an older Bently Nevada extension cable?

A5: Verify the total system length requirement printed on your Proximitor Sensor tag (e.g., 5.0m or 9.0m). Ensure the combined length of your probe and replacement cable matches that total value exactly.
