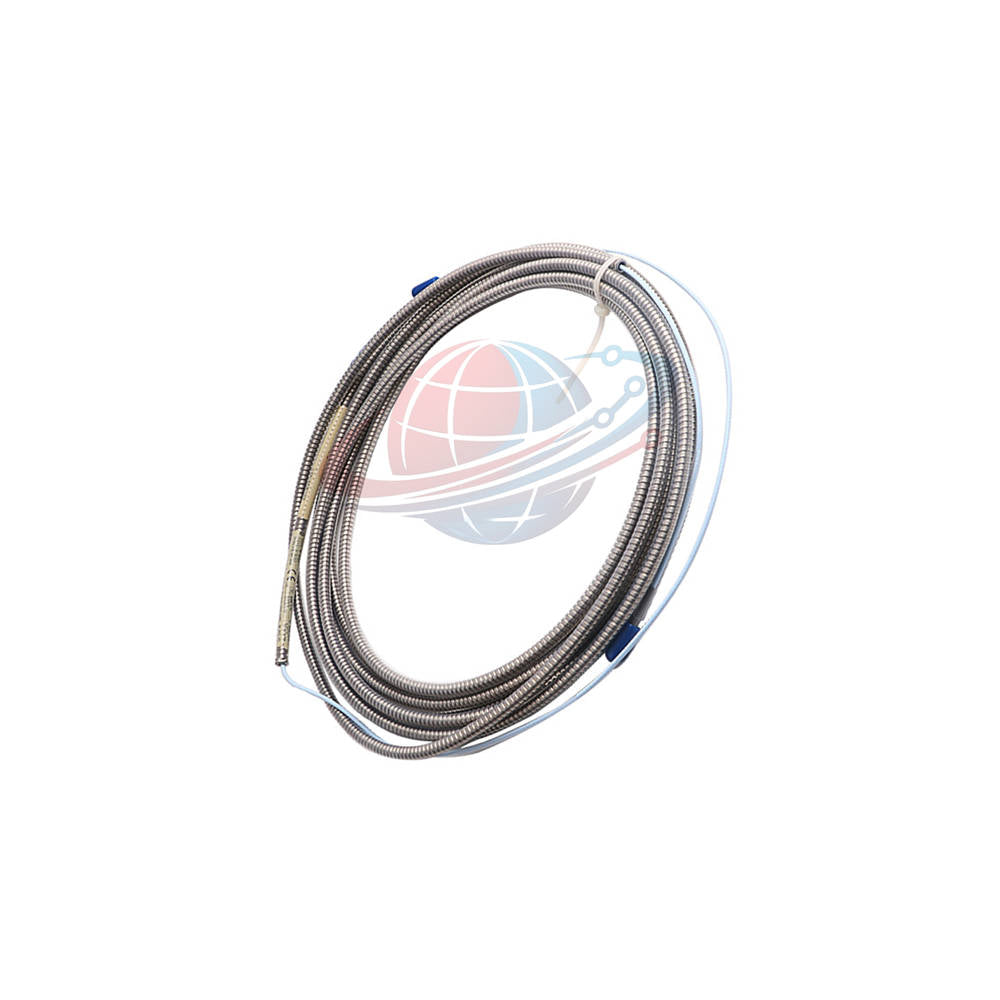

330130-040-01-05 Bently Nevada Extension Cable 3300 XL
Manufacturer: Bently Nevada
Product No.: 330130-040-01-05
Condition： In stock
Product Type: Extension Cable
Product Origin: USA
Payment: T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Product Overview
The 330130-040-01-05 is an advanced extension cable engineered by Bently Nevada within the 3300 XL series. This hardware component connects proximity probes to proximitor sensors with optimal signal integrity. It features high durability for complex industrial environments.
Configuration Breakdown
| Option Code | Specification Parameter | Selected Value |
|---|---|---|
| Part Base | Product Line | 330130 Extension Cable |
| 040 | Cable Length Option | 4.0 meters (11.5 feet) |
| 01 | Protection & Cable Type | Armored cable configuration |
| 05 | Agency Approvals | CSA, ATEX, IECEx Approvals |
Technical Specifications
| Technical Parameter | Engineering Value |
|---|---|
| Brand & Model | Bently Nevada, 330130-040-01-05 |
| Series Classification | 3300 XL Transducer System |
| Conductor DC Resistance | RCORE: 0.88 ± 0.13 Ω (4.0m length) |
| Jacket DC Resistance | RJACKET: 0.26 ± 0.05 Ω (4.0m length) |
| Cable Capacitance | 69.9 pF/m (21.3 pF/ft) typical |
| Physical Weight | Armored cable: 103 g/m (0.618 kg total) |
| Field Wiring Compatibility | 0.2 to 1.5 mm² (16 to 24 AWG) shielded triad |
Installation and Connection Guidelines
- Route field wiring up to 305 meters maximum between sensor and monitor.
- Utilize included silicone tape for non-oil environments instead of connector protectors.
- Avoid silicone tape where turbine oil exposure is expected.
- Ensure proper grounding of the 3-conductor shielded triad cable.
Global PLC Spare HUB's Insight
In high-vibration compressor stations, mechanical chafing against machine casing is the primary cause of extension cable failure. Our field engineering practice dictates anchoring armored cables every 50 centimeters using insulated clamps. This practice stops harmonic resonance from loosening ClickLoc threaded connections over extended runtime cycles.
Compatible Equipment and Application Scenarios
- Large industrial steam and gas turbines
- High-speed centrifugal compressors
- Heavy multi-stage industrial gearboxes
- Critical hydro-electric generator shaft monitors
Diagnostic Capabilities
- Detects subtle radial shaft displacement anomalies instantly
- Identifies abnormal rotor orbit changes via continuous signal feedback
- Tracks axial thrust variation before mechanical wear triggers failure
Logistics and Warranty Protection
- Global order processing with 24-48 hour rapid dispatch
- Shipping partners: FedEx, UPS, and DHL
- Standard 12-month comprehensive warranty coverage
Model Selection and Comparison Guide
| Model Number | Length | Shielding Type | Approvals |
|---|---|---|---|
| 330130-040-01-05 | 4.0 Meters | Armored | CSA, ATEX, IECEx |
| 330130-035-00-05 | 3.5 Meters | Standard | CSA, ATEX, IECEx |
Frequently Asked Questions
Q: Why does the 330130-040-01-05 include an armored jacket option?
A: The armor provides mechanical protection against sharp metal shavings and heavy foot traffic in harsh industrial floor environments.
Q: Can I shorten or splice this extension cable in the field?
A: No, field splicing alters electrical capacitance and resistance parameters, invalidating system calibration and agency safety approvals.
Q: How does cable length impact the high-frequency response of the monitoring loop?
A: Longer cable lengths introduce signal attenuation or roll-off at higher frequencies, which must be verified against system frequency response charts.
Q: What courier services do you use for international delivery?
A: We ship all parts globally through reliable express carriers including FedEx, UPS, and DHL within 24 to 48 hours.
Q: What is covered under the 12-month warranty?
A: The warranty covers any manufacturing defects or performance failures under designated operating limits and standard industrial conditions.
