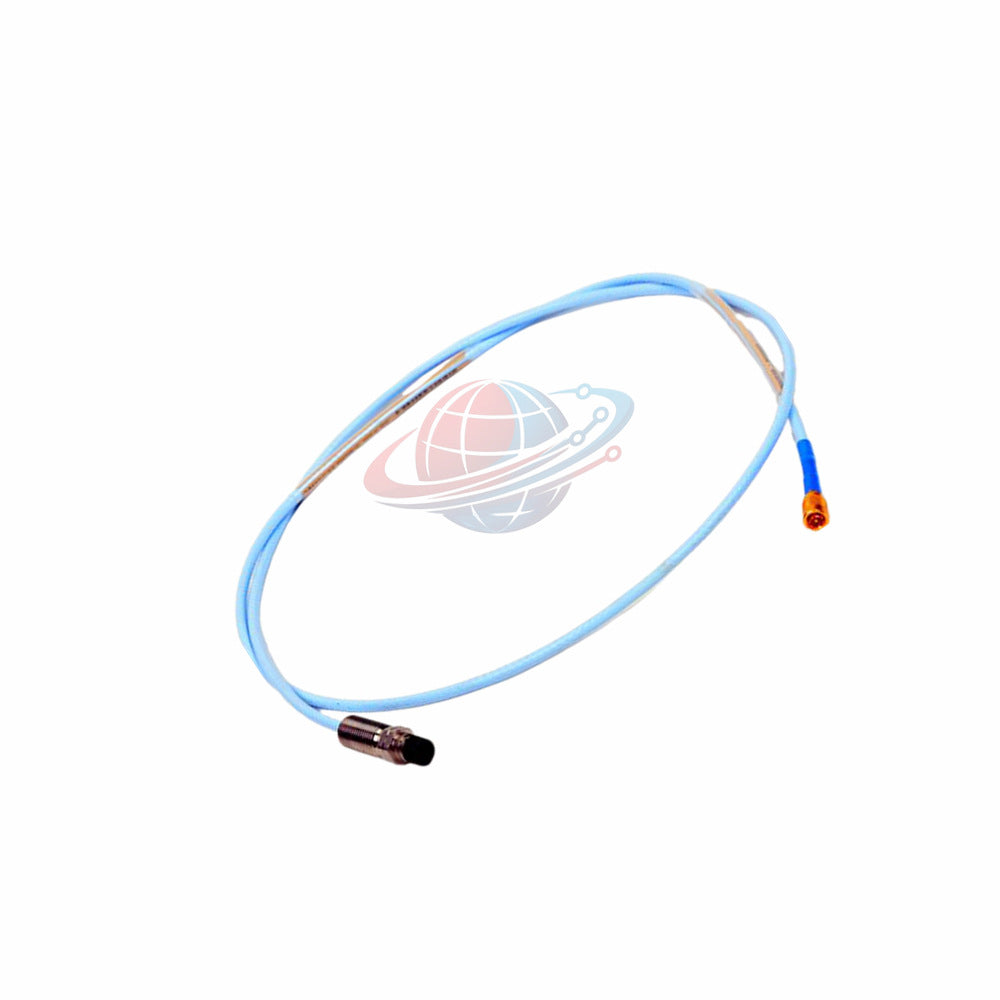

330106-05-30-90-12-00 Bently Nevada 3300 XL 8mm Reverse Mount Probe

Engineering Overview

The 330106-05-30-90-12-00 is a precision-engineered 3300 XL 8mm Reverse Mount Proximity Probe from Bently Nevada. Designed for non-contacting vibration and position monitoring, this system tracks radial displacement and axial shaft motion in critical rotating machinery. The 9-meter cable length combined with the Miniature ClickLoc connector ensures optimal signal integrity and ease of installation in confined turbine or pump housings.

Configuration Breakdown

The following structure details the specific ordering parameters for this unit:

• 330106: 3300 XL 8mm Reverse Mount Probe
• 05-30: Thread Size and Unthreaded Length (M10 x 1 threads)
• 90: Total Length (9.0 meters / 29.5 feet)
• 12: Connector Type (Miniature ClickLoc coaxial, FluidLoc cable)
• 00: Agency Approval (Not required)

Technical Specifications

• Probe Tip Material: Polyphenylene sulfide (PPS)
• Case Material: AISI 303/304 Stainless Steel
• Resistance (RPROBE): 9.87 Ω ± 0.50
• Temperature Range: -52°C to +177°C (Standard)
• Pressure Seal: Viton® O-ring (differential pressure rated)
• Humidity Resilience: <3% ASF change at 93% humidity

Comparative Selection Guide

Choosing between varying lengths depends on your cabinet distance from the sensor point.

Technical Advice: If your application requires shorter cable runs, the 1.5m model reduces cable drag and installation complexity. However, for large turbine foundations where junction boxes are distant, the 330106-05-30-90-12-00 provides the necessary reach without requiring extra extension cables.

Logistics and Quality Assurance

• Warranty: 12-month performance coverage.
• Shipping: Expedited global delivery via FedEx, UPS, and DHL.
• Dispatch: Orders ship within 24–48 hours.

Expert FAQ

Why is the FluidLoc cable option included on this model?
The FluidLoc cable is designed to prevent oil or process fluids from wicking through the cable jacket. While standard sleeves often suffice, this model is engineered for environments where fluid ingress protection is a critical safety requirement.

How should I protect the probe tip during installation?
Avoid over-torquing the M10x1 threads. Ensure the tip is clear of metallic obstructions to maintain the 8mm linear range, and use the provided jam nut to lock the probe position securely.

Can I use this probe in temperatures below -34°C?
While the electronics function down to -52°C, the pressure seal O-ring may become brittle at -34°C. For arctic applications, contact the manufacturer to discuss specialized sealing upgrades.

What is the most common cause of signal drift in this probe?
Most drift is attributed to thermal expansion of the probe case or changes in target surface metallurgy. Ensure your target surface is conductive and free of debris for consistent ASF readings.

How does cable length impact the system reading?
Bently Nevada systems are calibrated for specific system lengths (proximitor + extension cable + probe). Always use the exact length specified in your system configuration to avoid output scaling errors.

Global PLC Spare HUB's Insight

At Global PLC Spare HUB, we view the 330106-05-30-90-12-00 as an essential component for high-criticality vibration monitoring. It is best suited for gas turbines, steam turbines, and large centrifugal compressors. We strongly recommend this probe for engineers conducting preventive maintenance on assets where early detection of shaft bow or journal bearing wear is vital to preventing catastrophic mechanical failure.
