32000-16-05-00-080-03-02 Bently Nevada with 3300 XL 8mm Probe

32000-16-05-00-080-03-02 Bently Nevada 31000 Proximity Probe Housing

Product Overview

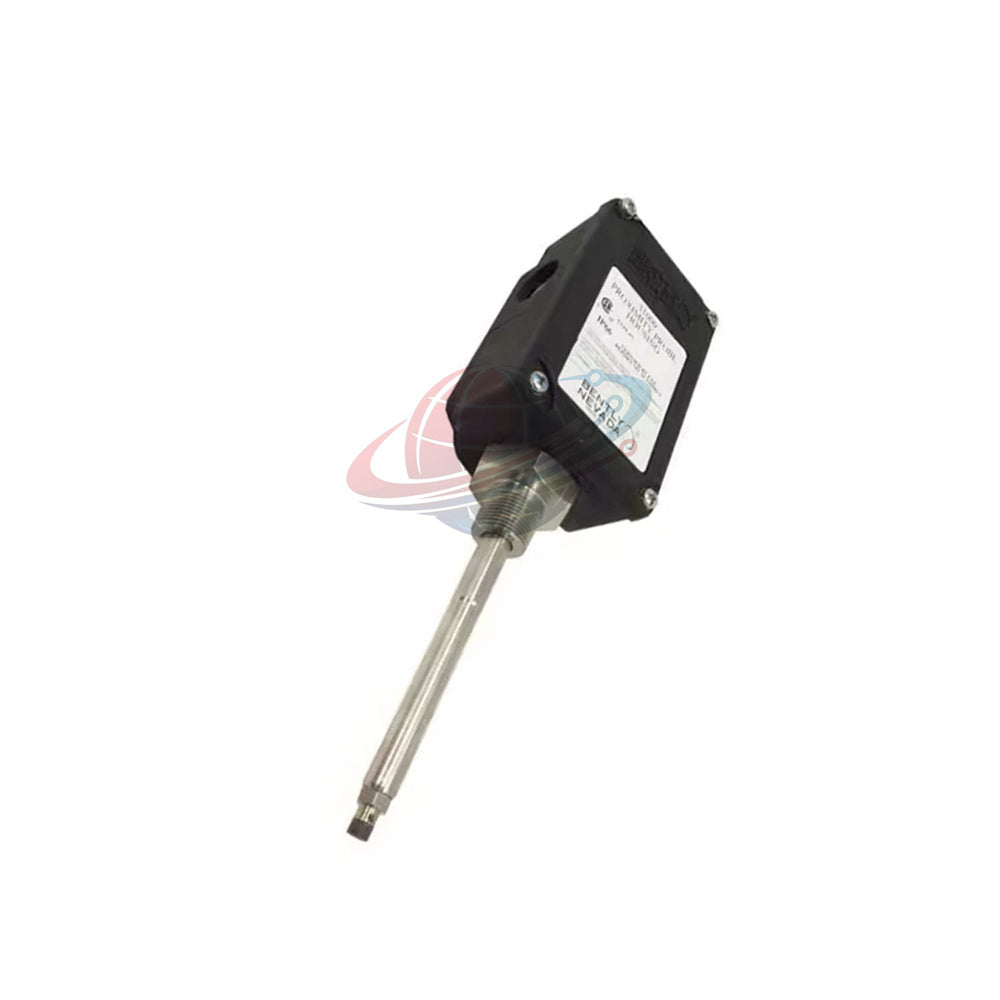

• The Bently Nevada 32000-16-05-00-080-03-02 is a heavy-duty 31000 series proximity probe housing assembly.
• This 32000-16-05-00-080-03-02 unit is constructed from glass-reinforced Polyphenylene Sulfide (PPS) for superior chemical and impact resistance.
• It integrates a 3300 XL 8mm probe with a 0.5m cable, providing a pre-configured solution for shaft vibration and position monitoring.
• Engineered for hazardous areas, it features Type 4X and IP66 ratings, ensuring reliable performance in the harshest industrial climates.

Configuration Breakdown (Tree Structure)

• Base Model: 32000 — 31000 Proximity Probe Housing
  • — Probe Option [16]: 3300 XL 8 mm probe with connector
  • — Cable Length [05]: 0.5 m (20 in)
  • — Standoff Adapter [00]: 00 mm (No standoff)
  • — Probe Penetration [080]: 80 mm
  • — Fittings [03]: Two plugs, one M20 fitting, one cable seal grip for armored cable
  • — Mounting Thread [02]: 3/4-14 NPT

Technical Specifications

• Brand: Bently Nevada (Made in U.S.A)
• Model: 32000-16-05-00-080-03-02
• Housing Material: Glass-reinforced PPS (Thermoplastic with conductive fibers)
• Protection Rating: CSA Type 4X / IP66 / CENELEC EN50014 (Electrostatic dissipation)
• Temperature Rating: -51°C to +105°C (-60°F to +221°F)
• Impact Strength: 7 Joules at room temp / 4 Joules at temperature extremes
• Sleeve/Exterior Material: AISI 304 and 303 Stainless Steel
• O-Ring Material: Neoprene®
• Recommended Nut Torque: 29.4 N•m (260 in•lb)
• Weight: 1.2 kg (2.6 lb) typical

Global PLC Spare HUB's Insight

• The Bently Nevada 32000-16-05-00-080-03-02 is an ideal choice for petrochemical and offshore environments where metallic housings might succumb to galvanic corrosion.
• The PPS conductive fiber material is a critical safety feature, as it allows for static discharge in hazardous explosive zones.
• Maintenance teams prefer this 80mm penetration model for its versatility across standard centrifugal compressor bearing housings.

Model Selection Comparison & Engineering Advice

• Technical Recommendation: Choose the 32000-16-05-00-080-03-02 for high-precision vibration monitoring. If your target shaft has significant axial float or requires a wider linear range, consider the 11mm probe version found in the 32000-29-05-10-075-07-02.

Diagnostic Capabilities & Applications

• Mechanical Protection: Prevents field cabling damage and connection fouling in oil-saturated areas.
• Signal Stability: The rigid stainless steel sleeve prevents probe vibration, ensuring "clean" vibration data.
• Typical Equipment: Steam turbines, centrifugal compressors, and cooling tower fans.
• Diagnostic Scene: Essential for machines where probes must be mounted externally and require periodic gap adjustment without dismantling the machine.

Shipping & Warranty

• Dispatch Time: 24-48 hours from order confirmation.
• Express Logistics: International shipping via FedEx, UPS, and DHL.
• Warranty Period: 12-month standard quality guarantee on the 32000-16-05-00-080-03-02 assembly.

Expert FAQ & Purchasing Guide

• How do I ensure a proper seal during installation? Always inspect the Neoprene® O-rings and use the recommended torque of 29.4 N•m on the retaining nut to maintain the IP66 rating.
• Is the PPS material brittle in cold climates? No, the 32000-16-05-00-080-03-02 is certified to withstand 4 Joule impacts even at -39°C, making it suitable for Arctic environments.
• Can I swap the 8mm probe for a different type later? Yes, the 31000 housing design is modular, but the sleeve and internal components must match the probe diameter for correct fitment.
• What is the purpose of the conductive fibers in the PPS? The fibers allow the housing to dissipate static electricity, meeting CENELEC EN50014 safety standards for hazardous areas.
• Purchasing Advice: How do I confirm the 80mm penetration is correct? Measure from the machine casing surface to the target area of the shaft; if it's exactly 80mm, this model fits. If shorter, you may need a standoff adapter.
