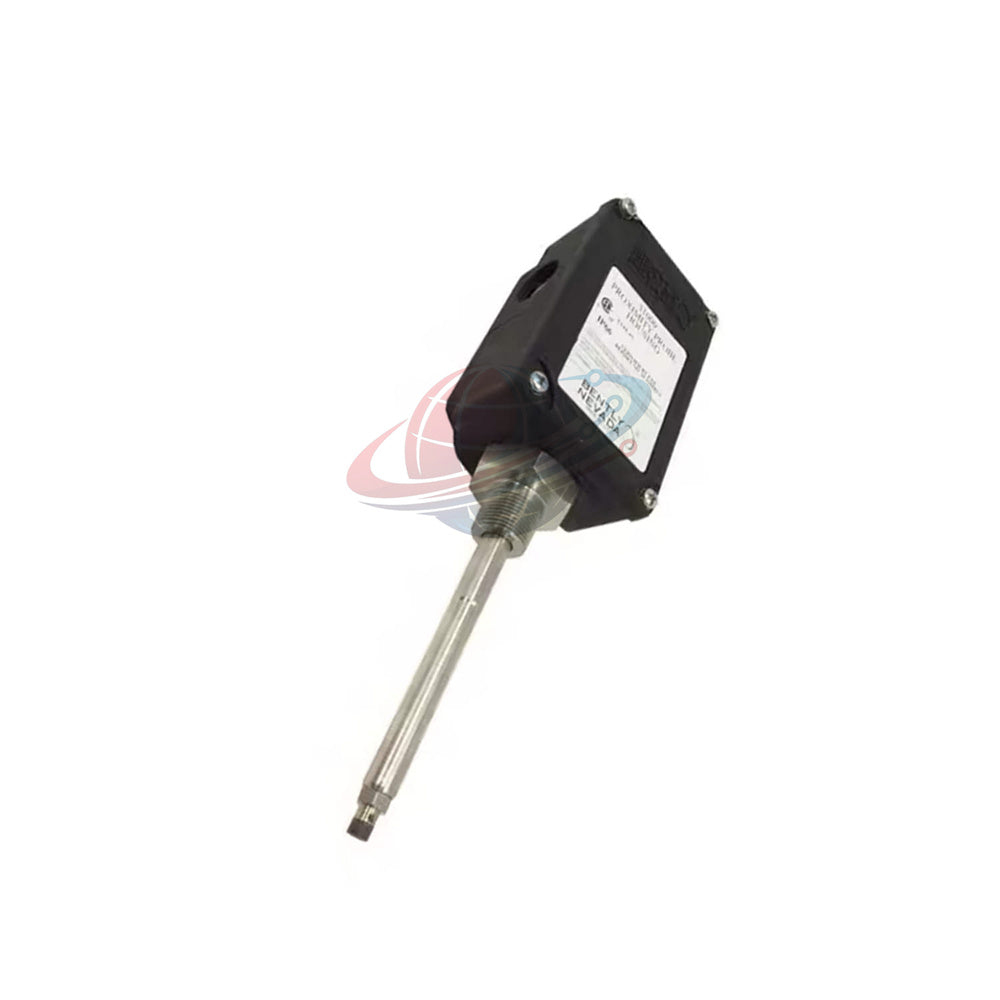

32000-29-05-10-075-07-02 Bently Nevada Metric Proximity Probe Housing Module

Product Overview – Bently Nevada 32000-29-05-10-075-07-02

The Bently Nevada 32000 Series Metric Proximity Probe Housing supports reliable vibration monitoring in demanding industrial environments.

This housing integrates mechanical protection, cable routing, and environmental sealing into one compact assembly.

It supports the 3300 XL 8 mm proximity probe series and simplifies installation in rotating machinery systems.

Engineers widely use this model in turbines, compressors, motors, pumps, and critical process equipment.

Key Features of 32000 Series

• Supports 3300 XL 8 mm probes with connector protection
• Designed for industrial vibration and shaft monitoring systems
• Provides strong environmental sealing for outdoor installations
• Improves cable management and mechanical protection
• Resists corrosion, vibration, dust, and moisture
• Supports hazardous area applications
• Suitable for high-temperature industrial environments
• Compatible with standard Bently Nevada monitoring systems
• Compact structure simplifies maintenance access

Technical Specifications

• Brand: Bently Nevada
• Model: 32000-29-05-10-075-07-02
• Series: 32000 Metric Proximity Probe Housing
• Product Type: Metric Proximity Probe Housing
• Country of Origin: United States
• Compatible Probe: 3300 XL 8 mm Probe
• Probe Cable Length: 0.5 metre
• Standoff Adapter Length: 100 mm
• Probe Penetration: 75 mm
• Mounting Thread: 3/4-14 NPT
• Fitting Configuration: One PG21 x M20 fitting and two plugs
• Housing Material: Glass-reinforced PPS thermoplastic with conductive fibers
• Sleeve Material: AISI 304 stainless steel
• Exterior Hardware: AISI 303 stainless steel
• Seal Material: Neoprene O-ring
• Protection Rating: IP66 / Type 4X
• Operating Temperature: -51°C to +105°C
• Impact Resistance: Certified up to 7 Joules
• Environmental Resistance: Dustproof, corrosion-resistant, moisture-resistant
• EMI Resistance: Conductive fiber structure improves electrostatic dissipation
• Approximate Weight: 1.2 kg

Measurement and Diagnostic Capabilities

• Supports shaft vibration monitoring applications
• Supports radial displacement measurement systems
• Maintains stable probe positioning under vibration
• Improves signal integrity in industrial environments
• Supports continuous machine condition monitoring
• Helps identify imbalance, misalignment, and bearing wear
• Supports predictive maintenance programs
• Suitable for integration with Bently Nevada monitoring racks

Configuration Breakdown

• 32000-29-05-10-075-07-02
  • 29 = 3300 XL 8 mm probe with connector protector
  • 05 = 0.5 metre probe cable length
  • 10 = 100 mm standoff adapter
  • 075 = 75 mm probe penetration
  • 07 = One PG21 x M20 fitting with two plugs
  • 02 = 3/4-14 NPT mounting thread

Installation Guidelines

• Confirm mounting thread compatibility before installation
• Install the housing away from strong electromagnetic sources
• Use correct torque values during probe installation
• Inspect sealing surfaces before tightening fittings
• Maintain adequate cable bending radius
• Verify grounding continuity after installation
• Use certified conduit fittings in hazardous locations
• Check probe gap during commissioning procedures

Commissioning and Maintenance Advantages

• Fast access design simplifies probe inspection
• Modular structure reduces maintenance downtime
• Stainless steel hardware improves service life
• Protective housing reduces accidental cable damage
• Easy probe replacement without major disassembly
• Supports long-term industrial operation
• Reduces maintenance frequency in harsh environments

Compatibility Information

• Compatible with Bently Nevada 3300 XL 8 mm probes
• Supports Bently Nevada monitoring systems
• Suitable for vibration transmitters and rack systems
• Supports rotating equipment monitoring applications
• Works with turbines, compressors, motors, and pumps

Certifications and Compliance

• CSA Type 4X certified
• IP66 protection verified by SC115582-1 (e) 106
• Complies with CENELEC EN50014 electrostatic dissipation requirements
• BASEEFA impact resistance certified
• Designed for industrial hazardous environments

Packing List

• 1 × Bently Nevada 32000-29-05-10-075-07-02 Probe Housing
• 1 × Connector protector assembly
• 1 × Standoff adapter
• 1 × PG21 x M20 fitting
• 2 × Protective plugs
• 1 × Inspection and packing documentation

Shipping and Warranty

• Warranty: 12 months
• Shipping Carriers: FedEx, UPS, DHL
• Handling Time: Ships within 24–48 hours
• Protective industrial export packaging included
• Global shipping support available

Typical Industrial Applications

• Steam turbine monitoring systems
• Gas turbine protection systems
• Industrial compressor vibration monitoring
• Large motor condition monitoring
• Pump shaft displacement measurement
• Oil and gas rotating equipment diagnostics
• Power generation machinery protection
• Petrochemical plant reliability systems

Global PLC Spare HUB's Insight

The Bently Nevada 32000 Series provides reliable mechanical protection for industrial proximity probe installations.

Its PPS enclosure performs well in corrosive and high-vibration environments.

The conductive fiber design improves electrostatic dissipation in hazardous locations.

Engineers prefer this model for critical rotating machinery applications requiring stable long-term monitoring.

This housing suits turbines, centrifugal compressors, pumps, generators, and heavy industrial motors.

FAQ

• Which probe series works with this housing?

  The housing supports Bently Nevada 3300 XL 8 mm proximity probes.

• Can this housing operate outdoors?

  Yes. The IP66 and Type 4X ratings support outdoor industrial environments.

• Does this model support hazardous areas?

  Yes. It complies with CENELEC electrostatic dissipation requirements.

• What industries commonly use this housing?

  Power generation, oil and gas, petrochemical, and heavy manufacturing industries use this model.

• How does the conductive PPS material help?

  The conductive fibers improve electrostatic discharge performance in hazardous locations.

• What installation issue appears most frequently?

  Incorrect probe gap adjustment often causes unstable vibration readings.

• What maintenance practice improves service life?

  Regular inspection of fittings and seals prevents moisture ingress.

• How should users select the correct configuration?

  Verify probe type, penetration depth, mounting thread, and conduit fitting requirements before ordering.

• Is the 75 mm penetration suitable for deep mounting points?

  Yes. The 75 mm penetration supports many industrial machine casing designs.

• Which equipment benefits most from this housing?

  High-speed rotating equipment benefits from stable probe positioning and environmental protection.
