21504-00-52-05-02 Proximity Transducer Bently Nevada

Product Overview

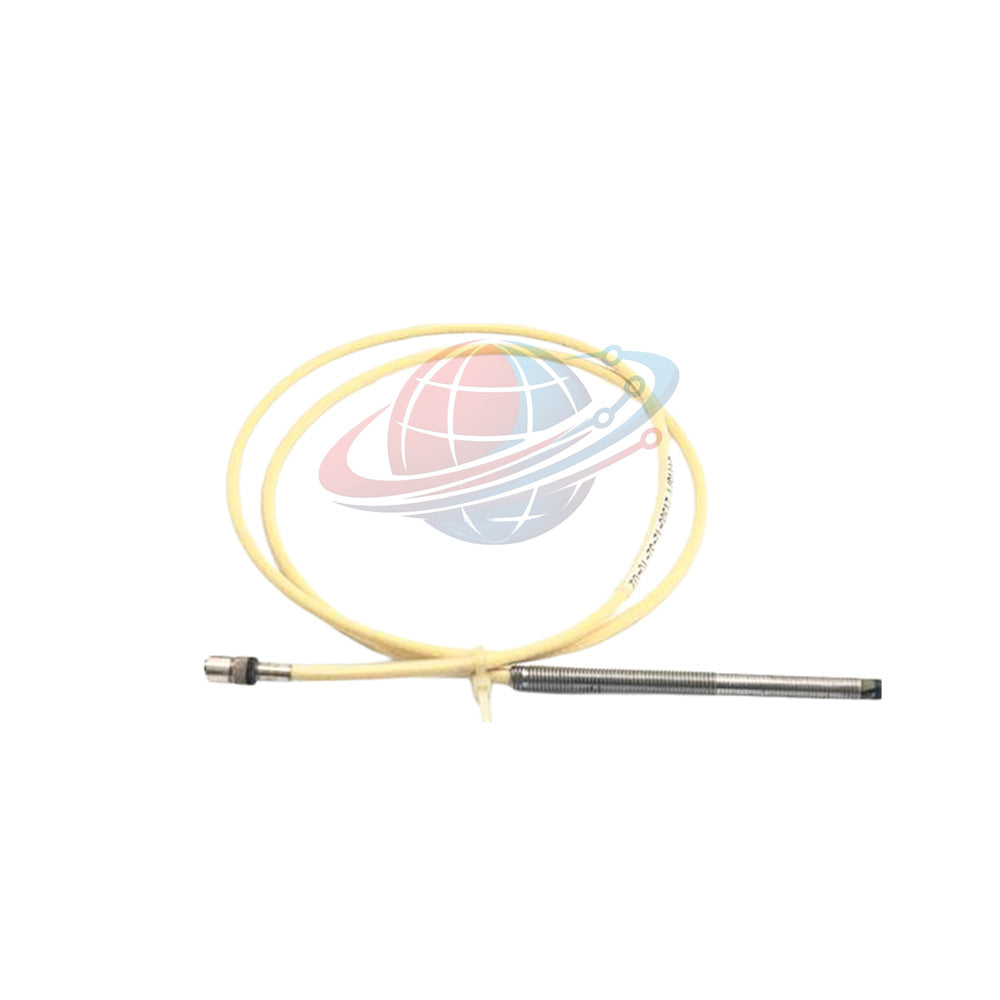

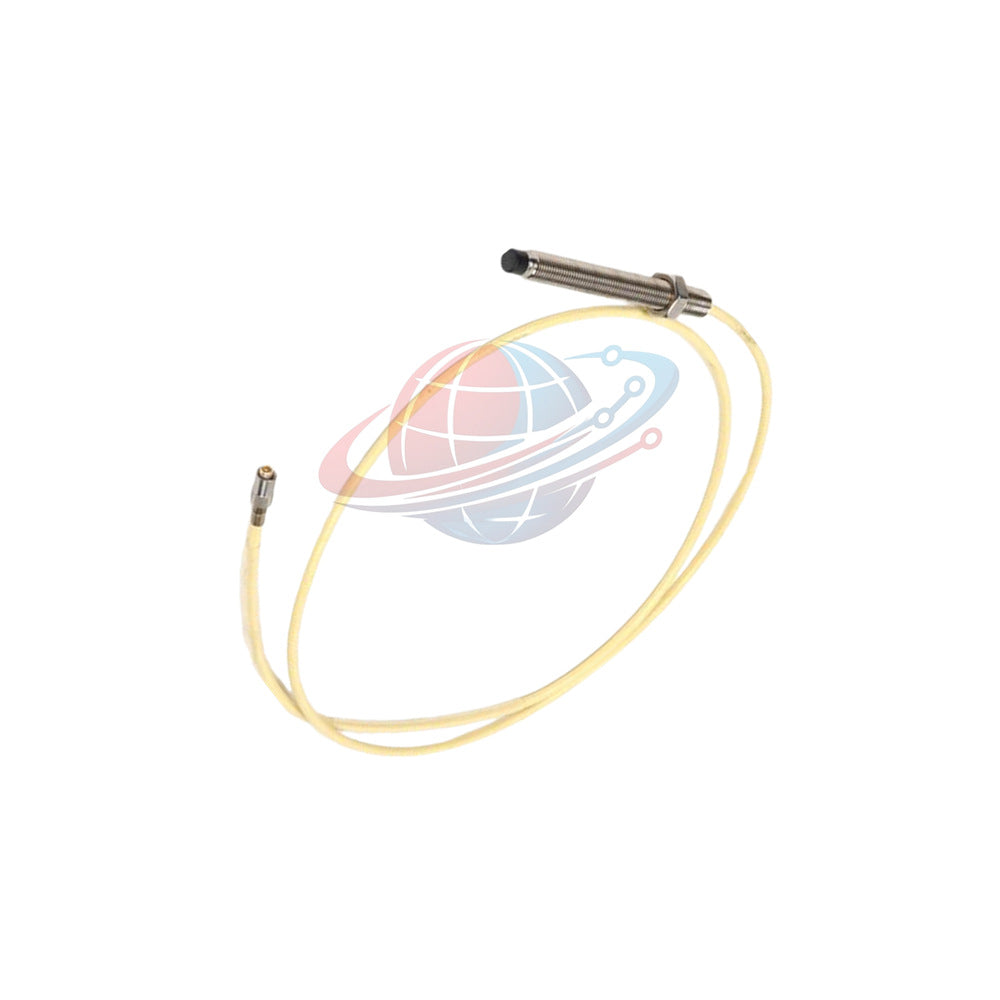

The 21504-00-52-05-02 represents Bently Nevada's high-precision 8mm eddy current proximity sensor within the flagship 7200 series transducer family.

Engineered for continuous machinery protection, this probe measures non-contact shaft vibration and axial position dynamically.

It provides critical dynamic measurement data for critical turbomachinery and rotating equipment monitoring systems.

The rugged 3/8-24 threaded body resists industrial fluids, high temperatures, and severe mechanical stress effectively.

Part Number Configuration Breakdown

Understanding the exact option structure ensures precise replacement and mechanical fit in existing probe sleeves.

• 21504 - 7200 Series 8mm Proximity Transducer Probe (3/8-24 UNF Thread)
  • -00 - Unthreaded Length Option: 0.0 inches (0 mm) fully threaded case body
  • -52 - Overall Case Length Option: 5.2 inches total thread length
  • -05 - Total Length Option: 0.5 meter (20 inches) integrated cable length
  • -02 - Connector Option: Miniature male coaxial connector (unarmored cable)

Technical Specifications Checklist

The technical parameters below detail electrical performance, linearity, and signal sensitivity metrics.

Environmental Tolerance & Chemical Resilience

The sensor tip withstands harsh operating environments across extreme temperature ranges.

• Probe Operating Temperature: Operates continuously from -34°C to +177°C (-30°F to +350°F).
• Proximitor Sensor Operating Limits: Functions reliably from -51°C to +100°C (-60°F to +212°F).
• Humidity Endurance: Operates in up to 95% relative humidity non-condensing environments.
• Chemical Resistance: Unaffected by contact with lube oil, water, air, ammonium hydroxide, 10% sulfuric acid, MEK, and DMF.

Selection Comparison & Engineering Advice

When selecting 7200 series proximity probes, case length determination remains critical to avoid mechanical interference inside bearing housings.

Engineering Advice: Ensure the probe case length allows sufficient external thread exposure for locknut tightening without bottoming out inside the probe sleeve. Matching the target material magnetic properties ensures precise 200 mV/mil scale factor alignment during calibration.

Installation & Wiring Guidelines

Thread the 21504-00-52-05-02 probe into the pre-drilled bracket until the gap voltage reaches -9.0 VDC to -11.0 VDC (center gap point).

Tighten the locknut to secure probe position against mechanical vibration during operation.

Connect the miniature male coaxial connector to the matching 7200 series extension cable carefully.

Apply silicone self-amalgamating tape over coaxial connections to prevent oil intrusion in wet housings.

Servicing & Calibration Convenience

The standardized 200 mV/mil output permits rapid field replacement without complete re-calibration of matching 7200 Proximitor units.

Certifications & Quality Standards

• CSA and BASEEFA certified for hazardous area industrial installations.
• CE compliant under European electromagnetic compatibility standards.

Package Contents, Warranty & Logistics

Ships factory-sealed containing one brand new 21504-00-52-05-02 probe with protective connector cap.

Includes a complete 12-month factory warranty covering operational integrity.

Orders ship within 24 to 48 hours with worldwide express dispatch.

Available express carriers include FedEx, UPS, and DHL Express.

Target Equipment & Industrial Applications

• Centrifugal Gas Compressors: Measures dynamic radial shaft vibration inside high-speed tilting-pad bearings.
• Steam & Gas Turbines: Monitors axial rotor thrust position to prevent destructive internal blade-to-casing contact.
• Large Boiler Feed Pumps: Detects shaft orbit asymmetry and early sleeve bearing wear trends.
• Industrial Gearboxes: Provides key vibration signals for predictive maintenance diagnostic software.

Diagnostic Capabilities & Machine Health Monitoring

The raw AC/DC signal output feeds directly into Bently Nevada 3500 or System 1 machinery management software.

DC voltage shifts indicate physical gap changes (thrust position movement or bearing wipe).

AC voltage oscillations represent dynamic shaft vibration waveforms, identifying unbalance, misalignment, and oil whirl.

Global PLC Spare HUB's Insight

The 21504-00-52-05-02 probe remains an essential replacement component across power generation facilities worldwide.

During a emergency overhaul on a multi-stage steam turbine, our team supplied this long-case 5.2-inch probe to replace an oil-damaged sensor.

The client avoided extended downtime because the exact thread depth permitted perfect center-gap setup without replacing outer sleeve adapters.

We always advise engineers to inspect coaxial connector tightness using torque wrenches to eliminate signal drift caused by loose cable joints.

Technical FAQ & Machinery Guidance

Q1: What is the primary functional difference between the 21504-00-52-05-02 and short-case probe variants?

A1: The 5.2-inch threaded case on the 21504-00-52-05-02 extends deeper into thick bearing housings where standard 3.2-inch probes cannot reach terminal threads.

Q2: Why must I setting the probe gap voltage to approximately -10 VDC during physical installation?

A2: A -10 VDC gap voltage places the sensor tip directly in the center of its 80 mil linear operating curve for maximum dynamic vibration headroom.

Q3: Can I connect this probe directly to a standard 4-20mA PLC analog input card?

A3: No, proximity probes output raw high-frequency signals; they require a matching Proximitor module to convert signals into 4-20mA loop currents or raw voltage outputs.

Q4: How does target shaft material composition affect the scale factor of the 21504-00-52-05-02 probe?

A4: Eddy current sensors calibrate specifically for AISI 4140 steel; non-magnetic or stainless steel shafts alter the scale factor and require special target calibration.

Q5: What diagnostic step should I take if the gap voltage reads -24 VDC continuously?

A5: A -24 VDC reading indicates an open circuit condition, typically caused by a loose coaxial connector, broken extension cable, or probe tip damage.
