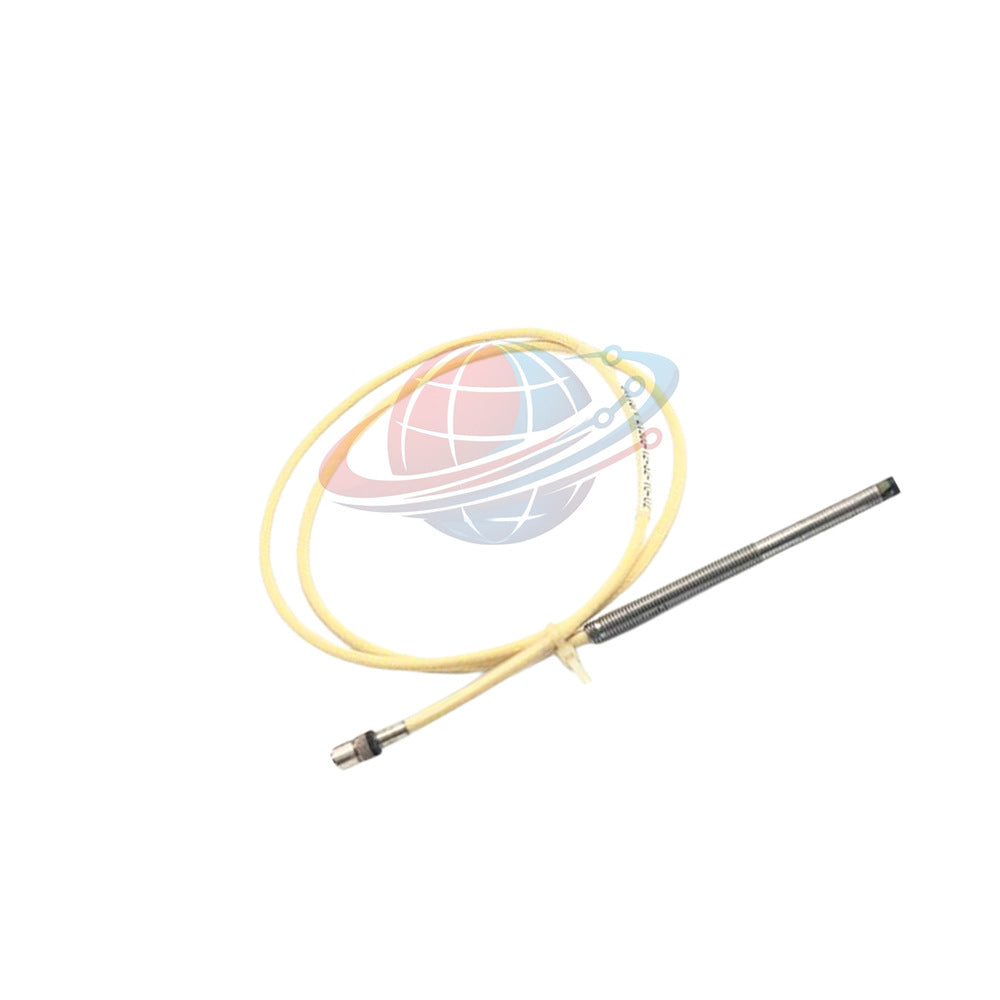

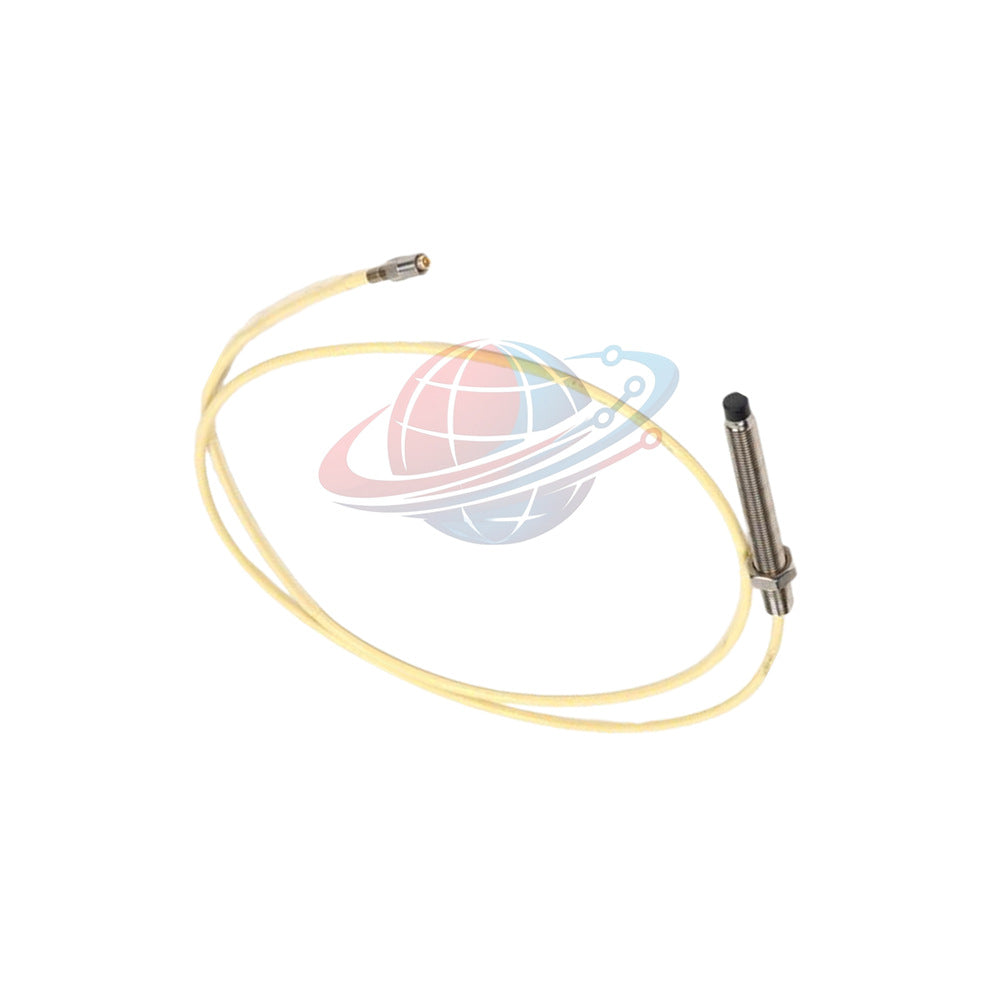

21504-000-032-05-02 Bently Nevada 7200 Series Probe Vibration Transducer

Executive Product Overview

The 21504-000-032-05-02 model from the Bently Nevada 7200 Series functions as an engineered proximity transducer system built for precise machinery vibration analysis. Industrial operators utilize this 8 mm probe assembly to measure static and dynamic shaft displacement relative to bearing housings. Global PLC Spare HUB supplies the 21504-000-032-05-02 brand new in original factory packaging, guaranteeing zero-hour reliability for critical rotating equipment monitoring loops.

Configuration Breakdown and Suffix Architecture

Technical Specifications and Operating Parameters

Global PLC Spare HUB's Insight

Field engineers evaluating eddy-current proximity loops understand that signal distortion often stems from impedance mismatches or localized ground loops within the coaxial interconnect. The 21504-000-032-05-02 utilizes a factory-matched driver and probe combination that eliminates field calibration drift. When maintaining legacy 7200 architectures, technicians must verify that the miniature male coaxial connector remains free of micro-contamination or moisture ingress, as even microscopic oil films degrade the high-frequency displacement response.

Target Equipment and Application Scenarios

• Industrial Steam Turbines: Installed across turbine journal bearings to monitor radial vibration vectors.
• Centrifugal Gas Compressors: Deployed to capture axial thrust displacement and prevent catastrophic impeller-to-labyrinth seal rubs.
• Large Electric Motors and Generators: Utilized for continuous shaft orbit visualization and startup transient analysis.
• Heavy-Duty Industrial Pumps: Mounted on multi-stage boiler feed pumps to track dynamic shaft centerline movement.

Diagnostic Capability

Machinery protection systems integrating the 21504-000-032-05-02 enable reliability teams to diagnose complex rotor dynamics phenomena. Plant specialists analyze raw waveform outputs to detect sub-synchronous oil whirl, rotor unbalance, mechanical looseness, and thermal bow before physical damage occurs inside the machine casing.

Model Selection and Technical Comparison

When replacing aging proximity loops within the 7200 ecosystem, engineers must evaluate physical case constraints and cable reach. Below is a comparative technical analysis against an alternative configuration within the same family:

• Selected Model: 21504-000-032-05-02 features a 3.2-inch case length and a 0.5-metre total length with a miniature male coaxial connector, optimized for compact bracket mounting spaces where short cable runs are mandated.
• Alternative Model: For installations requiring extended reach or alternate mechanical terminations, engineers frequently evaluate the 21504-00-08-10-02 Bently Nevada Proximity Transducer System Probe, which adapts to different penetration matrices while preserving core 7200 series signal linearity.

Packing List and Warranty

• 21504-000-032-05-02 8 mm proximity probe and matched driver assembly
• Miniature male coaxial connector assembly
• Factory calibration verification report and compliance documentation

Global PLC Spare HUB backs every 21504-000-032-05-02 purchase with a comprehensive 12-month warranty.

Shipping and Logistics

Global PLC Spare HUB processes and dispatches all orders within 24-48 hours. Rigorous technical bench verification precedes packaging to ensure hardware integrity. Expedited international delivery runs seamlessly via FedEx, UPS, and DHL to eliminate unnecessary plant turnaround delays.

Professional Frequently Asked Questions

Q: What specific power supply voltage range does the 21504-000-032-05-02 require during operation?
A: The system requires a negative DC power supply ranging from -17.5 Vdc to -26 Vdc, drawing a maximum current of 12 mA.

Q: How does chemical exposure affect the functional lifespan of the 21504-000-032-05-02 probe tip?
A: The polyphenylene sulfide tip resists direct contact with air, water, lube oil, ammonium hydroxide, 10% sulfuric acid, MEK, and DMF without degrading signal output.

Q: What maintenance steps are recommended when troubleshooting intermittent signal noise on this transducer loop?
A: Technicians should inspect the coaxial connector for oil contamination, verify shield grounding integrity at the monitor rack, and check that the gap voltage rests cleanly within the mid-range of the -17.5 Vdc supply curve.

Q: What selection factors determine whether to choose the 21504-000-032-05-02 over alternative 7200 series lengths?
A: Engineers must calculate the total distance from the machine casing penetration point to the local junction box or proximitor housing, ensuring the 0.5-metre total length accommodates the physical routing path without tension.

Q: Can field technicians recalibrate the scale factor of the 21504-000-032-05-02 on-site?
A: System calibration is factory-trimmed to achieve a nominal 200 mV/mil scale factor; field adjustments should focus on verifying gap voltage rather than altering internal electronic components.
