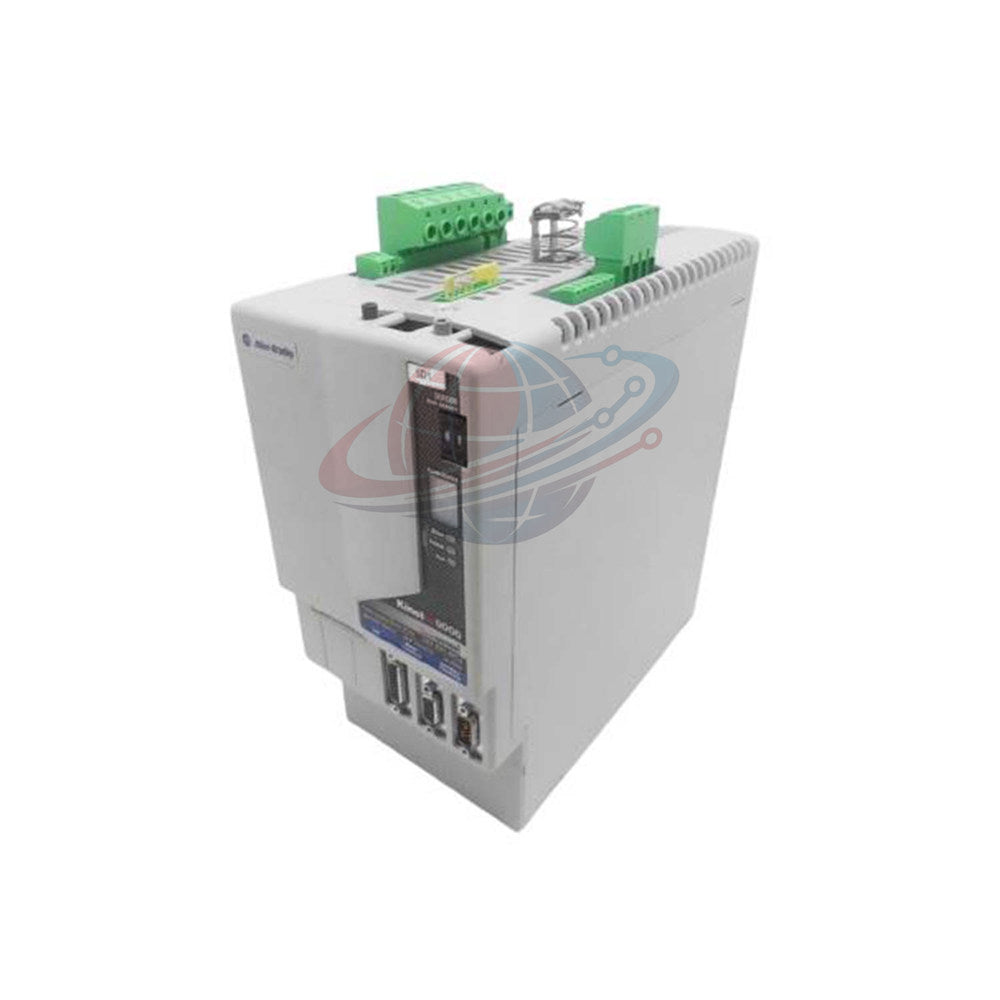

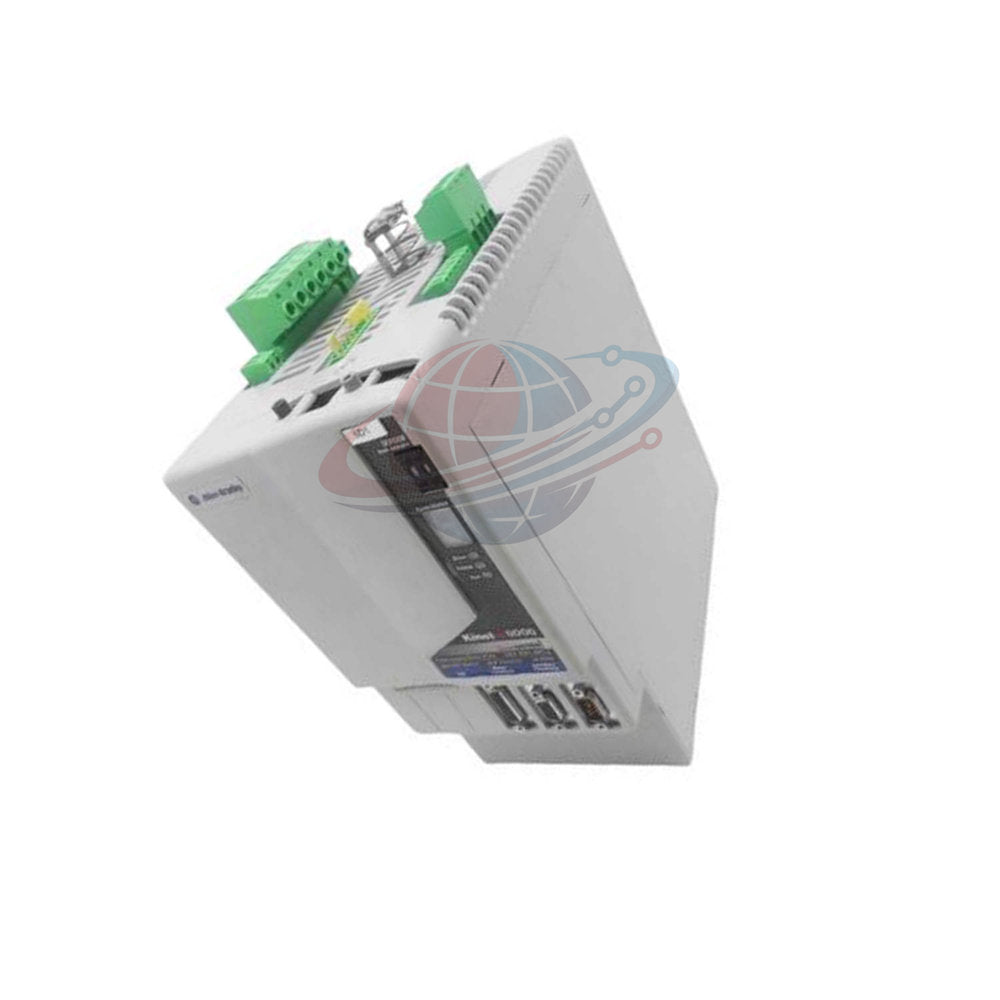

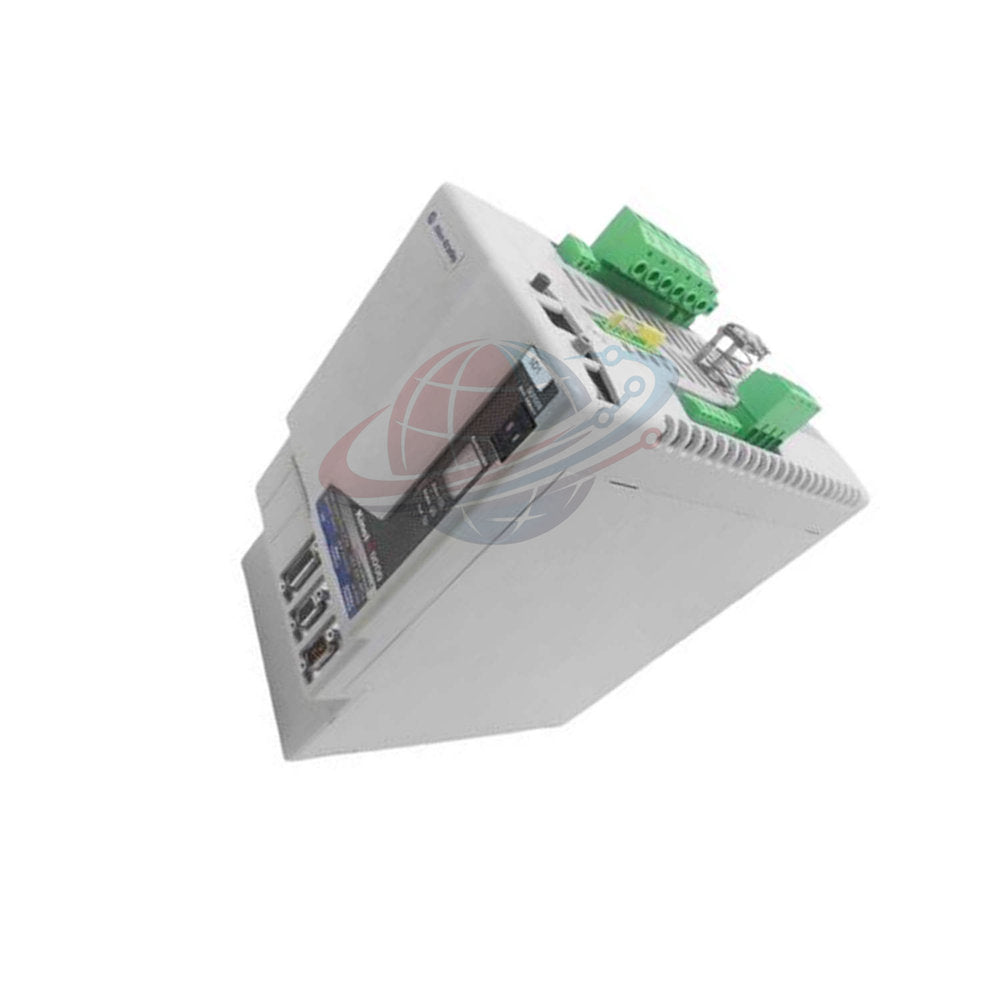

2094-BC01-MP5-S Allen-Bradley Kinetix 6000 Integrated Axis Module

System-Level Overview

2094-BC01-MP5-S is a high-efficiency Integrated Axis Module engineered for multi-axis motion systems. It belongs to the Kinetix 6000 series. The module combines power conversion and axis control in a compact architecture. It supports deterministic motion performance across synchronized axes.

This IAM module enables centralized DC bus management. It simplifies system wiring and improves energy utilization. The design integrates safety, control, and power handling into one platform.

Core Electrical Characteristics

• Brand: Allen-Bradley
• Model: 2094-BC01-MP5-S
• Series: Kinetix 6000
• Module Type: Integrated Axis Module (IAM)
• AC Input Voltage: 324 to 528 V RMS, 3-phase
• Nominal Voltage: 360 / 480 VAC
• DC Bus Voltage: 458 to 747 V DC
• Continuous Output Power: 6 kW
• Peak Output Power: 12 kW
• Continuous Output Current: 9 A
• Efficiency: 97% typical
• Input Frequency: 47 to 63 Hz
• Inrush Current: 11 A maximum
• Internal Shunt Power: 50 W continuous
• Isolation: Industrial-grade electrical isolation
• Weight: 4.98 kg

Motion and Safety Capabilities

• Integrated Safe Torque Off (STO) enhances machine safety.
• Supports synchronized motion using SERCOS communication.
• Enables dynamic parameter switching via controller logic.
• Provides stable DC bus for multi-axis coordination.
• Maintains high efficiency under varying load conditions.

Installation Engineering Notes

• Mount directly on Kinetix 6000 power rail system.
• Maintain minimum 50.8 mm clearance for airflow.
• Ensure enclosure depth exceeds 198 mm.
• Use proper grounding to reduce electrical noise.
• Verify three-phase input stability before energizing.

Configuration and Lifecycle Management

• Configure through ControlLogix platform integration.
• Utilize SERCOS interface modules for communication.
• Adjust drive parameters dynamically via PLC logic.
• Monitor system performance through controller diagnostics.
• Perform routine inspection on bus and thermal conditions.

Compatibility and System Integration

• Compatible with ControlLogix PAC systems.
• Supports Kinetix MP, TL, RDB, and 1326AB servo motors.
• Works with linear motors and actuators.
• Integrates into multi-axis motion architectures.
• Supports distributed automation environments.

Application Scenarios

• High-speed packaging and labeling systems
• Automated assembly and robotics
• Material handling and conveyor systems
• Precision machining centers
• Multi-axis coordinated motion platforms

Diagnostics and Monitoring

• Real-time monitoring of bus voltage and current
• Fault detection for overvoltage and undervoltage conditions
• Integrated safety status through STO feedback
• Controller-level diagnostics via SERCOS network
• Predictive maintenance through performance analytics

Global PLC Spare HUB’s Insight

The 2094-BC01-MP5-S is engineered for complex motion systems. It provides centralized power management and precise axis coordination. Engineers rely on it for scalable multi-axis control architectures.

This module fits advanced automation lines requiring synchronized motion. It performs reliably in high-demand industrial environments.

Warranty and Shipping

• 12-month warranty ensures system reliability
• Fast dispatch within 24 to 48 hours
• Shipping via FedEx, UPS, or DHL
• Global delivery with secure packaging

FAQ

• What is the role of an Integrated Axis Module?
• It combines power conversion and axis control in one unit.
• How does STO improve system safety?
• It safely disables torque without removing system power.
• What factors affect module efficiency?
• Load conditions, thermal management, and bus stability influence efficiency.
• How to select this module for an application?
• Match power rating, voltage class, and motion requirements.
• Can it support multi-axis synchronization?
• Yes, it is designed for coordinated multi-axis motion control.
