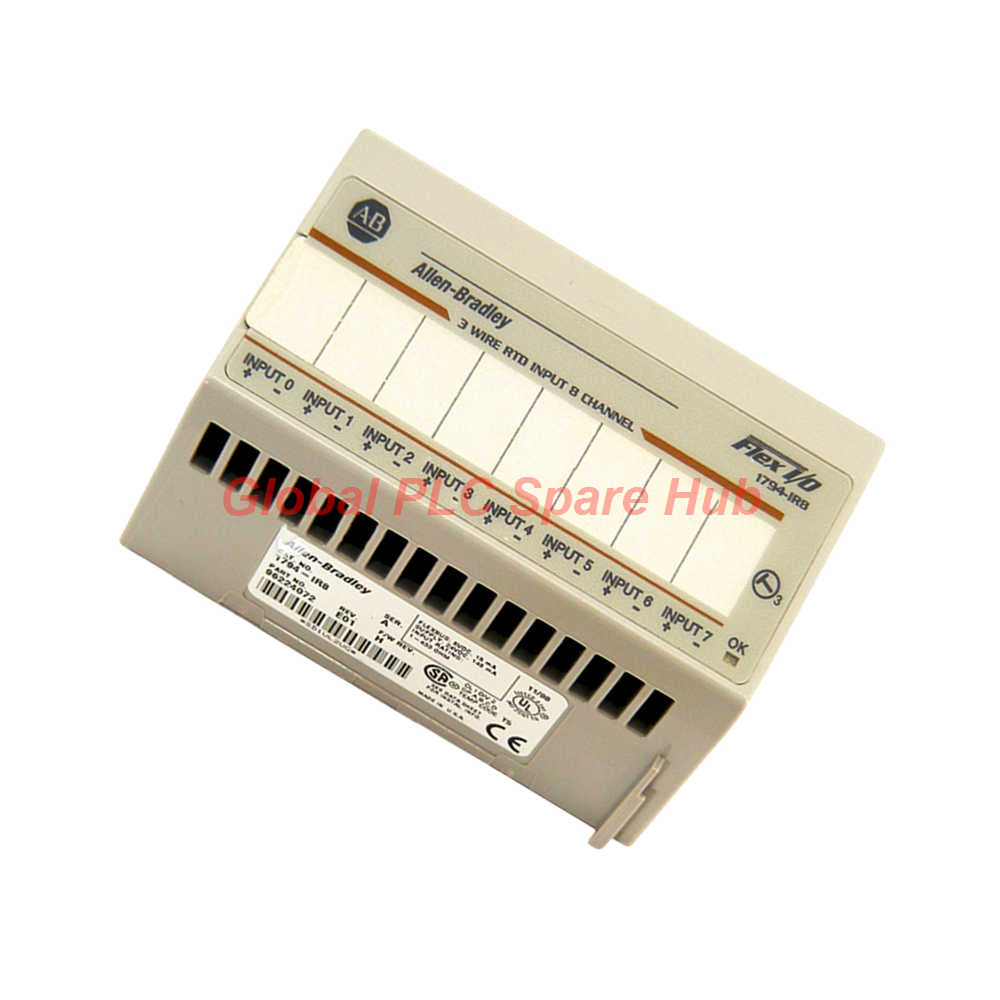

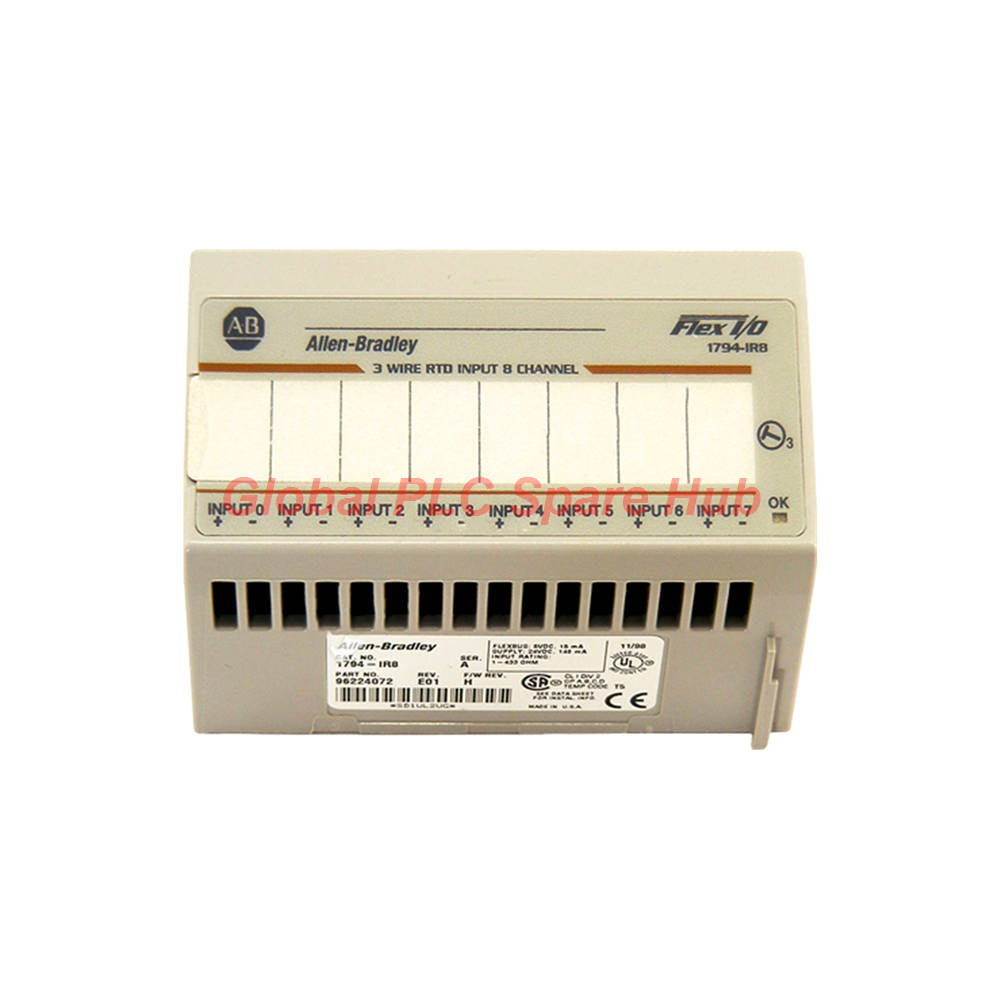

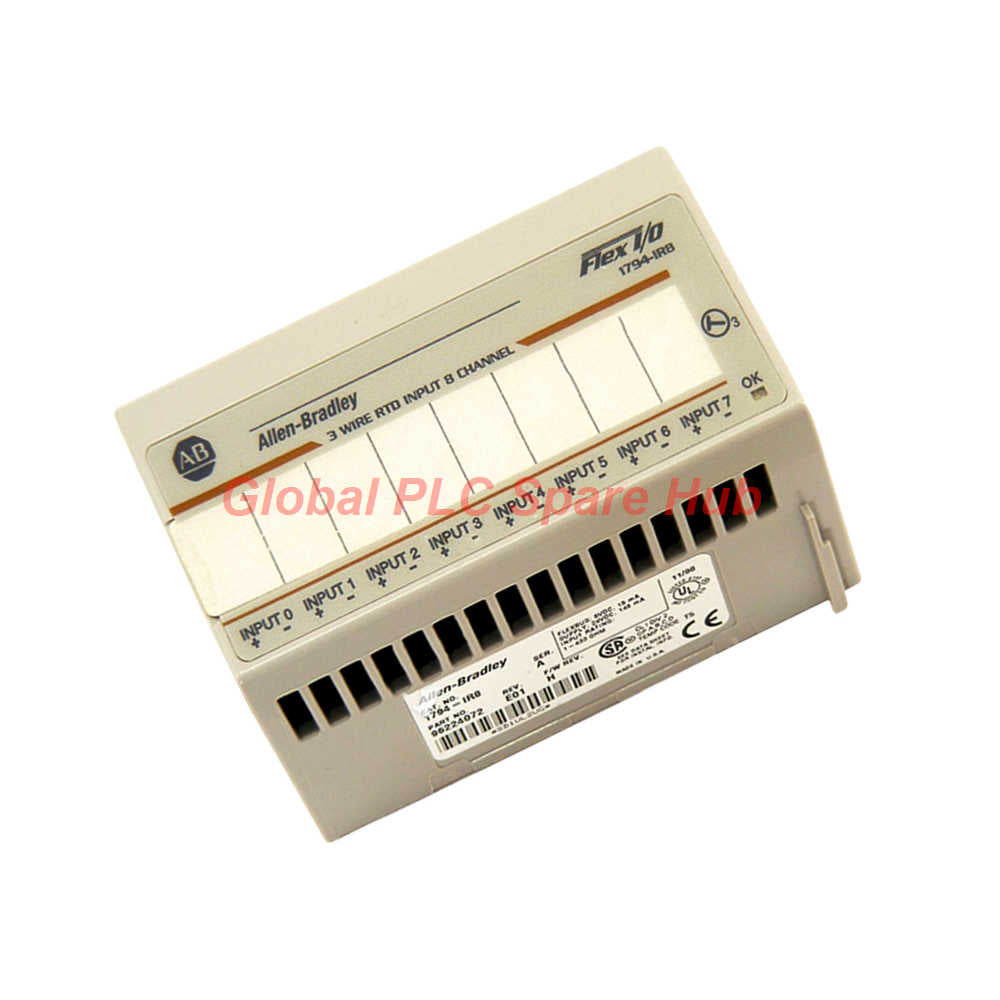

1794-IR8 Allen-Bradley FLEX I/O RTD Module 8 Channel

Technical Overview

The 1794-IR8 is an 8-channel high-resolution Resistance Temperature Detector (RTD) analog input module belonging to the Allen-Bradley FLEX I/O architecture. Engineered for high-accuracy industrial temperature monitoring, this module digitizes analog signals from various Platinum, Nickel, and Copper RTD elements or direct resistance sources into 16-bit 2's complement or unipolar offset binary formats.

Operating via a 24 VDC external power supply (19.2 to 31.2 VDC range), the 1794-IR8 supplies a precise 718.36 μA excitation current across its 1 to 433 Ohm input spectrum. The module features Removal and Insertion Under Power (RIUP) capability, allowing hot-swapping during active system operation without disrupting adjacent rack traffic or backplane communication. Wiring directly to a dedicated FLEX I/O terminal base eliminates external terminal blocks, reducing cabinet footprint and installation complexity.

Signal Processing & Performance Architecture

• High-Resolution Analog Conversion
  • 16-bit analog-to-digital resolution across a full-scale 435 Ohm measuring range.
  • System accuracy of ±0.05% full scale in Normal Mode and up to ±0.01% full scale in Enhanced Mode (at low humidity without dynamic recalibration).
  • Programmable system scan/throughput rates ranging from 28 ms to 2.6 s for 8 channels in Normal Mode, and up to 2.925 s in High-Precision Enhanced Mode.
• Noise Attenuation & Filter Performance
  • Integrates an internal A/D digital filter with a 10 Hz cutoff frequency, yielding a channel bandwidth of 0 to 2.62 Hz (-3 dB).
  • Normal Mode Noise Rejection (NMRR) of -60 dB @ 60 Hz for effective line frequency ripple suppression.
  • Common Mode Noise Rejection (CMRR) of -120 dB @ 60 Hz and -100 dB @ 50 Hz to prevent ground-loop signal corruption.
• Supported Sensors & Signal Ranges
  • Platinum RTDs: 100 Ω Pt (α=0.00385 Euro, -200 to +870 °C; α=0.003916 US, -200 to +630 °C), 200 Ω Pt, and 500 Ω Pt.
  • Nickel RTDs: 100 Ω, 120 Ω, 200 Ω, and 500 Ω Ni (α=0.00618 / 0.00672, -60 to +250 °C).
  • Copper RTDs: 10 Ω Cu (α=0.00427, -200 to +260 °C).
  • Direct Resistance: 1 to 433 Ohm range with Cold Junction Compensation (-20 to +100 °C).

Technical Specifications

Diagnostic Capabilities & Telemetry

• Sensor Wire Fault Detection: Automatic detection of open sensor elements or broken lead wire conditions with status flag updates mapped to controller memory tags.
• Out-of-Range Conditions: Hardware flags trigger when measured resistance falls below 1 Ohm or exceeds 433 Ohms, allowing quick identifying of short circuits or degraded sensor heads.
• Backplane Data Quality Monitoring: Controller software reads bit-level channel fault status to isolate channel-specific anomalies without taking the entire rack offline.

Target Applications & Industrial Deployment

• Large Electric Motor & Generator Stator Protection: Connects 10 Ohm Copper or 100 Ohm Platinum RTDs embedded in motor windings to track thermal escalation during continuous load cycles.
• Petrochemical Storage Tank Monitoring: Manages multi-point temperature profiles across distillation columns, bulk chemical storage vessels, and heat exchangers.
• HVAC & Boiler Plant Management: Interfaces multi-channel ambient and fluid sensors directly to ControlLogix or CompactLogix controllers via standard FLEX communication adapters.

Installation & Wiring Practices

• Terminal Base Mounting: Install the module onto a compatible 1794 terminal base (such as 1794-TB3, 1794-TB3T, or 1794-TB3TS) before attaching system wiring.
• Shielded Wire Termination: Ground the shield wire at the terminal base end only to minimize high-frequency electromagnetic interference in low-level analog lines.
• Hot-Swap Protocol: When performing RIUP replacement, inspect the terminal base keyswitch position to match the RTD module's designated keying configuration (Key Position 3).

Logistics, Packaging & Warranty Support

• Shipping Methods: Fast global delivery available via express courier partners: FedEx, UPS, and DHL.
• Unit Condition: Factory original, brand-new sealed stock supplied with authentic manufacturer serial numbers.
• Warranty Protection: Backed by a comprehensive 12-month full-replacement warranty against functional defects.

Engineering Selection & Procurement Guide

• Match Element Alpha Coefficient: Verify whether your field Pt100 sensors use the European standard (α=0.00385) or American standard (α=0.003916) prior to module configuration in the software tree.
• Lead Resistance Compensation: Utilize 3-wire or 4-wire RTD configurations on the terminal base to eliminate measurement errors caused by long field wire runs.
• Thermal Budget Management: Ensure control panel cooling holds internal ambient temperatures below 55 °C when running full 3.0 W thermal dissipation across multiple adjacent high-density cards.

Frequently Asked Questions (FAQ)

Q: What causes channel readings to jump to maximum scale during commissioning?

A: This typically indicates an open circuit, a disconnected RTD lead wire, or a configuration mismatch in the controller software regarding the selected sensor type.

Q: How does switching between Normal Mode and Enhanced Mode impact system performance?

A: Enhanced Mode increases measurement accuracy from 0.05% to 0.01% full scale, but extends the total update scan rate per channel from 224 ms to up to 650 ms.

Q: Can direct resistance sources like potentiometers be connected to these channels?

A: Yes, any linear resistance source falling within the 1 to 433 Ohm range can be read directly by configuring the input mode accordingly.

Q: Is external 24 VDC power required if the module is connected to a powered FlexBus?

A: Yes, the FlexBus only provides 20 mA logic power; the field input circuitry requires external 24 VDC power applied to the terminal base.

Q: What is the correct keyswitch setting on the terminal base unit for this card?

A: Turn the terminal base keyswitch to position 3 to prevent accidental insertion of incorrect module types into the base assembly.

Global PLC Spare HUB's Insight

A major municipal wastewater treatment facility experienced frequent false over-temperature trips on its primary effluent pumps. The maintenance crew was using unshielded 2-wire RTD runs connected to older legacy transmitters, which suffered from severe ground-loop interference and signal drift whenever large variable frequency drives (VFDs) ramped up nearby.

Our technical team recommended migrating the field connections to an 1794-IR8 RTD input card installed on a local FLEX I/O rack. By deploying 3-wire 100 Ohm Pt RTDs wired directly into a grounded 1794-TB3T terminal base, the plant leveraged the card's 120 dB common-mode rejection and 16-bit filtering. This upgrade stabilized temperature telemetry across all 8 channels, eliminating false trips and saving the municipality costly emergency call-outs.
