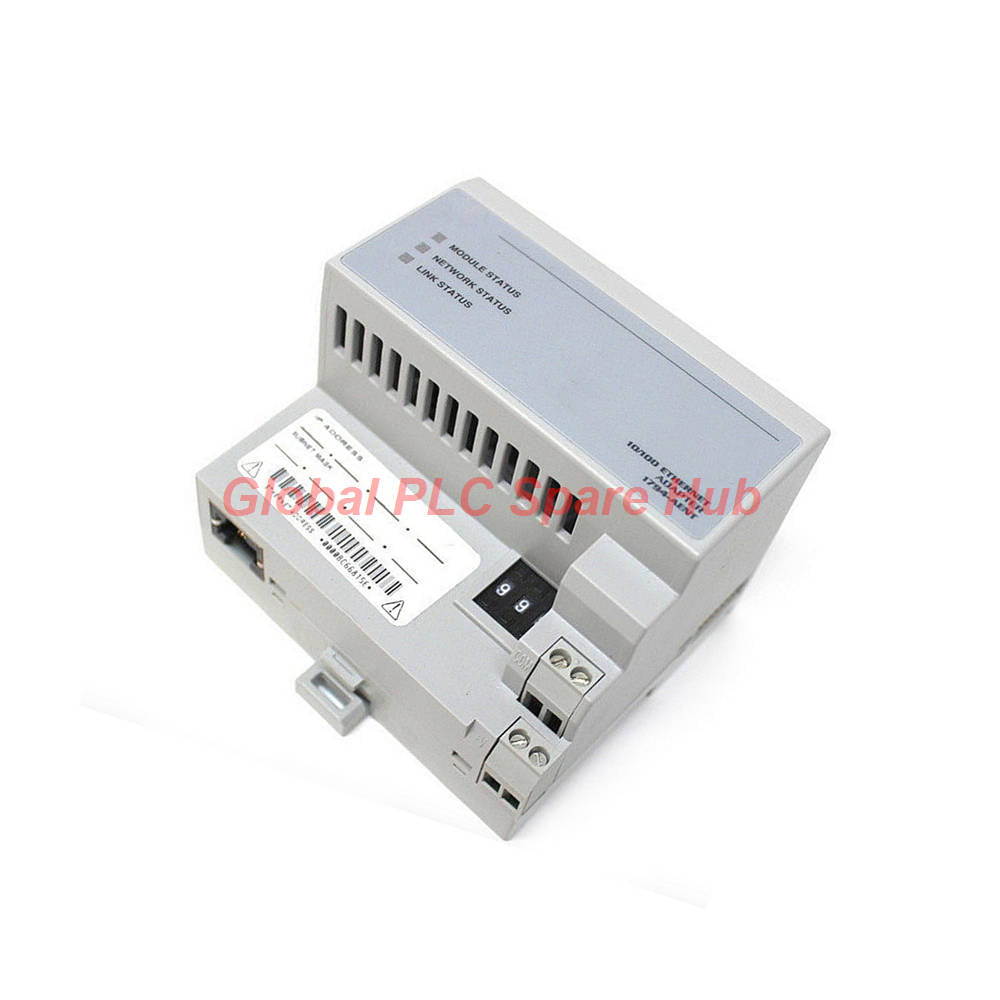

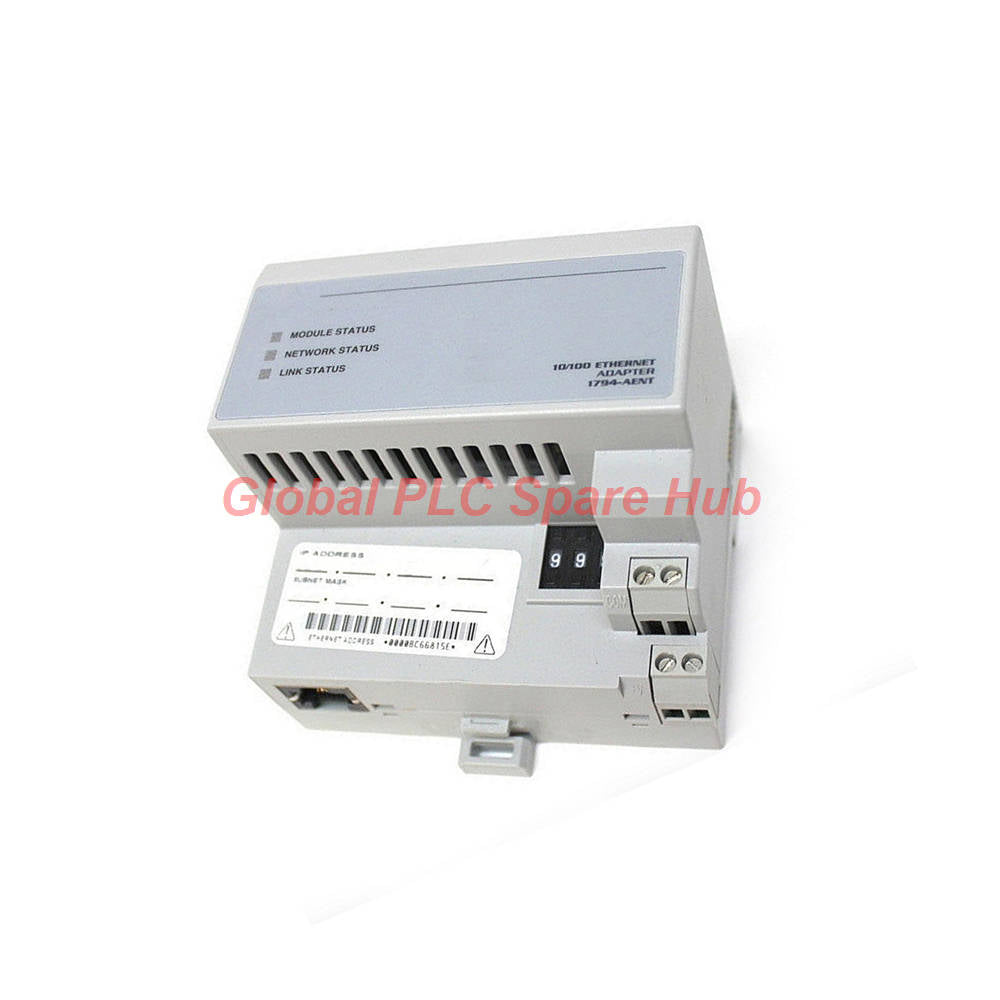

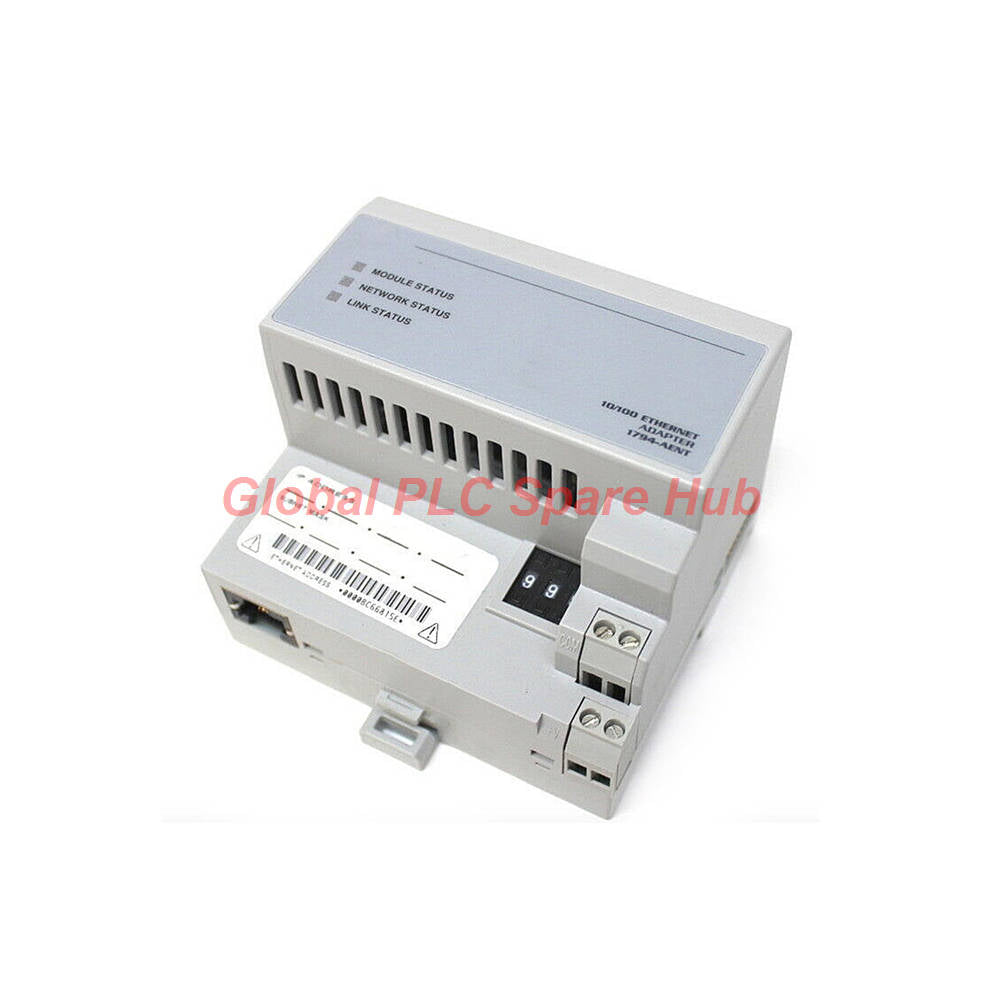

1794-AENT Rockwell Automation Ethernet/IP Adapter Stock
Manufacturer: Allen-Bradley
Product No.: 1794-AENT
Condition： In stock
Product Type: EtherNet/IP Adaptor
Product Origin: USA
Payment: T/T, Western Union
Weight: 179g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Module Architecture & Core Identity
- Manufacturer / Brand: Rockwell Automation / Allen-Bradley
- Model: 1794-AENT
- Series: Flex I/O
- Product Type: Ethernet/IP Communication Adapter Module
- Built with a single RJ45 port supporting 10/100 Mbps data rates and up to 8 I/O modules.
Technical Specification Matrix
| Engineering Parameter | Operational Standard |
|---|---|
| Brand & Model | Allen-Bradley 1794-AENT |
| Input Voltage Range | 19.2 to 31.2 V DC (Nominal 24 V DC with 5% max AC ripple) |
| Max Flexbus Output Current | 640 mA maximum |
| Communication Protocol | Ethernet/IP over linear topology using Cat. 5 cabling |
| Compatible Terminal Bases | 1794-TB3G and 1794-TB3GS units |
| Physical Dimensions & Weight | 87 x 94 x 92 mm (3.4 x 3.7 x 3.6 in), Weight: 227 g (8.01 oz) |
Target Equipment & Distributed Control Applications
- CompactLogix and ControlLogix remote I/O drop networks.
- Plant-wide material handling and automated logistics management systems.
- High-speed industrial data collection and supervisory control architectures.
- Legacy PLC-5 and SLC-500 migration setups requiring Ethernet integration.
Global PLC Spare HUB Insight, Diagnostics & Field Experience
- Our networking specialists integrated the 1794-AENT adapter into a distributed material handling control loop.
- Field Experience: Initial network commissioning encountered intermittent packet drops due to improper chassis grounding on a painted steel DIN rail.
- Replacing the mount with a zinc-plated yellow-chromate steel DIN rail resolved the grounding anomaly instantly.
- Front-panel red/green module, network, and link status indicators allowed our engineers to verify Ethernet/IP health at a glance.
Logistics, Fulfillment & Warranty Terms
- Packaging: Anti-static factory-sealed industrial packaging designed for secure global transit.
- Dispatch: Express 24-48 hour worldwide shipping via FedEx, UPS, or DHL.
- Warranty: Fully backed by a comprehensive 12-month quality assurance guarantee.
Frequently Asked Questions (FAQ)
-
Q: How do I configure the IP address for this Ethernet communication adapter?
A: You can set the network address using the physical thumbwheel switches located on the module or via a standard DHCP server. -
Q: What are the specific DIN rail material requirements to ensure proper grounding?
A: It is strongly recommended to use a zinc-plated yellow-chromate steel DIN rail to prevent oxidation and ensure reliable chassis grounding. -
Q: How many discrete or analog I/O modules can a single adapter support?
A: Each adapter supports the installation of up to eight (8) Flex I/O expansion modules on its backplane rack. -
Q: What selection factors should guide my power supply and PELV/SELV compliance planning?
A: Ensure your 24V DC power source complies with Protected Extra Low Voltage (PELV) or Safety Extra Low Voltage (SELV) standards to meet CE LVD requirements. -
Q: How should I troubleshoot a red network status indicator during startup?
A: Check your RJ45 Cat. 5 cable integrity, verify your Ethernet/IP controller connection parameters, and confirm that your IP address settings do not conflict.
