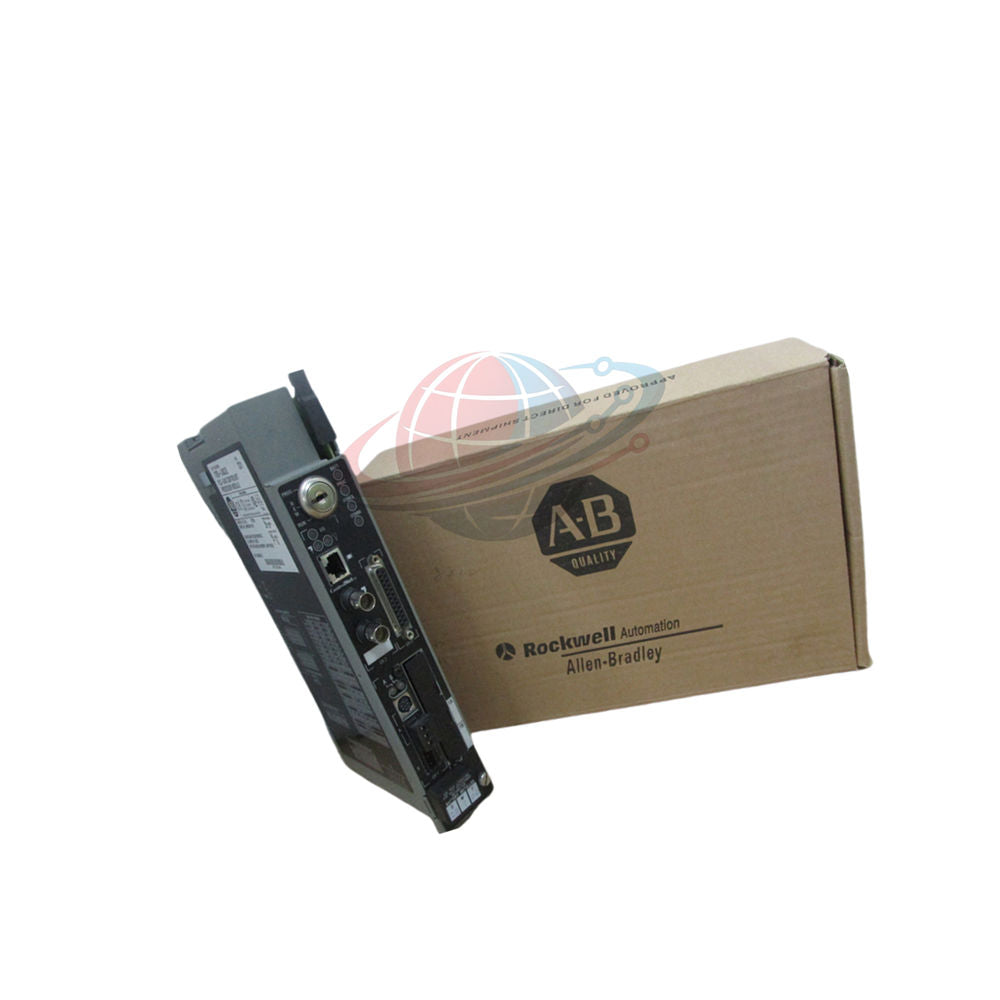

1785-L40C Allen-Bradley PLC-5/40C ControlNet Processor New Stock

1785-L40C Allen-Bradley PLC-5/40C ControlNet Processor Overview

The 1785-L40C is a high-performance ControlNet Processor Module from the PLC-5/40C series. Engineered by Rockwell Automation, this controller is designed for 1771 I/O systems that require deterministic, high-speed networking. With 48 Kilowords of battery-backed SRAM and a total capacity of 2048 I/O points, the 1785-L40C provides the computational power and communication reliability essential for mission-critical industrial applications.

Global PLC Spare HUB's Insight

From a field engineering perspective, the 1785-L40C stands out due to its ControlNet integration. Unlike standard DH+ processors, this module provides scheduled, repeatable data transfers which are critical for high-speed motion and synchronized control. We recommend the 1785-L40C for systems where network collision is a risk and deterministic performance is a requirement. Its robust 59 BTU/hour thermal management makes it a reliable choice for long-term deployment in dense industrial cabinets.

Technical Specification Matrix

• Brand: Allen-Bradley (Rockwell Automation)
• Model: 1785-L40C
• Series: PLC-5/40C ControlNet
• User Memory: 48 Kilowords (Battery-Backed SRAM)
• Total I/O Capacity: 2048 (Any mix) or 2048 In + 2048 Out (Complementary)
• Backplane Current: 3.3A at 5V DC
• Program Scan Time: 0.5ms per K-word (Bit Logic)
• Thermal Dissipation: 59 BTU/hour
• Operating Temperature: 0°C to 60°C (32°F to 140°F)

Communication & Connectivity Breakdown

• ControlNet Network Access Port (RJ45):
  • Transmission Rate: 5 Mbps
  • Network Update Time (NUT): 2ms to 100ms (User Selectable)
• Integrated Serial Port (25-pin D-shell):
  • Supported Protocols: RS-232-C / 422-A / 423-A
  • Scan Time: 3ms per rack at 230.4 kbits/s
• Additional Ports:
  • 8-pin mini-DIN Programming Port
  • 3-pin Default DH+ Port
  • Control Co-Processor Expansion Port

Diagnostic Capabilities & Device Compatibility

The 1785-L40C includes extensive hardware self-diagnostics to monitor CPU health and battery levels. It is compatible with a wide range of Rockwell Automation hardware, including 1771, 1794 Flex I/O, 1746, and 1791 modules. It also supports the 1785-CHBM Hot Backup Cartridge for applications requiring high availability and redundant processing.

Logistics & Service Terms

• Warranty Protection: Includes a comprehensive 12-month quality warranty.
• Global Shipping: Available via FedEx, UPS, and DHL for worldwide delivery.
• Handling Time: Rapid dispatch within 24-48 hours from our facility.
• Quality Assurance: Certified to UL, CE, CSA, and C-TICK standards.

Professional FAQ & Buying Guide

Question: Can I upgrade a standard PLC-5/40 to a 1785-L40C without changing the program?
Answer: While the core logic is compatible, you must reconfigure the I/O mapping in RSLogix 5 to account for the ControlNet physical layer and scheduling requirements. The 1785-L40C requires a NUT (Network Update Time) configuration that standard processors do not use.

Question: What is the benefit of the Complementary I/O feature on this module?
Answer: It allows the 1785-L40C to overlap input and output addresses, effectively doubling the available I/O table without consuming extra memory addresses, which is vital for high-density 1771 chassis setups.

Question: How should I manage memory backup for long-term storage?
Answer: For permanent program security, we recommend using a 1785-ME16 or 1785-M100 EEPROM module. This ensures your logic is preserved even if the onboard battery fails during extended downtime.

Question: What are the typical causes of the "ControlNet Link" diagnostic fault?
Answer: In our experience, this is often caused by improper termination or a mismatch in the Network Update Time (NUT) settings among different nodes. Ensure all taps are correctly seated and the ControlNet schedule is loaded.

Question: Selection Tip: Why choose the 1785-L40C over the 1785-L40B?
Answer: Choose the 1785-L40C if your system requires deterministic communication and high-speed data interlocking. If your facility is strictly standardized on DH+ and speed is not the primary concern, the L40B may suffice, but the 1785-L40C offers a more future-proof networking architecture.

Compatible Industrial Equipment

• Allen-Bradley 1771-A1B through 1771-A4B Chassis
• Allen-Bradley 1771 Digital and Analog I/O Modules
• Allen-Bradley 1785-CHBM Hot Backup Modules
• Rockwell Automation RSLogix 5 Programming Software
