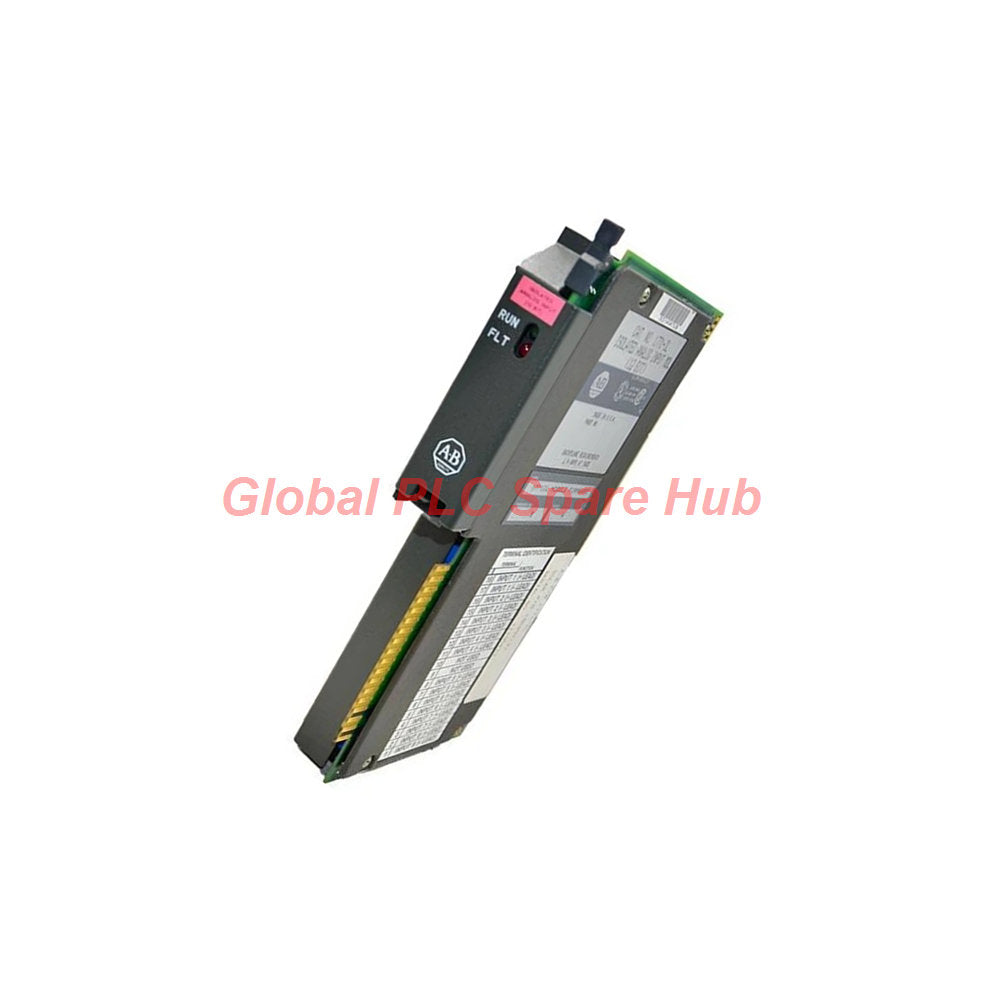

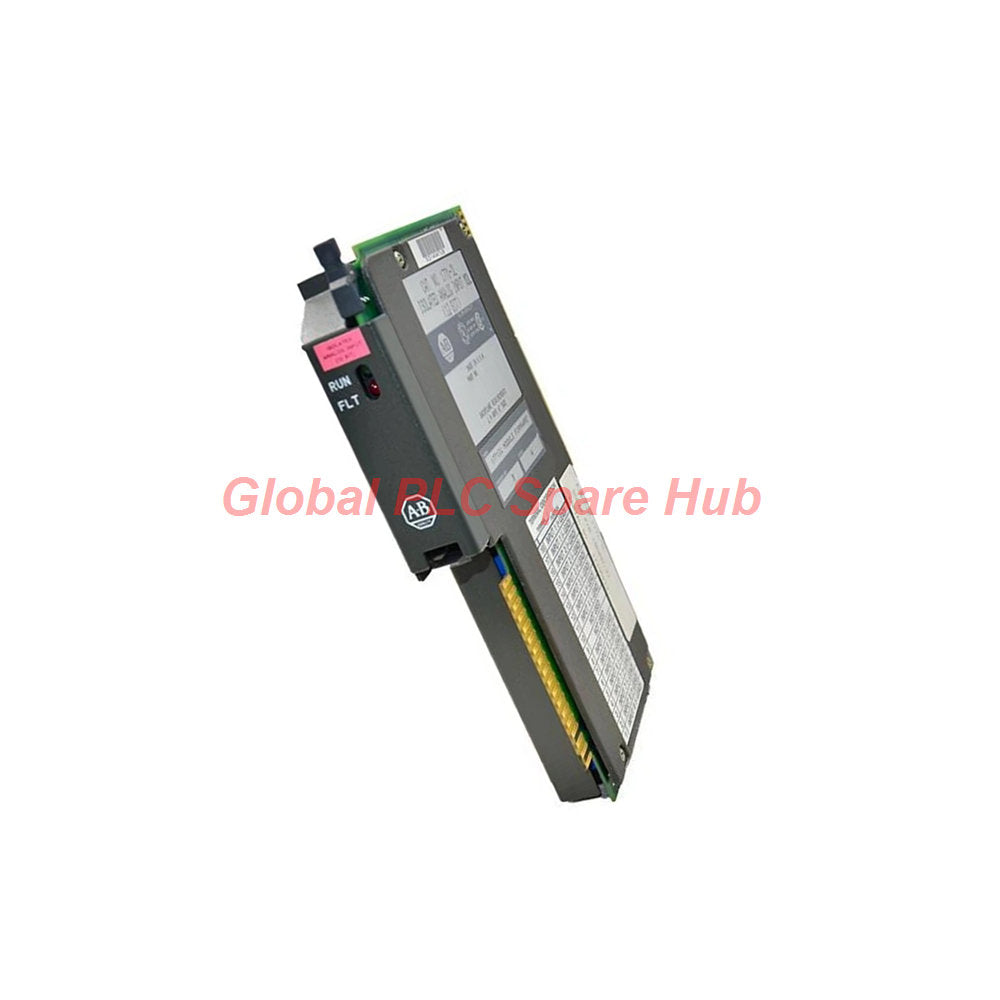

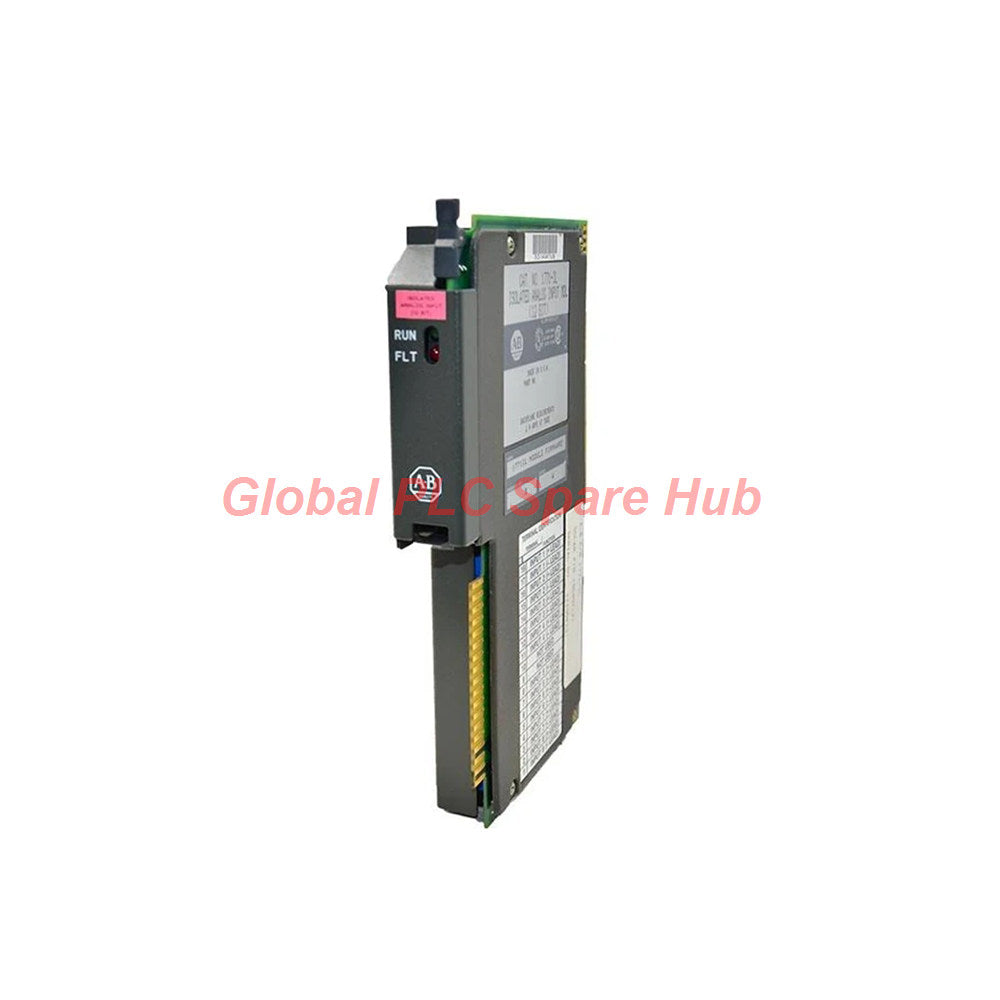

1771-IL Rockwell PLC-5 Isolated Analog Module Best Price

Core Architecture & Engineering Summary

Engineers deploy the **1771-IL** **PLC-5** module to manage precision multi-channel analog signals across legacy control loops. This unit features eight fully isolated differential channels configured via block transfer routines. It natively processes unipolar and bipolar inputs without requiring external power supplies.

Performance Specifications Matrix

Deployment Guidelines

• Mount the **1771-IL** directly into any standard **1771** local or extended I/O chassis.
• Terminate field loop wiring securely into the matching **1771-WG** removable terminal arm.
• Configure discrete block transfer programming blocks inside your processor ladder logic.
• Verify input signal scaling factors match your natural binary or BCD scaling limits up to ±9999.

Diagnostics & Troubleshooting Capabilities

• Leverage integrated open-circuit detection to isolate broken sensor lines instantly.
• Rely on built-in input overvoltage protection to shield internal conversion circuitry.
• Utilize auto-calibration features to minimize drift during high-temperature facility shifts.
• Monitor channel status words in the processor data table for live hardware health checks.

Target Equipment & Application Scenarios

• Process control loops utilizing 4-20mA pressure and temperature transmitters.
• Heavy industrial data acquisition systems requiring 1000V channel-to-channel isolation.
• Legacy chemical refinery monitoring stations running classic **PLC-5** racks.
• Flow rate instrumentation requiring precise bipolar voltage feedback tracking.

Global PLC Spare HUB's Insight and Field Experience

Field technicians often encounter erratic readings on analog loops caused by common-mode voltage differences. Utilizing the fully isolated differential architecture of the **1771-IL** successfully eliminates ground loops. In high-noise environments near large variable frequency drives, grounding the shield drain wire exclusively at the chassis side preserves signal integrity.

Logistics, Warranty, and Compliance

• Orders ship rapidly within 24 to 48 hours globally.
• Expedited delivery supported via major carriers including FedEx, UPS, and DHL.
• Protected by a comprehensive 12-month functional operational warranty.

Expert Frequently Asked Questions

Question: How does the module handle unipolar versus bipolar input scaling in logic?

Answer: Unipolar ranges convert signals to counts from 0 to +4095, whereas bipolar ranges utilize a signed format spanning -4095 to +4095.

Question: Is an external power source required to excite the module's channels?

Answer: No, the **1771-IL** draws power directly from the backplane and uses internal resistors for current loops.

Question: What causes intermittent data fluctuation on current input channels?

Answer: This usually stems from loose terminations in the **1771-WG** arm or ungrounded signal shields picking up electromagnetic interference.

Question: Can this module mix voltage and current signals simultaneously across its channels?

Answer: Yes, individual channels can be independently configured via wiring and software scaling for different voltage or current ranges.

Question: What preventative steps minimize calibration drift over time?

Answer: Maintain stable control cabinet ambient temperatures near 25°C and utilize the built-in auto-calibration routine during scheduled maintenance windows.

Selection and Purchasing Guide

Confirm your rack's backplane power supply can support the 1.3A draw of the **1771-IL** before expansion. Select this robust isolated analog solution when upgrading or maintaining high-reliability legacy industrial monitoring networks.
