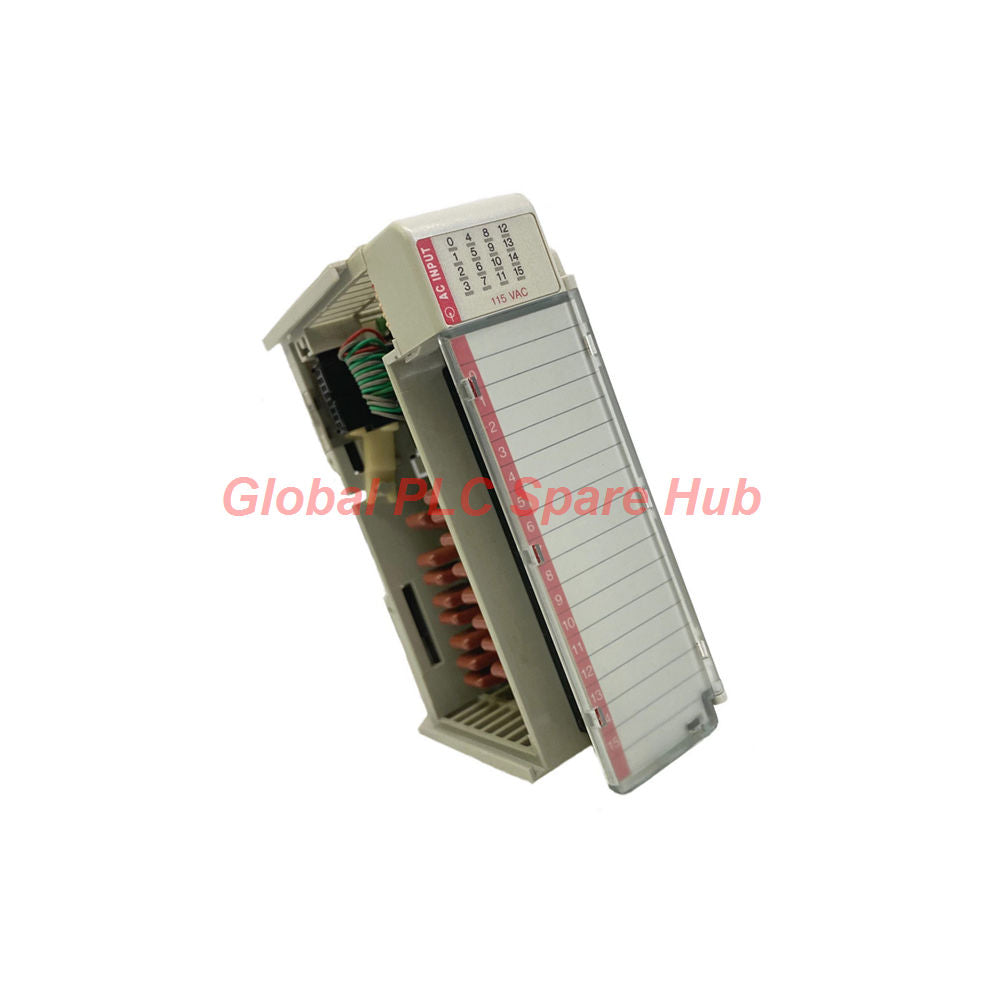

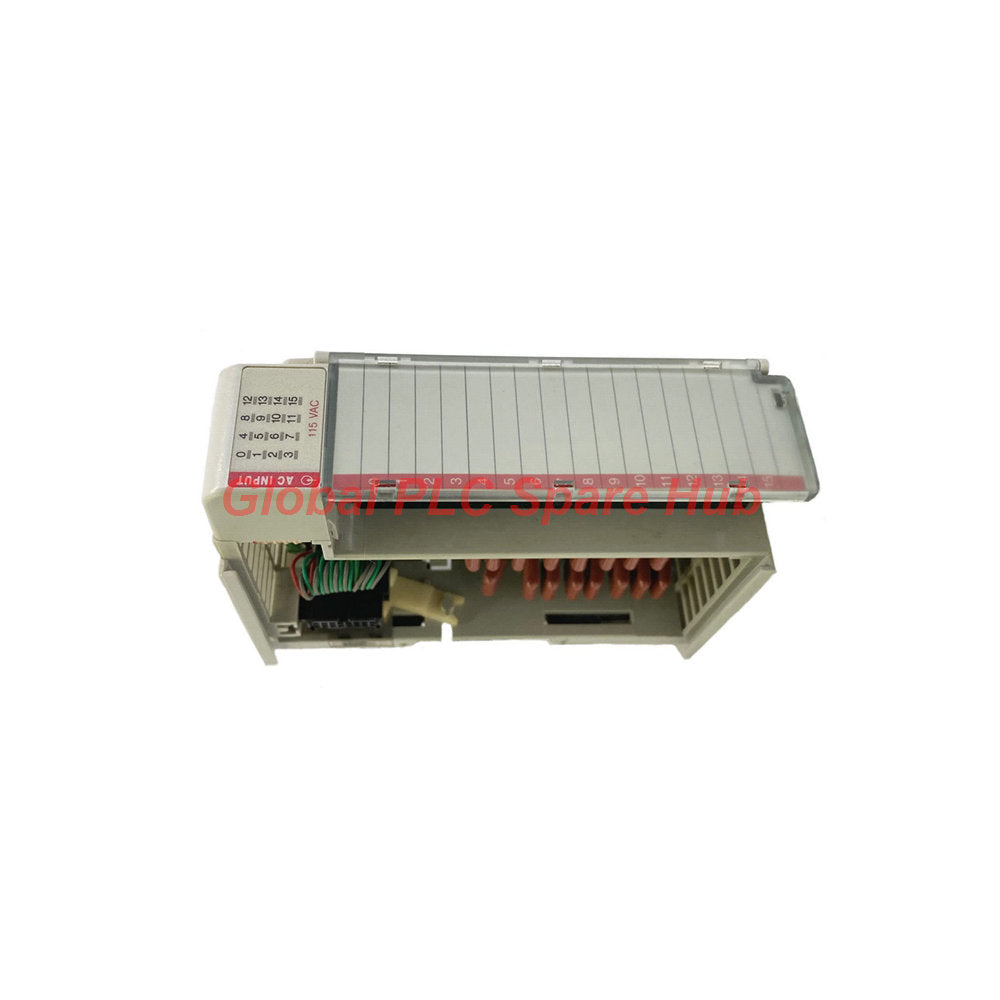

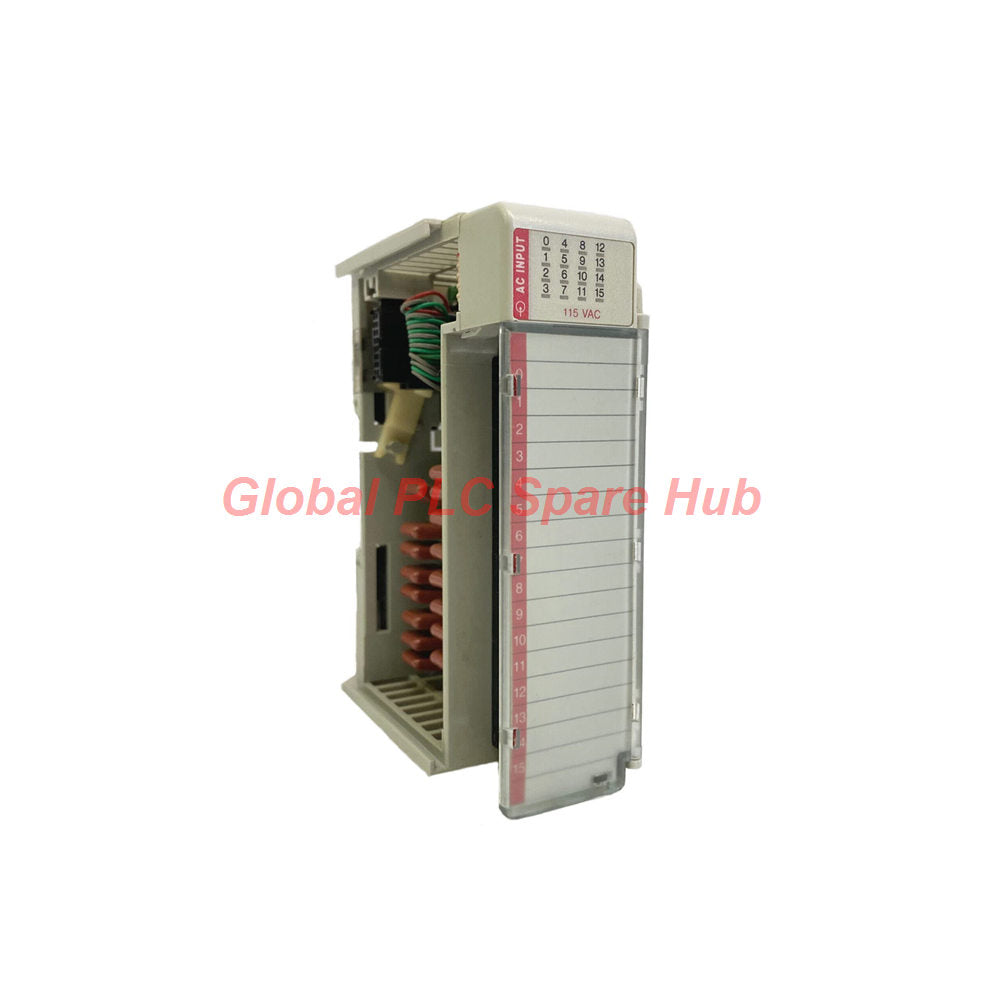

1769-IA16 Allen-Bradley CompactLogix AC Input Module - 16-Channel Unit

Executive Engineering Overview

The 1769-IA16 is a robust, 16-channel discrete AC input module designed by Allen-Bradley / Rockwell Automation specifically for the CompactLogix and MicroLogix 1500 ecosystems. Operating reliably across a 79 to 132V AC voltage range at 47 to 63 Hz, this single-slot interface module bridges industrial field sensors—such as limit switches, pilot pushbuttons, and auxiliary relay contacts—with internal controller logic via optically-isolated internal circuitry.

Technical Specification Matrix

Functional Architecture & Power Distances

• Common Grouping and Isolation
  • Features 16 inputs tied to a single internal common terminal block, simplifying multi-wire routing for localized AC control loops.
  • Incorporates advanced optical isolation between the field-side AC circuits and the low-voltage backplane logic.
• System Power Supply Constraints
  • Features a power supply distance rating of 8 modules, requiring an additional system power supply if positioned beyond the eighth slot from the base power unit (such as the 1769-PA2, 1769-PB2, 1769-PA4, or 1769-PB4).

Global PLC Spare HUB Insight

Global PLC Spare HUB's Insight: When expanding a 1769-IA16 rack configuration near its 8-module distance limit, technicians must verify voltage drop parameters carefully. Exceeding the distance rating without an intermediate power supply can introduce intermittent communication sync errors or signal jitter across the AC input channels due to backplane starvation.

Diagnostics, Troubleshooting, and Signal Monitoring

• Status LED Indicators
  • Front-panel status indicators verify channel activation and logic-side power continuity in real time.
• Input Impedance and Inrush Verification
  • Maximum input impedance runs at 12 kOhms (at 50 Hz) and 10 kOhms (at 60 Hz), with an allowable inrush current threshold of up to 250 mA during initial state transitions.

Logistics, Warranty, and Fulfillment

• Express International Freight
  • Prompt global shipping dispatched via FedEx, UPS, and DHL within 24-48 hours from order processing.
• Factory Warranty Protection
  • Backed by a comprehensive 12-month warranty ensuring total operational confidence.
• Secure Packaging Standards
  • Encased in industrial protective anti-static packaging to prevent transit damage.

Target Applications and Supported Equipment

• Discrete manufacturing cells utilizing 120V AC limit switches and proximity sensors.
• Water and wastewater treatment relay control panels powered by CompactLogix hardware.
• Legacy material handling systems managed by MicroLogix 1500 expansion racks.

Professional Frequently Asked Questions

• What precautions should be taken regarding wire gauge sizes when terminating lines on the 1769-IA16 terminal block?

  Use solid copper wire sized between 22 and 14 AWG, or stranded copper wire sized between 22 and 16 AWG, rated at a minimum of 90°C (194°F) to prevent loose connections under thermal cycling.

• How does the 1769-IA16 handle fluctuating line frequencies in heavy industrial environments?

  The module natively accommodates standard line frequencies spanning 47 to 63 Hz, automatically adjusting its impedance profile to filter out minor harmonic grid distortions.

• What is the primary cause of an AC input channel failing to register an "ON" state despite correct field voltage?

  This typically stems from an open fuse, a severed wire, or failing to meet the minimum on-state current requirement of 5 mA at 74V AC.

• How should maintenance teams approach purchasing replacement units for discontinued 1769-IA16 modules?

  Always source verified, original surplus units from trusted distributors to ensure the internal optical isolation barriers and bus connectors comply with Rockwell specifications.

• What physical dimension changes occur if the module is mounted using its built-in mounting tabs?

  While standard height measures 118 mm (4.65 inches), utilizing the mounting tabs increases the overall vertical height dimension to 138 mm (5.43 inches), which must be accounted for in tight enclosure layouts.
