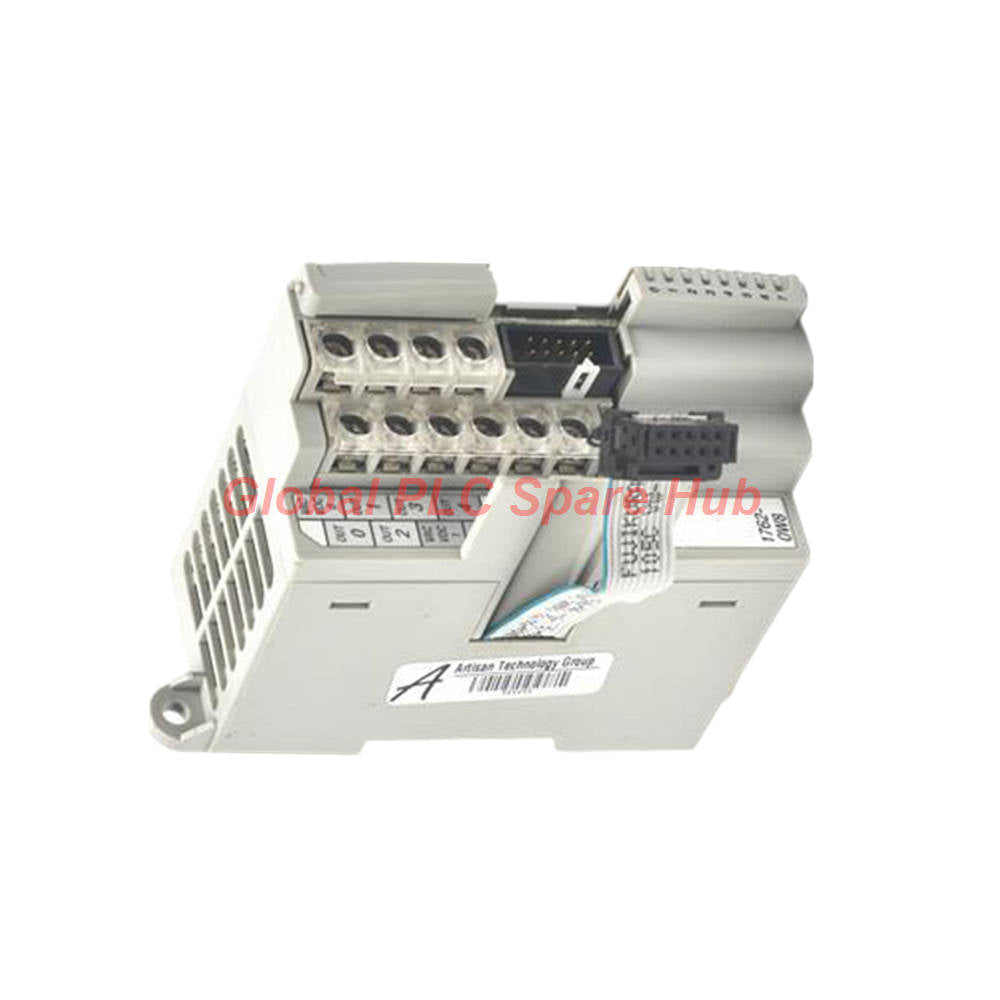

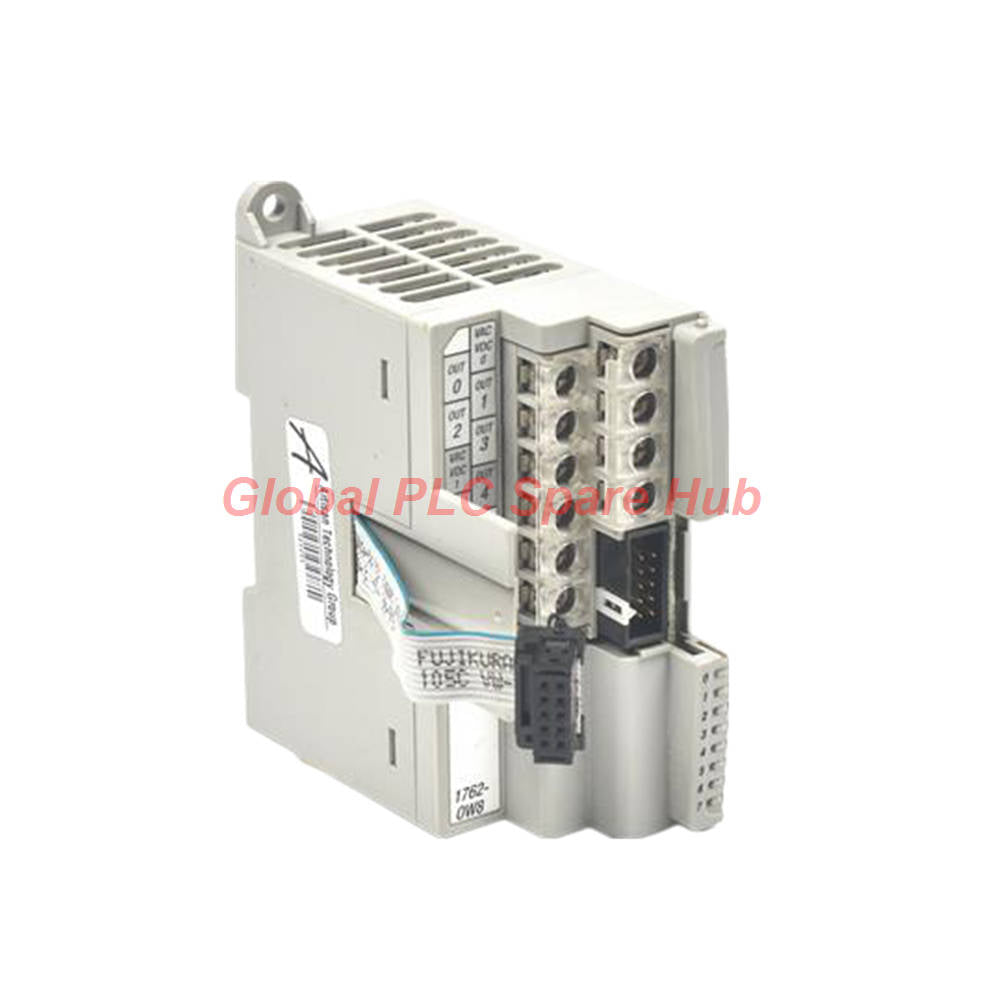

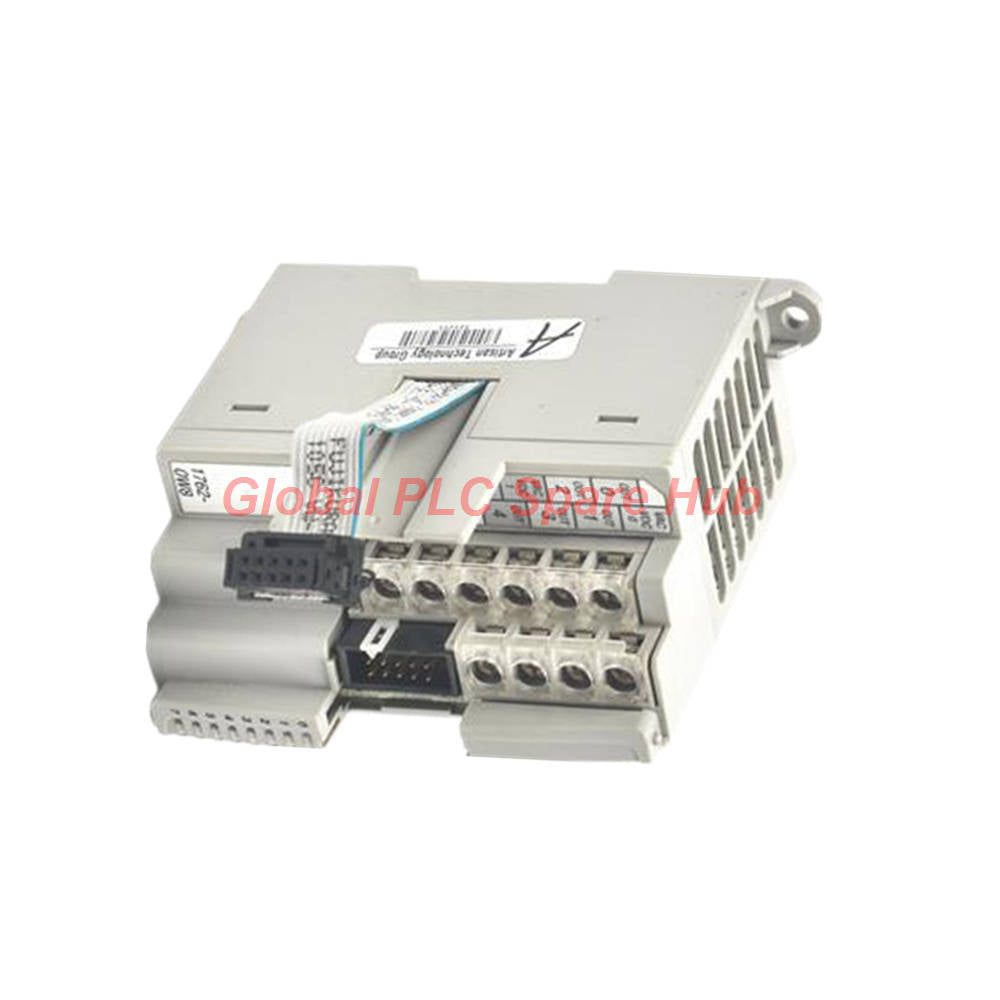

1762-OW8 Rockwell Automation MicroLogix Relay Expansion Module

Engineering Overview & Architecture

Welcome to the Global PLC Spare HUB Review for the Allen-Bradley 1762-OW8 relay output module. Engineered as part of the MicroLogix expansion ecosystem, this 8-channel AC/DC relay module provides flexible switching capabilities for industrial control systems requiring isolated output groups and robust dry contact performance.

Configuration Specifications Matrix

Installation and Wiring Protocol

• Mount the 1762-OW8 securely onto standard 35mm DIN rails or via direct panel mounting for high-vibration applications.
• Ensure the module is positioned a maximum distance of 6 modules away from the host controller's power supply.
• Connect the module to the MicroLogix system bus using the integrated ribbon cable connector.
• Keep installation enclosures clean and free of conductive debris to prevent internal short circuits across the dual output groups.

Commissioning and Maintenance Guidelines

• Verify that the controller hardware configuration correctly recognizes the expansion module prior to system power-up.
• Test relay switching response times to confirm the baseline 10 ms signal delay matches operational requirements.
• Monitor thermal dissipation levels (rated at 2.9 total watts) within closed control cabinets during peak load operations.
• Inspect terminal wiring connections periodically to ensure continuous contact integrity under industrial load conditions.

System Compatibility and Hardware Ecosystem

• Fully compatible with MicroLogix 1100, 1200, and 1400 programmable logic controller platforms.
• Designed for rackless modular expansion architectures to optimize control cabinet footprint and lower spare parts inventory costs.
• Integrates cleanly with standard discrete field actuators, indicators, and pilot control devices.

Certification and Quality Standards

• Built in accordance with stringent industrial automation manufacturing standards for Pollution Degree 2 environments.
• Engineered to satisfy rigorous mechanical shock and vibration thresholds when properly anchored.

Package Contents and Logistics Support

• One Allen-Bradley 1762-OW8 MicroLogix Relay Output Module.
• Integrated ribbon cable bus connector.
• Global PLC Spare HUB 12-Month Quality Warranty.
• Fast 24-48 Hour Global Dispatch via FedEx, UPS, and DHL.

Typical Applications and Diagnostic Capabilities

Global PLC Spare HUB's Insight: In our field deployment analysis across automated manufacturing lines, adding the 1762-OW8 module provides exceptional isolation flexibility when switching mixed AC and DC control voltages for heavy contractor coils.

• Energizing magnetic contactors, control relay coils, and solenoid-actuated pneumatic valves.
• Signaling RUN and START commands for Variable Frequency Drives (VFDs) and motor starters.
• Driving pilot lamps, alarm annunciators, sirens, buzzers, and audio-visual warning panels.

Frequently Asked Questions

Question:
Can the 1762-OW8 module handle mixed AC and DC loads simultaneously?

Answer:
Yes, because the module features two isolated output groups (Group 0 for channels 0-3 and Group 1 for channels 4-7), you can isolate different voltage types across separate commons safely.

Question:
What specific mounting technique is recommended for high-vibration factory floors?

Answer:
For high-vibration or heavy shock environments, panel mounting or utilizing DIN rail end anchors with the 1762-OW8 is strongly recommended to maintain secure physical seating.

Question:
How do I choose between expanding with this relay module versus a solid-state option?

Answer:
Select the 1762-OW8 when your application requires universal AC/DC voltage compatibility and galvanic isolation, whereas solid-state modules are preferred for high-frequency rapid-cycling tasks.

Question:
What precautions should be taken regarding power supply distance constraints?

Answer:
The module must be installed within 6 modules distance from the host controller's power supply to ensure adequate backplane current distribution without voltage drop.

Question:
How fast are replacement units shipped if an unexpected failure occurs?

Answer:
All orders are processed and dispatched within 24-48 hours via premium express couriers including FedEx, UPS, and DHL to minimize costly plant downtime.
