1756-PB75 Allen-Bradley ControlLogix Power Supply

1756-PB75 Allen-Bradley ControlLogix 24VDC Power Supply Architecture

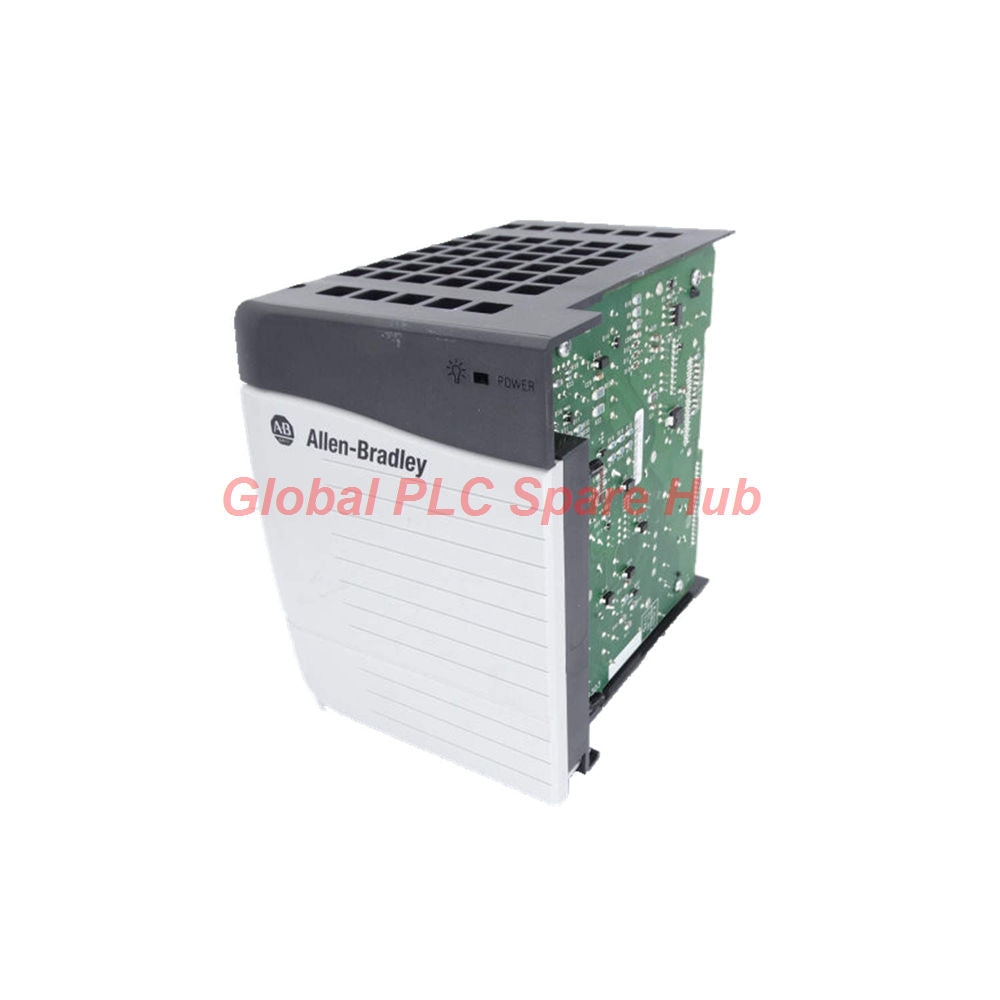

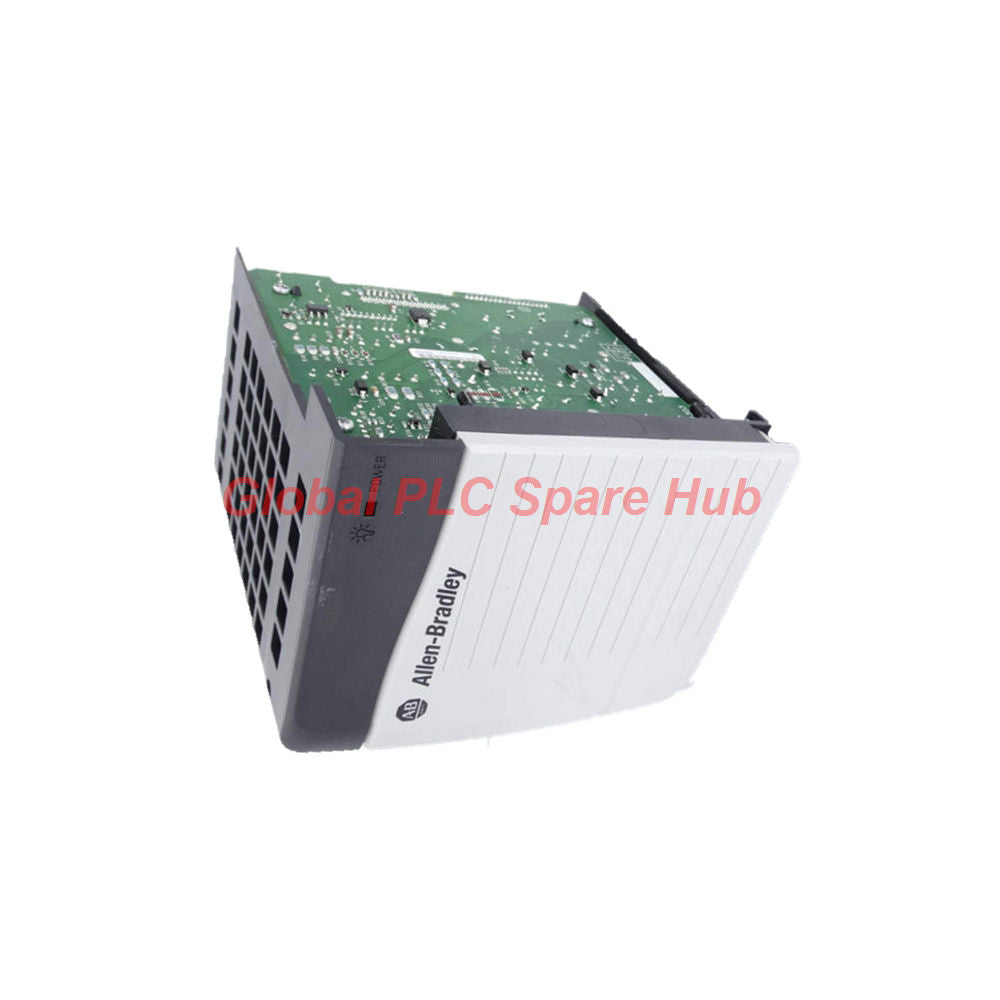

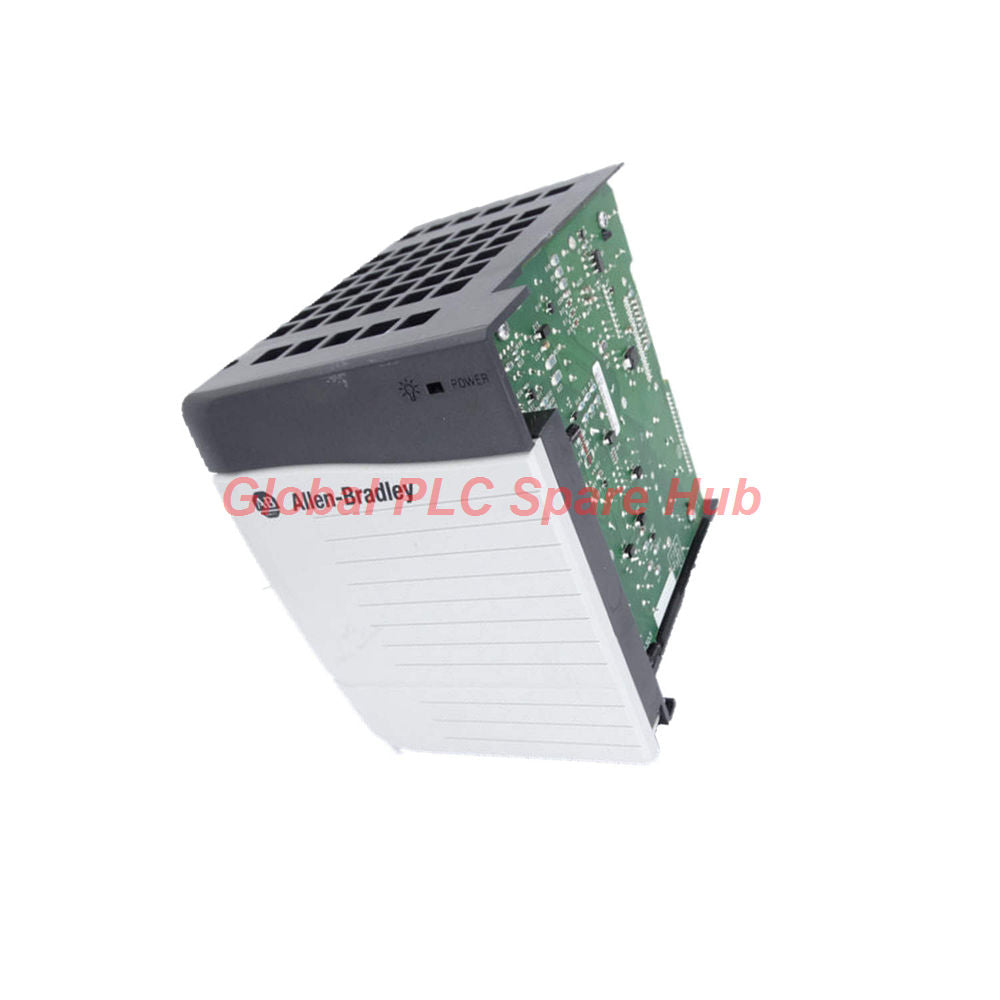

Engineered to deliver reliable backplane energy across high-density processor and I/O architectures, the 1756-PB75 is a standard DC-powered module from the Allen-Bradley ControlLogix series by Rockwell Automation. Installed exclusively on the leftmost slot of compatible Series B and C backplanes, this unit accepts an external nominal 24VDC input voltage (ranging from 18 to 32VDC) and outputs up to 75 Watts of continuous power. It supports demanding multi-slot configurations by distributing precise multi-voltage rails: 1.5A at 1.2VDC, 4A at 3.3VDC, 13A at 5.1VDC, and 2.8A at 24VDC.

Detailed Technical Specifications & Electrical Parameters

Global PLC Spare HUB's Insight & Field Experience

When commissioning DC power infrastructures using the 1756-PB75, Global PLC Spare HUB field technicians emphasize strict adherence to recommended wire sizing and terminal torque specifications. Because backplane voltage drop can trigger intermittent CPU faults, installers must use solid or stranded 14 AWG (2.5 mm²) copper wire rated for 90°C and secure the terminal screws precisely to 0.565 N•m (5 lb-in). Furthermore, always verify that total backplane card current draws do not exceed the 13A limit on the 5.1V rail during heavy communication module expansions.

Chassis Compatibility & Hardware Wiring Guidelines

• Backplane Support: Mounts on the far-left slot of standard ControlLogix Series B and C rack architectures, including 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17.
• Hold-Up Time Performance: Provides signal and power continuity hold-up times of 35 ms at 18VDC, 40 ms at 24VDC, and 40 ms at 32VDC.
• Environmental Rating: Operates reliably between 0°C and 60°C (32°F to 140°F) with 5% to 95% non-condensing relative humidity.

Advanced Diagnostics & Power Fault Detection Capabilities

• Front-Face Status Indicators: Integrated LED diagnostic lights display immediate power status, DC-OK confirmation, and fault conditions.
• Transient Voltage Protection: Built-in surge suppression handles 30A inrush currents safely, protecting sensitive backplane processors from line spikes.
• Isolation Monitoring: Reinforced input-to-backplane insulation prevents ground-loop feedback and electrical noise propagation across plant power grids.

Target Equipment & Typical Industrial Application Scenarios

• DC-Powered Control Cabinets: Powering standalone automation panels utilizing 24VDC battery-backed industrial control power grids.
• Remote Pump Stations: Operating distributed ControlLogix data collection nodes in remote oil and gas extraction fields.
• Continuous Manufacturing Skids: Supplying robust backplane power for high-speed motion and safety processor racks in automotive plants.

Global Logistics, Warranty & Procurement Guidelines

• Express Freight Carriers: Expedited international shipping dispatched securely via FedEx, UPS, and DHL.
• Fulfillment Speed: Orders are processed, thoroughly inspected, and shipped out within 24 to 48 hours.
• Quality Assurance Guarantee: Supported by a comprehensive 12-month warranty covering material and assembly defects.

Frequently Asked Questions

Q: What is the primary operational difference between the 1756-PB75 and AC-powered ControlLogix supplies?

A: The 1756-PB75 is specifically designed to accept an 18-32VDC external source rather than standard 120/240VAC line power, making it ideal for DC-centric control panels.

Q: Why does tightening terminal block screw torque precisely matter during installation?

A: Applying the recommended 0.565 N•m (5 lb-in) torque prevents high-resistance connections that can cause voltage drops, terminal heating, or intermittent power drops under heavy 95W loads.

Q: Can this power supply be mounted in any slot other than the leftmost position of the chassis?

A: No, ControlLogix power supplies are mechanically keyed and electrically engineered to slot exclusively into the far-left position of the 1756 backplane.

Q: How do fluctuations in the external 24VDC source affect the output hold-up time?

A: The module maintains a hold-up time of 35 ms at an input voltage of 18VDC, which scales up to 40 ms when operating at nominal 24VDC or higher 32VDC levels.

Q: Purchasing Guidance: How do I calculate whether the 1756-PB75 has sufficient capacity for my rack?

A: Sum up the individual 1.2V, 3.3V, 5.1V, and 24V current draws of all processor, communication, and I/O modules planned for the chassis to ensure they remain within the module's 75W total limit.
