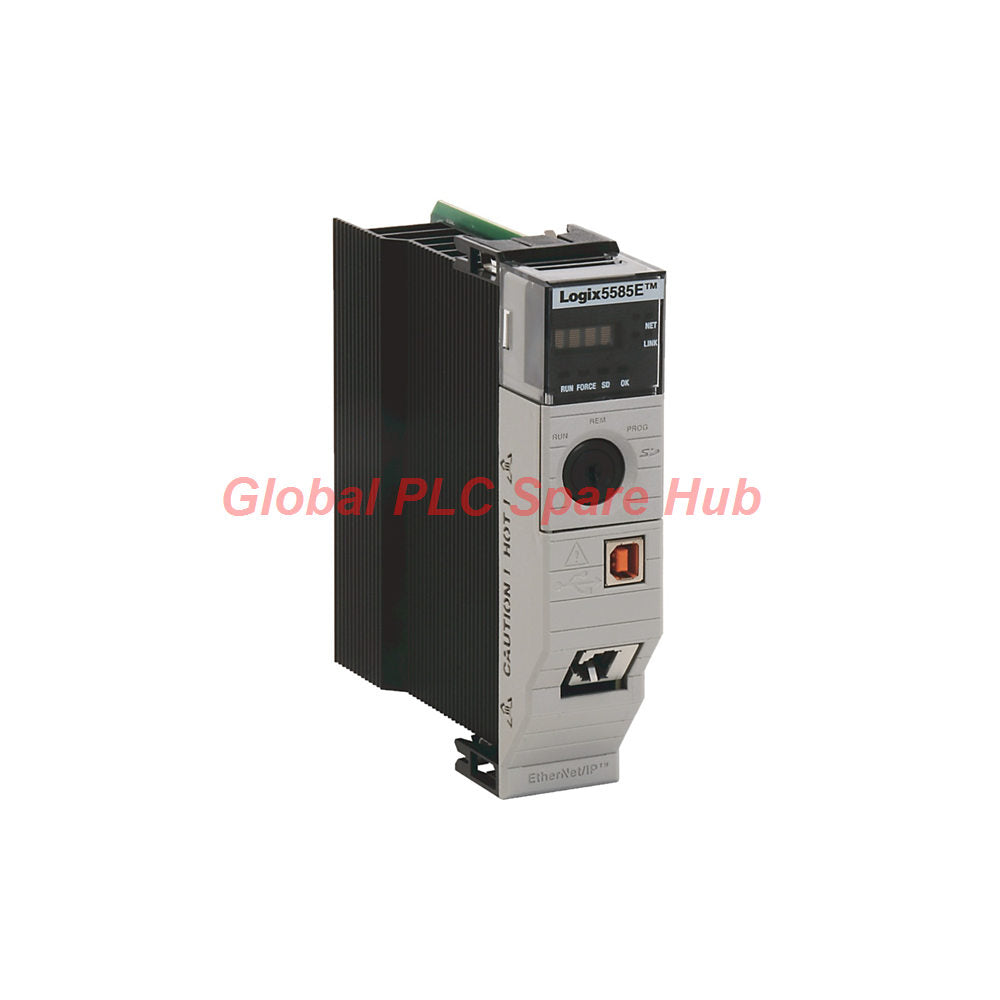

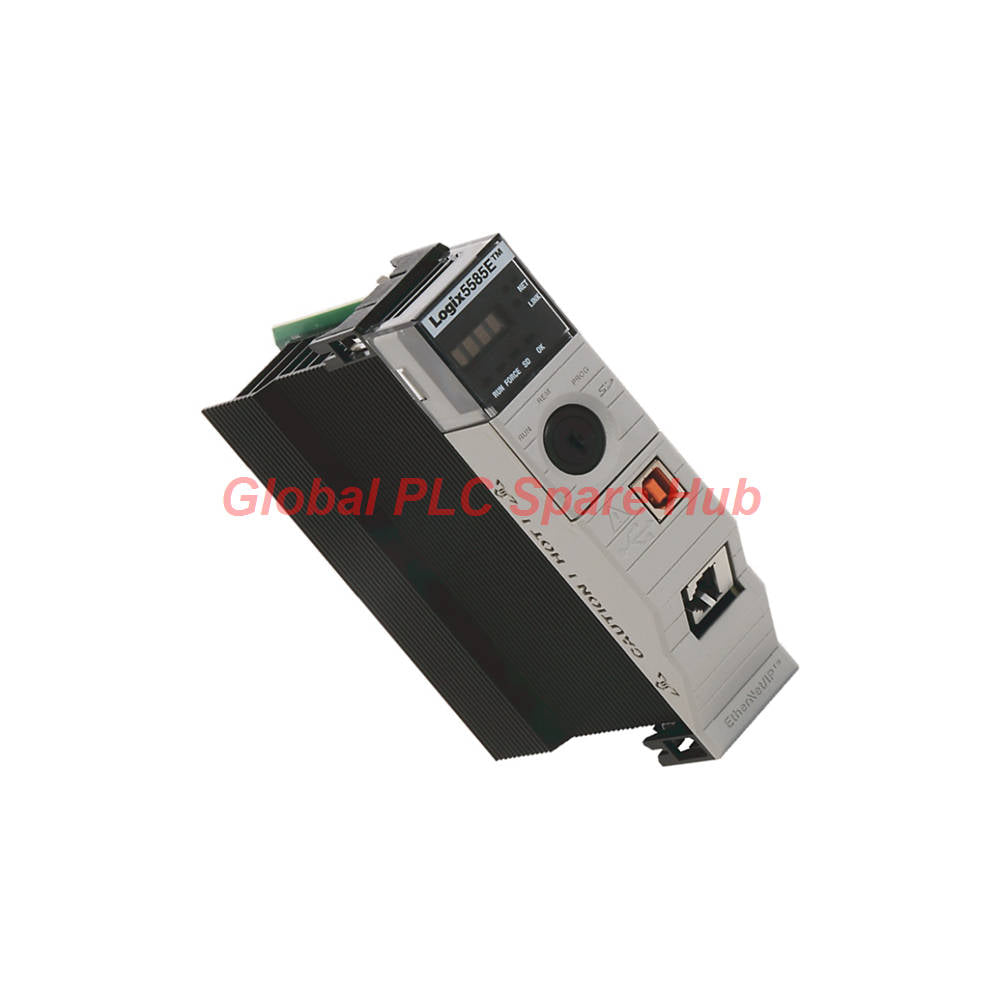

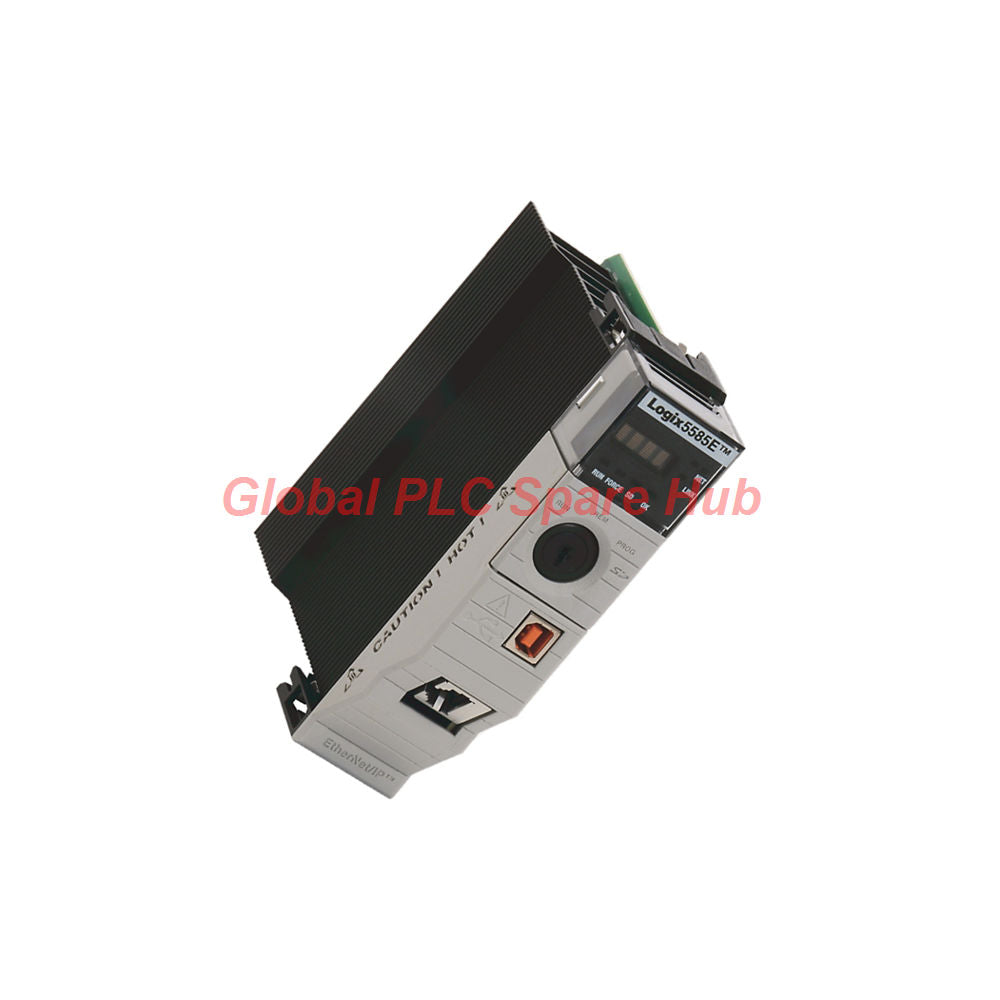

1756-L84E Programmable Controller Allen-Bradley ControlLogix
Manufacturer: Allen-Bradley
Product No.: 1756-L84E
Condition： In stock
Product Type: Controller Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 420g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Product Overview
The 1756-L84E represents a high-capacity ControlLogix Controller engineered by Allen-Bradley within the ControlLogix Series. This advanced Programmable Automation Controller delivers 20 MB of user memory and an embedded gigabit Ethernet interface for demanding multi-axis and large-scale industrial architectures.
Technical Specifications Matrix
| Brand | Allen-Bradley (Rockwell Automation) |
| Model / Catalog Number | 1756-L84E |
| Product Series & Type | ControlLogix 5580 / PAC Controller Module |
| User Memory Capacity | 20 Mega-Bytes user program storage |
| Non-Volatile Storage Support | Pre-installed 2 GB Secure Digital (SD) card (1784-SD2) |
| Maximum I/O Points | 128,000 Digital I/O and 4,000 Analog I/O points |
| Backplane Current Draw | 5.0 mA at 1.2 VDC and 1.2 mA at 5.1 VDC |
| Power & Thermal Dissipation | 6.2 Watts power output / 21.2 BTU per hour thermal output |
| Communication Interfaces | 1 x 10/100/1000 Mbps embedded Ethernet port; 1 x USB 2.0 port |
| Operating Temperature Range | 0°C to 60°C (32°F to 140°F) with T4 temperature code |
Configuration and Architecture Breakdown
Installation Guide
Insert the 1756-L84E module firmly into any single-width slot of a powered 1756 ControlLogix chassis. Secure the upper and lower locking latches completely. Connect your plant network to the embedded gigabit Ethernet port and verify normal diagnostic execution through Studio 5000 Logix Designer.
Commissioning and Maintenance Convenience
The battery-free energy storage module eliminates periodic lithium battery disposal procedures and prevents sudden RAM loss during extended unpowered storage. Unlimited task capacity configured via local event triggers simplifies complex program sequencing during plant commissioning.
Compatibility Notes
This controller requires Studio 5000 Logix Designer Application Version 3.0 or higher. It interfaces cleanly with motion control drives over EtherNet/IP and supports legacy bridging modules for ControlNet, DeviceNet, and Data Highway Plus networks.
Certifications and Warranty Terms
Manufactured to rigorous industrial and IEC environmental standards. Backed by a full 12-month factory warranty covering component defects and workmanship flaws.
Shipping and Logistics
Expedited global fulfillment is managed through premier carriers including FedEx, UPS, and DHL. Stocked automation components ship within 24 to 48 hours to prevent critical site delays.
Application Scenarios and Diagnostics
Deploys effectively in large automotive production lines, municipal water treatment facilities, high-speed packaging complexes, and synchronized motion control loops. Advanced internal diagnostic routines monitor port isolation voltage boundaries, backplane communication integrity, and thermal thresholds continuously.
Global PLC Spare HUB's Insight
Our automation engineering team deployed the 1756-L84E on a high-speed bottling line coordinating 80 synchronized servo axes over EtherNet/IP. The built-in 1 GB Ethernet interface eliminated the need for separate communication modules, drastically reducing chassis slot utilization while maintaining zero packet jitter during heavy data logging.
