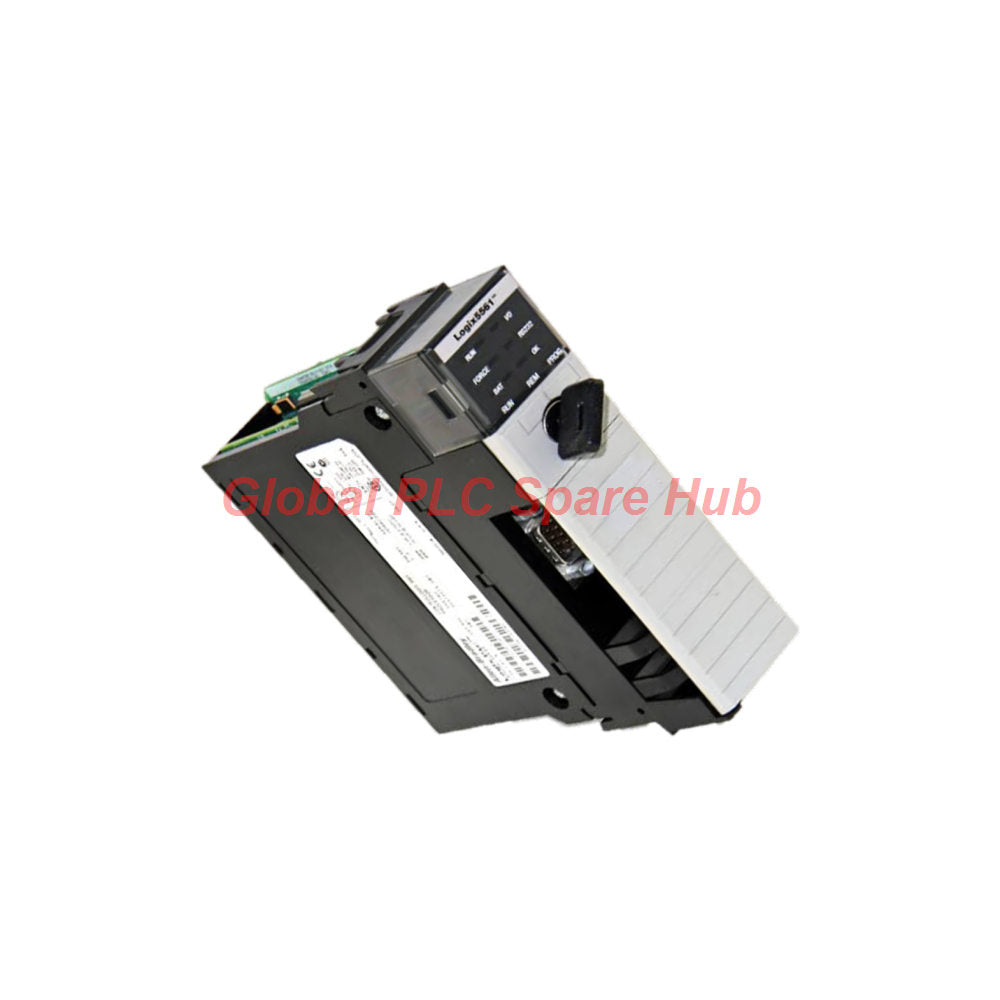

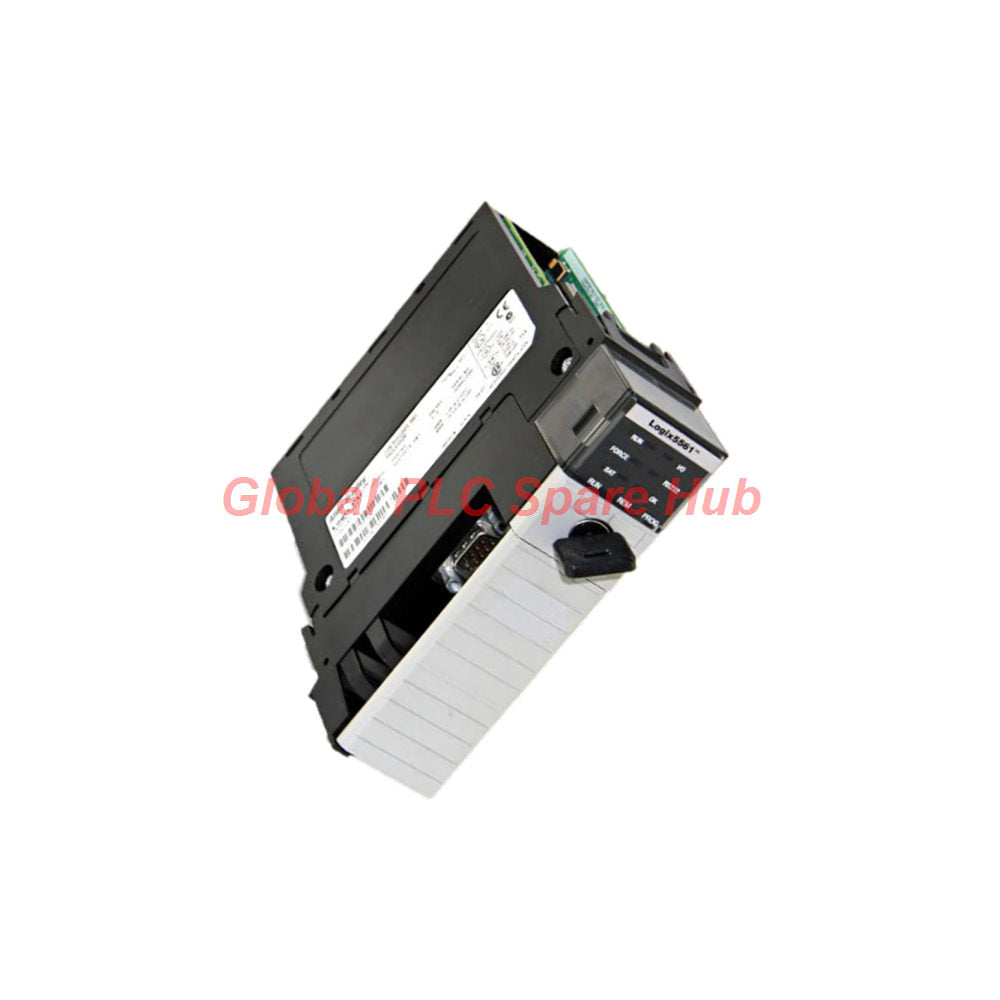

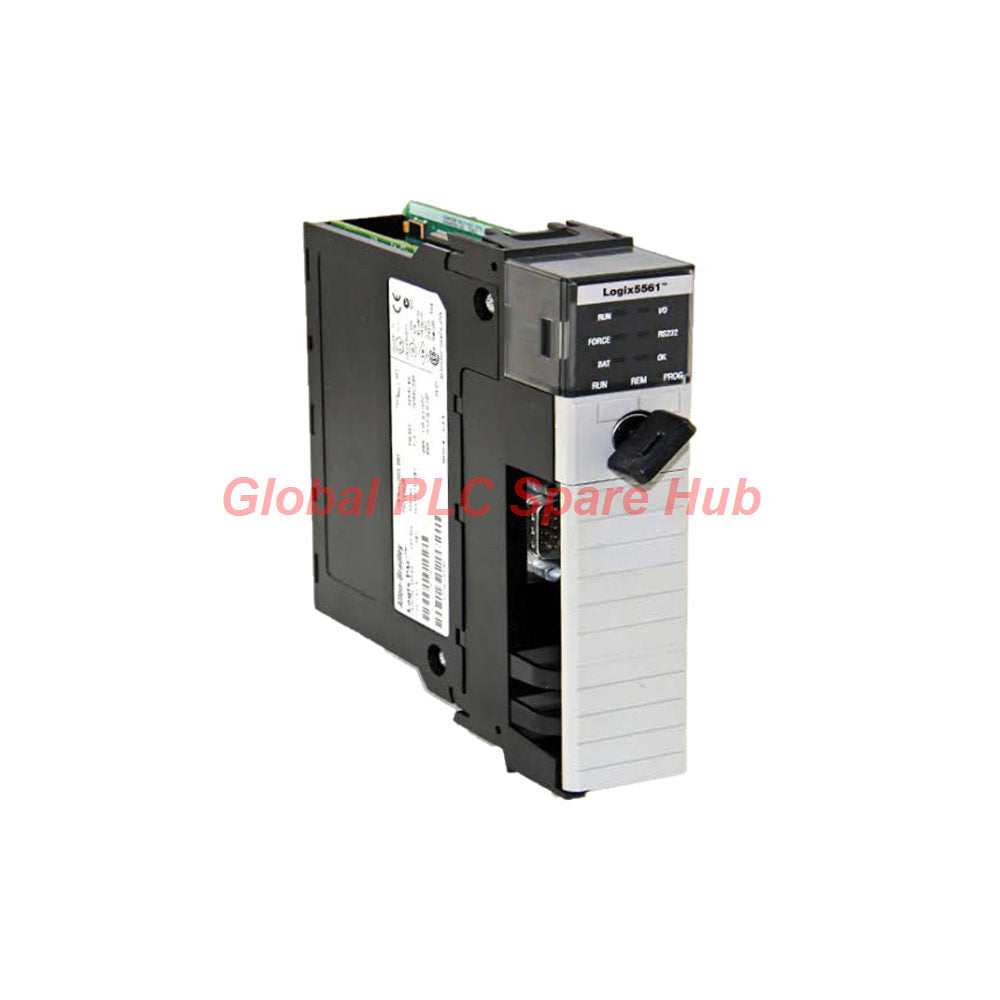

1756-L64 Allen-Bradley ControlLogix Logix5564 Processor | 16MB Controller

System Architecture Overview

The 1756-L64 is a high-performance Logix5564 controller engineered by Allen-Bradley (Rockwell Automation) within the ControlLogix automation platform. Equipped with 16 MB of non-volatile user memory and 478 KB of I/O memory, this processor orchestrates complex, large-scale plant networks. Global PLC Spare HUB's Insight highlights that pairing this module with a 1764-CF128 CompactFlash card ensures robust non-volatile data backup during extended facility maintenance outages.

Configuration Tree Structure

• Base Controller: 1756-L64
  • User Memory Allocation: 16 Megabytes dedicated for user logic, tags, and data structures
  • I/O Memory Capacity: 478 Kilobytes configured for high-speed discrete and analog data exchange
  • System I/O Limits: Supports up to 128,000 digital I/O points and 4,000 analog I/O points
  • Chassis Compatibility: Operates exclusively within 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17 backplanes

Technical Specification Matrix

Diagnostic Capabilities

• Front-panel indicator LEDs provide immediate status tracking for controller health, battery backup voltage, and communication network traffic.
• Supports full controller redundancy configurations to detect primary rack failures and switchover seamlessly.
• Built-in diagnostic routines monitor backplane isolation voltage limits (30V continuous / 720V DC dielectric test).

Installation and Commissioning Guidelines

• Replace the internal coin cell power unit exclusively with the 1756-BA2 lithium battery when prompted by low-voltage diagnostics.
• Ensure surrounding cabinet temperature does not exceed the 60°C maximum rating to prevent premature thermal throttling.

Equipment Compatibility and Application Scenarios

• Enterprise-wide continuous process manufacturing plants requiring redundant controller architecture.
• High-density discrete assembly lines managing up to 128,000 I/O points.
• Heavy industrial infrastructure integrating legacy Data Highway Plus and modern EtherNet/IP networks.

Logistics and Warranty Terms

• Fully backed by a standard 12-month manufacturing defect warranty.
• Express 24 to 48-hour order dispatch via secure global couriers: FedEx, UPS, and DHL.

Frequently Asked Questions

Q: What specific memory card model is compatible with the 1756-L64 processor?
A: The only officially supported non-volatile memory expansion card for this controller is the 128 MB 1764-CF128 CompactFlash model.

Q: How many total controller connections can this processor handle concurrently?
A: The controller is engineered to support a maximum limit of 250 active controller connections across linked industrial networks.

Q: What safety precautions are necessary when replacing the internal battery?
A: Technicians must replace the unit strictly with a 1756-BA2 lithium battery while observing proper electrostatic discharge (ESD) grounding procedures.

Q: How does project scan time compare between the 1756-L64 and other L6x controllers?
A: Due to its larger 16MB memory capacity structure, projects loaded onto the 1756-L64 may exhibit slightly slower scan times compared to smaller memory variants running identical logic.

Q: What buying factors should engineers evaluate when upgrading to this processor?
A: Verify that your existing chassis backplane power supply can support the 1200 mA current draw at 5.1V DC alongside your other installed I/O modules.
