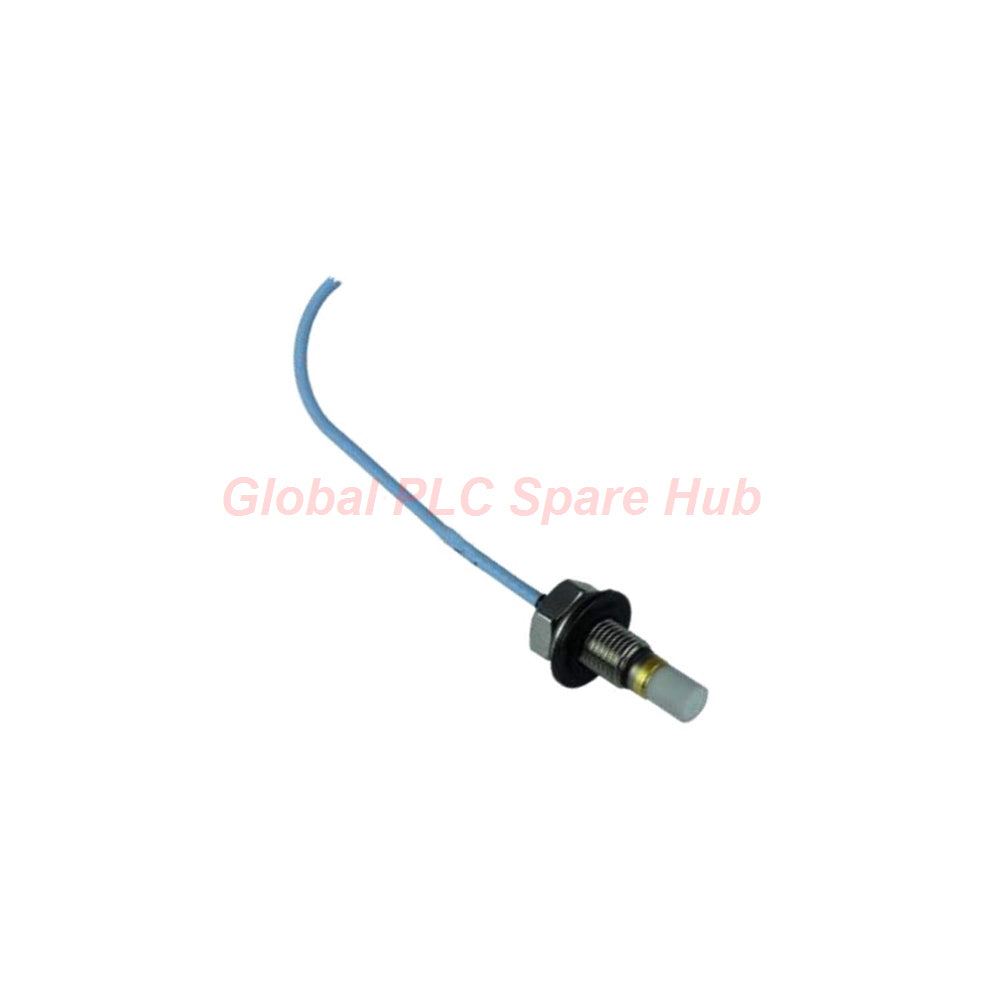

146054-032-10-02-05 Bently Nevada 3300 Ceramic Proximity Probe

Precision Engineering: The 146054-032-10-02-05 Proximity Probe

The 146054-032-10-02-05 is a high-reliability Bently Nevada 3300 Series ceramic-capped proximity probe. Designed for harsh industrial environments, this transducer provides essential non-contact vibration and position measurements. Its alumina ceramic tip ensures structural integrity under extreme thermal conditions, making it an industry standard for monitoring rotating machinery in refineries and power generation plants.

Configuration Breakdown: 146054-AA-BB-CC-DD

Model: 146054 (3300 Ceramic Capped Probe, 3/8-24 UNF thread)

• A (Case Length): -032 = 3.2 inches
• B (Total Length): -10 = 1.0 meter (3.3 feet)
• C (Cable/Connector): -02 = Miniature coaxial ClickLoc connector, standard cable
• D (Agency Approval): -05 = CSA, ATEX, IECEx certification

Technical Performance Specs

• Linear Range: 0.25 to 1.78 mm (10 to 70 mils)
• Scale Factor: 7.87 V/mm (200 mV/mil)
• Operating Temp: -51°C to +177°C (-60°F to +351°F)
• Material: Alumina Ceramic (Tip) / AISI 304 Stainless Steel (Case)
• Pressure Rating: Sealed to 34 Bar (500 psi)
• DC Resistance: 7.59 ± 0.50 ohms

Global PLC Spare HUB Insight & Application

Global PLC Spare HUB recognizes the 146054-032-10-02-05 as an elite choice for critical asset protection. Our insight highlights that this specific ceramic-capped design prevents electrical breakdown in high-temperature or conductive dust environments. It is best applied in large steam turbines, centrifugal compressors, and high-speed gearboxes where precision displacement monitoring is mission-critical.

Selection Comparison & Technical Advice

Engineers often evaluate different probe lengths for specific housing depths. For comparison, review the specifications for the 146054-08-50-01-05.

Advice: If your machine case requires deeper mounting, the -08 (8.0 inch) model is required. For standard monitoring at shallow depths, the 146054-032-10-02-05 provides better signal stability by minimizing unsupported probe length.

Logistics & Quality Guarantee

• Expedited Shipping: Secure worldwide transit via FedEx, UPS, or DHL.
• Processing Speed: Orders dispatched within 24–48 hours.
• Commitment: Factory-new original packaging.
• Warranty: Industry-leading 12-month performance warranty.

Professional FAQ

Q: Can the ceramic tip withstand thermal shock?
A: Yes, the alumina ceramic is specifically chosen for its high resistance to sudden temperature cycling within the rated range.

Q: What is the benefit of the ClickLoc connector on this model?
A: The ClickLoc design provides a reliable, vibration-proof connection that ensures continuous signal continuity without the need for manual locking wire.

Q: Should I check the target material compatibility?
A: Absolutely. System accuracy specifications are calibrated exclusively for AISI 4140 steel. Using other alloys will shift the linear scale factor significantly.

Q: How do I troubleshoot an erratic gap voltage output?
A: First, inspect the coaxial cable for physical damage or sharp bends. Then, verify that the probe case is not touching the machine case, which causes ground loops.

Q: Selection Guide: How do I determine the correct probe length?
A: Measure the distance from the mounting bracket face to the target. Ensure you have at least 0.563 inches of thread engagement but maintain enough clearance to reach the recommended nominal gap of 1.27 mm (50 mils).
