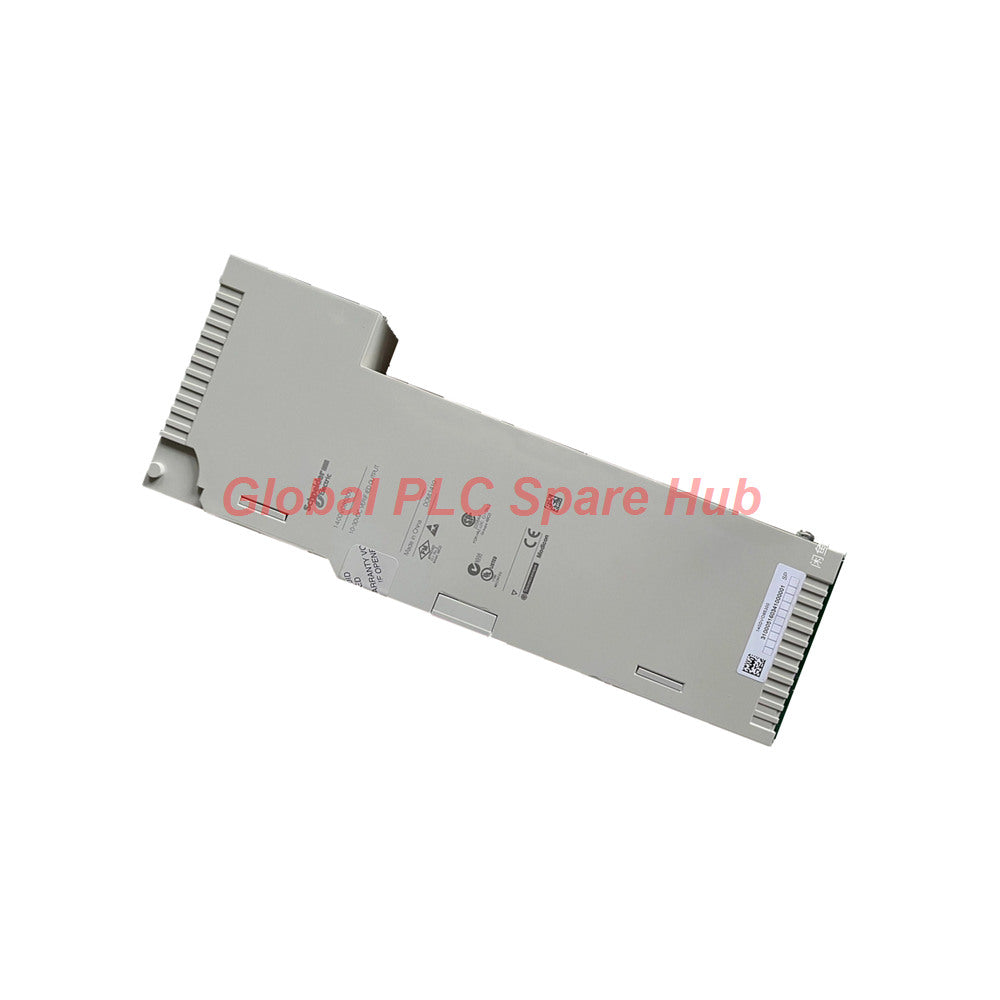

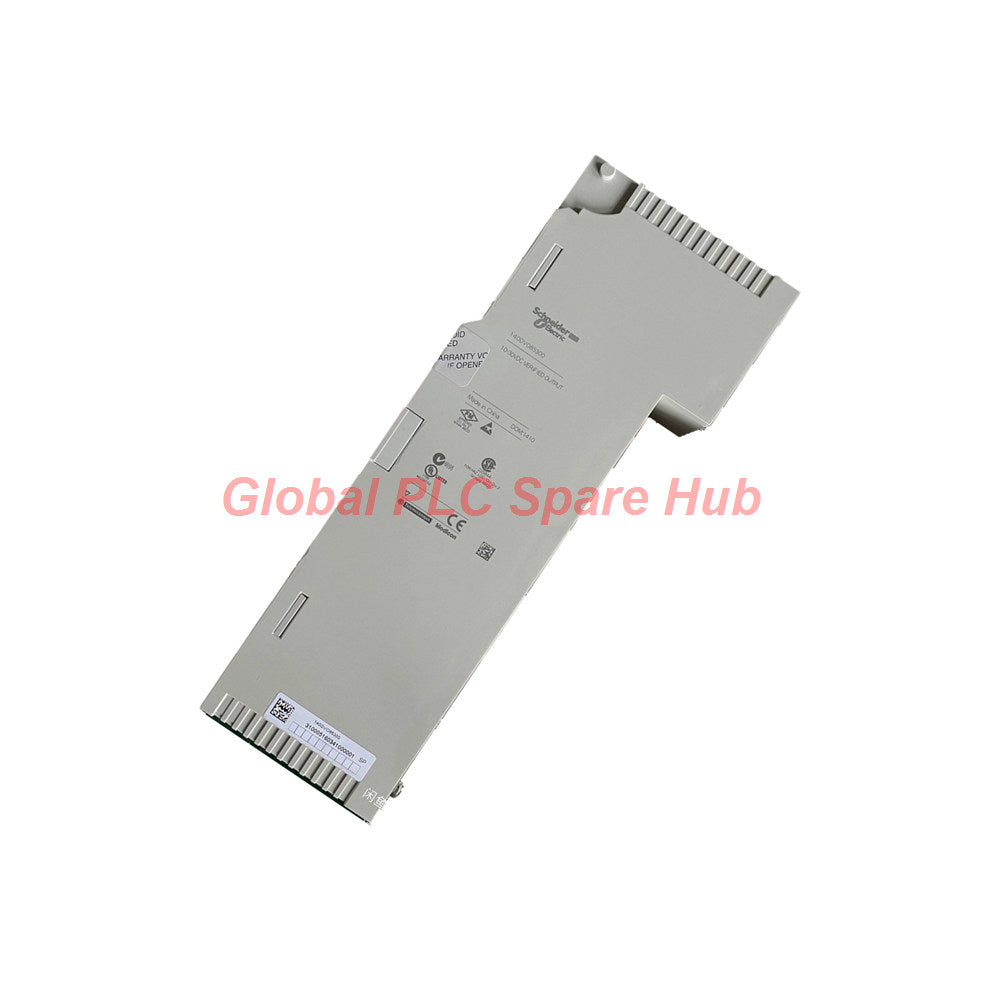

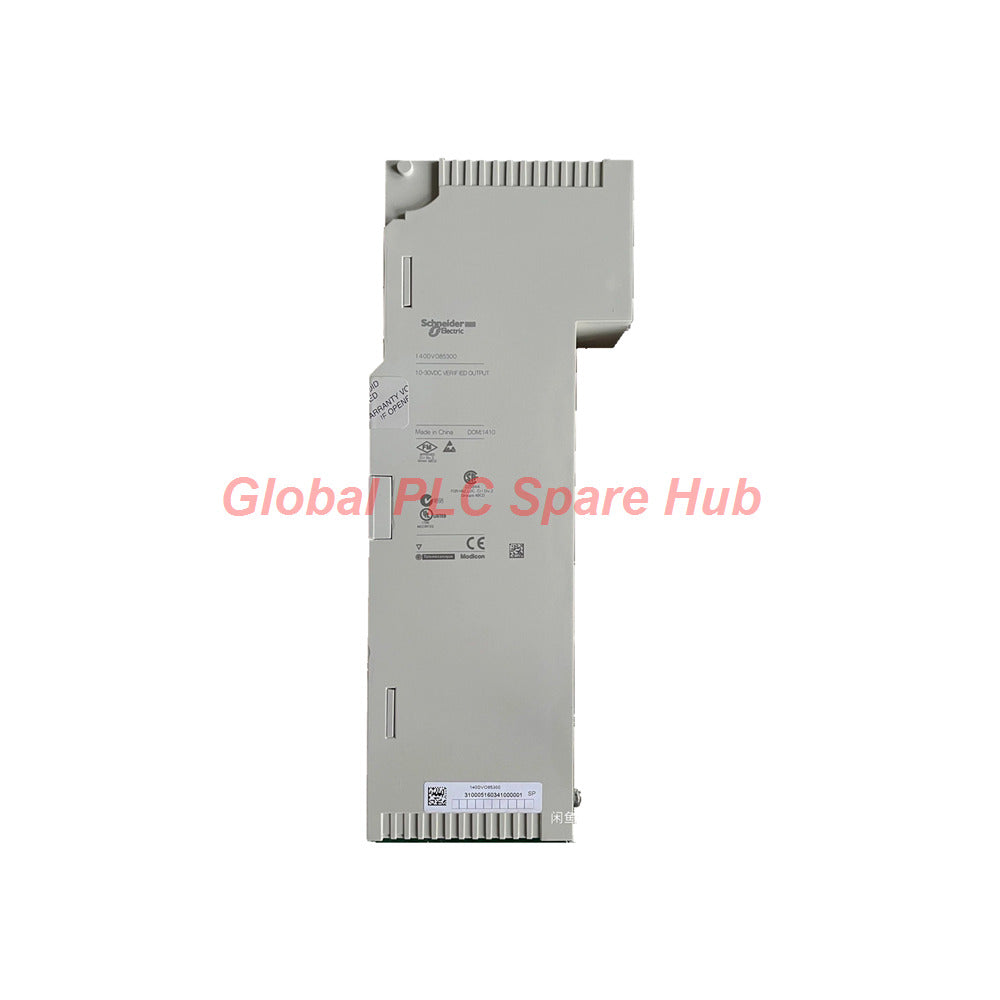

140DVO85300 Schneider Electric Modicon Quantum 32 Discrete DC Output Module

Product Overview

The 140DVO85300 is a high-density DC discrete output module. Schneider Electric engineered this unit for the Modicon Quantum automation platform. It provides 32 current-sinking transistor outputs operating at 10 to 30 V DC. Four isolated channel groups handle up to 4 amperes per group. Internal electronic fuses protect output circuits against short circuits and overloads. Optical isolation safeguards internal PLC backplane logic from field voltage surges.

Technical Specifications

Target Equipment and Application Scenarios

• High-speed solenoid valves in automated bottling lines.
• Pneumatic actuators in automotive assembly cells.
• Intermediate relay panels in power generation facilities.
• Indicator light arrays on operator control consoles.
• DC motor starter coils in material handling conveyors.

Diagnostic Capabilities and Fault Monitoring

• The module monitors output channel health in real time.
• A dedicated red fault LED flags blown fuses instantly.
• Green bus LEDs confirm backplane communication status.
• Thirty-two point LEDs display individual output state conditions.
• Internal circuits detect field power loss and illegal state errors.

Installation Guide

• Disconnect main system power before module installation.
• Slide the 140DVO85300 into the target rack slot.
• Engage upper and lower retaining clips until fully seated.
• Connect external 24V DC field power to terminal blocks.
• Verify sink output polarity before powering output field loads.

Software and System Compatibility

Program the module using Concept, ProWORX 32, or Unity Pro software. System software maps 32 discrete outputs to two data words. Diagnostic feedback populates two input words for real-time monitoring.

Certifications and Standards Compliance

• UL 508 standard for industrial control systems.
• CSA C22.2 No 142 Canadian safety compliance.
• FM Class 1 Division 2 hazardous area rating.
• CE marked for European electromagnetic compatibility guidelines.
• Marine approvals including GOST, RMRS, and C-tick certifications.

Global PLC Spare HUB's Insight

Engineers often struggle with inductive voltage spikes on sinking output lines. Unsuppressed relay coils destroy unprotected output transistors during rapid switching. The Modicon Quantum 140DVO85300 prevents transistor failure via internal transient suppression. In a chemical dosing plant, inductive surges caused frequent module burnouts. Upgrading to this module restored system uptime and eliminated component damage.

Selection Guide

• Choose sinking output modules when field loads connect to positive DC power.
• Verify total module load remains below 16 amperes continuous current.
• Ensure total group current does not exceed 4 amperes per bank.
• Select external flyback diodes for high inductive load switching frequencies.

Packaging, Delivery, and Warranty

• Order Processing: Orders ship within 24 to 48 hours.
• Express Couriers: Shipments utilize express couriers including FedEx, UPS, and DHL.
• Packaging: Factory protective packaging prevents electrostatic and physical transport damage.
• Warranty Terms: Purchase includes comprehensive 12-month replacement warranty coverage.

Frequently Asked Questions

What output logic does this module use?

The module uses negative logic (sinking) outputs switching the load to DC ground.

How does the internal short-circuit protection function?

An internal 5 A fuse protects each of the four channel groups.

How many system I/O words does this module require?

The unit allocates two output words and two input words for diagnostics.

What happens when field power disconnects during operation?

The red fault LED turns on and diagnostic status bits update immediately.

Which express delivery options ship this module?

Global shipping uses FedEx, UPS, or DHL within 24 to 48 hours.
