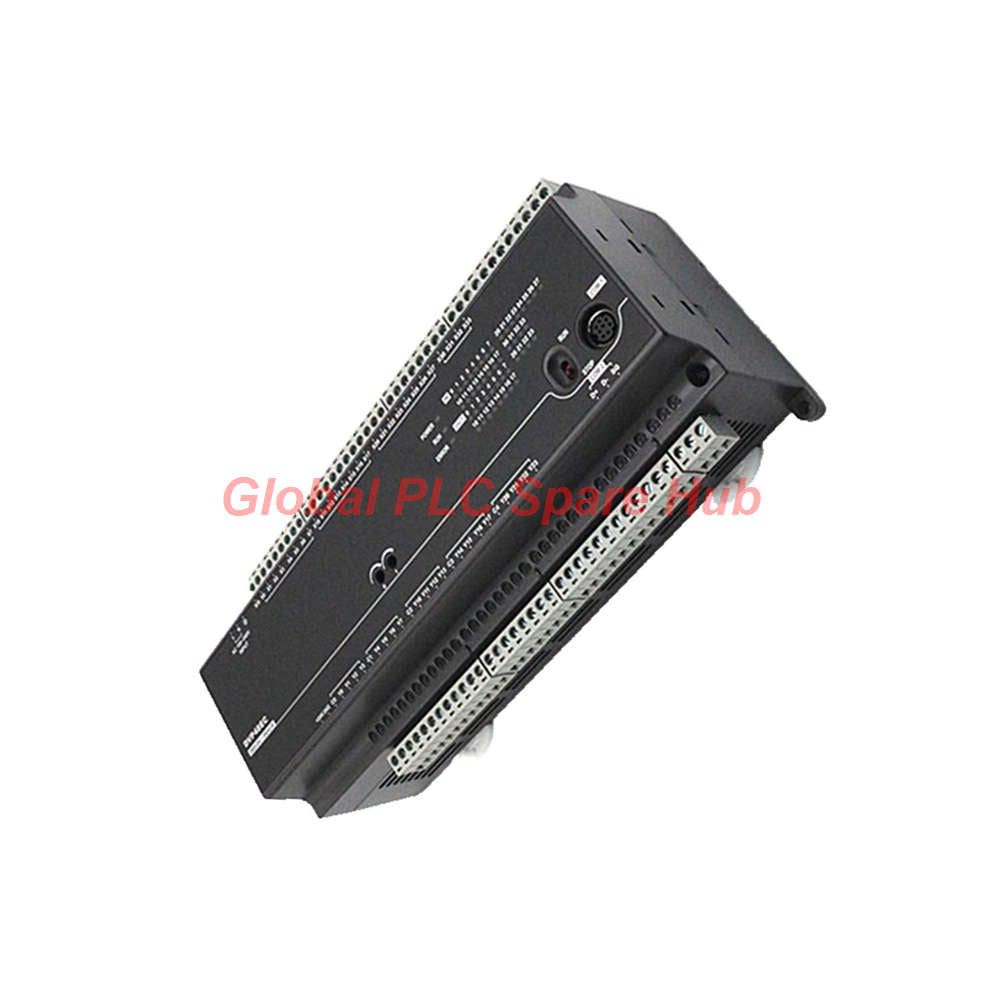

Delta DVP-EC3 Series DVP40EC00T3 Main Processing Unit 24IN/16OUT

Product Overview

The Delta DVP40EC00T3 serves as a highly reliable Main Processing Unit within the DVP-EC3 Series. This controller manages sequence control tasks and Modbus communication protocols with precision. It provides 40 built-in I/O points for versatile and compact automation configurations. Engineers prefer this model for its stable performance and ease of integration in industrial control environments.

Technical Specifications

• Brand: Delta
• Model: DVP40EC00T3
• Series: DVP-EC3 Series
• Total I/O Points: 40 points
• Input Configuration: 24 points
• Output Configuration: 16 points
• Output Type: Transistor (NPN)
• Program Capacity: 4k steps
• High-Speed Counters: 2 points, max 10 kHz
• Pulse Output: 2 points (Y0, Y1) independent, max 10 kHz
• Communication Ports: Integrated RS-232 and RS-485
• Protocol Support: Modbus ASCII / RTU
• Operating Temperature: 0°C to 55°C
• Environmental Protection: IP20 rated enclosure
• Interference Resistance: Engineered for industrial electromagnetic noise immunity

Installation, Debugging, and Maintenance

• Mount the unit on a standard 35mm DIN rail or use direct screw mounting.
• Maintain a 50mm clearance on all sides to ensure optimal thermal dissipation.
• The DVP40EC00T3 features removable terminal blocks for rapid wiring.
• Integrated status LEDs provide real-time diagnostic feedback for power and I/O status.
• Firmware and logic updates are managed via the built-in communication ports.

Global PLC Spare HUB's Insight

Our technical experts identify the DVP-EC3 Series as the premier entry-point solution for small to medium-scale machine control. This unit excels in applications requiring high-speed pulse outputs for motion tasks or data exchange with HMI/VFD devices. It integrates seamlessly into existing industrial Modbus networks with minimal configuration.

Typical Applications

• Conveyor belt speed control and logic sequencing
• Packaging machinery and automated labeling systems
• Textile equipment monitoring and process control
• Simple HVAC system management
• Building automation and light signaling control

Compatibility, Standards, and Logistics

• Complies with global CE and UL safety standards.
• Fully compatible with standard Delta DVP programming software.
• We process all orders within 24-48 hours.
• Fast global delivery via FedEx, UPS, and DHL.
• Each unit includes a comprehensive 12-month quality warranty.

Frequently Asked Questions

What is the primary function of the Y0 and Y1 outputs?
These are high-speed pulse outputs designed for basic motion control, such as driving stepping motor drivers at frequencies up to 10 kHz.

Can the DVP40EC00T3 communicate with third-party devices?
Yes, the built-in RS-485 port supports Modbus ASCII/RTU, allowing connection to various third-party HMIs, sensors, and frequency inverters.

What should I check if the PLC enters a fault state?
Check the 'ERROR' LED status first. Inspect input wiring for potential short circuits and verify that the power supply voltage remains within the specified operating range.

Is this PLC suitable for complex, high-speed motion control?
No, the DVP-EC3 Series is optimized for standard logic control. For complex, multi-axis motion, we recommend the Delta DVP-SV or DVP-ES2 series.

How do I select the correct expansion for this unit?
The DVP-EC3 Series is a compact, fixed I/O design. Please verify if your application requirements fit within the 40 built-in I/O points before purchase.
