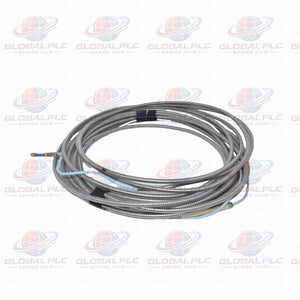

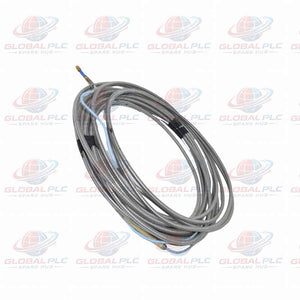

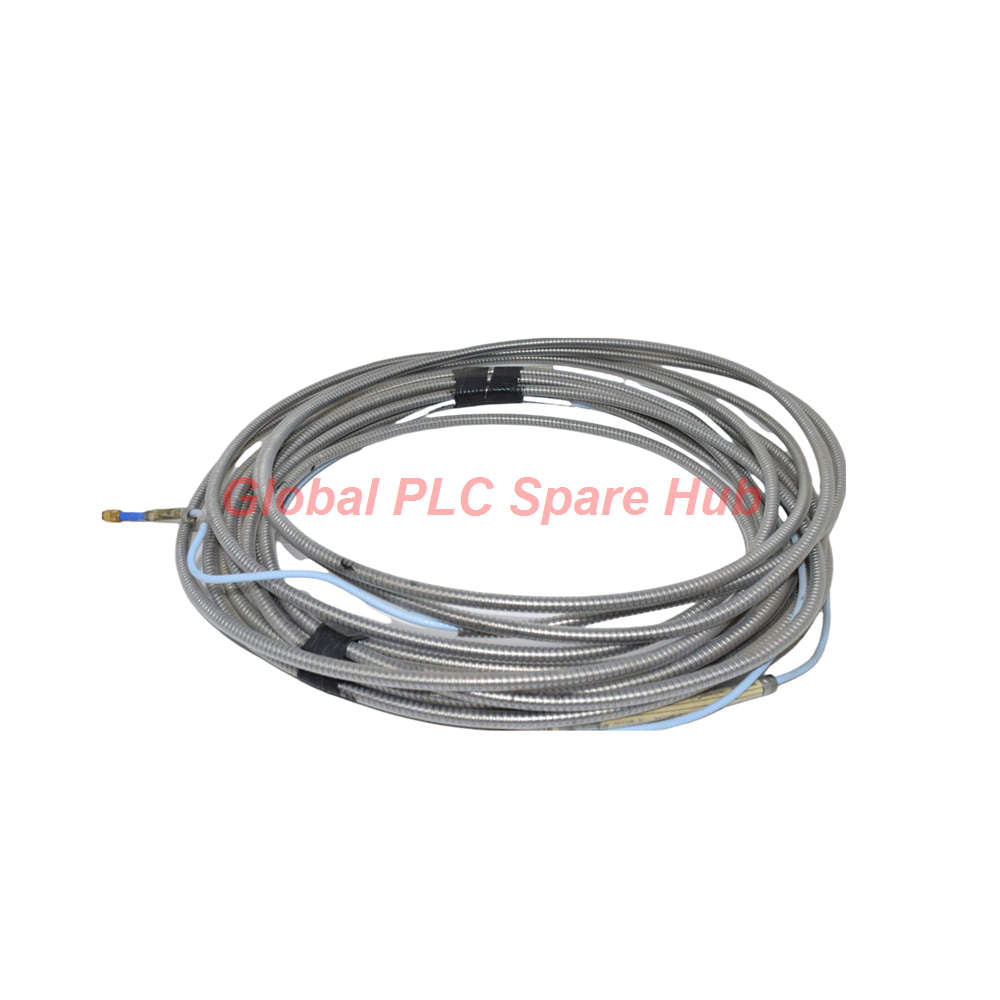

128987-130-02-05 Bently Nevada 3300 XL Proximity Sensor System Cable

Engineering Overview

The 128987-130-02-05 represents an engineered extension cable component designed for the 3300 XL series. Plant engineers deploy the 128987-130-02-05 to bridge gaps between probe tips and proximitor monitors while preserving signal fidelity across high-frequency environments.

Core Technical Parameters

• Manufacturer: Bently Nevada
• Product Type: 128987-130-02-05 Proximity Sensor System Cable
• Product Series: 3300 XL 8 mm
• Frequency Response: 0 to 10 kHz (-3 dB) for dynamic motion tracking
• Sensitivity: 200 mV/mil nominal scale factor
• Gap Range: 0.5 mm to 2.5 mm linear operating envelope
• Operating Voltage: -18V to -26V DC supply requirement
• Weight: 0.25 kg net physical mass
• Humidity Tolerance: 100% RH non-condensing deployment capacity

Thermal Operating Limits

• Probe Tip Rating: -35°C to +125°C standard threshold
• Cable Assembly Rating: -35°C to +150°C extended thermal envelope

Configuration Breakdown Tree

• 128987: 3300 XL 8 mm proximity probe base model identifier
• -130: Specific cable length and manufacturing configuration specifier
• -02: Miniature coaxial connector option complete with factory connector protector
• -05: Comprehensive agency approval package (ATEX, IECEx, CSA hazardous certifications)

Fulfillment and Warranty Terms

• Condition & Packaging: Brand New & Original in factory packing
• Warranty Coverage: Comprehensive 12-Month Factory Warranty
• Logistics & Dispatch: Rapid 24-48 hour fulfillment via FedEx, UPS, and DHL

Equipment Compatibility and Application Scenarios

Industrial technicians integrate the 128987-130-02-05 into heavy turbomachinery ecosystems. Typical deployment targets include large steam turbines, gas turbines, centrifugal compressors, and heavy boiler feed pumps where precision clearance monitoring dictates asset protection.

Diagnostic Capabilities and Engineering Value

Deploying the 128987-130-02-05 empowers condition monitoring systems to capture subtle rotor dynamic abnormalities. Plant operators rely on this setup to identify shaft radial vibration, eccentric rotor orbits, thrust collar wear, and impending fluid-induced instabilities before catastrophic machinery failure takes place.

Global PLC Spare HUB Review

Global PLC Spare HUB's Insight confirms that utilizing verified 128987-130-02-05 cable assemblies prevents signal attenuation loops common in unshielded aftermarket alternatives. Engineering validation tests show that maintaining correct system electrical resistance preserves phase angle accuracy during complex startup transients.

Frequently Asked Questions (FAQ)

Q: What field precaution prevents signal distortion when routing the 128987-130-02-05 cable through noisy conduit?

A: Always isolate the coaxial cable run away from high-voltage motor power lines and variable frequency drive outputs to eliminate electromagnetic coupling interference.

Q: How does Global PLC Spare HUB verify that the 128987-130-02-05 meets original manufacturer electrical tolerances?

A: Global PLC Spare HUB's Insight verifies that every incoming unit undergoes rigorous impedance and pin continuity checks against factory calibration benchmarks prior to dispatch.

Q: What purchasing strategy should technicians follow when matching extension cables to existing 3300 XL monitor racks?

A: Verify that the total electrical length—combining probe, extension cable, and proximitor monitor calibration—matches the specific -130 configuration code to ensure linear scale factor integrity.

Q: Why is maintaining the -02 miniature coaxial connector protector critical during outdoor installation?

A: The protector seals the threaded connection against moisture ingress and particulate accumulation, preventing high-resistance ground loops that distort the 200 mV/mil output.

Q: What symptom indicates that thermal degradation has compromised the 128987-130-02-05 cable insulation?

A: Unstable DC gap voltage readings accompanied by erratic baseline noise on the monitoring software typically signal localized dielectric breakdown from excessive ambient heat exposure.
