Yokogawa F3NC96-0N Motion Control Module | MECHATROLINK-II

Product Overview

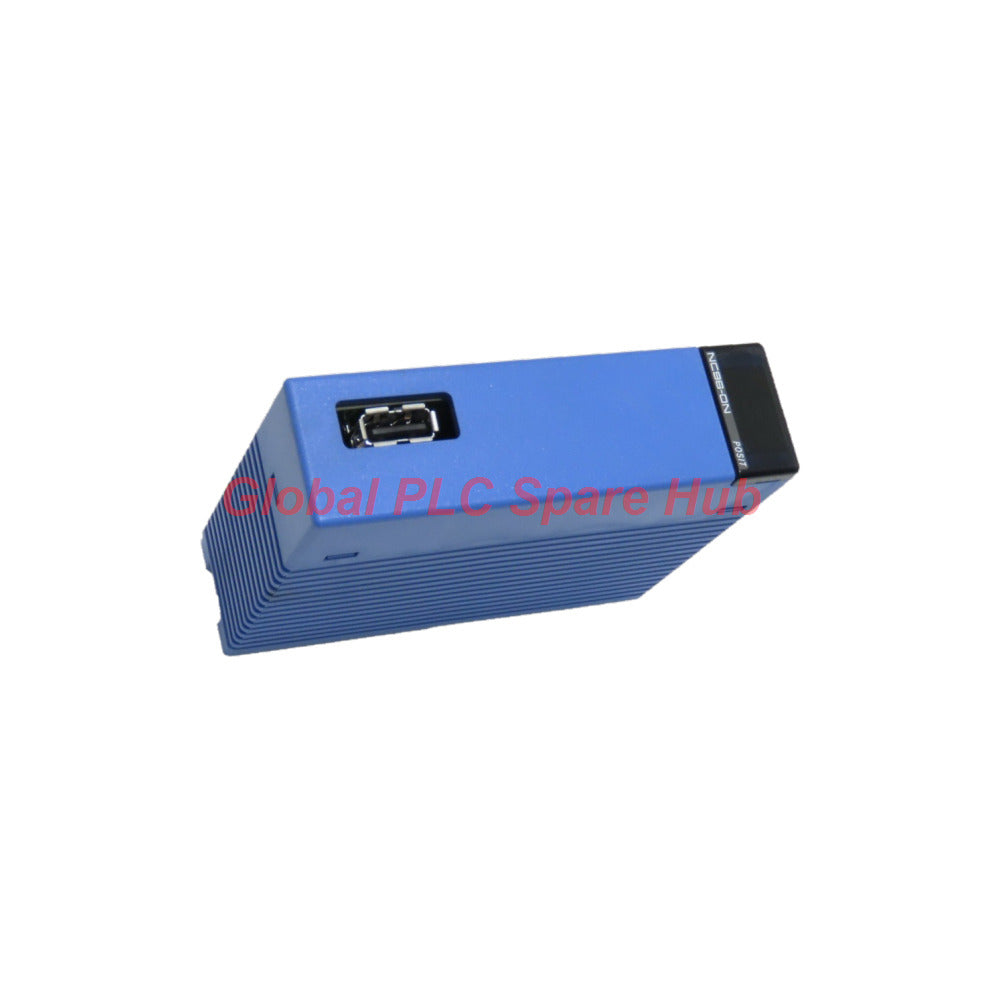

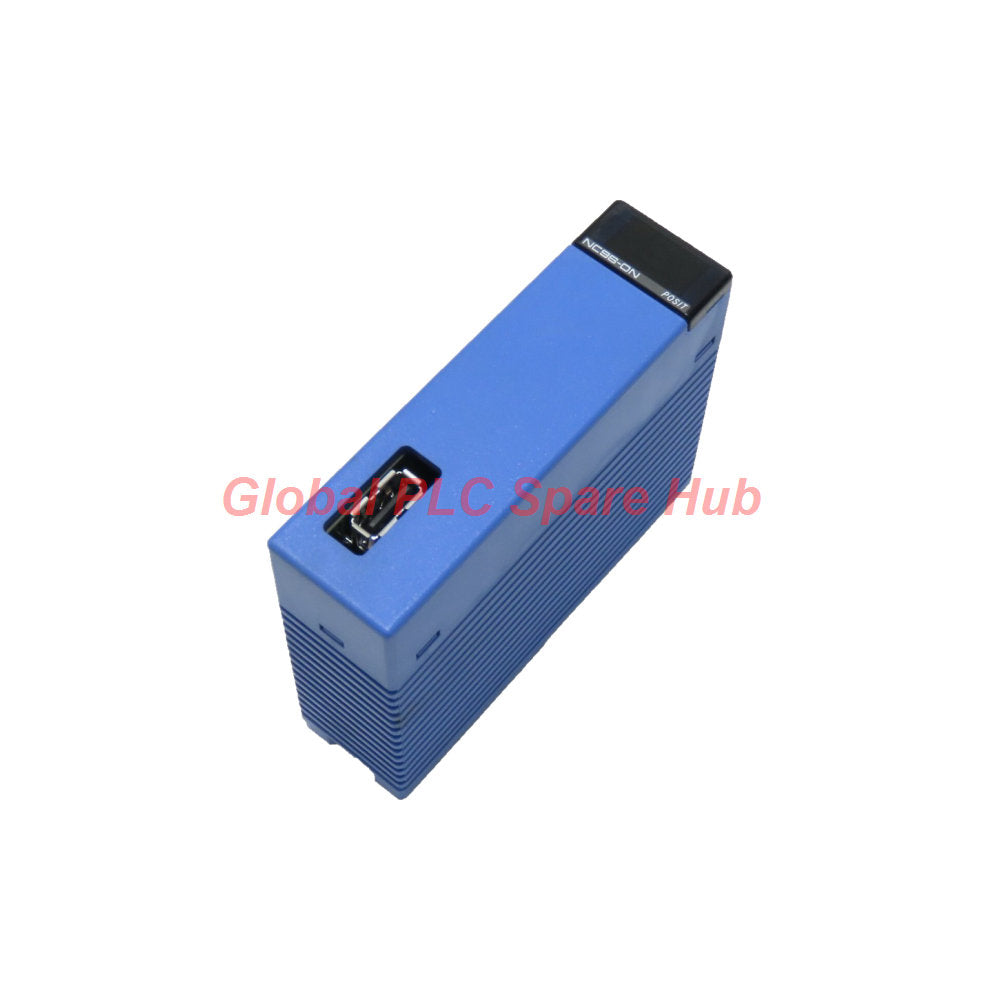

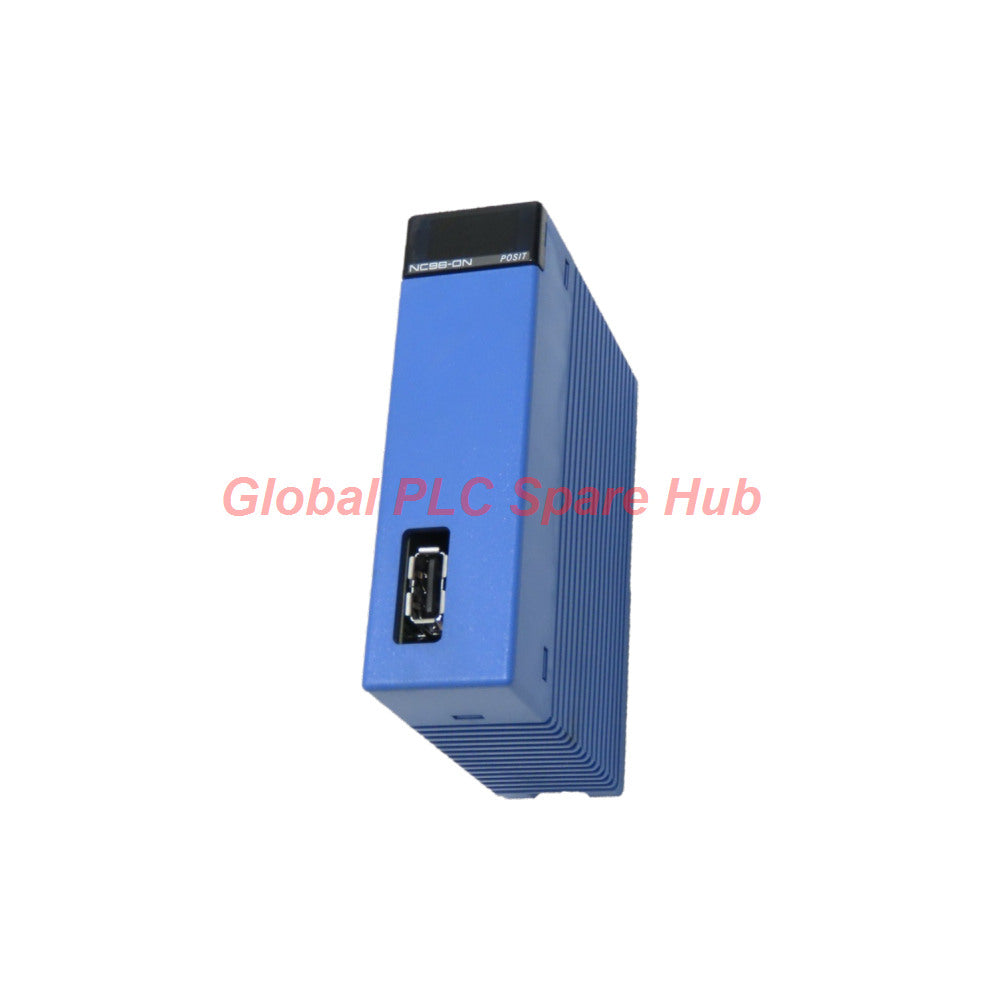

The Yokogawa F3NC96-0N is a positioning module with a MECHATROLINK-II interface. It supports coordinated motion control and independent axis operation through compatible network devices. The module exchanges motion commands and status data over a synchronous master/slave network. It supports linear interpolation and independent axis movement, subject to the connected equipment and available commands. With selectable communication cycles, the F3NC96-0N helps engineers configure multi-axis motion systems around application timing requirements. Its parameter access functions also support equipment configuration and operational diagnostics. Global PLC Spare HUB's Insight: Engineers should verify the servo drive's MECHATROLINK-II command support before selecting this module. This step helps prevent command mismatches during commissioning.

Technical Specifications

Specification Note: The reference range uses signed 32-bit integer values. Actual travel distance depends on the configured reference unit and machine mechanics.

Core Motion Control Functions

• Linear Interpolation: Coordinates supported axes with simultaneous movement starts and stops.
• Independent Axis Control: Executes MECHATROLINK-II commands for individual axes when connected devices support them.
• Position Feedback Access: Reads target and current position data from compatible external equipment.
• Parameter Management: Supports parameter reading and writing for connected devices.
• Selectable Communication Timing: Offers 1.0 ms or 2.0 ms cycles according to the selected axis configuration.

Typical Industrial Applications

• Automated Assembly: Coordinates supported axes during component placement and mechanical positioning.
• Packaging Machinery: Supports synchronized motion in feeding, indexing, and positioning operations.
• Material Handling: Controls compatible motion axes in transfer and positioning systems.
• Machine Tool Auxiliaries: Supports positioning tasks that require coordinated or independent axis commands.
• Production Equipment: Provides access to position and parameter data for motion supervision.

Installation Guidelines

1. Verify the Controller: Confirm that the target PLC platform supports the F3NC96-0N.
2. Check Device Compatibility: Verify MECHATROLINK-II compliance and command support for every connected device.
3. Plan the Network: Keep total transmission cable length within 50 m. Maintain at least 0.5 m between stations.
4. Select the Cable: Use the specified two-wire shielded twisted-pair cable. Confirm the cable type against the equipment manuals.
5. Configure the Cycle: Select 1.0 ms for up to 8 axes or 2.0 ms for up to 15 axes, as applicable.
6. Verify Position Units: Confirm scaling, reference units, travel limits, and coordinate conventions before operation.
7. Test Motion Safely: Start with low-speed movements and verify each axis before coordinated operation.

Always isolate hazardous machine motion before wiring or servicing. Follow the applicable PLC, drive, and machine safety procedures.

Commissioning, Diagnostics, and Maintenance

The module's status and parameter access functions help engineers investigate motion-system behavior. Actual diagnostic details depend on the connected devices and controller software.

• Position Verification: Compare target position and reported current position during controlled test movements.
• Communication Checks: Inspect cable connections, network configuration, and device readiness when communication fails.
• Parameter Verification: Compare drive parameters with approved commissioning records.
• Cycle-Time Assessment: Confirm that the selected communication cycle meets the application's motion requirements.
• Routine Inspection: Check connectors, cable shielding, terminal security, and cabinet conditions during planned maintenance.

Field Experience: An axis may respond incorrectly when the controller and servo drive use different position scaling. For example, a commanded movement may produce a smaller physical displacement than expected. Compare the configured reference unit with the drive's scaling parameters before changing motion commands. If a network fault occurs, check the cable and station configuration first. Then verify device compatibility and supported commands. This sequence helps separate communication issues from motion-parameter errors.

Compatibility and Integration

The F3NC96-0N uses the MECHATROLINK-II communication protocol. Successful integration requires matching hardware, firmware, configuration, and command support.

• Confirm the host PLC model and supported module configuration.
• Verify the connected drive or external device supports MECHATROLINK-II.
• Check the command set required for interpolation and independent axis movement.
• Confirm the selected cycle time supports the planned number of axes.
• Validate cable requirements and total network length.

Do not assume compatibility with MECHATROLINK-III, EtherCAT, or other motion networks. Confirm the exact protocol and hardware requirements in the applicable manufacturer's documentation.

Environmental Limits and Certification

The available specifications do not establish the module's operating temperature, storage temperature, humidity limits, vibration rating, shock rating, ingress protection, or electromagnetic immunity level. They also do not confirm specific CE, UL, UKCA, or hazardous-area approvals. Consult the official Yokogawa documentation for the exact hardware revision before installation in regulated environments.

Packaging and Delivery

• Product: Yokogawa F3NC96-0N positioning module.
• Accessories: Included accessories depend on the confirmed supply configuration.
• Documentation: Availability depends on the order and supplied documentation package.
• Shipping Options: FedEx, UPS, and DHL, subject to destination and service availability.
• Dispatch Time: 24–48 hours after order confirmation, subject to stock availability and order processing.
• Warranty: 12 months, subject to the seller's written warranty terms.

Please confirm the module configuration, included accessories, shipping schedule, and warranty conditions with the sales team before ordering.

Frequently Asked Questions

Q1: What does the Yokogawa F3NC96-0N do? The F3NC96-0N provides positioning control through a MECHATROLINK-II interface. It supports linear interpolation, independent axis commands, and access to external equipment status and parameters.

Q2: How many axes can the module support? The specified communication cycles support up to 8 axes at 1.0 ms or up to 15 axes at 2.0 ms. Confirm the complete system's configuration limits before commissioning.

Q3: Does the module support simultaneous multi-axis movement? Yes. It supports linear interpolation with simultaneous movement starts and stops. The connected equipment must support the required motion commands.

Q4: What should engineers check when communication fails? First, inspect the specified cable, connector seating, total cable length, and station spacing. Next, verify the protocol, station configuration, and device readiness. Consult controller diagnostics for additional fault details.

Q5: Can the module work with any servo drive? No. The drive must support MECHATROLINK-II and the commands required by the application. Confirm compatibility with the relevant hardware and software manuals. Q6: What does the 32-bit position range mean in practice? The module accepts signed 32-bit position reference values. The physical distance depends on the configured reference unit, electronic gearing, and mechanical transmission.

Q7: What should buyers confirm before placing an order? Confirm the exact model, host PLC compatibility, communication protocol, axis requirements, cable specification, and required motion functions. Request written confirmation if the module must replace an existing installation.

Q8: What information helps identify an intermittent positioning fault? Record the controller configuration, drive model, communication status, target position, current position, and fault timing. These details help engineers determine whether the problem relates to communication, scaling, or drive behavior.

Q9: Does the product include cables or mounting accessories? The available product information does not confirm the accessory list. Ask the supplier to confirm the package contents before ordering.

Q10: What warranty and shipping options are available? The stated sales terms provide a 12-month warranty and shipping options through FedEx, UPS, or DHL. Dispatch within 24–48 hours depends on stock availability, order confirmation, and processing.
