F3YD64-1R Yokogawa F3 Series Transistor Output Module | 64-Point Source Output

F3YD64-1R | Yokogawa F3 Series 64-Point Transistor Output Module

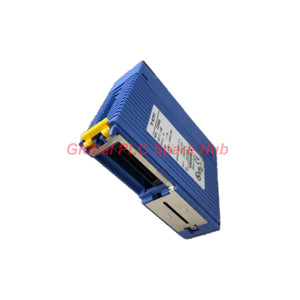

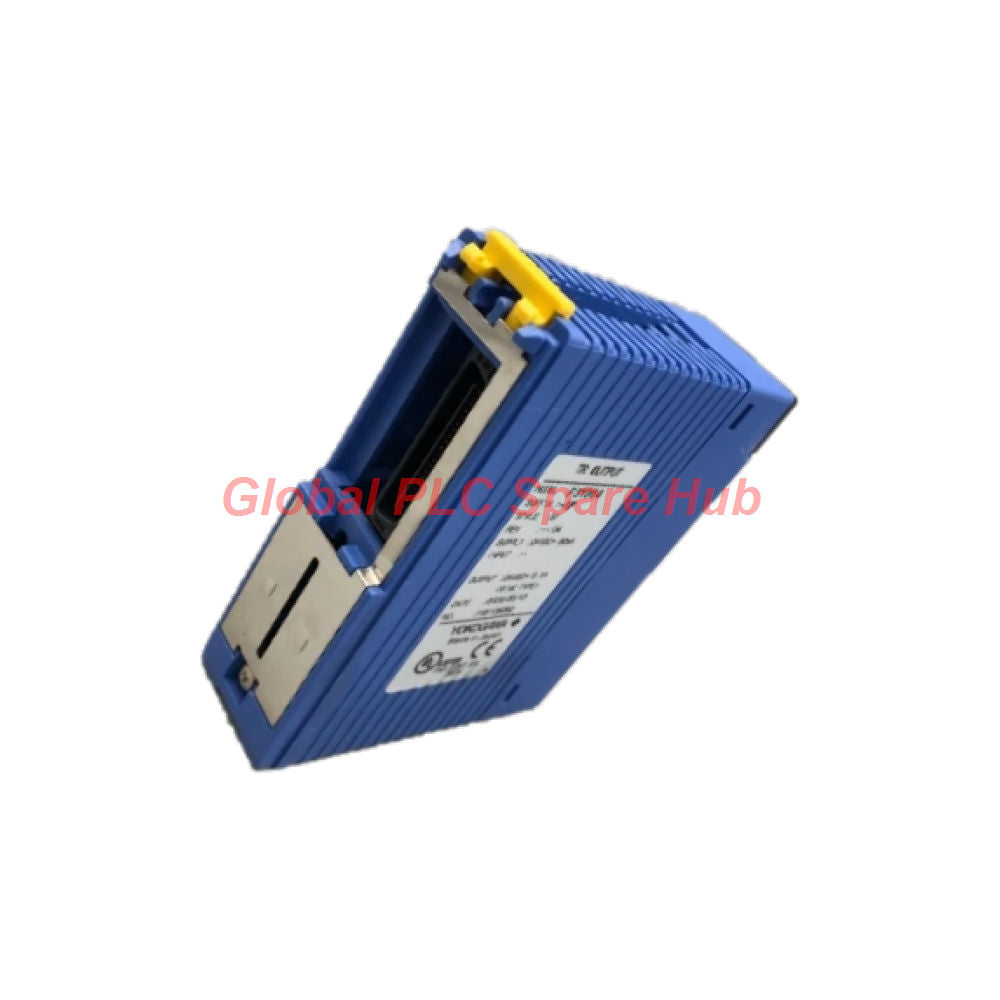

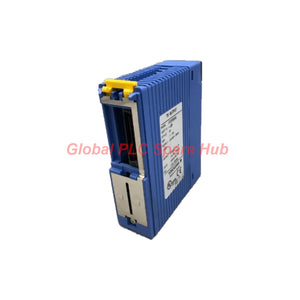

The Yokogawa F3YD64-1R is a 64-point source-type transistor output module designed to control compatible 12–24 V DC field loads from a Yokogawa PLC system. It provides photocoupler isolation between the external connection terminals and the internal circuit, with a specified withstand voltage of 1500 V AC for one minute.

The module is designed for applications requiring a high density of discrete outputs in a limited installation space. Each output supports a maximum load current of 0.1 A, while each common group is rated for up to 0.4 A. Built-in short-circuit and overheat protection help limit damage during certain fault conditions, although they do not replace correct load sizing, external circuit protection, or fault investigation.

01 — Output Architecture at a Glance

Parameter	Specification
Manufacturer	Yokogawa
Model	F3YD64-1R
Series	F3 Series
Module type	Transistor output module with short-circuit protection
Output configuration	Source type
Output points	64
Common grouping	8 points per common
Isolation	Photocoupler isolation
Withstand voltage	1500 V AC for 1 minute between external terminals and internal circuit
Rated load voltage	12–24 V DC
Operating voltage range	10.2–26.4 V DC
Maximum load current	0.1 A per point; 0.4 A per common
Maximum ON voltage	0.5 V DC
OFF-state leakage current	0.1 mA maximum
Response time	1 ms maximum, OFF-to-ON and ON-to-OFF
External power supply	12–24 V DC, 110 mA
Internal current consumption	275 mA at 5 V DC
Output indication	LED indication for switched output groups
External connection	Two 40-pin connectors
Fuse / surge protection	No built-in fuse; no surge protector specified
Weight	Approx. 130 g

02 — Protection Logic and Important Wiring Constraints

The F3YD64-1R combines output switching with two forms of protection. Understanding their behavior is important when designing loads and troubleshooting output faults.

• Per-output short-circuit protection: A short circuit can cause the affected output to limit current or switch off for a period. Protection behavior should not be treated as permission to operate with a persistent short circuit.
• Overheat protection by 8-point group: If the output element temperature exceeds its internal threshold, the corresponding group is shut down. The protected groups are OUT1–OUT8, OUT9–OUT16, and so on through OUT57–OUT64.
• No built-in fuse: Select external circuit protection based on the field supply, load characteristics, wiring, and the manufacturer's recommendations.
• No specified surge protector: Assess whether inductive loads require external suppression. Select suppression components appropriate for the load and switching circuit.
• Shared power-source requirement: The external power supply and load power supply must be the same source. Separate supplies are not permitted, even if both have the same nominal voltage.

Engineering caution: A persistent short circuit can continue to heat the output element even when current limiting is active. Remove the fault promptly and allow the equipment to return to a safe operating condition before testing again.

03 — Load Planning: Per-Point and Per-Common Limits

The module's 0.1 A per-point limit and 0.4 A per-common limit must both be respected. Four outputs operating at 0.1 A each would reach the 0.4 A common limit; the fact that 64 points are available does not mean every point can draw 0.1 A simultaneously without considering the common-group limits.

Design check	What to verify
Individual output current	Each connected load remains within 0.1 A.
Common-group current	The combined load current for each group of eight outputs does not exceed 0.4 A.
Supply voltage	Confirm the voltage at the module and field load stays within the specified operating range.
Load inrush	Check startup current for relay coils, lamps, solenoids, and other loads with transient demand.
Inductive switching	Evaluate external suppression and wiring practices to control switching transients.
Power supply capacity	Include the external supply demand and connected-load requirements in the panel power budget.

For designs with many simultaneous outputs, calculate the actual current by common group rather than relying only on the total number of output points. Confirm the manufacturer's derating guidance for the intended operating conditions.

04 — Where This Module Fits

The F3YD64-1R is suited to compatible PLC applications that need a large number of discrete DC control signals. Typical examples include:

• Automated assembly equipment: Control signals for compatible low-current actuators, interface relays, and machine sequence functions.
• Packaging lines: Discrete commands for indicators, small solenoids, and auxiliary control devices within the electrical limits.
• Material handling: Output signals for conveyor interlocks, diverter interfaces, and equipment status interfaces.
• Process-control panels: High-density switching for compatible 12–24 V DC field interfaces.
• Utility and auxiliary systems: Commands for small DC loads and interface circuits used in pumps, fans, and other equipment control arrangements.

These are representative application scenarios, not confirmation of direct compatibility with every device. Check the load's rated and inrush current, electrical polarity, and interface requirements. For larger loads, use a suitable interposing relay or driver. Do not use a standard transistor output module as a safety-rated output unless the complete system is specifically certified and configured for that purpose.

05 — CPU Compatibility and Output-State Behavior

The supplied specification states that the module is compatible with all CPU module types, but output behavior when the program stops depends on the CPU type and its configuration. Verify the exact host CPU and system documentation before commissioning.

• Sequence CPU: The stated initial behavior is RESET. The module outputs can be set collectively.
• BASIC CPU: No setting function is specified; output behavior is stated as HOLD.
• OS-free CPU: The stated initial behavior is HOLD, with configuration available for each group of eight points.

HOLD and RESET can have materially different effects on connected equipment. Before changing CPU settings or replacing a module, confirm whether outputs must de-energize or retain their last state when the program stops. Review machine risk controls and the actual control sequence before returning the system to service.

06 — Installation and Commissioning Sequence

1. Verify the exact part number. Confirm F3YD64-1R on the module label and match it to the system's I/O configuration.
2. Isolate power. Follow the site's lockout and electrical safety procedures before handling connectors or field wiring.
3. Inspect both 40-pin connections. Check connector condition, seating, wiring assignment, and any required terminal or interface accessories specified for the installation.
4. Confirm source-type wiring. Review the manufacturer's wiring diagram and the connected load's polarity and return path.
5. Check the common groups. Verify the eight-point grouping and calculate the current for each common, keeping each point at or below 0.1 A and each common at or below 0.4 A.
6. Verify the shared supply. Confirm the load and external module supply use the same source, as required by the specification.
7. Test outputs in stages. Test one output and one common group at a time before operating the full set of loads.
8. Confirm stop-state behavior. Test the configured HOLD or RESET response under an approved commissioning procedure before connecting the system to live machinery.

07 — Diagnostics: From LED Status to Group-Level Faults

The module provides LED indication for switched output groups and built-in short-circuit and overheat protection. The protection circuits help limit damage, but the supplied specifications do not establish that every fault is reported as a detailed diagnostic message to the CPU. Use the controller's available diagnostics and the module's documented indicators together.

Observed symptom	Recommended checks
Command is ON but the load does not operate	Check the field supply, shared source requirement, output polarity, connector wiring, load condition, and current limits.
One output does not switch correctly	Inspect the individual field circuit for a short, open connection, excessive load, or damaged device. Compare the output with a known-good circuit only when safe and permitted.
Several outputs in one group stop operating	Investigate the relevant eight-point group for a persistent short circuit or thermal shutdown. Remove the fault before retesting.
Outputs operate intermittently	Check supply stability, connector seating, common current, load inrush, and switching transients.
Unexpected behavior after program stop	Review CPU type and HOLD/RESET settings. Confirm the intended safe state of the connected machinery.
Module status and field behavior disagree	Compare the control command, LED indication, terminal voltage, and actual load response to isolate the fault location.

Diagnostic limitation: Do not infer that an LED alone identifies the cause of a fault. A load failure, supply issue, wiring error, current overload, and protection shutdown can produce similar symptoms. Use the official hardware manual for indicator meanings and supported diagnostic functions.

08 — Global PLC Spare HUB's Insight

For a high-density output module, a useful troubleshooting clue is the boundary between an individual point and its shared group. If one load fails, begin with its field circuit. If several outputs within the same eight-point group stop operating together, check the group's total current and look for a short circuit or overheat shutdown.

During replacement planning, engineers should also check the power-source arrangement and CPU stop-state behavior. The F3YD64-1R requires the external power supply and load power supply to be the same source, and HOLD/RESET behavior varies with the CPU type. These two details can affect commissioning even when the replacement part number is correct.

09 — Ordering, Warranty, and Shipping

• Part number: Yokogawa F3YD64-1R
• Product category: F3 Series 64-point source-type transistor output module with short-circuit protection
• Warranty: 12-month warranty, subject to the seller's warranty terms and conditions.
• Shipping options: FedEx, UPS, and DHL, subject to destination and service availability.
• Dispatch estimate: Target dispatch within 24–48 hours after order confirmation, subject to stock availability, payment clearance, and order processing.
• Quotation support: Provide the complete model number, quantity, host CPU or I/O platform, and delivery destination to help verify compatibility and shipping options.

10 — Frequently Asked Questions

Q1. Can all 64 outputs carry 0.1 A at the same time?

Not without checking the common-group limits. Each point is rated for up to 0.1 A, but each eight-point common is limited to 0.4 A. Calculate the combined current for every group and follow the manufacturer's loading and derating requirements.

Q2. What is the practical difference between per-point short-circuit protection and eight-point overheat protection?

Short-circuit protection acts on individual outputs, while overheat protection shuts down an eight-point group. A fault affecting several outputs together should prompt checks of the shared group, load current, and possible thermal shutdown rather than immediate replacement of the entire module.

Q3. Can I use a separate 24 V DC supply for the load if the module supply is also 24 V DC?

No. The supplied specification explicitly requires the external power supply and load power supply to be the same source. Two separate supplies are not permitted even if their nominal voltage is identical. Confirm the approved wiring arrangement in the hardware manual before energizing the system.

Q4. Should I connect a solenoid valve directly to an output point?

Only if its steady-state current, inrush behavior, voltage, polarity, and switching characteristics comply with the module's specifications. Also consider inductive suppression and the 0.4 A common limit. If the load exceeds the electrical limits or needs a different interface, use a suitable interposing device.

Q5. What should I verify before ordering this module as a replacement?

Match the complete F3YD64-1R suffix, verify the host CPU and I/O platform, confirm the two 40-pin connector arrangement, and check the source-type wiring and power-source requirement. Also document the existing HOLD/RESET configuration so the replacement behaves as intended when the program stops.

Technical Summary

The Yokogawa F3YD64-1R is a 64-point source-type transistor output module for compatible F3 Series control systems. Its key design considerations are the 0.1 A per-point limit, 0.4 A per-common limit, shared power-source requirement, and group-based overheat protection. Confirm system compatibility and field wiring against the manufacturer's documentation before installation.
