VFD1A5MS43ANSAA Technical Architecture

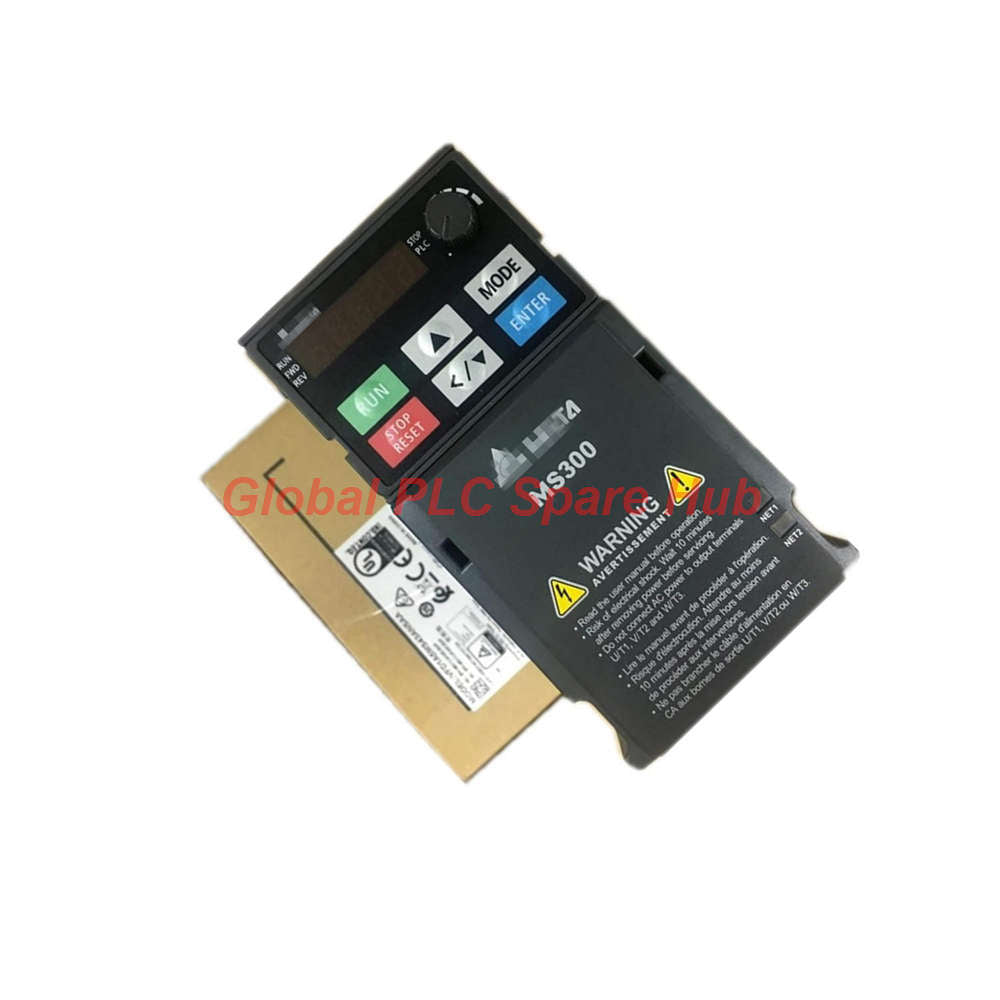

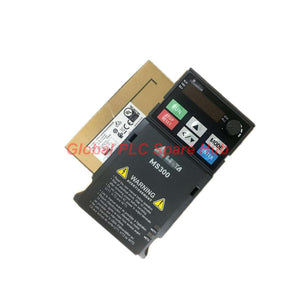

The VFD1A5MS43ANSAA is a precision-engineered motor drive from the Delta MS300 series. It utilizes a modular identification system to ensure exact application matching:

• VFD: Variable Frequency Drive
• 1A5: 1.5A Rated Output Current (Heavy Duty, 150% for 60s)
• MS: MS300 High-Performance Series
• 43: 460V Three-Phase Input
• A: IP20 Protection Rating
• N: No Built-in EMC Filter
• S: Integrated Safe Torque Off (STO)
• A: Standard Model Version A

Engineered Performance Data

• Brand/Manufacturer: Delta Electronics
• Model Identifier: VFD1A5MS43ANSAA
• Power Output: 400 W
• Input Configuration: 460 V, 3-Phase
• Motor Support: Advanced control for both IM (Induction) and PM (Permanent Magnet) motors
• Chassis Class: Frame A4 (IP20 standard)
• Safety Standard: Integrated STO (Safe Torque Off) for critical safety loops

Operational Insights & Diagnostic Capability

The VFD1A5MS43ANSAA is designed for proactive asset management. It features an onboard diagnostic engine monitoring thermal load, DC bus ripple, and phase balance. Users can access real-time status registers via digital keypad or Modbus to identify fault conditions (e.g., OC, OV, OL) instantly, significantly reducing MTTR (Mean Time To Repair) in high-uptime production environments.

Global PLC Spare HUB's Insight

At Global PLC Spare HUB, we identify the VFD1A5MS43ANSAA as a high-dynamic motion control solution. It is best suited for precision equipment, including small-scale robotics, micro-positioning tables, and automated assembly test rigs. The MS300 integration of PM motor control provides superior energy efficiency in compact footprints. This unit is an ideal choice for retrofits requiring strict STO compliance and reduced cabinet dimensions.

Logistics & Quality Assurance

• Global Logistics: Secure delivery via FedEx, UPS, or DHL.
• Expedited Dispatch: We process all orders within 24 to 48 hours.
• Warranty: Every VFD1A5MS43ANSAA unit is backed by a professional 12-month quality guarantee.

Expert Frequently Asked Questions

Q: How does the STO feature benefit my machine safety design?

A: STO disables the pulse-width modulation output to the motor directly, preventing rotation without needing to cycle main power, which is critical for safe maintenance.

Q: Can I run a Permanent Magnet (PM) motor with this drive?

A: Yes, the MS300 firmware is specifically optimized for both Induction and PM motor autotuning, ensuring high-precision flux control.

Q: My drive reports a thermal warning under moderate load; what should I check?

A: Inspect the heat sink for debris and verify your carrier frequency settings; high carrier frequencies increase thermal stress on the IGBT modules.

Q: Is the Frame A4 chassis suitable for side-by-side mounting?

A: Yes, the A4 frame is specifically designed for high-density, side-by-side panel installations, though proper airflow clearances must be maintained per the manual.

Q: How can I optimize deceleration for high-inertia loads?

A: Ensure you have an appropriately sized braking resistor installed; the built-in brake chopper on this model will handle the energy dissipation provided the resistor ohm value is within recommended limits.

Professional Selection Guidance

• Load Verification: Confirm motor full-load current is ≤ 1.5A to ensure the VFD1A5MS43ANSAA operates within its thermal envelope.
• Environment: As an IP20 device, install this drive in a dust-free, climate-controlled enclosure to prevent component contamination.
• Communication: If your architecture requires Ethernet/IP or CANopen, ensure you select the appropriate MS300 fieldbus expansion card during procurement.
