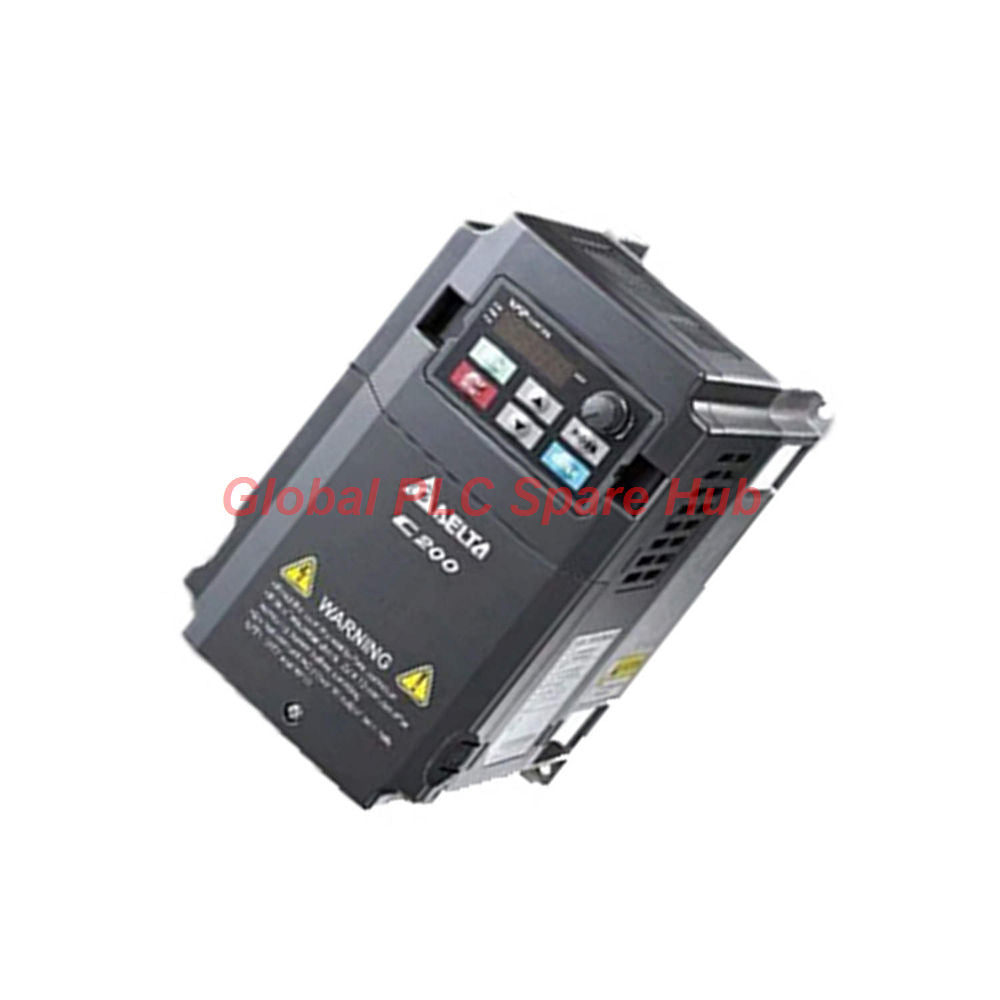

VFD037CB23A-21 Delta C200 Drive | 5HP 230V Intelligent Vector VFD

Technical System Architecture: The Delta VFD037CB23A-21

The VFD037CB23A-21 is a flagship model in the C200 Series, engineered as an intelligent micro-drive for demanding industrial motion control. This VFD037CB23A-21 utilizes a robust vector control algorithm to drive both induction and permanent magnet (PM) motors with exceptional precision. With a built-in 5,000-step PLC capacity, this drive acts as a standalone automation hub, significantly reducing the requirement for external control hardware.

Operational Technical Metrics

• Model Identification: VFD037CB23A-21
• Series Classification: C200 Series
• Power Capacity: 5 HP (3.75 kW) @ 230V 3-Phase input
• Current Rating: 16 A (Nominal)
• Control Logic: Open-loop vector control, supports PM sensorless operation
• Communication: Native Modbus RS-485 and CANopen (Slave)
• I/O Suite: Dual high-speed pulse inputs (MI7/MI8) and outputs (DFM1/DFM2) @ 33kHz
• Durability: IEC 60721-3-3 Class 3C2 PCB coating for extreme environment resistance

Diagnostic Intelligence and Maintenance

• Integrated Diagnostics: High-brightness LED keypad provides real-time monitoring of pulse frequency and internal PLC logic states.
• Thermal Resilience: Enhanced cooling design supports wall-mounted installation in high-density, dust-prone cabinets.
• Service Commitment: Comprehensive 12-month quality warranty on all hardware; reliable global shipping via FedEx, UPS, and DHL with 24-48 hour dispatch.

Global PLC Spare HUB Insight

The VFD037CB23A-21 is our go-to solution for applications requiring localized logic processing without the overhead of a centralized PLC. We find the C200 Series particularly effective in retrofit projects where space is limited but control complexity remains high, such as precision material handling or specialized rotating equipment.

Expert FAQ

Q: Can the internal 5,000-step PLC control external components like valves or sensors?
A: Yes, you can map the drive's physical digital inputs and outputs directly within the ladder logic, allowing the drive to act as the primary controller for auxiliary machine functions.

Q: How does the PM sensorless mode improve system energy efficiency?
A: By utilizing vector control for PM motors without requiring physical encoder feedback, it eliminates maintenance points while maintaining high synchronization and power efficiency at lower speeds.

Q: What is the benefit of the high-speed pulse inputs (MI7/MI8)?
A: These terminals allow the drive to receive high-resolution synchronization pulses from a master controller or encoder, enabling precise speed following for gantry or conveyor applications.

Q: Selection advice: When is the Frame A wall-mount design most advantageous?
A: It is ideal for retrofitting machines where cabinet door depth is insufficient for larger drives. Ensure at least 50mm of clearance on all sides to allow for adequate airflow over the heat sink.

Q: How do I handle potential noise interference in CANopen networks?
A: Always use high-quality twisted-pair shielded cable and ensure the network is properly terminated at both physical ends with 120-ohm resistors to prevent signal reflections.

Typical Application Environments

• Precision packaging and filling machinery
• Automated conveyor synchronization
• Small-scale CNC machine tools
• Chemical processing and material handling units
