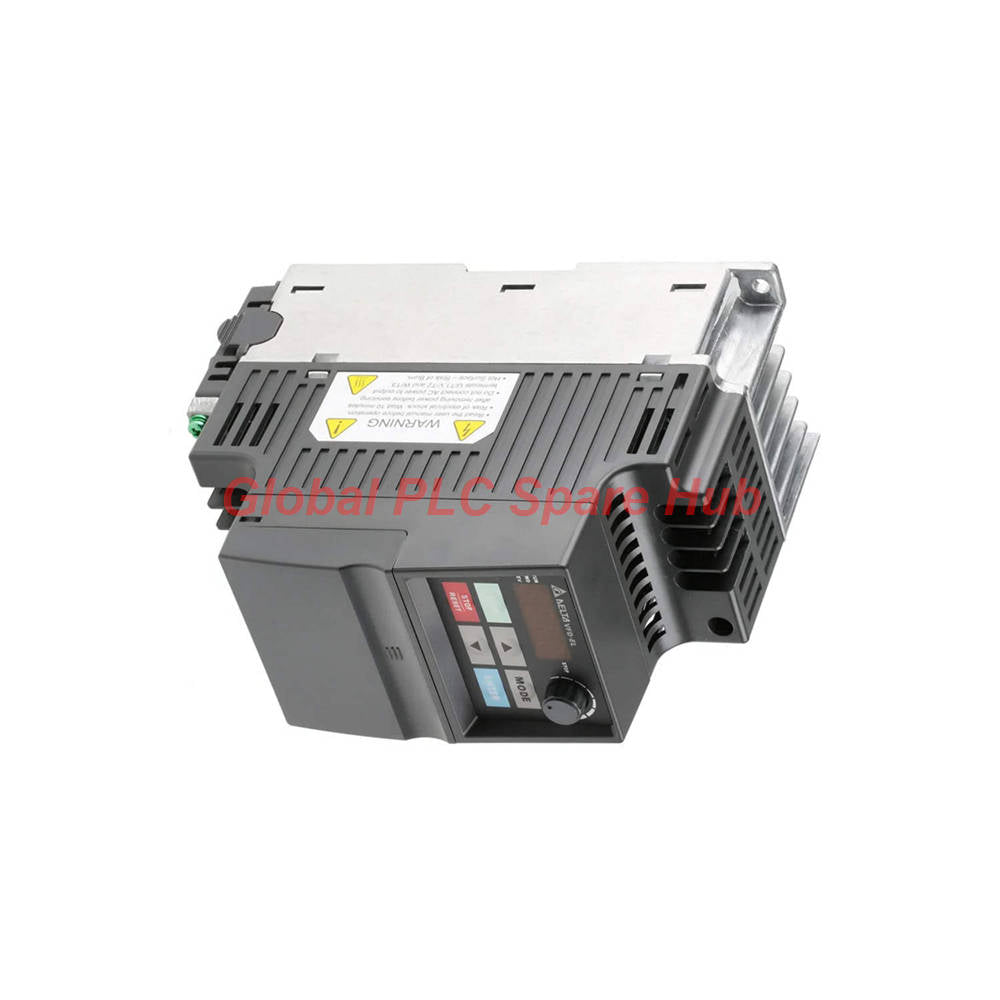

VFD015EL43A Delta VFD-EL Series 2HP 1.5kW 480V 3-Phase AC VFD Drive

Delta VFD015EL43A VFD-EL Series 2 HP AC Micro Drive Overview

The Delta VFD015EL43A belongs to the high-efficiency VFD-EL Series of multi-function micro AC drives. Delta engineered this compact inverter for small-horsepower, constant torque applications requiring tight space utilization and built-in operator interface capabilities. Featuring an integrated keypad, built-in EMI filter, and RFI switch, the VFD015EL43A streamlines panel assembly while delivering reliable V/Hz voltage vector control.

Technical Specifications Summary

================================================================================
  TECHNICAL PARAMETER      | SPECIFICATION DETAIL
================================================================================
  Brand                    | Delta Electronics
  Model Number             | VFD015EL43A
  Product Series           | VFD-EL Series
  Output Horsepower        | 2.0 HP (1.5 kW) Constant Torque
  Input Power Supply       | 380 V AC to 480 V AC (3-Phase Input / Output)
  Continuous Current       | 4.2 A Output
  Control Mode             | V/Hz (Scalar Control / Voltage Vector)
  Operator Interface       | Built-In Digital Keypad Included
  EMI/RFI Suppression      | Built-in EMI Filter with RFI Disconnect Switch
  Braking Capabilities     | Dynamic Braking Transistor & DC Injection
  High Precision Sensing   | Integrated Current Detection Hardware
  Overload Protection      | Electronic Thermal Relay (150% for 60 seconds)
  Enclosure Rating         | IP20, Frame Size A
  Dimensions (H x W x D)   | 6.86 in x 2.83 in x 5.36 in (174.2 x 72 x 136.1 mm)
  Certifications           | CE, UL, cUL, RoHS Compliant
================================================================================

Modular Capabilities & Engineering Features

• Integrated Digital Keypad: Allows full parameter programming and speed control right out of the box without purchasing additional operator panels.
• Built-in EMI Suppression: Features a factory-installed EMI filter that satisfies industrial noise standards and simplifies EMC compliance.
• Side-by-Side Zero-Clearance Mounting: Compact Frame A footprint with shared DC bus topology supports dense multi-drive rail installations.
• RFI Switch Architecture: Includes an accessible switch to disconnect filter capacitors when powered by ungrounded IT mains networks.
• High-Precision Current Sensing: Tracks output current accurately to deliver fast overcurrent trip protection and smooth torque generation.
• Dynamic Braking Chopper: Integrated internal transistor allows direct connections to external resistors for rapid braking cycles.

Typical Machinery & Application Environments

• Small Scale Conveyor Belts: Provides precise acceleration curves and smooth speed regulation for light material transfer lines.
• Commercial Exhaust Fans: Modulates HVAC airflow based on external analog sensor inputs to reduce electrical power usage.
• Centrifugal Fluid Pumps: Manages small liquid pumping systems using onboard PID loop functionality for constant pressure control.
• Agitators & Liquid Mixers: Delivers constant torque output across broad speed bands for uniform batch mixing processes.
• Textile & Winding Machines: Maintains stable tension and velocity on light yarn or thread winding reels.

Installation & Cabinet Wiring Protocols

• Mount the drive vertically inside a cabinet meeting IP20 or higher standards on a rigid metal backplate.
• Provide at least 50 mm clearance above and below Frame A for unrestricted thermal convection.
• Connect 480V 3-phase mains to input terminals L1, L2, L3 and motor leads to output terminals U, V, W.
• Ensure low-impedance ground bonding between the chassis earth lug and main cabinet grounding bus.
• Install an AC line reactor if incoming line supply transformer rating exceeds 500 kVA.

Commissioning & Maintenance Procedures

• Navigate and adjust control parameters using the built-in digital keypad display and potentiometer.
• Input motor nameplate current and voltage values into parameters to calibrate electronic thermal protection.
• Inspect external cooling heat sinks every six months to clean off accumulated shop dust and debris.
• Check terminal connection screw tightness annually to prevent heat generation caused by loose terminals.
• Monitor output current feedback on the local keypad during peak machinery load sequences.

Onboard Diagnostic Capabilities & Protection

• Microprocessor logic monitors input phase loss, overvoltage, undervoltage, and phase-to-phase output short circuits.
• Internal fault memory retains the latest trip codes to speed up field diagnostics during unexpected shutdowns.
• Electronic current limit function suppresses instantaneous current peaks to prevent nuisance overcurrent trips.
• Integrated motor thermal protection monitors continuous current draw to prevent stator winding insulation failure.

Global PLC Spare HUB's Insight

In field retrofits, the Delta VFD015EL43A stands out as a compact, cost-effective replacement for legacy 2 HP drives. During a recent commercial laundry conveyor overhaul, an engineer selected the VFD015EL43A specifically for its built-in keypad and slim 2.83-inch width. The integrated keypad eliminated the cost of buying external control panels, and the side-by-side mounting capability allowed three drives to fit in a panel space previously occupied by just two older units.

Purchasing & Selection Guide

• Confirm that maximum motor full load current does not exceed the VFD015EL43A continuous rating of 4.2 A at 480V.
• Select the VFD-EL Series over VFD-E models when basic V/Hz control and a built-in keypad are required without need for complex internal PLC logic.
• Add an optional external dynamic braking resistor if your application requires fast deceleration of high-inertia spinning loads.
• Consider an optional RS-485 communication card if integration into a Modbus network architecture is planned.

Logistics, Packaging & Warranty Terms

• Package Content: 1 x Delta VFD015EL43A Inverter Drive, Quick Start Manual, Mounting Fasteners.
• Order Fulfillment: Prompt processing and warehouse dispatch within 24 to 48 hours.
• Global Delivery Services: Tracked express shipping via FedEx, UPS, and DHL.
• Factory Warranty: Covered by a 12-Month Quality Guarantee.

Frequently Asked Questions

Does the VFD015EL43A come with an integrated keypad display?

Yes, the VFD015EL43A features a built-in operator keypad, so you do not need to buy an external keypad module to edit parameters.

How do I troubleshoot an Overcurrent (oc) fault code on the VFD015EL43A?

Check for mechanical jams in the motor load, increase the acceleration time parameter, or inspect motor wiring for phase-to-ground short circuits.

Can I run a 2 HP single-phase motor using this 480V drive?

No, the VFD015EL43A outputs 3-phase AC power exclusively and must be connected to a 3-phase induction motor.

What is the advantage of using the RFI disconnect switch?

The RFI switch allows you to safely disconnect internal filter capacitors when operating on ungrounded IT electrical power systems.

What causes a Overvoltage (ov) fault during motor deceleration?

An ov error indicates regenerative energy from the motor elevated the DC bus voltage; extend deceleration time or install a braking resistor to absorb excess energy.
