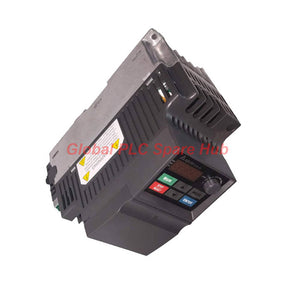

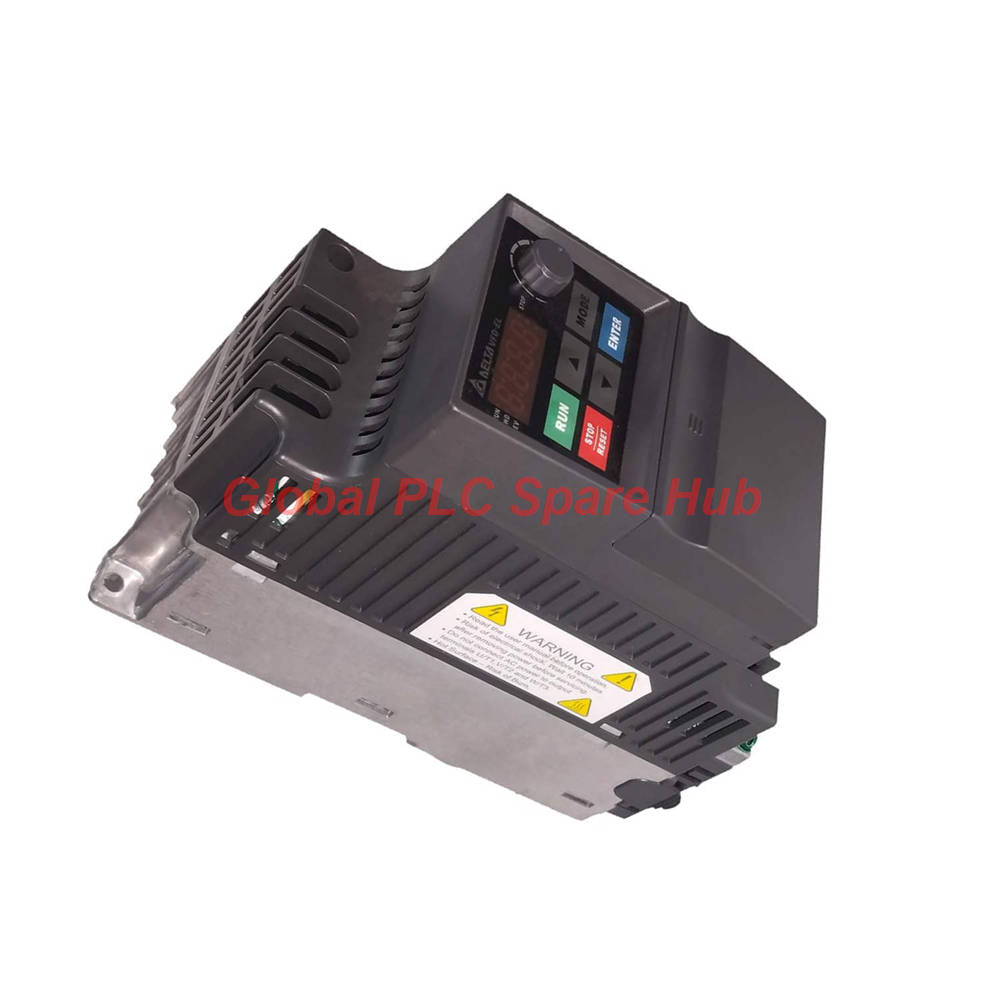

VFD007EL21A Delta Products VFD-EL 230V Scalar Motor Control Unit

Engineering Architecture & Product Overview

This technical documentation evaluates the Delta VFD007EL21A frequency converter from the compact VFD-EL micro drive series. Engineered for single-phase electrical supply environments, this 1 HP scalar drive delivers reliable motor control and high-precision current detection for OEM applications.

Technical Performance Specifications

• Manufacturer & Model: Delta Products, VFD007EL21A
• Series Identification: VFD-EL Micro Type AC Drive
• Power & Current Parameters: 1 Horsepower (0.75 KW), 4.2 Amperes (CT)
• Voltage Input Range: Single-Phase, 200 to 240 Volts AC Nominal
• Output Frequency Band: 0.1 to 600 Hertz maximum capability
• Control Mode Architecture: V/Hz (Scalar) Open Loop Motor Regulation
• Physical Footprint: Frame Size A, Height 6.86 Inches, Width 2.83 Inches, Depth 5.36 Inches
• Enclosure & Filtering: IP20 Protection class with built-in EMI filter and RFI switch

Panel Integration & Installation Blueprint

Mount the VFD007EL21A vertically onto a rigid subplate within an industrial enclosure. Leverage the side-by-side modular design and easy DC bus sharing capability to optimize control panel space, maintaining 50 millimeters of clearance for convection cooling. Connect single-phase mains to terminals L1 and N (or L1/L2), ensuring complete segregation of power cables from low-voltage signal lines.

Operational Setup & Preventive Maintenance

Program core application parameters, including base voltage and acceleration rates, using the integrated onboard digital keypad. Inspect internal heat sink cooling fins periodically to clear accumulated particulate matter. Verify main power terminal screw tightness annually to preclude thermal resistance issues.

System Compatibility & Interfacing Architecture

The unit interfaces directly with standard single-phase input to three-phase output induction motors. The built-in RS-485 serial communication interface supports standard Modbus connectivity for supervisory control networks, while high-precision current sensing protects against sudden mechanical overloads.

Warranty Coverage, Terms & Shipping Logistics

• Global Quality Assurance: 12-month full replacement warranty against manufacturing flaws
• Fulfillment Logistics: Expedited dispatch within 24 to 48 hours via FedEx, UPS, and DHL
• Compliance Standards: CE and UL certified industrial control components
• Package Contents: One VFD007EL21A inverter module and quick setup manual

Targeted Industrial Machinery & Operational Scenarios

• Commercial automatic sliding doors and security gates
• Small conveyor transfer lines in packaging facilities
• Laboratory mixing agitators and pharmaceutical stirrers
• Light-duty commercial exhaust ventilation fans

Onboard Diagnostics & Error Resolution Framework

The VFD007EL21A logs historical fault data into non-volatile memory to streamline troubleshooting. Active warning codes for low input voltage, output phase loss, or thermal overload display instantly on the integrated LED status panel for rapid operator response.

Global PLC Spare HUB Insight

Field engineers deploying the VFD007EL21A often utilize its single-phase 230V input capability for machinery upgrades in facilities lacking three-phase drops. When configuring this VFD-EL unit for constant torque loads, ensure that the electronic thermal overload parameter is accurately matched to the motor nameplate full-load amps to prevent premature tripping during duty cycles.

Expert Frequently Asked Questions

Question:
Can the VFD007EL21A accept a standard 3-phase input voltage supply?

Answer:
No, this specific model is engineered strictly for single-phase 200 to 240 VAC input, converting it to a 3-phase variable output for the motor.

Question:
What hardware feature facilitates high-density panel layouts with this inverter?

Answer:
The drive incorporates easy DC bus sharing architecture, allowing side-by-side mounting without extra spacing clearances under designated operating conditions.

Question:
What crucial purchasing factor should a buyer consider when selecting Frame Size A drives?

Answer:
Confirm that the continuous motor amperage draw does not exceed 4.2 Amps and verify that the target cabinet ambient temperature remains below 40 degrees Celsius.

Question:
Why does the display indicate a low-voltage error during heavy motor acceleration?

Answer:
A weak single-phase supply line or undersized supply wiring can cause an input voltage sag; check incoming line voltage stability under load.

Question:
How do technicians adjust operating parameters without external programming software?

Answer:
The drive features a fully integrated digital keypad and navigation buttons on the front face, enabling complete manual parameter configuration on-site.
