VFD007E43T Delta VFD-E Series 1HP 0.75kW 460V 3-Phase AC Drive

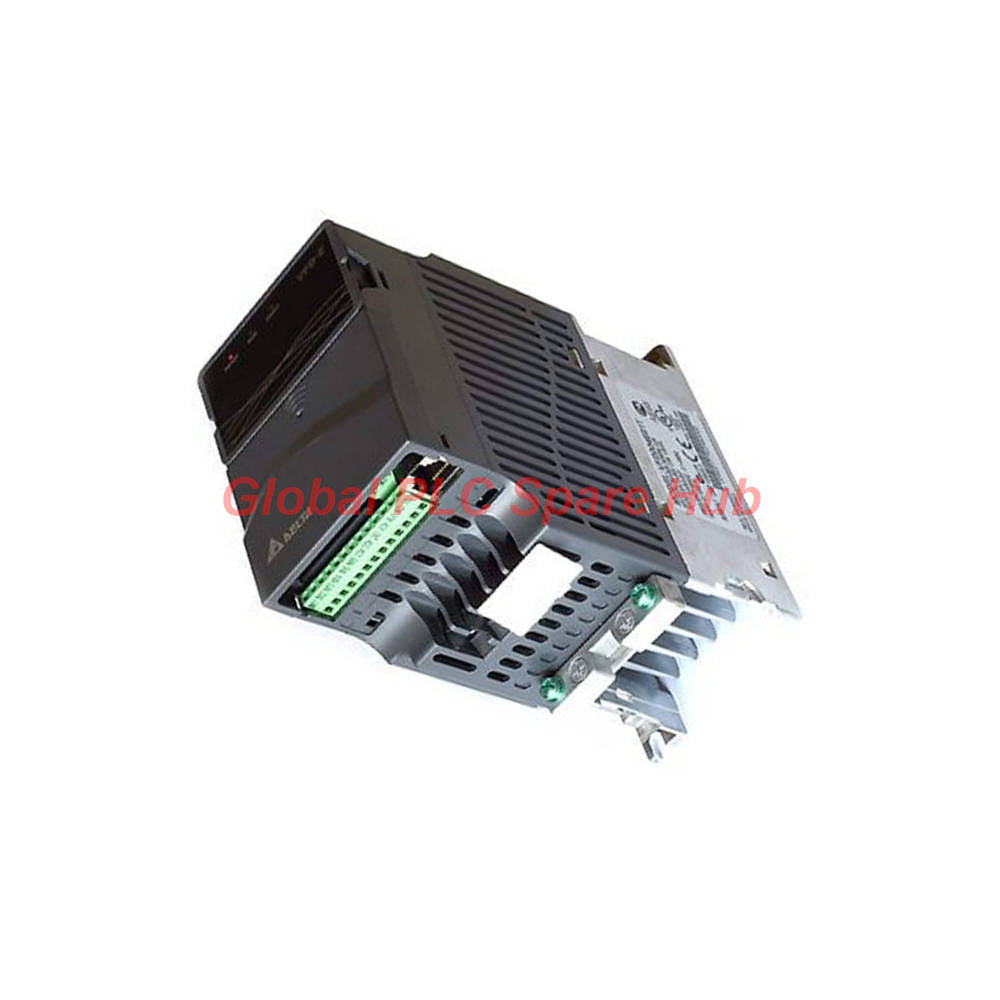

Delta VFD007E43T VFD-E Series 1 HP AC Micro Drive Overview

The Delta VFD007E43T provides high-efficiency vector control within the VFD-E Series modular micro drive family. Engineered for low-horsepower constant torque loads, this compact AC inverter combines an integrated programmable logic controller with flexible card expansion. The VFD007E43T runs localized ladder logic routines, reducing external relay hardware and minimizing cabinet space.

Engineering & Performance Specifications

Brand: Delta Electronics
Model Number: VFD007E43T
Product Series: VFD-E Series
Output Rating: 1.0 HP (0.75 kW) Continuous Duty
Input Power: 380 V AC to 480 V AC (3-Phase Input / 3-Phase Output)
Continuous Current: 2.5 A (2.7 A Max Input Current)
Control Architecture: Open Loop Sensorless Vector Control (SVC)
Frequency Range: 0.1 Hz to 600 Hz
Frequency Resolution: Digital command 0.01 Hz; Analog input 0.06 Hz / 60 Hz
Velocity Accuracy: ±0.5% (Open Loop Vector)
Torque Linearity: ±5% across operating envelope
Operating Ambient: -10°C to +50°C (14°F to 122°F)
Enclosure Rating: IP20, Pollution Degree 2
EMC/RFI Compliance: EN61800-3 Standard Compliant
Dynamic Braking: Internal Chopper Transistor & DC Injection Braking
Cooling Design: Convection / Heatsink Cooling
Certifications: CE, UL, cUL, RoHS Compliant

Architecture & System Functional Matrix

• Integrated Micro-PLC: Executes onboard ladder logic programs to manage small automated processes directly.
• Modular Extension Slots: Connects optional fieldbus cards, extended I/O terminals, and encoder feedback boards.
• Built-in Dynamic Braking Transistor: Links directly to external braking resistors for fast stop sequences.
• RFI Filter Switch: Disconnects internal filter capacitors for ungrounded or IT power networks.
• Shared DC Bus Architecture: Channels regenerative power across parallel drive setups to lower power draw.
• Dense Cabinet Layout: IP20 housing allows zero-clearance side-by-side rail mounting.

Industrial Equipment Application Scenarios

• Small Conveyor Systems: Delivers smooth acceleration curves and consistent low-speed torque for material transport lines.
• Metering & Dosing Pumps: Controls precise fluid output using internal PID feedback loops without secondary controllers.
• Commercial Ventilation Fans: Modulates fan velocity via analog sensor signals to optimize electrical power draw.
• Packaging Line Indexers: Uses onboard PLC routines to trigger positioning pauses from optical sensor inputs.
• Light Machine Tool Spindles: Maintains steady speed performance up to 600 Hz output frequency.

Mounting & Physical Wiring Guide

• Mount the unit vertically on a flat, non-flammable backplate inside an IP20 or higher panel.
• Keep a minimum 50 mm clearance above and below the chassis for vertical heat dissipation.
• Wire 460V 3-phase incoming supply lines to L1, L2, L3 and motor leads to U, V, W.
• Establish a low-impedance connection from the drive ground lug to the main enclosure earth bus.
• Install an line reactor upstream if line supply transformer capacity exceeds 500 kVA.

Parameterization & Preventive Maintenance

• Configure operation parameters using the integrated LED display or optional plug-in digital keypads.
• Perform motor auto-tuning before enabling vector mode to measure stator resistance and inductance accurately.
• Clear dust accumulations from external heatsink fins every six months to sustain thermal capacity.
• Re-torque main power and control terminal screws annually to avoid high-resistance junction heating.
• Review internal DC bus voltage records during scheduled maintenance routines.

Diagnostic Systems & Fault Tracking

• Microprocessor logic monitors phase loss, ground faults, overcurrent events, and mains supply voltage drops.
• Drive stores historical fault codes to accelerate field diagnostics during trip events.
• Motor thermal overload memory estimates winding temperature without external thermistor wiring.
• Current limiting functions inhibit high current spikes during sudden mechanical load shifts.

Global PLC Spare HUB's Insight

In low-power automation retrofits, the Delta VFD007E43T offers exceptional utility for 1 HP motor drives. During a recent pharmaceutical metering system upgrade, our team utilized the drive's built-in PLC function to run a localized dosing sequence directly from flowmeter pulse inputs. This removed a small PLC unit from the bill of materials, simplified cabinet wiring, and reduced hardware integration costs by 35%.

Technical Selection Checklist

• Ensure continuous motor current draw remains below the VFD007E43T continuous rating of 2.5 A.
• Add an external dynamic braking resistor if stopping high-inertia loads rapidly.
• Order an optional KPE-LE02 keypad if panel-door parameter access or parameter copying is needed.
• Select an optional fieldbus card (Modbus, Profibus, or DeviceNet) for centralized network integration.

Packaging, Express Delivery & Warranty Coverage

• Shipping Package: 1 x Delta VFD007E43T Inverter Drive, Installation Guide, Mounting Hardware.
• Dispatch Speed: Order processing and global dispatch within 24 to 48 hours.
• Logistics Partners: Express door-to-door transit via FedEx, UPS, and DHL.
• Warranty Terms: Includes a 12-Month Factory Quality Warranty.

Frequently Asked Questions

What sets the VFD007E43T apart from single-phase 230V micro drives?

The VFD007E43T operates specifically on 380V-480V 3-phase mains to supply 460V 3-phase motors up to 2.5 A.

What causes a Low Voltage (lv) fault on power up?

An lv code indicates incoming 3-phase AC voltage dropped below minimum operating thresholds or a line supply phase is missing.

Can I run a 0.5 HP motor using this 1 HP rated drive?

Yes, program the motor nameplate current and voltage into parameters to ensure accurate motor thermal overload protection.

How do I reset drive parameters back to factory default values?

Set the parameter reset code in parameter Pr.00-02 using the integrated LED interface or optional external keypad.

Does the VFD007E43T require a cooling fan?

No, the 0.75 kW Frame A chassis utilizes natural convection cooling through its built-in heatsink, eliminating fan noise and fan failure risks.
