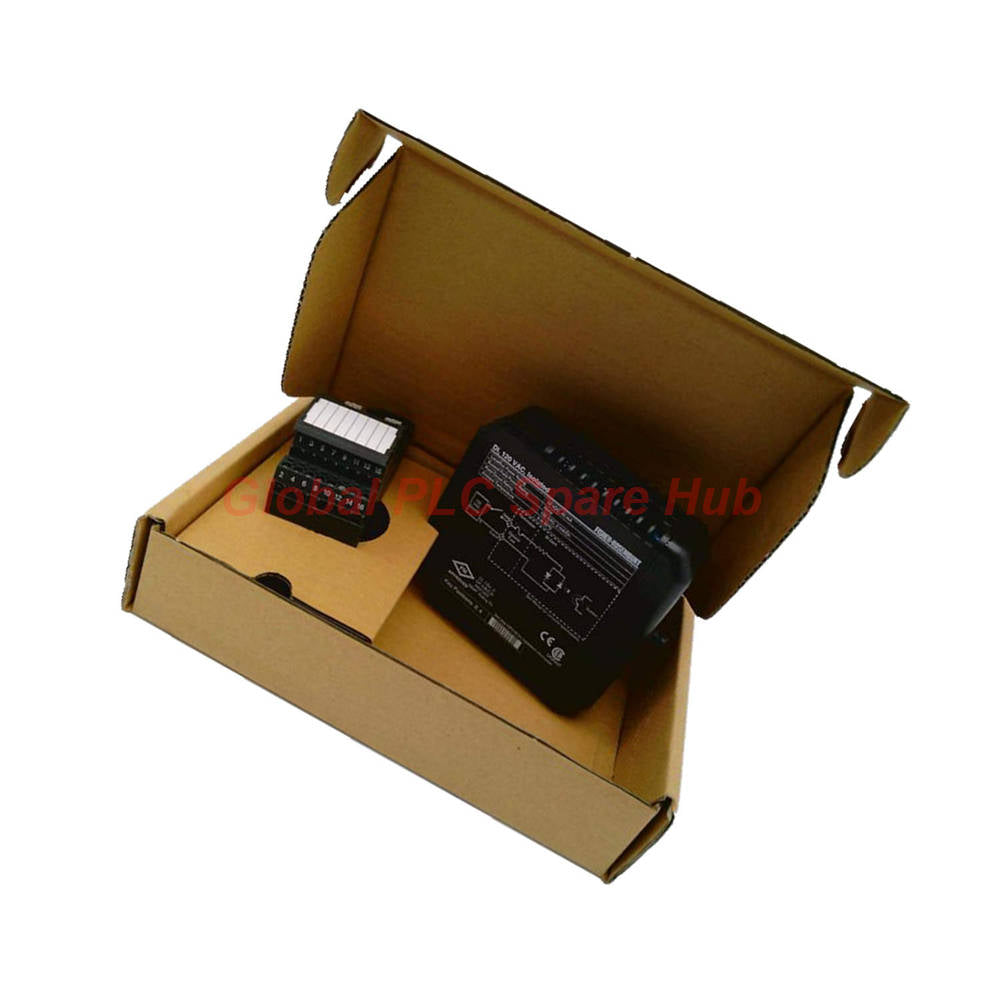

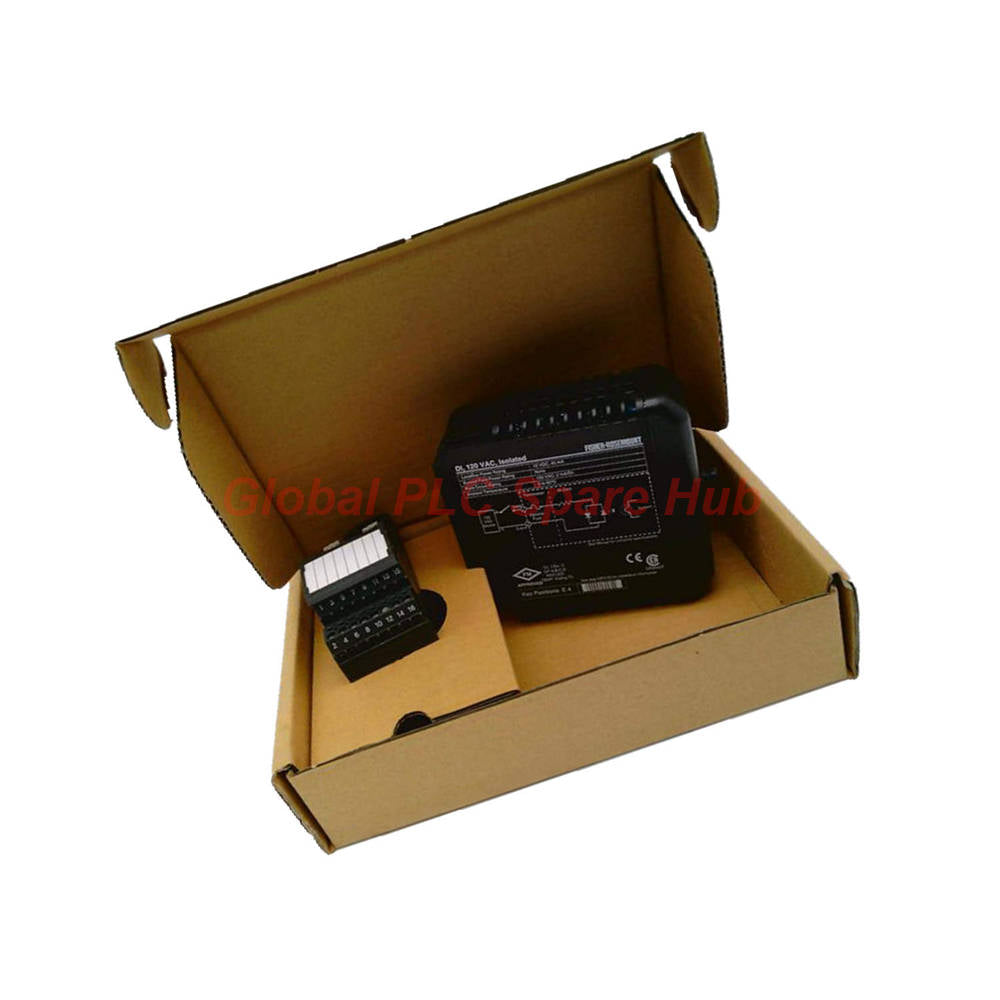

VE4001S3T1B1 8-Channel Isolated DI Module KJ3001X1-BC1 Ship Fast

Emerson VE4001S3T1B1 Technical Architecture

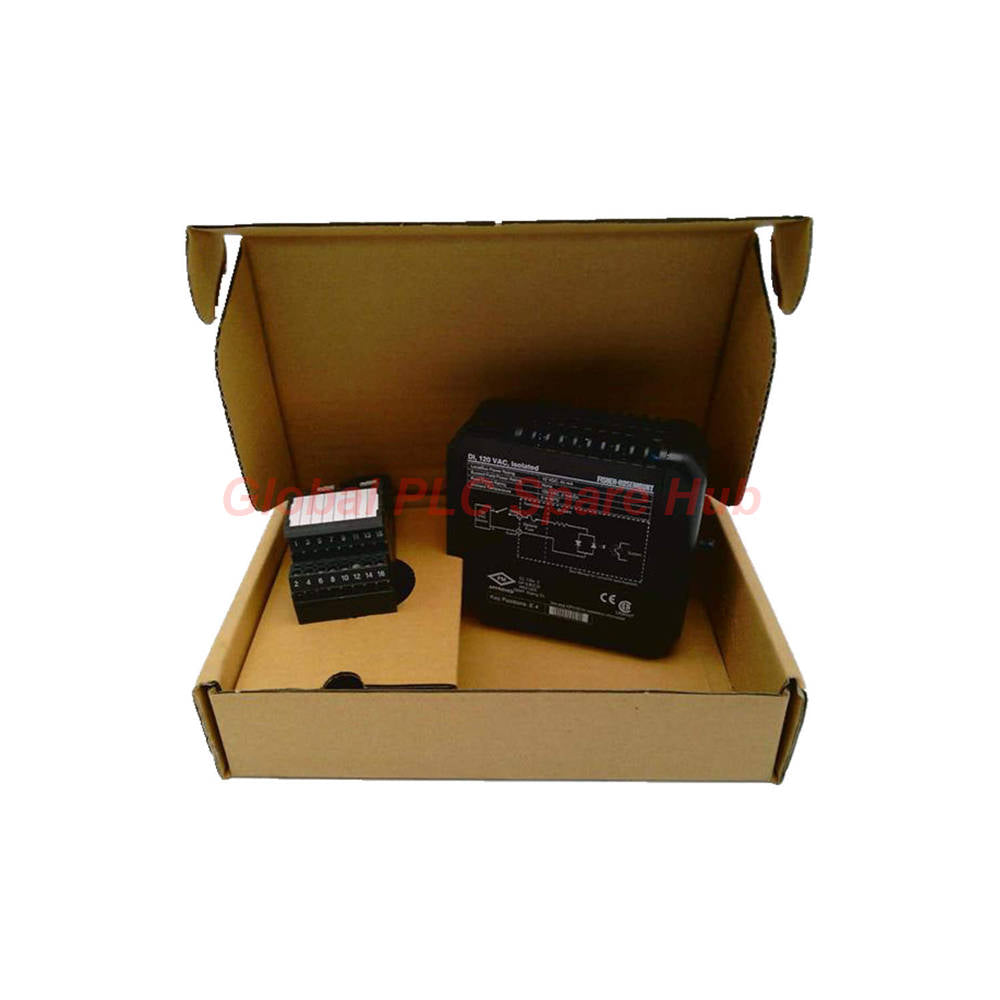

The VE4001S3T1B1 (also identified as KJ3001X1-BC1) is a high-reliability digital input module designed for the DeltaV scalable process system. This module provides eight channels of isolated 120 VAC discrete sensing, allowing for the direct monitoring of limit switches, motor contactors, and push buttons. The 1500V isolation barrier ensures that high-voltage transients on the field side do not migrate to the sensitive LocalBus logic. We recommend that system integrators download the DeltaV S-series hardware manual to confirm channel-to-channel isolation limits before final termination.

Core Engineering Specifications

• Brand: Emerson
• Model Number: VE4001S3T1B1
• Part Number: KJ3001X1-BC1
• Series: DeltaV Digital I/O
• Input Type: 120 VAC Discrete Input
• Channel Count: 8 Fully Isolated Channels
• Field Excitation: 120 VAC nominal range
• Detection Frequency: 45 to 65 Hz AC input support
• Signal Latency: ≤10 ms filter delay for rapid status updates
• Isolation Barrier: 1500 V AC peak protection
• LocalBus Power: 12 VDC supply at 45 mA consumption
• Thermal Operating Range: 0°C to 60°C (32°F to 140°F)
• Mounting Profile: Standard carrier-based DIN rail installation

Integrated Diagnostic & Safety Features

• Signal Filtering: Intelligent debounce logic prevents false triggers from industrial noise.
• Status Visualization: Individual channel LEDs provide immediate local verification of input states.
• Fault Containment: Isolated architecture ensures a single channel failure does not affect neighboring inputs.
• EMC Compliance: Hardened industrial design for high-interference cabinet environments.

Strategic Device Compatibility

• Primary Systems: Optimized for DeltaV M-series and S-series controllers.
• Field Devices: Interfaces with heavy-duty motor starters, relays, and AC limit switches.
• Infrastructure: Compatible with standard 8-wide and 4-wide DeltaV carriers.

Global PLC Spare HUB's Insight

The VE4001S3T1B1 remains a preferred choice for legacy and modern DeltaV installations due to its thermal efficiency and low bus-current draw. During our testing, the KJ3001X1-BC1 architecture demonstrated superior rejection of 60Hz hum often found in dense electrical cabinets. For engineers managing aging plant infrastructure, this 120VAC interface is the most robust way to bridge traditional electrical controls with modern DCS logic without additional interposing relays.

Logistics & Warranty Framework

• Warranty Protection: 12-month full-service industrial warranty.
• Fulfillment Speed: Global dispatch within 24-48 hours.
• Shipping Partners: Priority delivery via FedEx, UPS, or DHL.
• Condition: Verified operational status with standard factory mounting clips.

Procurement Guide & Professional FAQ

What is the difference between the VE4001S3T1B1 and DC input variants?
The VE4001S3T1B1 is specifically designed for 120VAC line voltage sensing, eliminating the need for DC power supplies in the field circuit for simple switch monitoring.

Can I use this module for 230VAC applications?
No, this hardware is rated for 120VAC. Attempting to use it with 230VAC will damage the internal isolation components and void the warranty.

Does this module support hot-swapping while the controller is running?
Yes, the DeltaV architecture allows for "Plug-and-Play" hot-swapping of the VE4001S3T1B1 without disrupting the overall process control logic.

Are the channels isolated from each other or only from the bus?
The module features 8 isolated channels, providing superior protection against ground loops between different field devices.

What should I check if a channel LED is off but the field switch is closed?
Verify the 120VAC field power presence at the termination block and ensure the 2mA minimum sensing current is met; high-resistance connections can prevent the module from detecting the "High" state.
