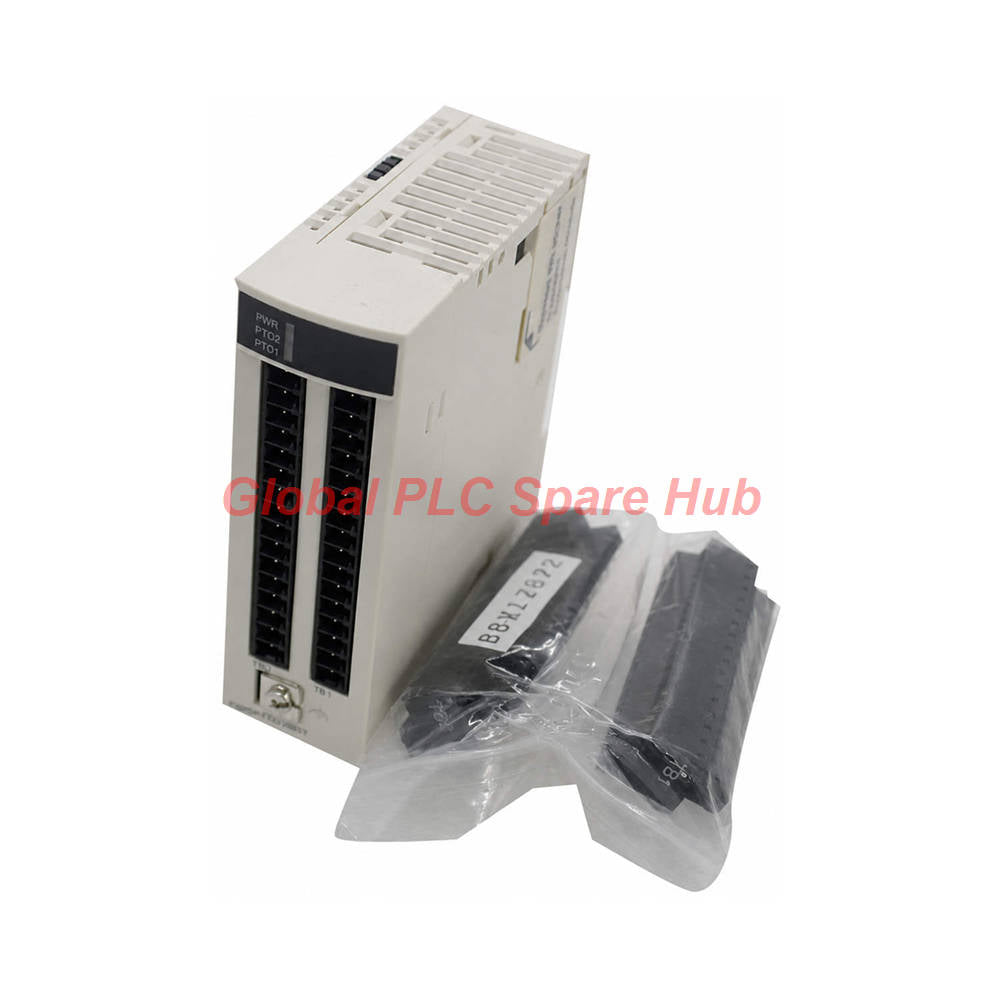

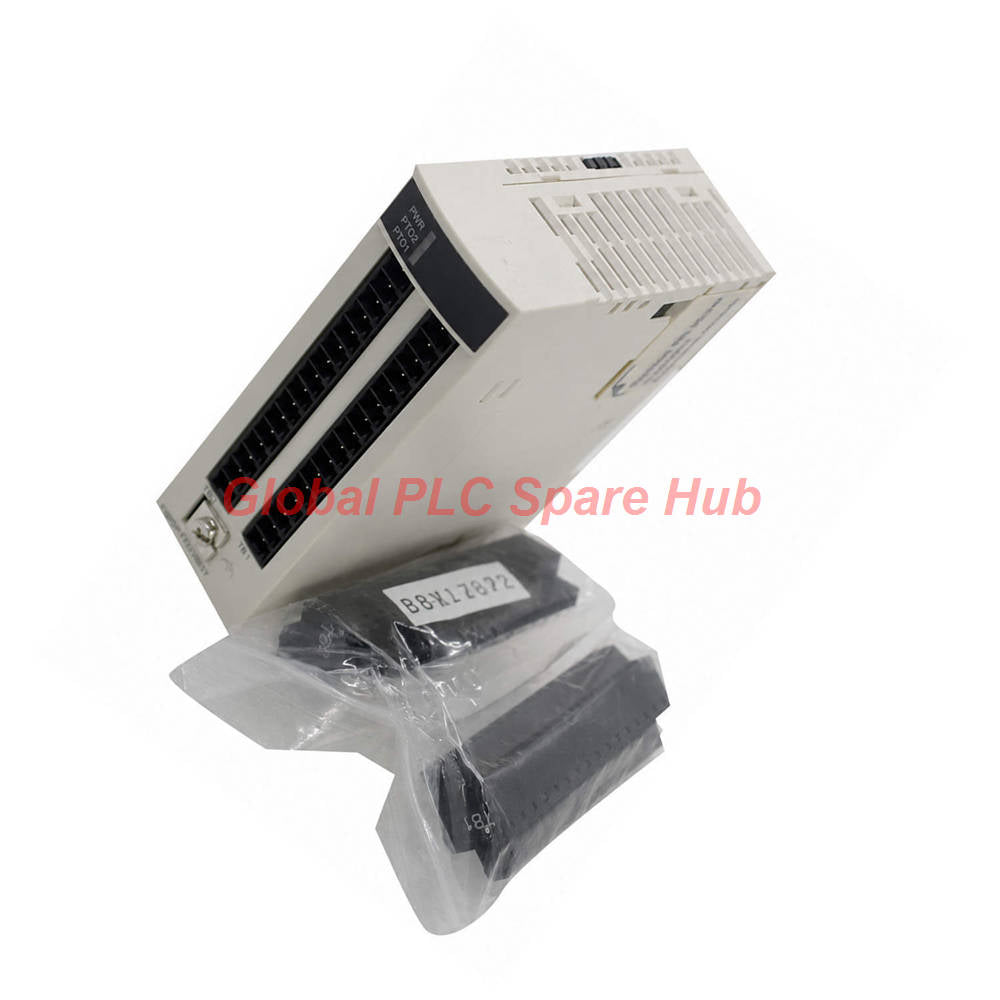

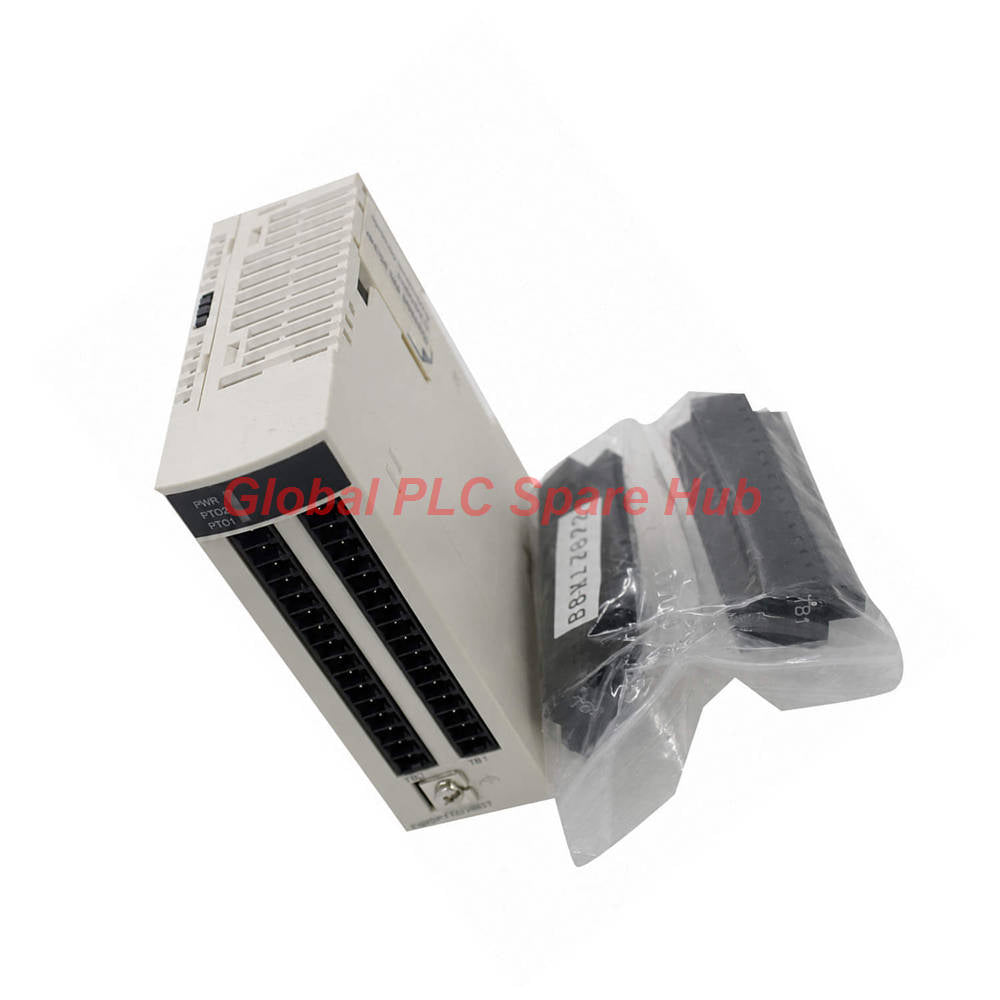

TWDPTO220DT Modicon TM2 PTO Expansion Module 2-Channel

Motion Precision: The TWDPTO220DT TM2 PTO Module

The TWDPTO220DT is a dedicated pulse train output extension module engineered for the Modicon TM2 ecosystem. It provides two independent channels capable of 200kHz output, enabling sophisticated motion sequences including ramps and multi-stage profiles. This module facilitates open-loop positioning, offloading intensive pulse generation from the main controller to the hardware level.

Technical Architecture and Signal Integrity

• Pulse Generation: Dual channels at 200kHz (or 100kHz for A/B phase modes).
• Interface Standard: RS422 compliant outputs (7mA/pulse) to ensure high-fidelity signal transmission.
• Digital I/O Suite: Includes 4 configurable inputs (DRV_COMPL, DRV_READY, ORIGIN, LIMIT) and 2 dedicated control outputs (DRV_ENB, DRV_CLR).
• Power & Protection: Operates on 24V DC (19.2V–30V range) with integrated reverse polarity protection and overload current monitoring (<200mA).
• Electrical Isolation: Enhanced reliability with >10MΩ insulation resistance at 1,500V.

Global PLC Spare HUB's Insight

Our engineering team recognizes the TWDPTO220DT as an essential component for retrofitting legacy machines where precise stepper motor ramping is required. Its open-collector output flexibility (5V–24V) makes it highly compatible with diverse servo-drive inputs. We recommend this for applications involving indexers, rotary tables, and automated dispensing where position loop closure occurs within the drive itself.

Diagnostics and Operational Reliability

The TWDPTO220DT utilizes an advanced monitoring circuit with a 1.2ms–1.5ms response time to detect voltage drops during actuator operation. This rapid fault detection prevents signal distortion during high-speed pulse trains, safeguarding your motion profile accuracy even in fluctuating power conditions.

Logistics and Quality Commitment

• Global Logistics: Reliable transit via FedEx, UPS, and DHL.
• Fast Dispatch: Orders are prioritized for 24–48 hour shipping.
• Assurance: Every module is backed by our standard 12-month quality warranty.

Expert FAQ and Configuration Guide

What is the benefit of the RS422 standard output on this module?

The RS422 differential signaling significantly improves noise immunity over long cable runs, ensuring that pulse edges remain clean for the servo-drive’s counter circuit.

Should I use shielded cables for the pulse outputs?

Absolutely. While the system supports unshielded power cables, high-frequency pulse output cables must be shielded to prevent electromagnetic interference (EMI) from affecting positioning accuracy.

Can this module handle complex trapezoidal profiles?

Yes, the module is specifically designed to handle ramp-up, run, and ramp-down sequences natively, effectively managing the acceleration and deceleration phases of motion.

How do I handle the 5V to 24V compatibility requirements?

The open-collector outputs are designed to interface with your drive's input stage; ensure the external pull-up resistor (if required by your drive) is sized correctly for your chosen voltage level.

Buying Guide: What is the primary environmental consideration?

Maintain the operating environment between 0°C and 55°C. Since there is no internal isolation derating in this range, ensure cabinet ventilation is adequate to prevent localized hot spots near the module.
