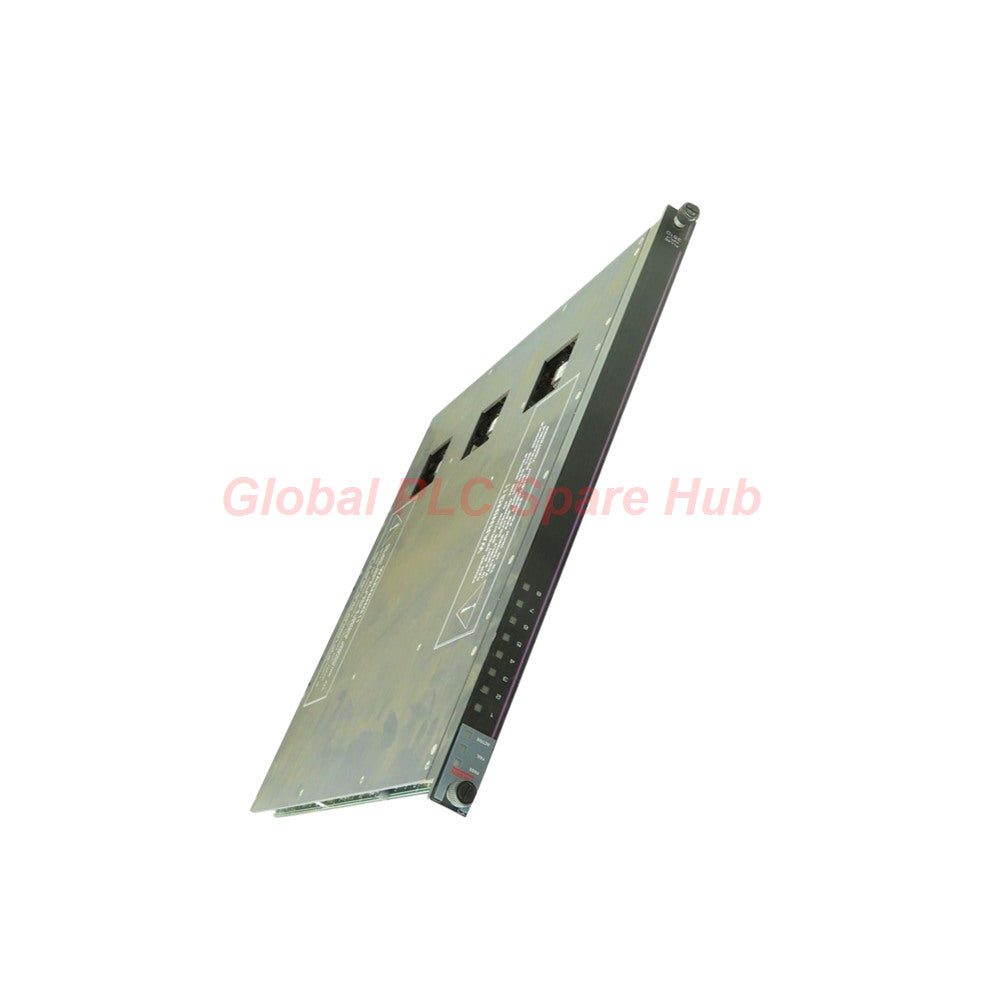

3510 Pulse Input 20-20,000Hz Triconex Module | TMR Safety System

Global PLC Spare HUB's Insight

• The 3510 is a specialized high-speed Pulse Input (PI) module for TMR architectures.
• It excels in high-frequency sensing for turbine speed monitoring and flow meter integration.
• AC-coupled circuitry filters out DC offsets, ensuring only frequency components are processed.
• The 3510 is the gold standard for SIL 3 overspeed protection scenarios.

Product Overview

• The 3510 is an 8-point Pulse Input module with a range of 20 Hz to 20,000 Hz.
• Provides non-commoned, isolated signal processing with a 50 ms typical update rate.
• Engineered for high-demand safety-instrumented systems (SIS) and magnetic pickups.
• Note: Uses mechanical keying (Small 1, Large 5) to prevent incorrect rack insertion.

Technical Specifications

• Brand: Triconex
• Model: 3510
• Module Type: High-Speed Pulse Input (PI)
• Capacity: 8 Isolated Points, Non-commoned
• Frequency Range: 20 Hz – 20,000 Hz (20 kHz)
• Input Signal: AC-Coupled pulse detection
• Update Performance: 50 ms typical input refresh
• Mechanical Keying: Small Key: 1 / Large Key: 5
• Required Termination: 9753-110 Basic Termination Panel

Configuration & Hardware Breakdown

• 3510 Pulse Sensing Platform
  • Frequency Engine
    • Precision sampling up to 20kHz for high-speed rotation tracking
  • Signal Conditioning
    • Integrated AC-coupling for superior DC noise rejection
  • TMR Integrity
    • Triple-redundant voting logic for critical safety loops

Installation and Compatibility

• Panel Compatibility: Strictly requires the 9753-110 Basic Termination Panel.
• Unsupported Hardware: Not compatible with v9/v10 Interface Cables or V8 ETAs.
• System Check: Verify backplane keying alignment before attempting module insertion.

Logistics and Warranty

• Dispatch: Orders for the 3510 are shipped within 24-48 hours.
• Delivery: Fast global logistics via FedEx, UPS, and DHL.
• Protection: 12-month comprehensive industrial warranty included.
• Quality: Delivered in anti-static, high-impact protective packaging.

Diagnostic & Application Scenarios

• Turbine Monitoring: Essential for overspeed protection via magnetic speed pickups.
• Flow Integration: Accurate processing for high-frequency turbine flow meter pulses.
• Internal Health: Continuous TMR diagnostics compare all three internal signal branches.
• Surge Protection: Real-time tracking of fluctuations in high-speed compressors.

FAQ & Purchasing Guide

• Question: Why is AC-coupling used in the 3510 instead of DC-coupling?
• Answer: AC-coupling allows the 3510 to ignore DC offsets, focusing strictly on pulse frequency in noisy environments.
• Question: Can I use the 3510 for standard 24V digital ON/OFF signals?
• Answer: No. The 3510 is specialized for frequency signals. Use a standard DI module for static logic.
• Question: What is the risk if my signal falls below 20 Hz?
• Answer: Frequencies below 20 Hz may fail to trigger the AC-coupled sensing. Use high-tooth-count gears to keep pulses in range.
• Question: Why is the 9753-110 the only supported termination panel?
• Answer: The 3510 architecture is optimized for the direct-wire stability of the 9753-110 rather than high-density cables.
• Question: How do the mechanical keys (1 and 5) assist in maintenance?
• Answer: They physically block the 3510 from being inserted into slots intended for different voltage or signal types.
