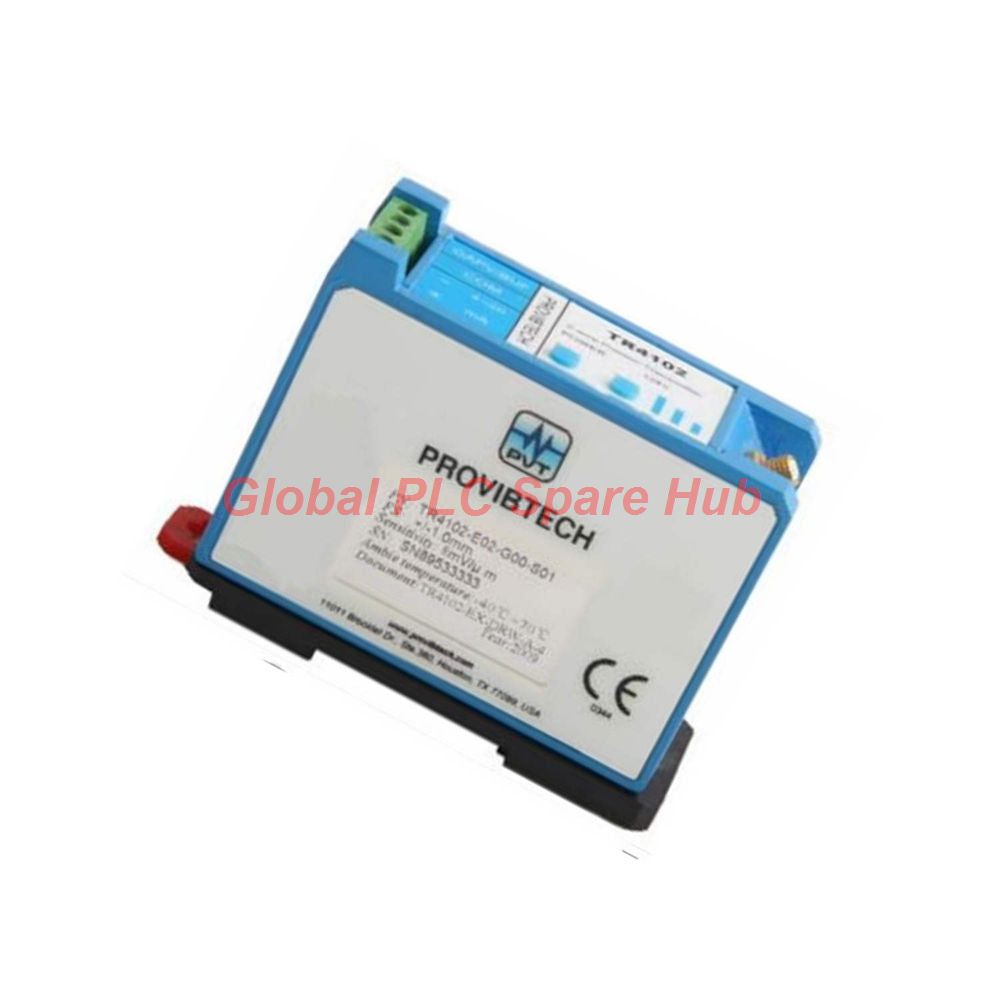

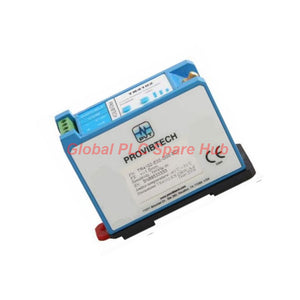

TR4102-E00-G00-S00 Speed & Phase Transmitter by ProvibTech

Technical Overview

The TR4102-E00-G00-S00 by ProvibTech serves as an all-in-one proximity speed and phase reference transmitter. It integrates the proximity probe driver and signal conditioning circuitry into a singular, robust housing. This design streamlines installation for balance-of-plant machinery by eliminating the need for separate external drivers.

Configuration Breakdown

Model TR4102-E00-G00-S00 adheres to the following structural specifications:

• E00: Includes TM0180 8mm probe with a 5m coaxial interface cable.
• G00: Configured for DIN-rail mounting; optimized for axial position measurement.
• S00: Standard configuration; CE certified without hazardous area approval.

Core Technical Specifications

• Power Supply: 16-30V DC (DCS/PLC compatible).
• Frequency Response: 0 - 10 kHz; ideal for high-speed shaft monitoring.
• System Sensitivity: 7.87 mV/µm (200 mV/mil) nominal.
• Output Loop: 4-20 mA (System OK); < 3.6 mA (System Not OK).
• Construction: Copper-free aluminum casing with epoxy potting for extreme durability.
• Signal Interface: Special 95Ω coaxial connector.
• Impedance: 1,000Ω raw position signal output.

Global PLC Spare HUB Insight

Our engineering team identifies the TR4102 as the gold standard for retrofitting legacy monitoring systems. Because it is dimensionally equivalent to standard probe drivers, it minimizes cabinet layout changes. It is particularly effective for Balance of Plant (BOP) machines where space is restricted, yet high-integrity phase reference data is non-negotiable. Its self-diagnostic loop output allows operators to distinguish between true mechanical events and sensor faults immediately.

Applications & Diagnostics

Ideal For: Centrifugal pumps, industrial fans, cooling towers, and small/medium turbines.

Diagnostic Capabilities: The module features a buffered GAP output, enabling direct waveform analysis via portable oscilloscopes. This allows maintenance teams to visualize real-time shaft movement and identify mechanical runout or electrical interference before a failure occurs.

Logistics & Support

• Global Shipping: Secure delivery via FedEx, UPS, or DHL.
• Dispatch: Orders processed and shipped within 24-48 hours.
• Warranty: Backed by a full 12-month replacement warranty.

Expert FAQ

Q: Can I use this transmitter with non-ProvibTech sensors?

A: Yes, it is designed to be compatible with third-party 5mm, 8mm, and 11mm proximity probes.

Q: How do I handle signal noise in long-distance runs?

A: Ensure the coaxial cable does not exceed the 3.0m (10ft) maximum for buffered output to maintain signal integrity.

Q: Why does the unit output < 3.6mA?

A: This is an intentional "System Not OK" diagnostic state, indicating a cable break or internal sensor failure.

Q: Is this module suitable for outdoor environments?

A: The epoxy-potted aluminum housing is highly durable; however, it must be installed within an IP-rated enclosure for long-term protection against direct weather.

Q: What is the benefit of the DIN-rail mounting style?

A: It allows for high-density grouping in control cabinets, making it easier to manage multiple probe signals in a single centralized location.

Selection Guidance

When selecting the TR4102-E00-G00-S00, ensure your existing PLC/DCS input card supports a 4-20mA loop. If you are replacing a legacy driver, verify that the 24V supply meets the 16-30V DC requirement to avoid loop voltage drops.
