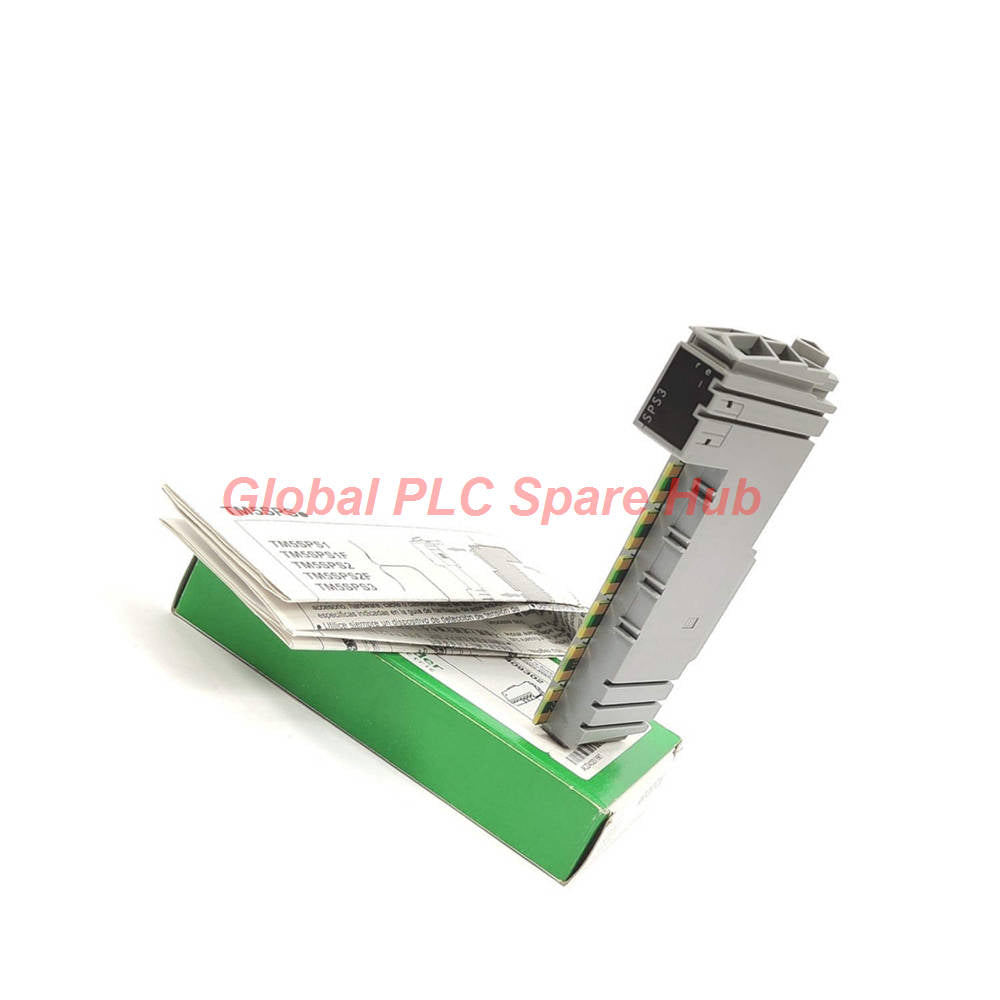

TM5SPS3 Modicon Schneider Electric Power Distribution Module 24VDC

Power Optimization: The Schneider Electric TM5SPS3 Module

The TM5SPS3 serves as a critical power distribution backbone for the Modicon TM5 series. This specialized module ensures stable 24V DC delivery to both the internal TM5 power bus and local I/O segments. Engineered for seamless integration, the TM5SPS3 supports demanding CANopen and Sercos III interface environments.

Technical Performance Specifications

• Supply Voltage: Rated 24V DC for consistent logic and field power.
• Bus Capacity: Delivers 750mA (up to 55°C) or 500mA (55–60°C) to the TM5 power bus.
• Segment Power: Robust 10A current capacity for localized I/O segments.
• Power Efficiency: Optimized dissipation at ≤ 1.91W for thermal management.
• System Protection: Requires 10A external fusing for short-circuit defense.
• Operational Range: Wide temperature tolerance from -10°C up to 60°C.

Global PLC Spare HUB's Insight

Our technical team views the TM5SPS3 as the essential link for maintaining signal integrity across distributed I/O islands. It is best utilized in motion control clusters—specifically when paired with LMC058 or LMC078 controllers—where voltage stability directly impacts communication latency on the bus.

Diagnostics and Resilience

Beyond distribution, the TM5SPS3 provides high immunity against electromagnetic disturbances. Its design meets stringent EN/IEC 61000-4 standards, ensuring the 24V rail remains free of ripples and fast transients that could otherwise cause intermittent communication drops in your fieldbus architecture.

Logistics and Warranty

• Delivery: Worldwide shipping via FedEx, UPS, and DHL.
• Lead Time: Rapid processing and dispatch within 24–48 hours.
• Warranty: Protected by our industry-leading 12-month performance guarantee.

Expert FAQ and Buying Guide

Can the TM5SPS3 be used for both CANopen and Sercos III interfaces?

Yes, this module is specifically engineered to provide power for both interface types within the Modicon TM5 system.

What is the purpose of the 10A external fuse mentioned in the specs?

The external 10A fuse acts as a mandatory safety barrier for the I/O power segment to prevent hardware damage during a catastrophic field-side short circuit.

How should I calculate the total power consumption for my bus?

Sum the current requirements of your connected I/O modules and compare against the TM5SPS3 output (750mA/500mA). Ensure your I/O segment current does not exceed the 10A limit.

Is vertical mounting recommended for limited cabinet space?

Yes, but ensure you operate within the -10°C to 50°C temperature range when mounting vertically to maintain optimal performance.

Buying Guide: When should I add a second distribution module?

Add an additional power distribution unit if your total I/O current demand exceeds 10A or if the electrical voltage drop across your bus segment exceeds acceptable operational limits.
