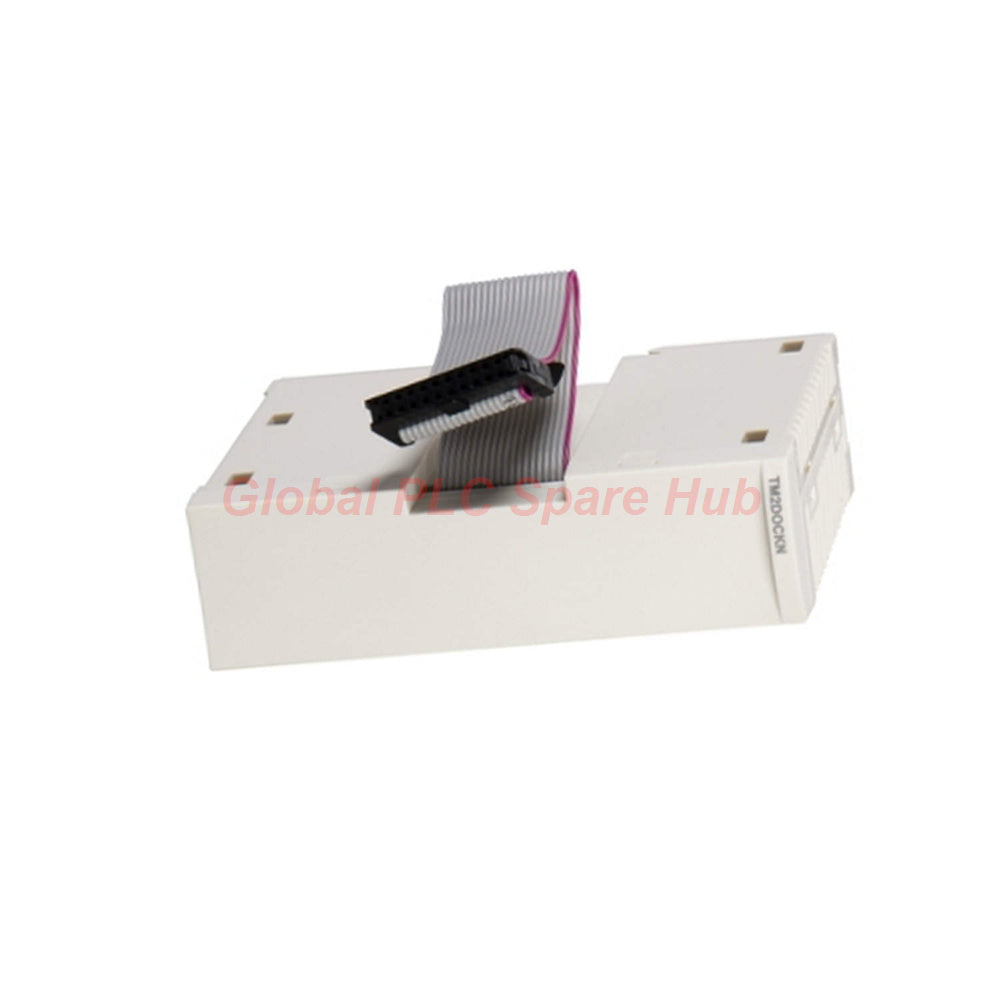

TM2DOCKN Schneider Electric Interface Module | Modicon M218 Expansion

Product Overview

The TM2DOCKN serves as the critical communication bridge within the Modicon M218 logic controller architecture. This expansion interface module is specifically engineered to bridge the gap between main processing units and remote TM2 expansion modules. By providing a stable electrical link, the TM2DOCKN maintains signal integrity across distributed I/O architectures, ensuring real-time data synchronization in demanding industrial environments.

Technical Engineering Data

• Brand: Schneider Electric
• Series: Modicon M218
• Model: TM2DOCKN
• Module Type: Dedicated Expansion Interface
• Compatibility: TM2 series expansions, Advantys OTB, Twido
• Power Requirements: 5V DC internal supply, 5mA consumption
• Physical Dimensions: 3 x 2 x 4 inches

Integration & Diagnostic Capabilities

The TM2DOCKN module is designed for "plug-and-play" diagnostic visibility. It ensures that any communication faults between the controller and the expansion rack are instantly detectable. Its low power profile minimizes thermal stress, contributing to the overall longevity of your control cabinet. When integrated, the module functions as a transparent pass-through, maintaining the scan cycle efficiency of your Modicon M218 system.

Global PLC Spare HUB's Insight

Our engineering team views the TM2DOCKN as a fundamental component for legacy system modernization. It is particularly effective when you need to extend the I/O capacity of an existing Modicon M218 or Twido setup without replacing the entire PLC backplane. This module ensures stable, noise-free communication for motion control and data acquisition tasks.

Logistics & Quality Assurance

• Rapid Shipping: We provide prioritized 24–48 hour dispatch via FedEx, UPS, and DHL.
• Warranty: Every unit is backed by a robust 12-month quality assurance guarantee.

Application Scenarios

This module is perfectly suited for:

• Material handling systems requiring distributed sensor arrays.
• Water treatment facilities utilizing Twido-based logic control.
• Packaging automation where M218 controllers manage high-speed sorting.

Professional FAQ & Selection Guide

Is the TM2DOCKN compatible with non-Schneider expansion blocks?
No, this interface is specifically calibrated for the TM2 expansion bus protocol and is not designed for third-party expansion modules.

How do I troubleshoot communication dropouts with this module?
Inspect the 5V DC power integrity first, then verify the physical seating of the module on the DIN rail. If errors persist, use the PLC's diagnostic register to check for bus parity faults.

Does this module affect the PLC scan time?
The TM2DOCKN adds negligible latency to the system, as it functions primarily as an electrical signal repeater.

Selection Tip: Always verify your current 5V DC power budget on the controller side before adding multiple expansion modules via this interface.

Preventative Maintenance Advice: Keep the contact points clean and free of conductive dust, as the 5mA low-current signal is sensitive to contact resistance increases.

Deployment Checklist

• Confirm your Modicon M218 firmware version supports TM2 expansion coupling.
• Ensure the total power consumption of downstream modules does not exceed the controller's backplane supply capacity.
• Verify the physical clearance in your cabinet to accommodate the 4-inch depth profile.
