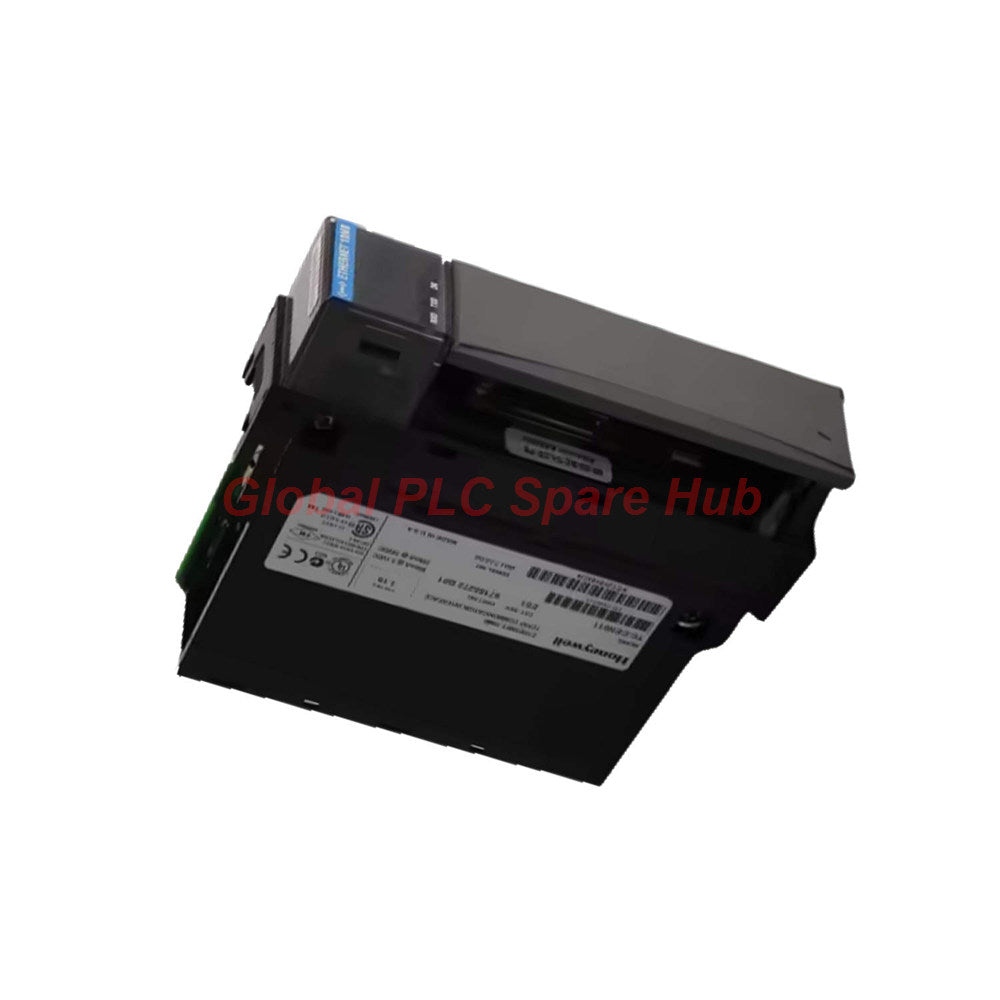

TC-FOD321 Honeywell 24VDC Digital Output Module Protected DO

TC-FOD321 Protected Digital Output Module Overview

Honeywell TC-FOD321 is a high-density 24VDC sourcing digital output module for industrial automation systems.

The module provides 32 protected digital output channels arranged in two groups of sixteen.

Its DIN-rail mounting structure simplifies cabinet integration for distributed control systems.

TC-FOD321 supports stable high-current output switching for field devices and industrial actuators.

The protected output architecture improves operational reliability during electrical fault conditions.

The module supports fast response timing for time-critical process control applications.

Global PLC Spare HUB's Insight

Automation engineers frequently deploy TC-FOD321 in process control and machinery automation systems requiring reliable discrete output performance.

The module performs especially well in oil and gas, power generation, and manufacturing facilities.

Its protected sourcing outputs improve field device reliability during inductive load switching.

The compact DIN-rail structure reduces control panel installation complexity.

Maintenance teams value the module for clear channel-level status visibility.

The design supports fast troubleshooting during field maintenance activities.

Its hazardous-area certification capability improves deployment flexibility in industrial process environments.

Output Control Architecture

Brand	Honeywell
Model	TC-FOD321
Module Type	24VDC Protected Digital Output Module
Output Type	Sourcing Digital Output
Total Channels	32 outputs
Channel Groups	2 groups of 16
Mounting Method	DIN-rail mounted
Output Voltage Range	10VDC to 31.2VDC
Nominal Voltage	24VDC
Maximum Output Current	500mA per channel
Minimum Output Current	1mA per channel
Maximum Group Current	6A for channels 0-15
Maximum Group Current	8A for channels 16-31
ON-State Voltage Drop	0.5VDC maximum
Leakage Current	0.5mA maximum
Surge Current Capability	2A for 50ms
Isolation Voltage	2121VDC for 1 second
OFF to ON Delay	0.5ms maximum
ON to OFF Delay	1.0ms maximum
Status Indicators	32 yellow channel LEDs

Electrical Distribution Structure

• Channel Group A
  • Channels 0 to 15
  • Maximum combined load current: 6A
  • Shared non-isolated output structure
• Channel Group B
  • Channels 16 to 31
  • Maximum combined load current: 8A
  • Independent grouped output section
• Protection Layer
  • Integrated surge handling capability
  • High-voltage isolation testing
  • Industrial transient tolerance

Environmental and Mechanical Specifications

Dimensions	94mm × 94mm × 69mm
Operating Temperature	0°C to 55°C
Storage Temperature	-40°C to 85°C
Humidity Range	5% to 95% non-condensing
Shock Resistance	30g operating, 50g non-operating
Vibration Resistance	5g @ 10-500Hz
Maximum Wire Size	12 gauge stranded

Industrial Application Scenarios

• Distributed control systems
• Process automation networks
• Motor starter control panels
• Solenoid valve control systems
• Industrial relay switching applications
• Emergency shutdown systems
• Factory automation equipment
• Hazardous-area process installations

Diagnostic and Monitoring Capability

• Supports channel-level output diagnostics
• Improves field device switching visibility
• Supports rapid output fault identification
• Helps isolate overload conditions
• Improves maintenance troubleshooting efficiency
• Supports stable actuator control monitoring
• Enhances system operational reliability

Industrial Certification Profile

• cULus Groups A, B, C, D certified
• Class I Division 2 certified
• Class I Zone 2 Group IIC certified
• Industrial hazardous-area compatible

Shipping and Warranty Support

Condition	New & Original in Factory Packing
Warranty	12 Months Factory Warranty
Courier Services	FedEx, UPS, DHL
Global Delivery	Worldwide industrial shipping available

Professional FAQ

Why are protected digital outputs important in industrial automation?

Protected outputs reduce damage risks caused by electrical surges and inductive load switching.

How should engineers distribute loads across output groups?

Balance current demand between both channel groups to prevent thermal stress accumulation.

What field issue commonly affects digital output module lifespan?

Excessive inductive loads without proper suppression devices may increase output stress.

Surge suppression improves long-term reliability.

Why does fast switching response matter in process control systems?

Fast response timing improves synchronization between controllers and field actuators.

This enhances automation precision.

What should buyers verify before selecting a sourcing output module?

Confirm field device voltage requirements, load current demand, hazardous-area certifications, and cabinet installation method.
