TC-FOD161 Honeywell Protected Digital Output Module 16-Channel 24VDC

TC-FOD161 Protected 24VDC Digital Output Control Module

Honeywell TC-FOD161 delivers protected high-speed digital output control for industrial automation systems.

The module supports stable 24VDC sourcing output operation across demanding control environments.

TC-FOD161 combines fast switching performance with industrial-grade protection capability.

The architecture is optimized for field actuator control and distributed output management.

This module integrates efficiently into modern process automation infrastructures.

Industrial Output Control Advantages

• 16 protected digital sourcing output channels
• Single-group non-isolated output architecture
• Fast ON/OFF switching response capability
• Integrated surge current handling performance
• Industrial 24VDC field device compatibility
• High-current output support up to 500mA
• DIN-rail mounting structure
• Real-time channel activity indication

Technical Platform Specifications

• Brand: Honeywell
• Model: TC-FOD161
• Module Type: Protected Digital Output Module
• Output Channels: 16
• Output Grouping: 1 Group of 16 Channels
• Nominal Output Voltage: 24VDC
• Output Voltage Range: 19.2VDC to 31.2VDC
• Maximum Output Current: 500mA per channel
• Minimum Output Current: 1mA per channel
• OFF-State Voltage Drop: 0.5VDC Maximum
• Leakage Current: 0.5mA Maximum
• Surge Current: 1.5A for 50ms
• ON-State Delay: 0.5ms Maximum
• OFF-State Delay: 1.0ms Maximum
• Flexbus Current: 80mA Maximum
• Power Dissipation: 5W at 31.2VDC
• Thermal Dissipation: 17 BTU/hr
• Status Indicators: 16 Yellow LEDs
• Installation Method: DIN-Rail Mounted

Output Switching Performance

• Fast switching supports responsive field device control
• Stable sourcing outputs improve actuator reliability
• Designed for continuous industrial switching operation
• Supports industrial relay and solenoid activation
• Reliable output timing improves process stability

Protection and Electrical Reliability

• Integrated surge current tolerance improves durability
• 850VDC dielectric withstand testing enhances protection
• Stable operation under industrial electrical conditions
• Designed for long-term automation deployment
• Reliable low-leakage performance improves signal integrity

Operational Diagnostics Capability

• 16 yellow channel LEDs provide direct output visibility
• Fast status verification improves maintenance efficiency
• Real-time indication simplifies troubleshooting procedures
• Output monitoring improves commissioning accuracy
• Visual diagnostics support rapid field inspection

Compatible Equipment and System Integration

TC-FOD161 supports industrial automation systems requiring reliable digital output control.

• Honeywell industrial control systems
• Distributed process automation cabinets
• Industrial actuator control platforms
• Motor starter control systems
• Industrial valve control applications
• Conveyor automation systems
• Machine sequencing systems
• Plant-wide digital control infrastructure

Recommended Industrial Applications

• Industrial machine automation
• Process valve switching systems
• Distributed field output control
• Factory production sequencing
• Industrial alarm and indication systems
• Material handling automation
• Power distribution monitoring systems
• Industrial packaging equipment

Global PLC Spare HUB's Insight

Honeywell TC-FOD161 provides dependable digital output control for industrial automation applications.

The module performs effectively in systems requiring stable high-speed sourcing outputs.

Engineers commonly deploy this module for industrial actuators and process switching operations.

The protected output structure improves reliability in electrically demanding environments.

Its fast switching characteristics support responsive machine and process control architectures.

The DIN-rail mounting format simplifies integration into modern industrial cabinets.

Environmental and Mechanical Specifications

• Operating Temperature: 0°C to 55°C
• Storage Temperature: -40°C to 85°C
• Humidity Range: 5% to 95% Non-Condensing
• Shock Resistance: 30g Operating
• Vibration Rating: 5g at 10-500Hz
• Wire Capacity: 12 Gauge Maximum
• Terminal Torque: 4-7 Inch-Pounds
• Dimensions: 69 × 94 × 80 mm

Industrial Certifications

• Class I Division 2 Certified
• Class I Zone 2 Group IIC Certified
• Groups A, B, C, D Certified
• IEC 68-2-6 Vibration Tested

Engineering Installation Notes

• Verify field load current before output wiring
• Maintain proper DIN-rail grounding practices
• Separate output wiring from analog signal cables
• Inspect terminal torque during commissioning
• Confirm external power supply stability before startup

Package Contents

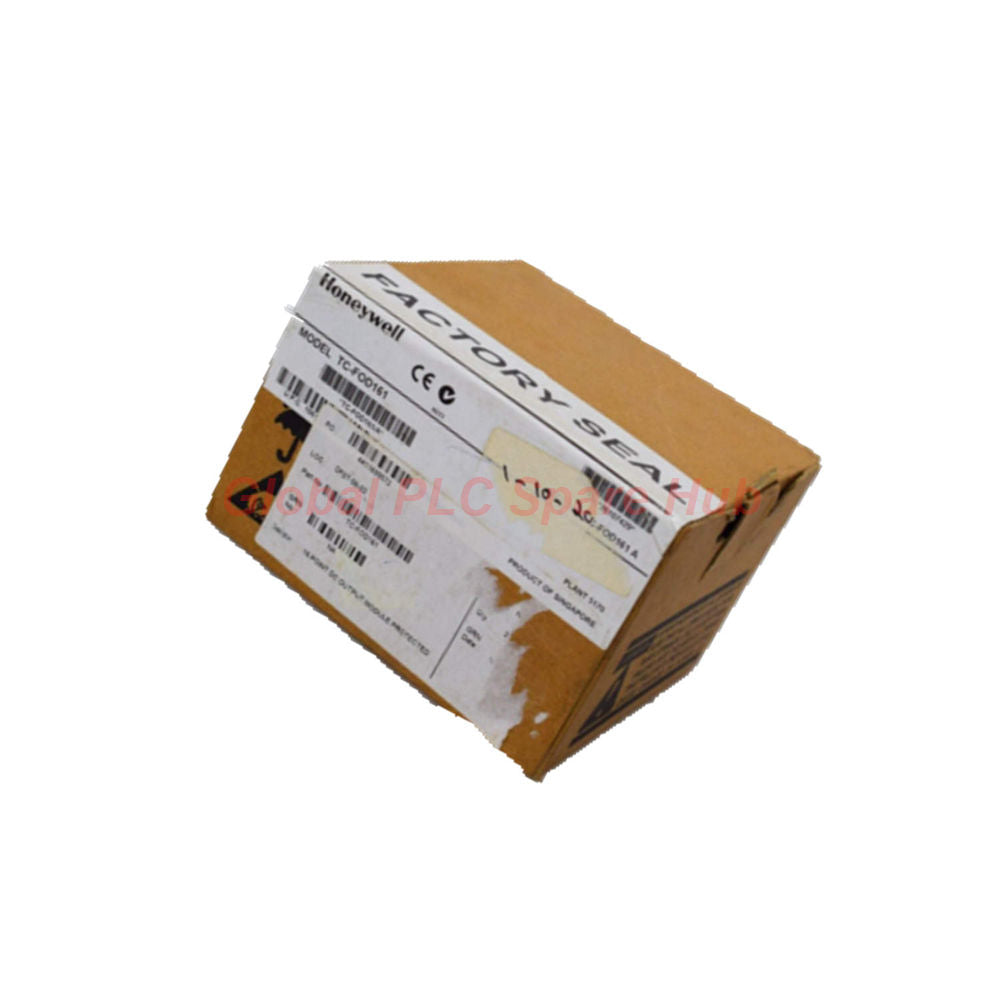

• 1 × TC-FOD161 Digital Output Module
• Industrial-grade protective packaging
• Inspection and identification labeling

Shipping and Warranty Service

• Fast dispatch within 24 to 48 hours
• Worldwide shipping support available
• FedEx, UPS, and DHL delivery services supported
• Protective export packaging included
• 12-month warranty coverage provided
• Technical support assistance available

Professional FAQ

• Why are protected digital outputs important in industrial automation?

  Protected outputs improve reliability during surge conditions and demanding switching operations.

• What field devices commonly connect to this module?

  Solenoids, relays, indicators, valves, and industrial contactors connect frequently.

• How can engineers improve digital output wiring reliability?

  Use proper grounding, correct conductor sizing, and separated routing for control wiring.

• What factors should buyers evaluate before selecting output modules?

  Verify channel quantity, current requirements, switching speed, and environmental compatibility.

• Why does fast switching response matter in automation systems?

  Fast response improves machine timing precision and overall process synchronization.
