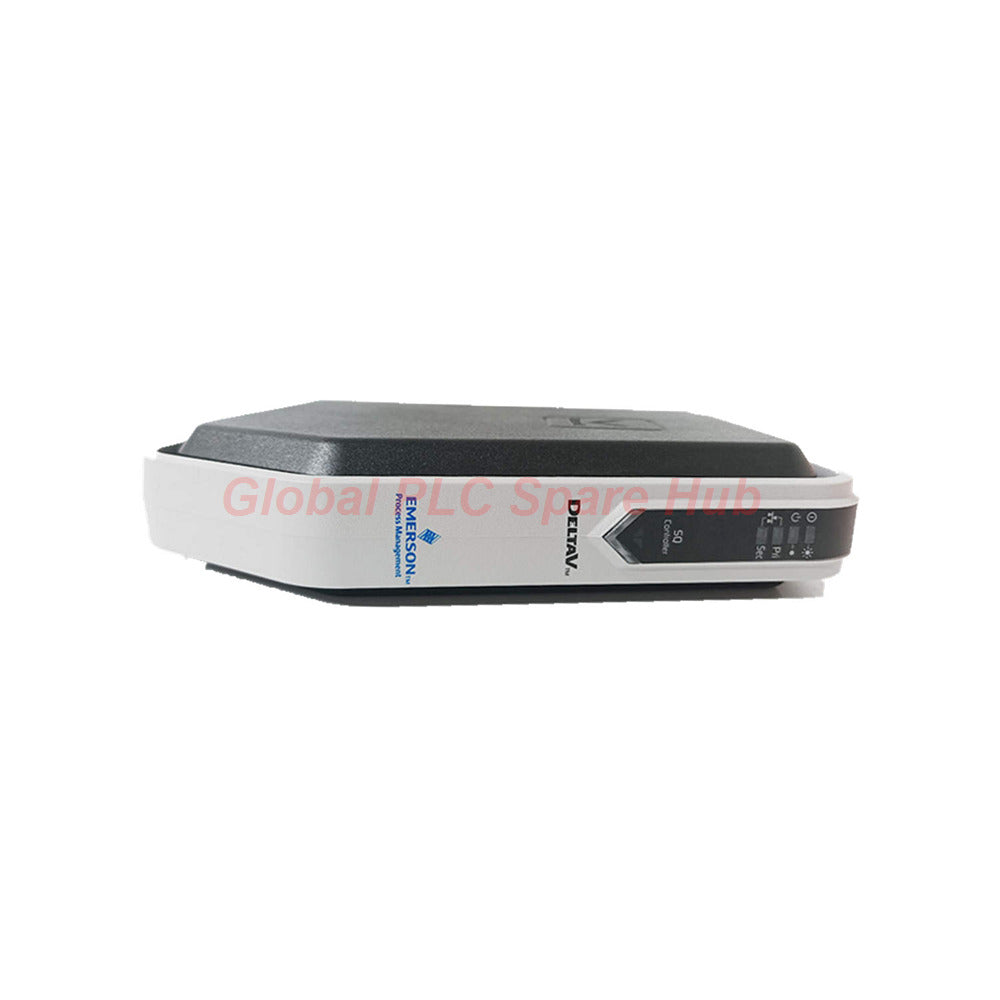

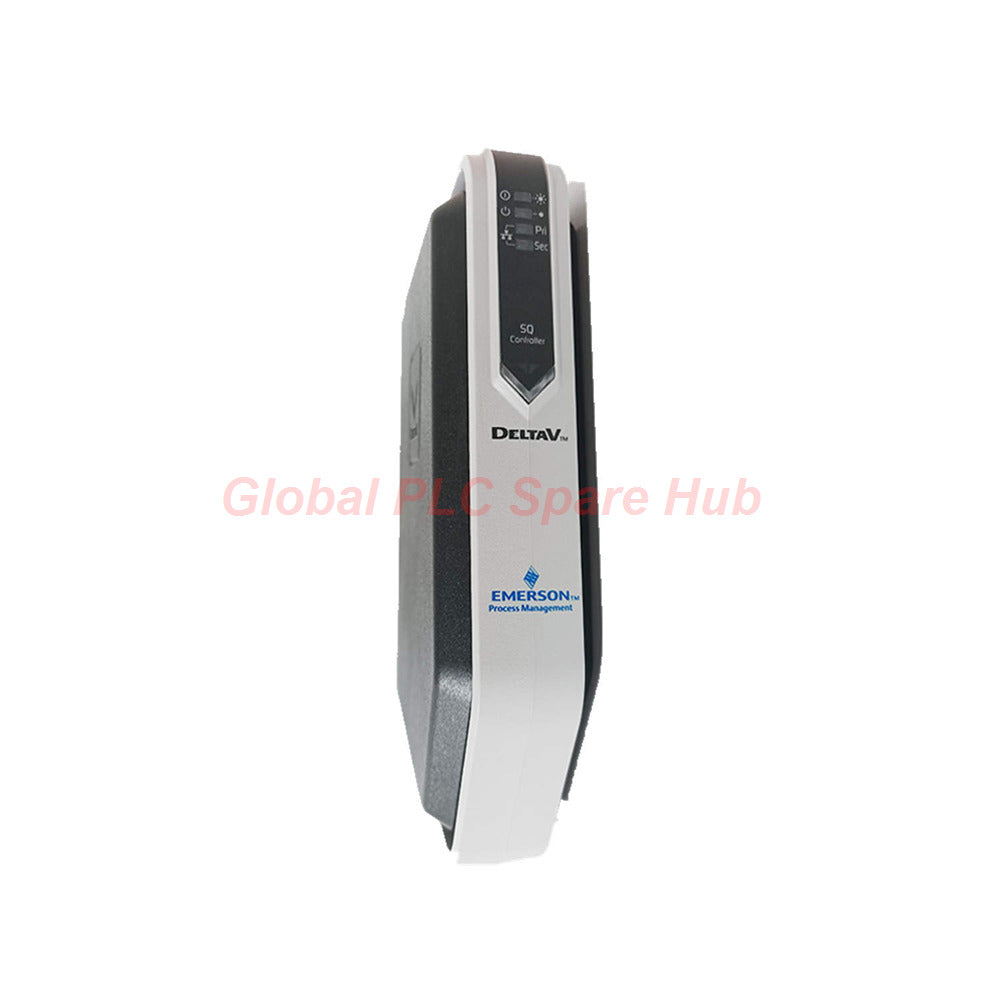

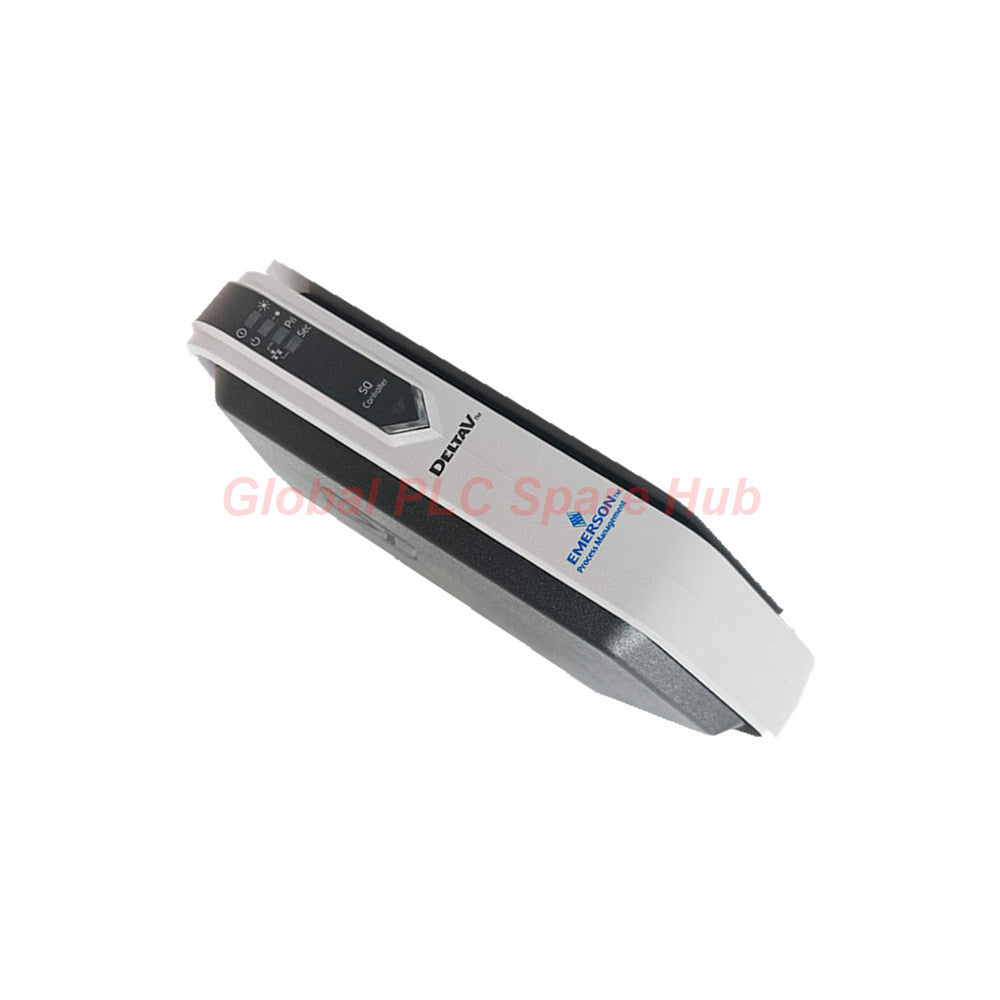

SS6501T01 Emerson DeltaV SIS CHARMs Smart Logic Solver Kit

Global PLC Spare HUB's Insight

The SS6501T01 is the definitive foundation for the DeltaV SIS (Safety Instrumented System) architecture, specifically engineered to provide SIL 3-capable logic solving. This comprehensive kit transitions your safety infrastructure from traditional, rigid wiring to the high-efficiency Electronic Marshalling environment. By consolidating the CSLS Carrier, dual Smart Logic Solvers, and redundant power modules into a single package, the SS6501T01 ensures that critical safety functions are executed with a 50ms update rate.

Global PLC Spare HUB Review

Technically, the SS6501T01 excels in field-mounted versatility. The inclusion of redundant Safety Network Ports (SNP) for twisted copper means this unit can be deployed in decentralized junction boxes up to 100 meters away from the primary control hub. For maintenance teams, the SS6501T01 eliminates the "single point of failure" anxiety; every component from the power rail to the communication bus is fully redundant. It is the gold standard for projects requiring rapid safety lifecycle management.

Professional Technical Specifications

• Brand: Emerson
• Model: SS6501T01
• Series: DeltaV SIS (Electronic Marshalling)
• Component Type: CHARMs Smart Logic Solver (CSLS) Kit
• I/O Capacity: Supports up to 96 individually configurable channels
• Logic Update Rate: High-speed 50ms execution
• Input Power: Redundant +24V DC ± 10% at 12.5 A maximum
• Communication: Dual 10/100BASE-TX RJ45 Copper Ethernet via SNP
• Safety Integrity: SIL 3-capable logic processing per solver
• Temperature/Thermal: Max 18 Watts heat dissipation per carrier
• Mounting: Vertical orientated T-type DIN rail
• Internal Protection: Integrated non-replaceable safety fuses

Diagnostic & Status Monitoring

• Intelligent HART Integration: Native pass-through of field device diagnostics into the logic.
• Visual Interface: Dedicated LED array for Power (Green), Error (Red), and Active/Standby status.
• Network Verification: Yellow flashing indicators for Primary and Secondary network integrity.
• Auto-Addressing: Automatic network coordinate assignment during commissioning.

Target Applications & Hardware Compatibility

• Emergency Shutdown (ESD): Critical for high-reliability shutdown loops in refineries.
• Fire & Gas (F&G) Systems: Scalable monitoring for expansive industrial facilities.
• Burner Management (BMS): Precision logic for boiler and furnace safety control.
• Compatible Equipment: Pairs with SZ Controllers, LS CHARMs, and IS LS CHARMs.

Package Inventory

• 1 x CSLS Carrier
• 2 x CHARMs Smart Logic Solvers (CSLS)
• 2 x Power Modules
• 2 x Safety Network Ports (SNP) for twisted copper
• 2 x Power Plugs

Commercial Terms & Shipping

• Warranty Period: Full 12-month comprehensive warranty.
• Shipping Logistics: Daily dispatch via FedEx, UPS, and DHL.
• Handling Time: Guaranteed shipment within 24-48 hours for in-stock units.

Professional FAQ & Selection Guide

How does the SS6501T01 simplify the Safety Lifecycle compared to traditional logic solvers?

The SS6501T01 utilizes Electronic Marshalling, which decouples the physical wiring from the logic assignment. This allows you to land field cables on any terminal and configure the logic in software later, drastically reducing the impact of late-project I/O changes.

Is the power distribution for the CHARMs handled by the SS6501T01 carrier itself?

Yes. The carrier provides +6.3V DC for standard LS CHARMs and +24V DC for IS LS CHARMs. This integrated distribution eliminates the need for separate external power rails for your safety I/O modules.

Can I run the SS6501T01 in a simplex configuration if my current safety budget is limited?

While the SS6501T01 kit includes redundant solvers, the carrier hardware supports simplex operation. However, for SIL 3 applications, the redundant pair is highly recommended to ensure maximum availability.

Selection Guide: What are the distance limitations for the Safety Network Ports in this kit?

This specific kit includes copper SNP modules, which are rated for a maximum distance of 100 meters. If your field junction box exceeds this distance, you should consult us about fiber-optic SNP alternatives.

Expert Tip: What is the most common error during the installation of the CSLS carrier?

In our experience, ensuring the T-type DIN rail is vertically oriented is crucial for thermal management. The 18W heat dissipation relies on natural convection flow; horizontal mounting can lead to localized hotspots and failure of the internal fuses.
