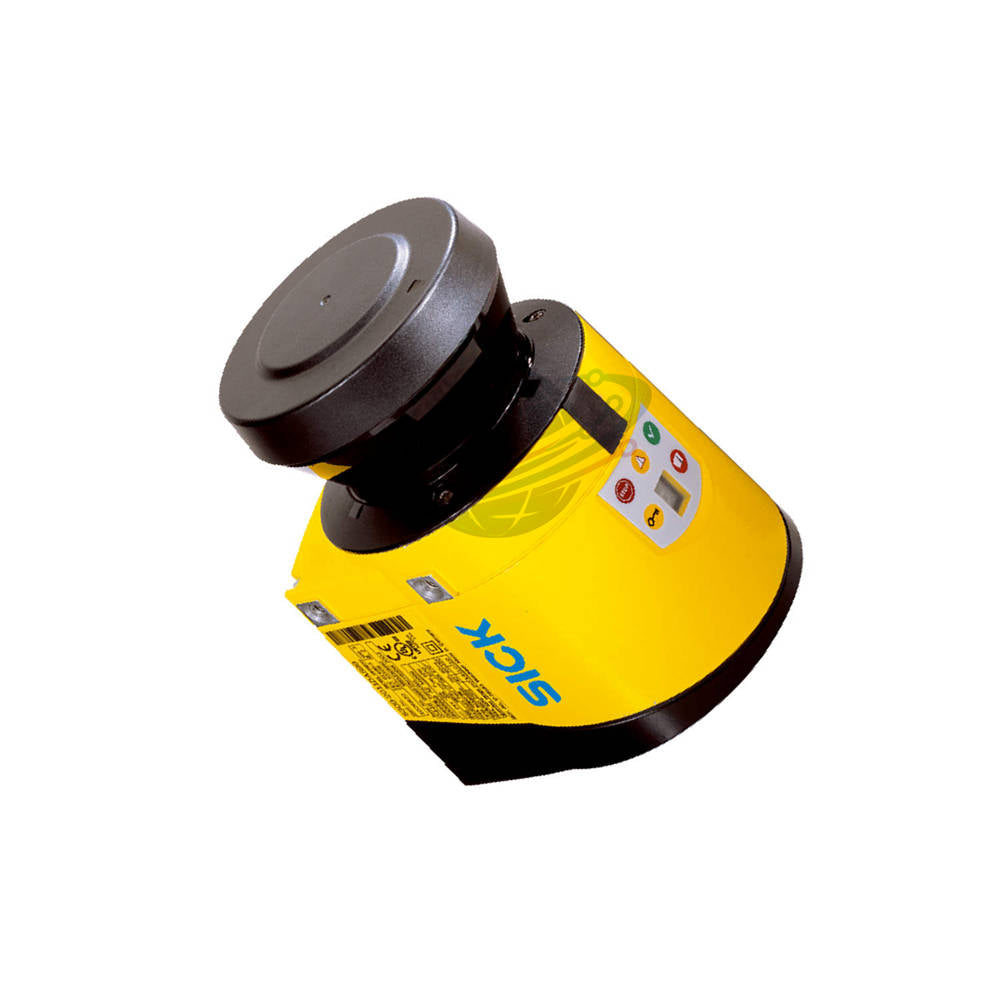

SICK S30B-3011GB Safety Scanner S300 Expert 3m Protective Field

Product Overview

• The SICK S30B-3011GB belongs to the renowned S300 Expert series of safety laser scanners.
• This compact sensor provides reliable horizontal and vertical area monitoring for industrial environments.
• It offers a wide 270-degree scanning angle for comprehensive coverage of hazardous zones.
• Engineering teams utilize the S30B-3011GB for complex safety tasks requiring up to 32 monitoring cases.
• The S300 Expert ensures high operational uptime with advanced diagnostic and safe communication features.

Technical Specifications

• Brand: SICK
• Model: S30B-3011GB
• Series: S300 Expert
• Measurement Range: 3m protective field and 8m warning field range.
• Frequency & Response: Rapid 80ms response time for immediate safety triggering.
• Resolution: Configurable levels of 30mm, 40mm, 50mm, 70mm, and 150mm for versatile detection.
• Linearity & Accuracy: High-precision pulsed laser diode with 0.5-degree angular resolution.
• Temperature Range: Reliable performance from -10 °C to +50 °C.
• Environmental Tolerance: IP65 enclosure rating protects against dust and high-pressure water jets.
• Anti-Interference: Robust design resists vibrations and shocks according to IEC 61496-3 standards.

Global PLC Spare HUB's Insight

• The SICK S30B-3011GB excels in modularity through its unique system plug design.
• It supports EFI (Enhanced Function Interface) for safe communication between multiple SICK devices.
• This S300 Expert model is ideal for dynamic applications like Automated Guided Vehicles (AGVs).
• Users can store configuration data directly in the plug for rapid device replacement.
• The S30B-3011GB integrates seamlessly with Flexi Soft safety controllers for complex logic.

Installation and Maintenance

• Mount the S30B-3011GB using the integrated M12 5-Pin male connector for secure wiring.
• Ensure the optical cover remains free of scratches to maintain the 30m measuring range.
• Configure the S300 Expert using SICK CDS software via the RS-232 interface.
• The 270-degree scan window allows for flexible corner mounting in tight factory spaces.
• Regularly check the status of the OSSD pairs during routine safety inspections.

Typical Applications and Device Compatibility

• Collision avoidance for Automated Guided Vehicles (AGVs) and mobile platforms.
• Hazardous area protection for robotic cells and automated assembly lines.
• Entry detection for palletizing systems and high-speed material handling equipment.
• Compatible with SICK incremental encoders for speed-dependent protective field switching.

Certifications and Compliance

• Safety Integrity Level: SIL 2 (IEC 61508)
• Category: Category 3 (EN ISO 13849)
• Performance Level: PL d (EN ISO 13849)
• Laser Class: Class 1 eye-safe pulsed laser (21 CFR 1040.10).

Shipping and Warranty Terms

• Dispatch: Guaranteed shipment within 24-48 hours of order confirmation.
• Express Couriers: Fast delivery via FedEx, UPS, and DHL.
• Warranty: Comprehensive 12-month warranty coverage on all units.
• Package List: Includes SICK S30B-3011GB sensor head and technical safety documentation.

Selection Guide & FAQ

• Question: How do I choose between the S300 Standard and the S300 Expert?
• Answer: The S300 Expert supports 32 monitoring cases while the Standard supports only 1. Select the S30B-3011GB for complex path planning and multi-sensor networking.

• Question: Can I replace the sensor without a computer?
• Answer: Yes, the integrated configuration memory in the system plug stores all settings. Simply move the plug to the new S30B-3011GB unit for instant setup.

• Question: What cable length is supported for EFI communication?
• Answer: The S300 Expert supports a cable length of up to 50m for safe device communication.
