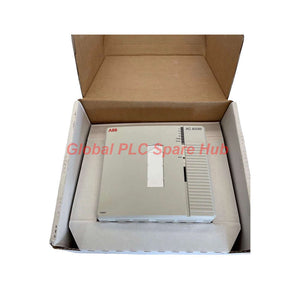

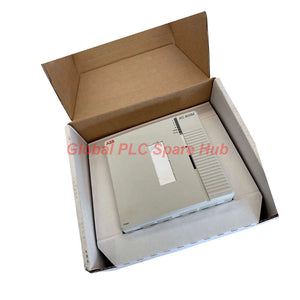

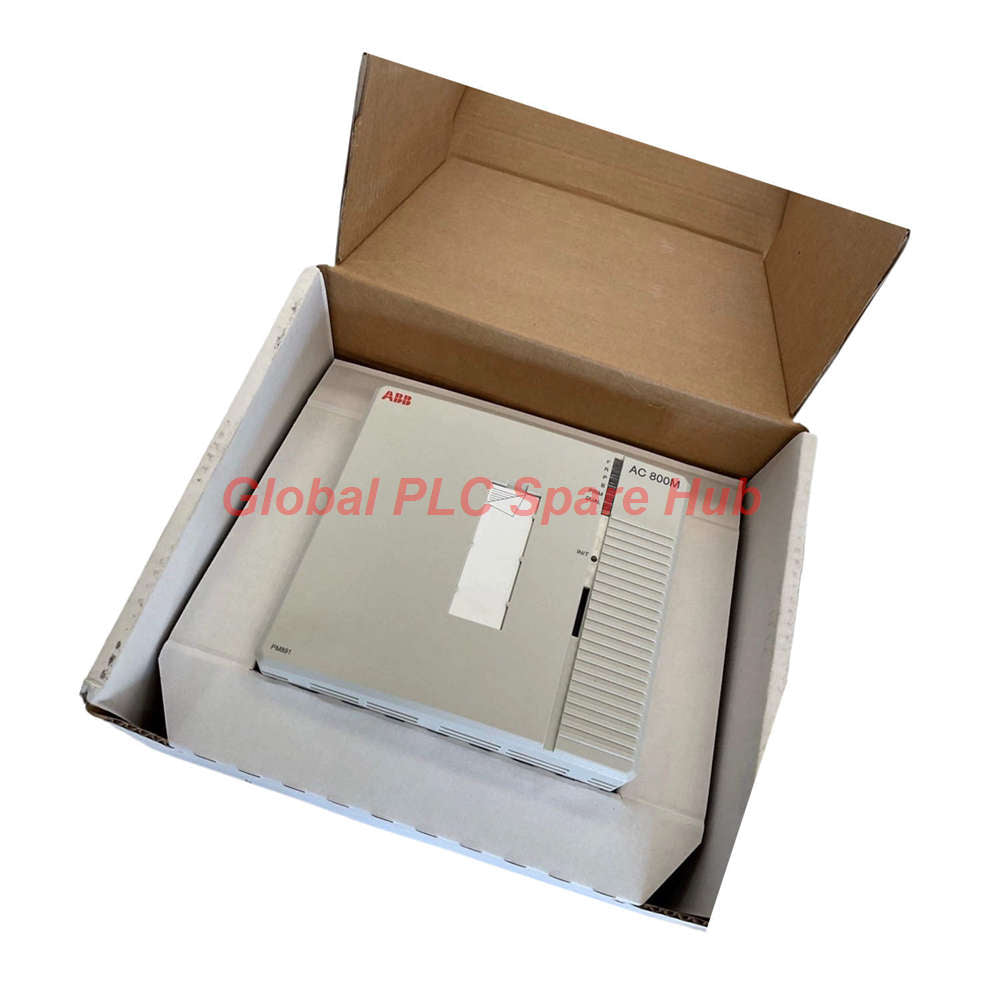

PM891K01 3BSE053241R1 ABB 800xA 6.0.2 High-Performance Controller

Product Overview

The PM891K01 (Article 3BSE053241R1) is the premier high-performance processor unit within the ABB AC 800M controller family. Built on the MPC8270 processor architecture, it delivers a clock frequency of 450 MHz and a remarkable execution speed of 0.043 ms per 1000 boolean operations. This unit is specifically optimized for large-scale industrial applications requiring high memory capacity and G3-compliant corrosion protection.

Technical Architecture & Performance Tree

• Core Processor System
  • Model: PM891K01
  • Part Number: 3BSE053241R1
  • Processor Type: Motorola MPC8270 (450 MHz)
  • Execution Performance: 0.043 ms (Boolean) / Down to 1 ms cycle times
• Memory Allocation
  • Total RAM: 256 MB (208.985 MB available for applications)
  • Flash PROM: 16 MB for firmware; includes flash storage for application backup
• Power & Thermal Dynamics
  • Supply Voltage: 24 V DC (19.2 to 30 V DC range)
  • Power Consumption: 660 mA typical / 750 mA maximum
  • Heat Dissipation: 15.8 W (Typical) to 18 W (Maximum)
• Communication & I/O Connectivity
  • Ethernet Channels: 2 Ports (10/100 Mbit/s) supporting MMS and IAC protocols
  • CEX Bus Support: Up to 12 communication modules (2.4 A max supply)
  • Modulebus Capacity: 84 modules maximum (7 optical clusters)
  • Service Interface: RS-232C (COM4) via RJ-45 female connector

Installation & Environmental Resilience

• Form Factor: Integrated mounting base measuring 186mm x 174mm x 94mm.
• Chemical Protection: ISA 71.04 G3 compliant for harsh, corrosive atmospheres.
• Operational Altitude: Certified for use up to 2000 meters (6562 ft).
• Ingress Protection: IP20 rating according to EN 60529/IEC 529 standards.
• Marine Ready: Certified by ABS, BV, DNV-GL, and Lloyd's Register (LR).

Global PLC Spare HUB's Insight

The PM891K01 remains the "heavy lifter" for modern AC 800M architectures. In our technical assessment, the significant jump to 256MB of memory makes it the superior choice for handling complex diagrams and large event queues (up to 3000 events per OPC client). Unlike the PM866, the 3BSE053241R1 provides a much higher I/O scan rate efficiency. It is important to note that this kit includes the TB850 and TB853 terminators, which are mechanical necessities for the CEX and RCU links. For users migrating from older v5 systems, ensure your license base supports 800xA 6.0.2 before commissioning.

Diagnostic Capabilities & System Health

• Real-Time Clock (RTC): High stability (50 ppm) ensures precise time-stamping of alarms.
• Redundant Power Monitoring: Includes status inputs for dual power supply configurations.
• Cycle Time Monitoring: Supports down to 1 ms application cycles with integrated task diagnostics.
• Clock Sync: CNCP protocol maintains 1 ms synchronization between distributed AC 800M controllers.

Typical Application Scenarios

• Large-scale DCS (Distributed Control System) backbone for 800xA systems.
• High-speed manufacturing requiring sub-5ms task execution cycles.
• Offshore and Marine vessels due to extensive G3 and marine certifications.
• Complex process industries including Oil & Gas and Power Generation plants.

Shipping & Warranty Fulfillment

• Warranty: 12-month professional factory warranty coverage.
• Package Contents: PM891 CPU, TB850 CEX Terminator, and TB853 RCU Terminator.
• Dispatch: Global shipping within 24-48 hours from order confirmation.
• Express Logistics: Priority delivery via FedEx, UPS, and DHL.

Professional FAQ & Selection Guide

Does the PM891K01 support internal hardware redundancy?

The PM891K01 (3BSE053241R1) is a non-redundant unit. For high-availability requirements, evaluate the specific redundant kit variants in the AC 800M catalog.

What is the primary firmware constraint for the PM891 series?

The PM891K01 will not function on 800xA versions older than 6.0.2; ensure your system software is upgraded before hardware replacement.

How do I handle application storage without a built-in battery?

The 3BSE053241R1 utilizes high-speed Flash PROM for firmware and application storage, removing the need for traditional battery maintenance cycles.

Is the 3BSE053241R1 suitable for SIL-rated safety functions?

No, this model is a standard processor. For safety-critical applications, look for "High Integrity" (HI) versions with TUV certification.

What is the best practice for CEX-bus termination?

Always install the included TB850 terminator at the physical end of your CEX-bus module chain to prevent signal reflection and communication errors.
